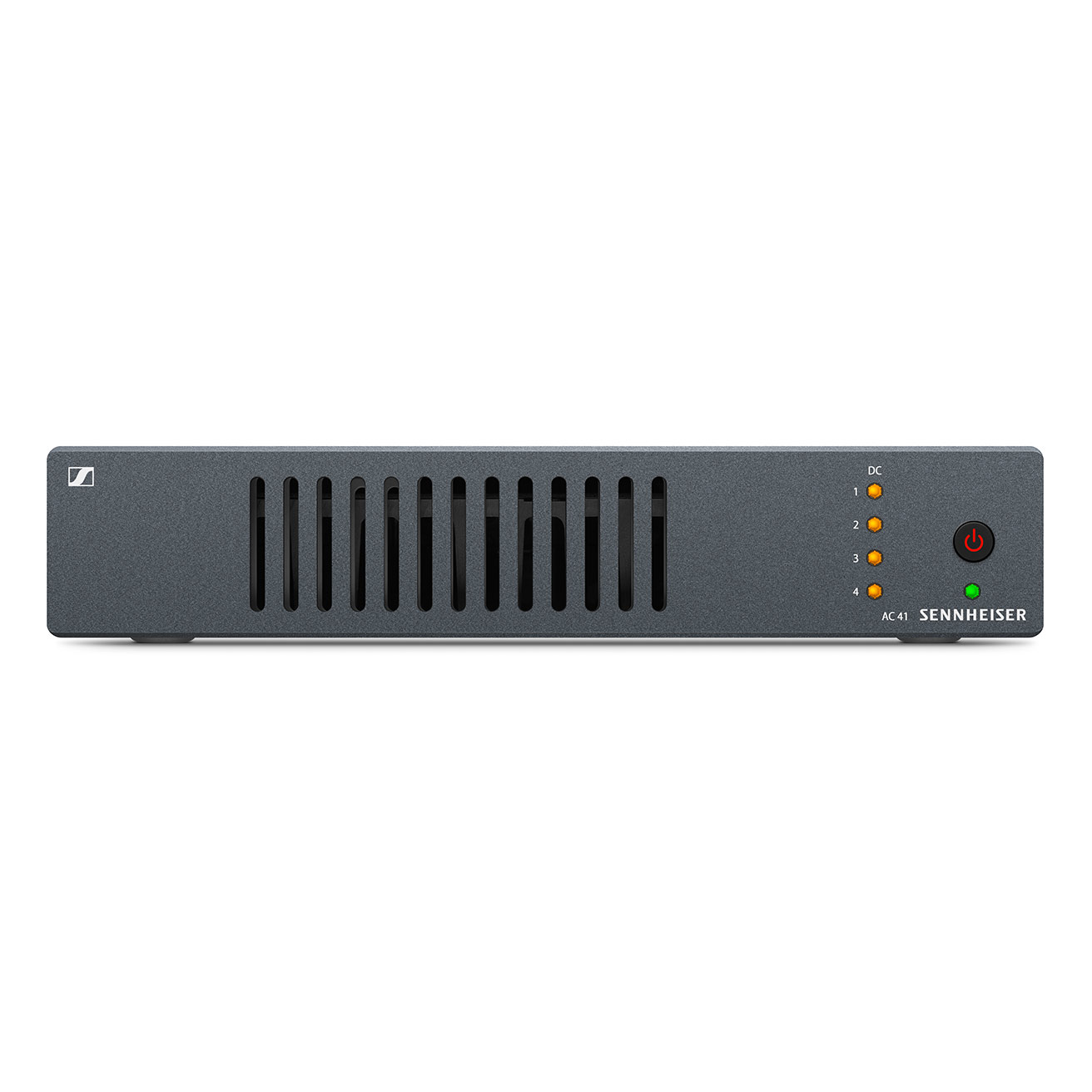

The AC 41 is an active antenna combiner for evolution wireless G4 systems. It operates up to four wireless stereo transmitters (SR IEM G4) from a single shared antenna, and powers those transmitters over the BNC cables via the included NT 3-1 supply – removing the need for separate power units. Compatible with ew G4 and ew G3 systems.
Features
- Up to 4 wireless stereo transmitters using one antenna

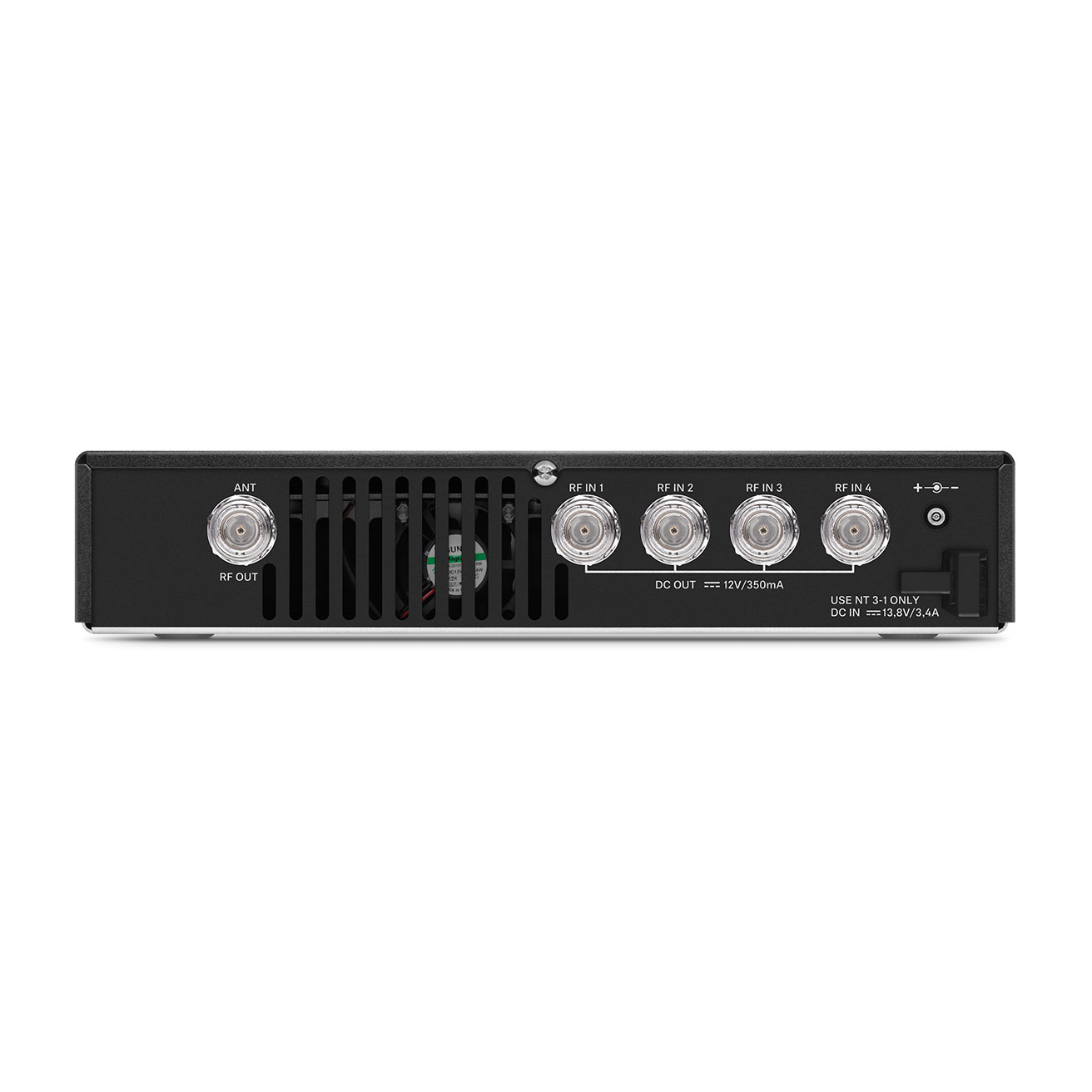

- Power supply via BNC cables – no extra PSUs needed for SR IEM G4
- Compatible with ew G4 and ew G3 systems
Specifications
- Frequency ranges: 470-870 MHz (EU/UK); 470-608 MHz (US)
- Transmission loss: 0 dB (+/-1 dB)
- RF input power: max. 30 mW per input
- Impedance: 50 Ohm
- Power supply: 13.8 V DC (NT 3-1 included)
- Total power consumption: max. 3.4 A
- Temperature range (operation): -10 to +55 C
- Dimensions: approx. 212 x 168 x 43 mm
- Weight: approx. 1470 g
What’s in the box
- (1) AC 41 Antenna combiner
- (1) NT 3-1 Power supply
- (4) BNC Connectors
- (1) Quick guide
- (1) Safety guide
