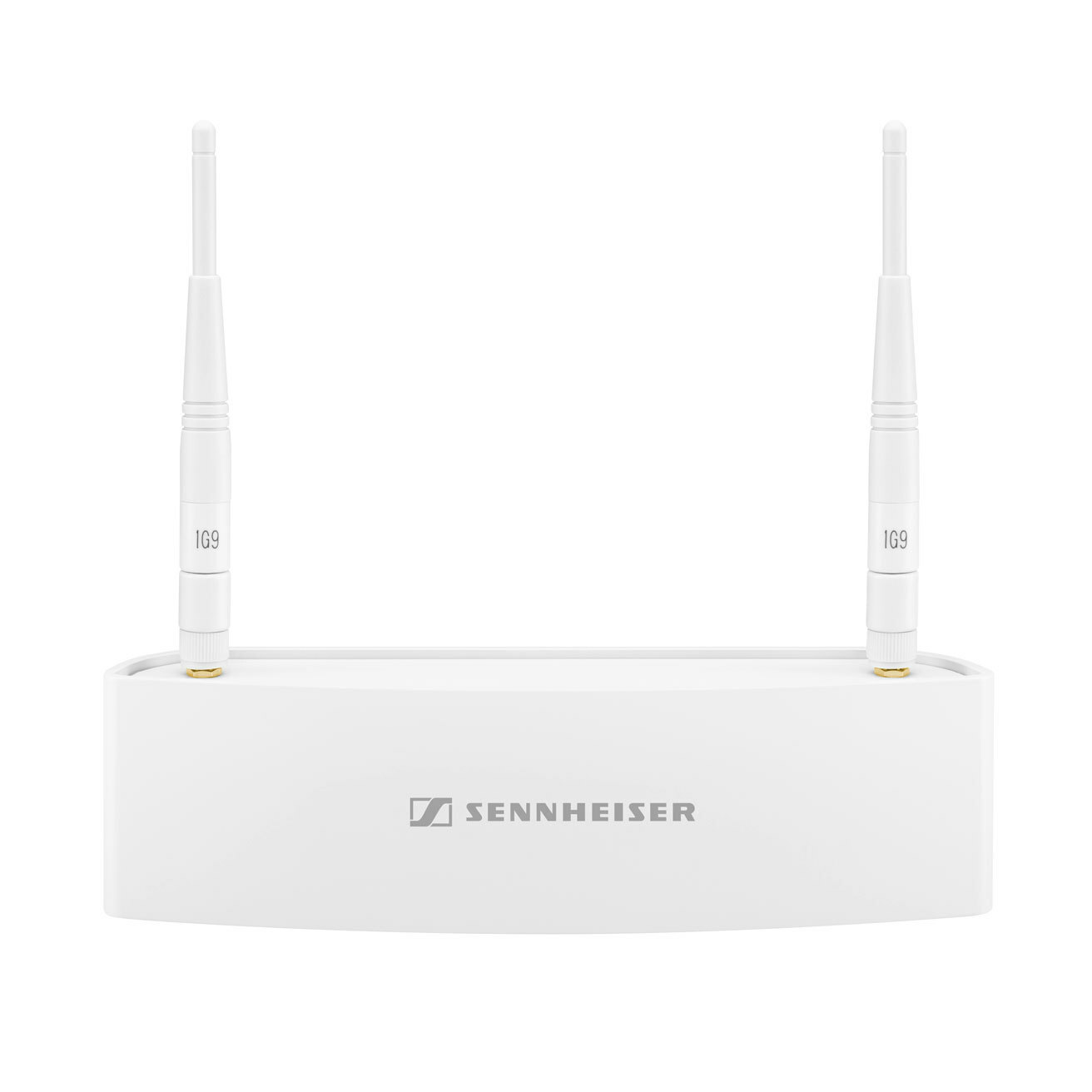

The AWM 2 and AWM 4 are wallmount antennas for SpeechLine Digital Wireless, tuned to the 1.9 GHz range. Their rugged white metal housing installs almost invisibly on a wall or mic-tripod, letting the stationary receiver be positioned discreetly or further away. Integrated R-SMA sockets allow direct connection of the antenna cables, minimising installation effort.
Features
- Unobtrusive antenna wall or tripod mounting
- Robust white metal housing
- Tuned to the 1.9 GHz range
- AWM 2: two rod antennas / AWM 4: four rod antennas
- 3/8″ thread for tripod plus rear wall-mount holes
- Integrated R-SMA sockets for direct cable connection
Specifications
- Frequency range: 1.9 GHz (SpeechLine Digital Wireless)
- Connections: R-SMA sockets
- Mounting: 3/8″ internal thread + wall-mount holes
- Dimensions (W x D x H): 225 x 53 x 60 mm
- Weight: approx. 669 g
- Colour: white
What’s in the box
- (1) AWM 2 MK II Wallmount antenna
- (1) Wall mount adapter
- (1) Drilling template
- (1) Quick guide
- (1) Safety guide
