The XSW IEM EK is a lightweight in-ear monitoring bodypack stereo receiver, part of the XS Wireless IEM series. Additional receivers can be linked to one transmitter to connect more band members. The bodypack stays unnoticed once clipped on, plugs into the included IE 4 headphones (or the IE PRO series via the 3.5 mm output), and its backlit front panel gives access to balance, focus modes, EQ and limiter for an individual mix.
Features
- UHF bodypack receiver to expand existing XS Wireless IEM setups

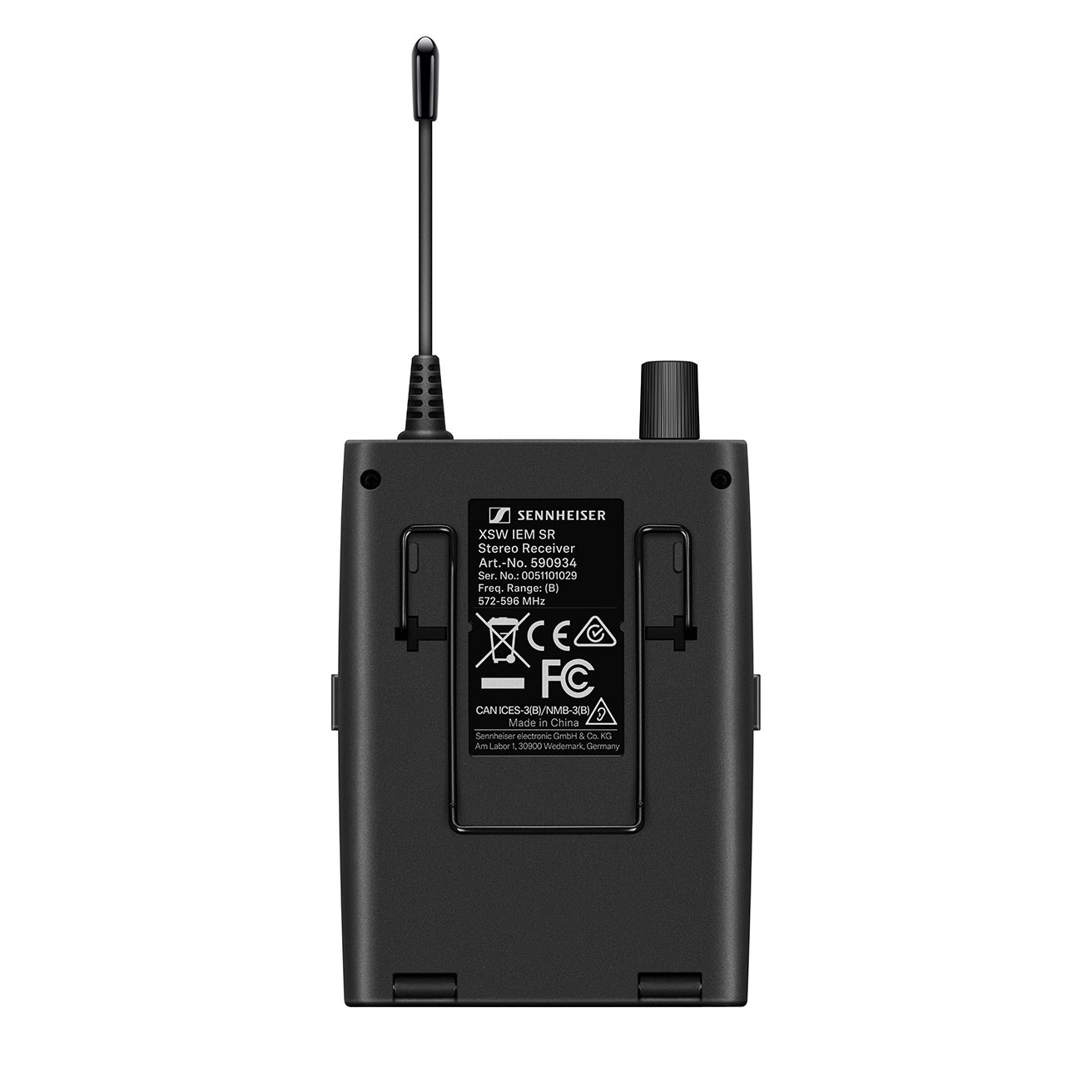

- Lightweight bodypack with rear clamp and stage-proof control panel
- 3.5 mm jack for the supplied IE 4 headphones or optional in-ear sets
- Backlit front panel and status LED for battery and link status
- Sound settings: focus modes, volume, limiter and EQ
- Pan control for individual channel balance
- Operates on 2x AA batteries
Specifications
- Modulation: wideband FM
- Switching bandwidth: up to 24 MHz
- AF frequency response: 45 – 15,000 Hz
- Signal-to-noise ratio: >= 88 dB
- THD: <= 1 %
- AF output (3.5 mm): 2 x 1.25 Veff at 16 Ohm
- High boost (EQ): +10 dB at 13 kHz
- Power supply: 2x AA batteries
- Operating time: approx. 6 h
- Dimensions: approx. 95 x 70 x 26 mm
- Weight (incl. batteries): approx. 110 g
- Included IE 4 earphones: 40 – 20,000 Hz, 6 Ohm, 106 dB SPL
What’s in the box
- (1) XSW IEM EK Stereo receiver
- (1) IE 4 In-ear headphones
- (2) AA Batteries
- (1) Quick guide
- (1) Safety guide
- (1) Compliance sheet
- (1) Frequency table
