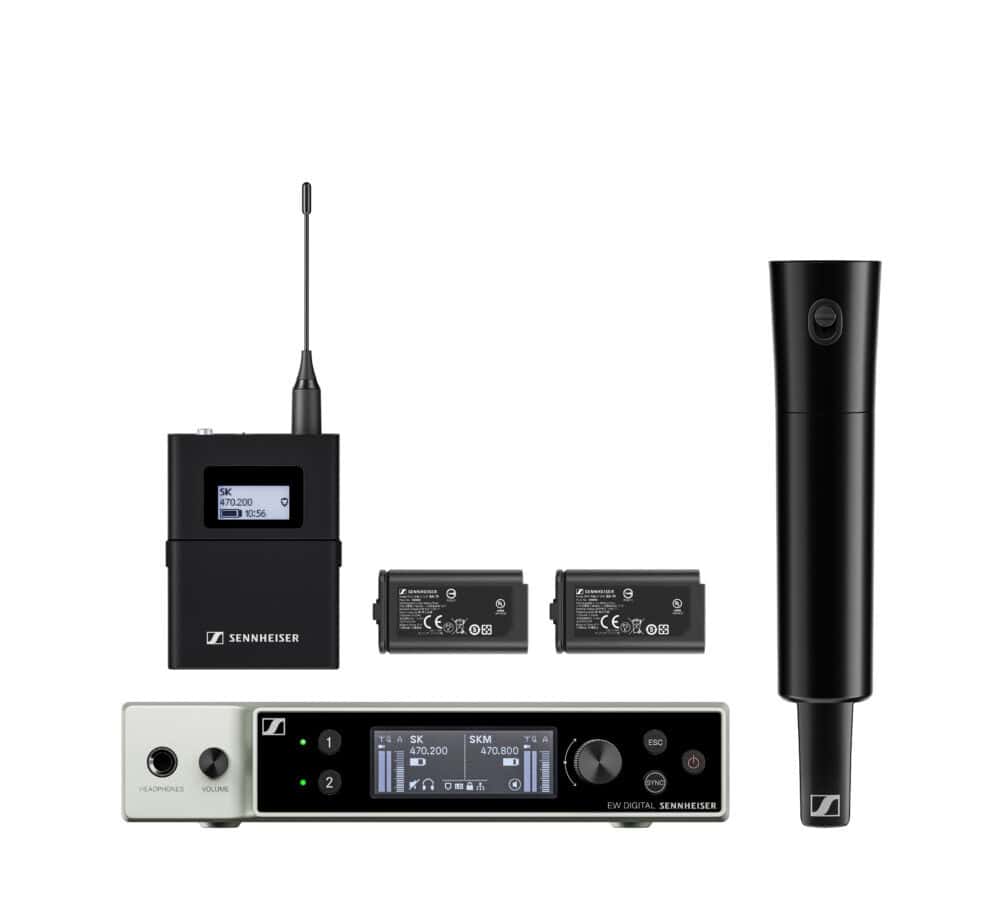

Digital wireless base set. Includes (1) EW-DX EM 2 receiver, (1) EW-DK SKM-S transmitter, (1) EW-DX bodypack transmitter and (2) BA 70 batteries, frequency range: Q1-9 (470.2 – 550 MHz)
Features
- Digital wireless transmission in the UHF spectrum with up to 88 MHz switching bandwidth
- Equidistant channel spacing: 146 channels in standard mode, 293 channels in Link Density Mode
- Secure AES 256 encryption
- Network enabled for control via Sennheiser Control Cockpit or media control systems
- Ethernet connectivity (IPv4 and IPv6)
- Transmitters deliver 10 mW RF power with up to 100 m / 328 ft working range
- Persistent eInk display on transmitters — parameters visible even when the device is powered off
- Extended runtime with lithium-ion batteries — up to 12 hours of operation
- Standard capsule interface compatible with a wide range of Sennheiser and Neumann capsules
Specifications
- Audio frequency response: 20 Hz – 20 kHz (-3 dB) @ 3 dBfs
- Audio THD: ≤ -60 dB for 1 kHz @ -3 dBfs input level
- Dynamic range: 134 dB
- System latency: 1.9 ms
- Switching bandwidth: up to 88 MHz
- Encryption: AES 256
- Bluetooth Low Energy frequency range: 2402 – 2480 MHz
- Operating temperature: -10 °C – +55 °C (14 °F – 131 °F)
- Relative humidity: 5 – 95 % (non-condensing)
What’s in the box

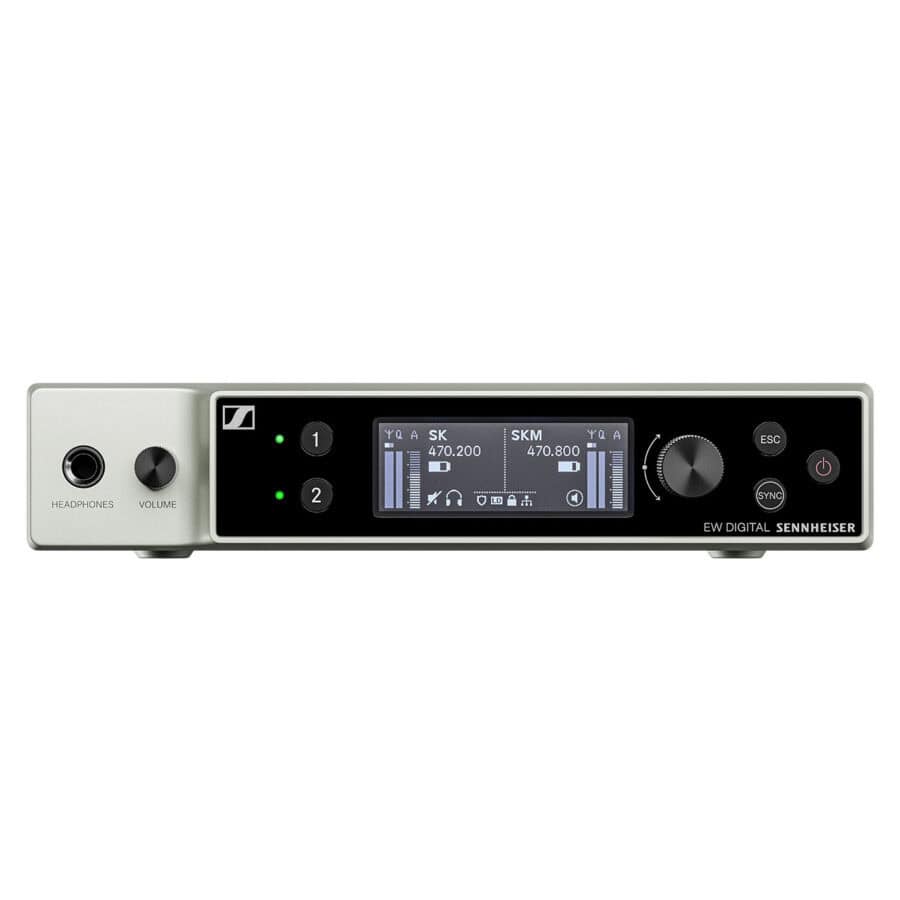

- (1) EW-DX EM 2 Rack receiver

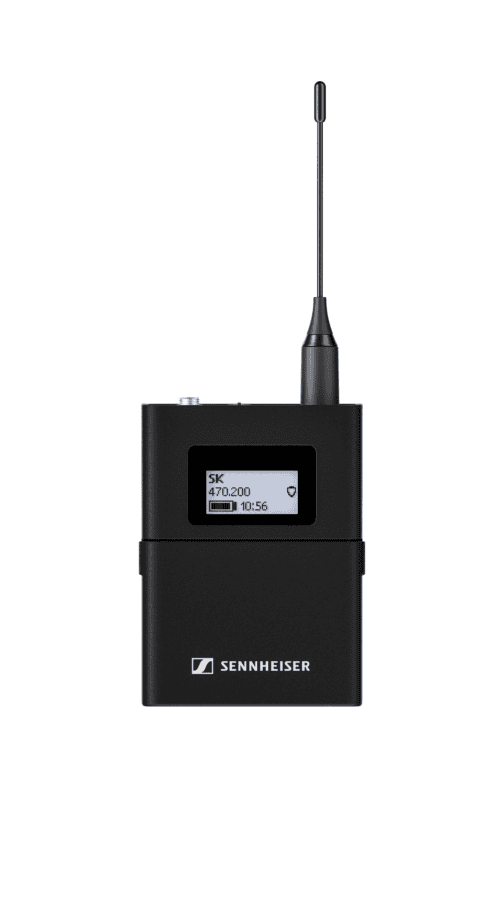

- (1) EW-DX SK Bodypack transmitter
- (1) EW-DX SKM-S Handheld transmitter (capsule sold separately)
- (1) EW-D Power supply with country adapters
- (1) BA 70 Rechargeable lithium ion battery
- (2) AA Battery
- (1) MZQ 1 Microphone clip
- (2) Rod antennas
- (1) GA 3 Rackmount kit
- (4) Rubber feet
- (1) Quick guide
- (1) Manufacturer declaration sheet
