Blueshape

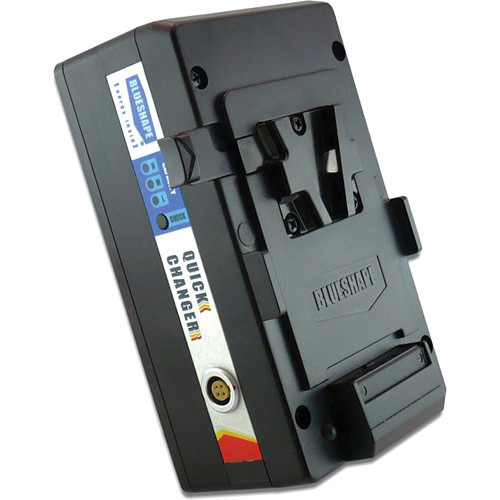

Hot swap quickchanger of batteries and UPS safety system with 21W of energy reserve specific for ARRI

BLUESHAPE’s V-Mount Hot Swap Adapter for ALEXA provides 10-15 mins of power to your ARRI ALEXA camera whenever you swap batteries.

608,00 (ex. VAT)

SKU: MVQUICK AL Categories: , ,

BLUESHAPE’s V-Mount Hot Swap Adapter for ALEXA provides 10-15 mins of power to your ARRI ALEXA camera whenever you swap batteries. Featuring a mounting pattern for installation on the back of the ALEXA on one side, and a V-mount battery interface on the other, it’s designed to sandwich in between the camera and V-mount battery and stay attached at all times. A spring-loaded connector on the back side provides a power and data connection to the camera. Also featuring a P-Tap port, the adapter altogether allows for uninterrupted power to the camera and an essential accessory.

As soon as a new battery is attached, the adapter automatically recharges itself and then stays ready for your next swap. An AC/DC charging unit is also included for standalone charging.

The adapter also supports data communication from attached batteries to your camera for all batteries with the BLUESHAPE protocol.

Additional information

Brand

BLUESHAPE BLS-MVQUICK AL Specs

Power

Capacity (Wh) 21 Wh
Maximum Load 10 A
Output Voltage 10.8 to 16.8 VDC

General

Connectors 1 x D-Tap
Plate Front / Battery Mount V-Mount
Plate Rear Mount Proprietary Battery Plate
Indicator LED
Dimensions 5.6 x 3.3 x 2.2″ / 14 x 8 x 5.6 cm
Weight 1.21 lb / 548 g

Packaging Info

Package Weight 3.02 lb
Box Dimensions (LxWxH) 12.5 x 7.75 x 3.5″
