NewBlackmagic Design

Blackmagic Pocket Cinema Camera 6K G2

The Pocket Cinema Camera 6K G2 is the latest compact Super35 camera to join the Blackmagic Design series. This cine-style camera features the same 6K S35 sensor, recording features, dynamic range, interface ports, and controls as the 6K Pro but pares a few features to create a more affordable form. Features inherited from the 6K Pro include a 5″ tilting touchscreen LCD, Pro EVF and battery grip options, dual mini-XLR audio inputs, an NP-F570 L-series battery slot, and the updated Gen 5 color science. By eliminating the internal ND filters and reducing the 1500cd/m² LCD brightness of the 6K Pro, Blackmagic now enables users to choose between two near identical 6K models as best suits their priorities.

1.829,00 (ex. VAT)

SKU: CINECAMPOCHDEF6K2 Categories: , ,

The Pocket Cinema Camera 6K G2 is the latest compact Super35 camera to join the Blackmagic Design series. This cine-style camera features the same 6K S35 sensor, recording features, dynamic range, interface ports, and controls as the 6K Pro but pares a few features to create a more affordable form. Features inherited from the 6K Pro include a 5″ tilting touchscreen LCD, Pro EVF and battery grip options, dual mini-XLR audio inputs, an NP-F570 L-series battery slot, and the updated Gen 5 color science. By eliminating the internal ND filters and reducing the 1500cd/m² LCD brightness of the 6K Pro, Blackmagic now enables users to choose between two near identical 6K models as best suits their priorities.

The Blackmagic Design 6K G2 camera comes with a DaVinci Resolve Studio activation key plus a 30W power supply, offering simultaneous battery charging, an NP-F570 battery, a lens port cap, and a camera strap.

Firmware Update 7.9

Firmware upgrade 7.9 features include:

  • A new focus-assist intensity adjustment slider
  • The ability to select between SD and SSD media on the LCD screen itself
  • Frame guide color adjustment
  • Improved lens control and autofocus features
  • Adds support for focus and zoom demands—no longer just for studio cameras
  • Gyro sensor information can be recorded into data and DaVinci Pro can use the gyro data to stabilize the footage

Super35 Image Sensor/Dual Native ISO

The Pocket Cinema Camera 6K G2 camera uses a Super35 size sensor, 13 stops of dynamic range, and a dual native 400/3200 ISO up to 25,600 to capture rich images at resolutions up to 6144 x 3456 up to 60 fps

Gen 5 Color

The 6K G2 uses the same advanced Gen 5 color science as the 6K Pro and URSA Mini Pro 12K cameras, making it easy to intercut 6K Pro, 6K, and BMPCC 4K footage.

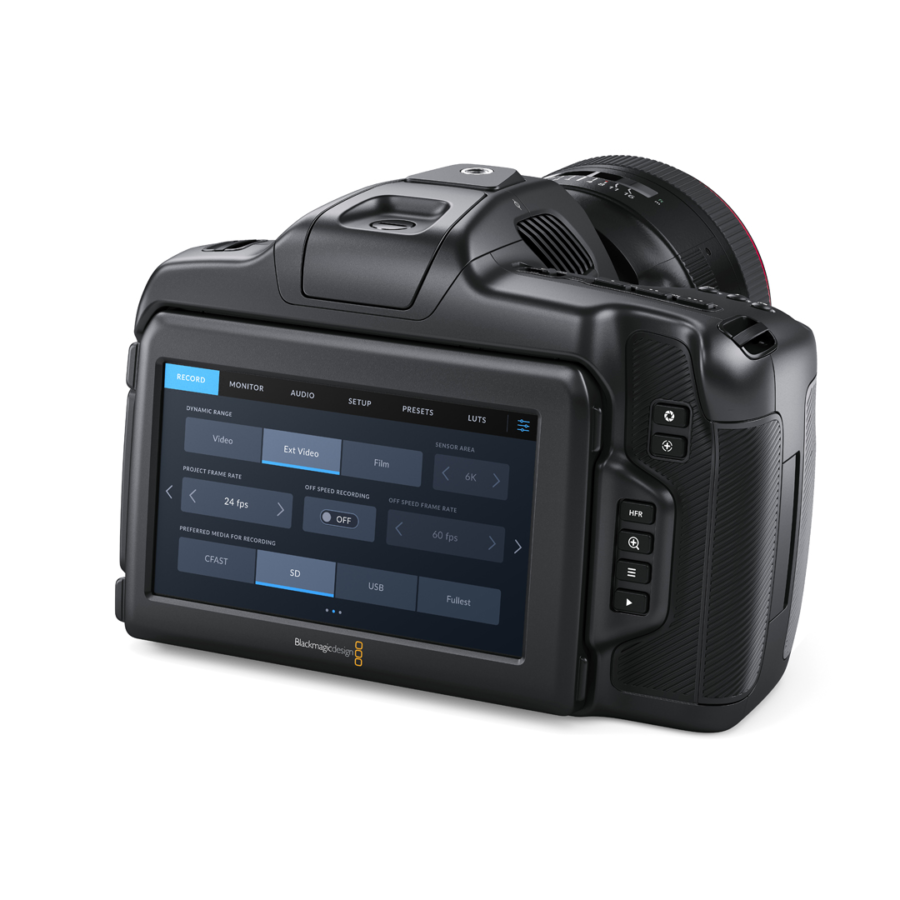

Tilting 5″ LCD Touchscreen

The 5″ tilting HDR touchscreen LCD makes it easy to view and adjust your settings, even when shooting in high or low modes.

Active Canon EF Mount

  • Choose from a wide array of Canon EF/EF-S-mount lenses
  • Electronic lens communication with iris, autofocus, and zoom control available with compatible lenses

Mini-XLR Audio Inputs

Professional audio support now includes two mini XLR inputs with phantom +48V power, a 3.5mm stereo input, a mono speaker, a headphone output, and a built-in stereo mic system.

L-Series Batteries

Both the 6K G2 camera and the optional battery grip use widely available NP-F570 L-series batteries

Blackmagic Raw and ProRes Recording

Capture in Blackmagic Raw or ProRes 422 options, depending on your project’s needs, and record using the internal CFast 2.0 and SD/UHS-II card slots or via the full-size HDMI port to an optional ATEM Mini switcher for live streaming or output via the USB Type-C port to capture longer clips to an external SSD.

Up to 6K Shooting Resolutions

Multiple resolutions include:

  • 6144 x 3456 (6K), 6144 x 2560 (6K 2.4:1)
  • 5744 x 3024 (5.7K 17:9), 4096 x 2160 (4K DCI)
  • 1920 x 1080 (HD)
  • Both 2868 x 1512 (2.8K 17:9) and 1920 x 1080 (HD) at rates up to 120 fps

Versatile Media Capture Options

Record internally to CFast 2.0 or SD/UHS-II card slots or capture longer clips using the USB Type-C output to an external SSD

Studio Camera Features

  • Like the Blackmagic Studio cameras, the BMPCC 6K G2 has a built-in color corrector that works with the ATEM Mini
  • Supports the optional pedestal-style focus and zoom controls

Camera Features

Effective Sensor Size

23.10mm x 12.99mm (Super 35)

Lens Mount

Active EF mount.

Lens Control

Iris, focus and zoom on supported lenses.

Dynamic Range

13 Stops.

Dual Native ISO

400 and 3200

Shooting Resolutions

6144 x 3456 (6K) up to 50 fps
6144 x 2560 (6K 2.4:1) up to 60 fps
5744 x 3024 (5.7K 17:9) up to 60 fps
4096 x 2160 (4K DCI) up to 60 fps
3840 x 2160 (Ultra HD) up to 60 fps
3728 x 3104 (3.7K 6:5 anamorphic) up to 60 fps
2868 x 1512 (2.8K 17:9) up to 120 fps
1920 x 1080 (HD) up to 120 fps

Frame Rates

Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported.

Off-speed frame rates up to 60 fps in 6K 2.4:1, 120 fps in 2.8K 17:9 and 1080HD.

Built in ND Filters

None

Focus

Auto focus available using compatible lenses.

Iris Control

Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses.

Screen Dimensions

5” 1920 x 1080.

Screen Type

LCD capacitive touchscreen.

Metadata Support

Automatically populated lens data from electronic EF lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files.

Controls

Touchscreen menus on 5 inch screen. 1 x Power Switch, 1 x Record Button, 1 x Stills Button, 1 x Scroll Wheel with push integrated into handgrip, 1 x ISO Button, 1 x White Balance, 1 x Shutter Button, 3 x software configurable Fn buttons, 1 x IRIS Button, 1 x Focus Button, 1 x High Frame Rate (HFR) Button, 1 x Zoom Button, 1 x Menu Button and 1 x Playback Button.

Timecode Clock

Highly accurate timecode clock. Less than 1 frame drift every 8 hours.

Connections

Total Video Inputs

None

Total Video Outputs

1 x HDMI up to 1080p60

Analog Audio Inputs

2 x mini XLR analog switchable between mic with phantom power support and line level (up to +14dBu). 1 x 3.5mm Stereo Input.

All audio inputs can also be used for Timecode input.

Analog Audio Outputs

1 x 3.5mm headphone jack.

Computer Interface

USB Type-C for external drive recording, PTP camera control and software updates.

Blackmagic Pocket Cinema Camera 6K G2

Audio

Microphone

Integrated stereo microphone.

Built in Speaker

1 x mono speaker.

Standards

SD Video Standards

None

HD Video Standards

1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

4K DCI Standards

4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI

Media

Media Format

Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.

Supported Codecs

Codecs

Blackmagic RAW Constant Bitrate 3:1,
Blackmagic RAW Constant Bitrate 5:1,
Blackmagic RAW Constant Bitrate 8:1,
Blackmagic RAW Constant Bitrate 12:1,
Blackmagic RAW Constant Quality Q0,
Blackmagic RAW Constant Quality Q1,
Blackmagic RAW Constant Quality Q3,
Blackmagic RAW Constant Quality Q5,
ProRes 422 HQ QuickTime,
ProRes 422 QuickTime,
ProRes 422 LT QuickTime,
ProRes 422 Proxy QuickTime.

Control

External Control

Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles.

iPad control, Bluetooth control, USB PTP camera control. External control of some camera settings, focus, iris and zoom with compatible lenses, color corrector, tally and internal record start and stop when used with a compatible ATEM and ATEM Software Control.

Color Corrector

Color Corrector

DaVinci YRGB.

Storage Features

Storage Type

1 x CFast 2.0.

1 x SD UHS-II card.

1 x high speed USB-C expansion port for external media.

Recording Formats

Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at 6144 x 3456, 6144 x 2560, 5744 x 3024, 4096 x 2160, 3728 x 3104 and 2868 x 1512 with film, extended video, video dynamic range or custom 3D LUT embedded in metadata.

ProRes at 4096 x 2160, 3840 x 2160 and 1920 x 1080 with film, extended video or video dynamic range or custom 3D LUT.

Storage Rates

Storage rates based on 30 frames per second.

6144 x 3456 (6K)

Blackmagic RAW 3:1 – 323 MB/s
Blackmagic RAW 5:1 – 194 MB/s
Blackmagic RAW 8:1 – 121 MB/s
Blackmagic RAW 12:1 – 81 MB/s
Blackmagic RAW Q0 – 242 to 483 MB/s
Blackmagic RAW Q1 – 162 to 387 MB/s
Blackmagic RAW Q3 – 108 to 277 MB/s
Blackmagic RAW Q5 – 65 to 162 MB/s

6144 x 2560 (6K 2.4:1)

Blackmagic RAW 3:1 – 240 MB/s
Blackmagic RAW 5:1 – 144 MB/s
Blackmagic RAW 8:1 – 90 MB/s
Blackmagic RAW 12:1 – 60 MB/s
Blackmagic RAW Q0 – 180 to 359 MB/s
Blackmagic RAW Q1 – 120 to 287 MB/s
Blackmagic RAW Q3 – 80 to 205 MB/s
Blackmagic RAW Q5 – 49 to 120 MB/s

5744 x 3024 (5.7K 17:9)

Blackmagic RAW 3:1 – 264 MB/s
Blackmagic RAW 5:1 – 159 MB/s
Blackmagic RAW 8:1 – 100 MB/s
Blackmagic RAW 12:1 – 67 MB/s
Blackmagic RAW Q0 – 198 to 396 MB/s
Blackmagic RAW Q1 – 133 to 317 MB/s
Blackmagic RAW Q3 – 89 to 227 MB/s
Blackmagic RAW Q5 – 54 to 133 MB/s

4096 x 2160 (4K DCI)

Blackmagic RAW 3:1 – 136 MB/s
Blackmagic RAW 5:1 – 82 MB/s
Blackmagic RAW 8:1 – 51 MB/s
Blackmagic RAW 12:1 – 35 MB/s
Blackmagic RAW Q0 – 102 to 203 MB/s
Blackmagic RAW Q1 – 68 to 163 MB/s
Blackmagic RAW Q3 – 46 to 116 MB/s
Blackmagic RAW Q5 – 28 to 68 MB/s
Apple ProRes 422 HQ – 117.88 MB/s
Apple ProRes 422 – 78.63 MB/s
Apple ProRes 422 LT – 54.63 MB/s
Apple ProRes Proxy – 24.25 MB/s

3840 x 2160 (Ultra HD)

Apple ProRes 422 HQ – 110 MB/s
Apple ProRes 422 – 73.6 MB/s
Apple ProRes 422 LT – 51 MB/s
Apple ProRes Proxy – 22.4 MB/s

3728 x 3104 (3.7K 6:5 anamorphic)

Blackmagic RAW 3:1 – 177 MB/s
Blackmagic RAW 5:1 – 106 MB/s
Blackmagic RAW 8:1 – 67 MB/s
Blackmagic RAW 12:1 – 45 MB/s
Blackmagic RAW Q0 – 133 to 265 MB/s
Blackmagic RAW Q1 – 89 to 212 MB/s
Blackmagic RAW Q3 – 60 to 152 MB/s
Blackmagic RAW Q5 – 36 to 89 MB/s

2868 x 1512 (2.8K 17:9)

Blackmagic RAW 3:1 – 67 MB/s
Blackmagic RAW 5:1 – 41 MB/s
Blackmagic RAW 8:1 – 26 MB/s
Blackmagic RAW 12:1 – 17 MB/s
Blackmagic RAW Q0 – 51 to 101 MB/s
Blackmagic RAW Q1 – 34 to 81 MB/s
Blackmagic RAW Q3 – 23 to 58 MB/s
Blackmagic RAW Q5 – 14 to 34 MB/s

1920 x 1080

Apple ProRes 422 HQ – 27.5 MB/s
Apple ProRes 422 – 18.4 MB/s
Apple ProRes 422 LT – 12.75 MB/s
Apple ProRes Proxy – 5.6 MB/s

Constant Quality storage rates quoted are indicative only.

Actual storage rates are entirely dependent on image subject matter.

Software

Software Included

Blackmagic OS

DaVinci Resolve Studio for Mac and Windows including activation key

Blackmagic Camera Setup

Blackmagic RAW Player

Blackmagic RAW QuickLook Plugin

Blackmagic RAW SDK

Blackmagic RAW Speed Test

Operating Systems

Mac iconMac 11.1 Big Sur,
Mac 12.0 Monterey or later.
Windows IconWindows 10 and 11.

Power Requirements

Power Supply

1 x External 12V power supply.

External Power Input

1 x 2‑pin locking connector.

Battery Type

NP-F570

Battery Life

Approximately 60 minutes
(recording 6K RAW at 24 fps to CFast 2.0 with screen brightness at 50%)

Power

12V-20V.

Accessories

Optional Accessories

Blackmagic Pocket Cinema Camera Pro EVF

Blackmagic Pocket Camera Battery Pro Grip

Physical Specifications

Blackmagic Pocket Cinema Camera 6K G2

Environmental Specifications

Operating Temperature

0°to 40°C (32° to 104°F)

Storage Temperature

-20°to 45°C (-4° to 113°F)

Relative Humidity

0% to 90% non-condensing

What’s Included

Blackmagic Pocket Cinema Camera 6K G2

Lens turret dust cap

Camera strap

30W power supply with locking connector and international adapters

NP-F570 battery

NP-F series battery USB charger

Welcome booklet

DaVinci Resolve Studio activation key

Warranty

Product Warranty

12 Month Limited Manufacturer’s Warranty.

Additional information

Brand

In the Box

    • Blackmagic Design Pocket Cinema Camera 6K G2
  • Lens Port Cap
  • Camera Strap
  • Locking Power Supply with International Adapters (30W)
  • L-Series NP-F570 Battery
  • L-Series Battery Charger
  • DaVinci Resolve Studio Activation Key
  • Limited 1-Year Warranty
