| Physical |
| Dimensions (W x H x D mm) |
482mm x 310mm x 60mm |
| Weight |
5.22 Kg |
| Mounting Points |

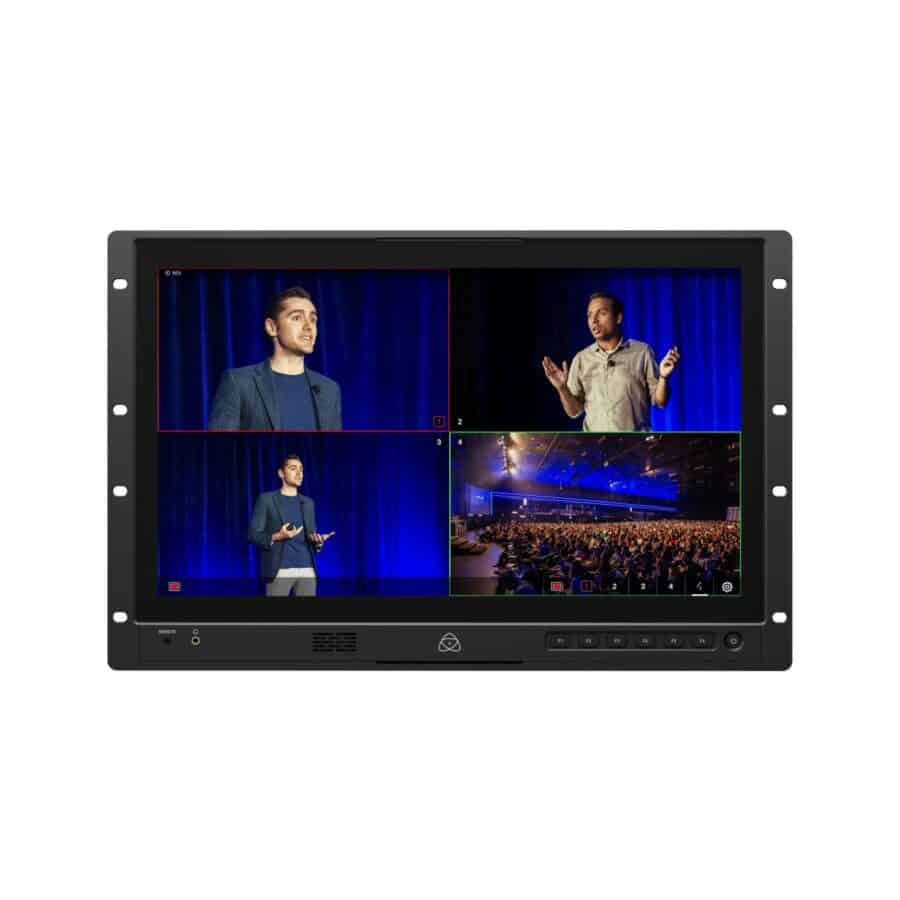

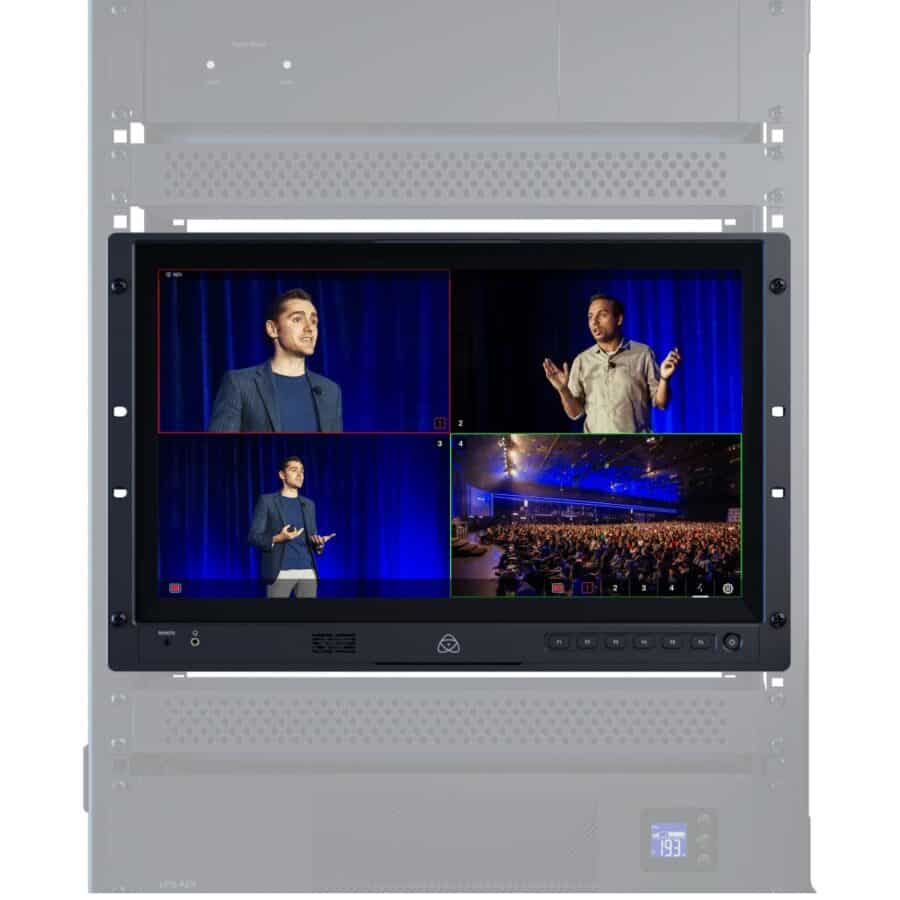

19-inch rack ears |
| Rack height |
7 RU |
| VESA Mount |
No |
| Environmental |
| Ambient Operating Temperature |
Up to 40 degrees Celsius |
| Construction |
| Body |
Aluminium with ABS plastic |
| Cooling |
Actively controlled fan and heat sink |
| Touchscreen |
Capacitive touch |
| Tally Light |
LED on front only |
| Multi-Function Buttons |
Power + 6 assignable |
| Power |
| Input voltage |
DC 12V to 16.8V DC |
| Operating Power |
75W |
| Compatible Batteries |
Connect to either/both DC 4-pin XLR input |
| Battery Voltage |
14.4V nominal |
| Battery Power |
Single battery input via dedicated 4-pin XLR |
| DC-In Connector |
1 x 4-pin XLR for included DC power supply |
| D-Tap |
Via third-party D-Tap to 4-pin XLR cable |
| Display |
| Size |
19-inch |
| Resolution |
3840 x 2160 4K UHD |
| Bit Depth |
10-bit (8+2 FRC) |
| Backlight Type |
Double Edge-Lit |
| Brightness (cd/m²/ nits) |
1200 |
| Aspect Ratio |
16:9 |
| Color Gamut |
100% Rec.709, 99% DCI-P3, 99% NTSC, 87% BT.2020 |
| Color Pipeline |
| Gamma |
Sony SLog / SLog2 / SLog3 / HLG, Canon C-Log / C-Log2 / C-Log3, ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320, / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic V-Log / HLG, JVC J-Log, Red RedLogFilm / Log3G10 / Log3G12, FujiFilm F-Log, PQ (HDR10), HLG, Nikon N-Log |
| Gamut |
DCI P3, DCI P3+, DCI-P3 D65, Rec709. Sony: S-Gamut / S-Gamut3 / S-Gamut3.cine / BT.2020 / Rec.709. Canon Cinema / Panasonic V Gamut /ARRI Alexa Wide Gamut / JVC LS300. RED DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut |
| 3D LUT Display |
.Cube format (17 & 33 points supported) |
| 3D LUT Down Stream |
Loop out |
| 3DLUT 50/50 |
Yes |
| Monitoring Modes |
Native / HLG / PQ / 3D LUT |
| HDR Output Conversion |
Log / HDR to HLG / PQ |

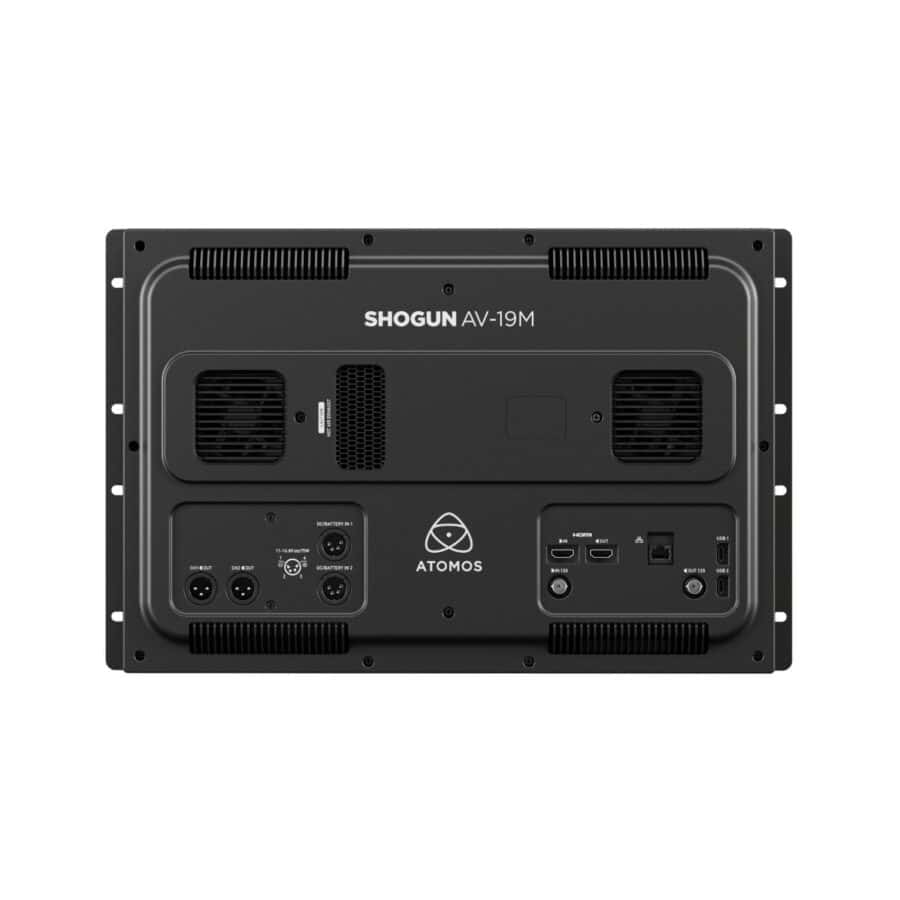

| Video Input |
| HDMI |
1 x HDMI (2.0) up to 4K60P |
| Locking port |
Yes |
| SDI |
1 x 12G-SDI (6G/3G backwards compatible) |
| Wi-Fi |
No |
| Bit Depth |
8/10-bit for video |
| Video Chroma Subsampling |
YCbCr 4:2:0 & 4:2:2 |
| HDR Output Conversion |
HDMI auto detection |
| Ethernet |
via NDI HX protocol |
| Video Output |
| HDMI |
1 x HDMI (2.0) up to 4K60P |
| Locking port |
No |
| SDI loop through |
1 x 12G-SDI |
| Wi-Fi |
No |
| Bit Depth |
8/10-bit video |
| Video Chroma Subsampling |
4:2:2 |
| Network |
| Ethernet |
1 x RJ45 |
| Connectivity |
| USB |
2 x USB-C 2.0/3.0 |
| Bluetooth |
No |
| LANC |
Yes |
| Video Signal Conversion |
| HDMI to SDI |
Yes |
| SDI to HDMI |
Yes |
| Audio Out |
| Audio Quality |
24-bit / 48kHz |
| Audio Codec |
PCM |
| HDMI |
8-channel, 24-bit (input dependent) |
| SDI |
12-channel, 24-bit (input dependent) |
| Analog Audio Out |
2 x 3-pin XLR (male) |
| Speakers |
Mono confidence up to 1.5W |
| Headphone Out |
3.5mm headphone jack, 2-channel |
| Timecode |
| Embedded |
HDMI & SDI |
| Time of Day |
Yes |
| Wireless AirGlu RF Server and Client |
No |
| Wireless AirGlu BT Server |
No |
| Resolution and Frame Rates (Monitor only) |
| 4K DCI |
Up to 4Kp60 |
| 4K UHD |
Up to UHDp60 |
| 2K DCI 2048 x 1080 |
Up to 2Kp60 |
| 1080p |
Up to 1080p120 |
| 1080 PsF |
Only via pulldown to progressive |
| 1080i |
1080i50 / 1080i60 |
| 720p |
Up to 720p60 |
| Supported Media |
| USB |
Atomos certified USB 3.0 media |
| File System |
ExFAT |
| Multi-input Switching |
| Quad-view display |
NDI HX3 only |
| Input switching |
Yes, NDI HX3 only |
| On-screen Monitoring Tools |
| Waveform |
3 sizes – adjustable opacity & brightness |
| RGB parade |
3 sizes – adjustable opacity & brightness |
| Vectorscope |
2 sizes – adjustable opacity & brightness |
| 2 x Zoom |
Yes |
| Focus Peaking |
Color selected / threshold setting / color / mono / edges only |
| Atomos False Color |
Yes, with scale |
| ARRI False Color |
Yes |
| EL Zone False Color |
Yes |
| Zebra |
Yes, adjustable |
| Isolate Color Channel |
Blue Only |
| Cine Frame Guides |
Presets for 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3 |
| Social Frame guides |
Presets for 9:16, 1:1, 191:1, 4:5 |
| Onion Skin |
Yes |
| Safe Areas |
Action and graphic |
| Grid Markers |
9 grid |
| Anamorphic Desqueeze |
1.25x, 1.33x, 1.5x, 1.6x, 1.65x, 1.79x, 1.8x, 2x |
| Display Flip |
Vertical only |
| Onboard Signal Processing |
| 4K UHD downscale for HD |
Loop out – 4K UHD to FHD |
| DCI Crop |
Loop out – 17:9 to 16:9 crop |
| Pulldown removal |
24 / 25 / 30 pSF > 24 / 25 / 30p (2:2 pulldown), 60i > 24p (3:2 pulldown) |
| Accessories |
| AC to DC Power Adaptor |
Yes, sold separately (ATOMPWR024) |
| Sun Hood |
No |
| What’s in the box |
| Box Contents |
Shogun AV-19M monitor, 4-pin XLR power supply, 5 x international IEC power cables, rack nuts and bolts (x10), screen cloth, Quick Start Guide |
| Box Dimensions (W x H X D) |
581mm x 383mm x 165mm |
| Box Weight |
10 Kg (including all cables & accessories) |
| Warranty |
| Standard |
1 year. Extended to 2 years on product registration (excludes screen) |
