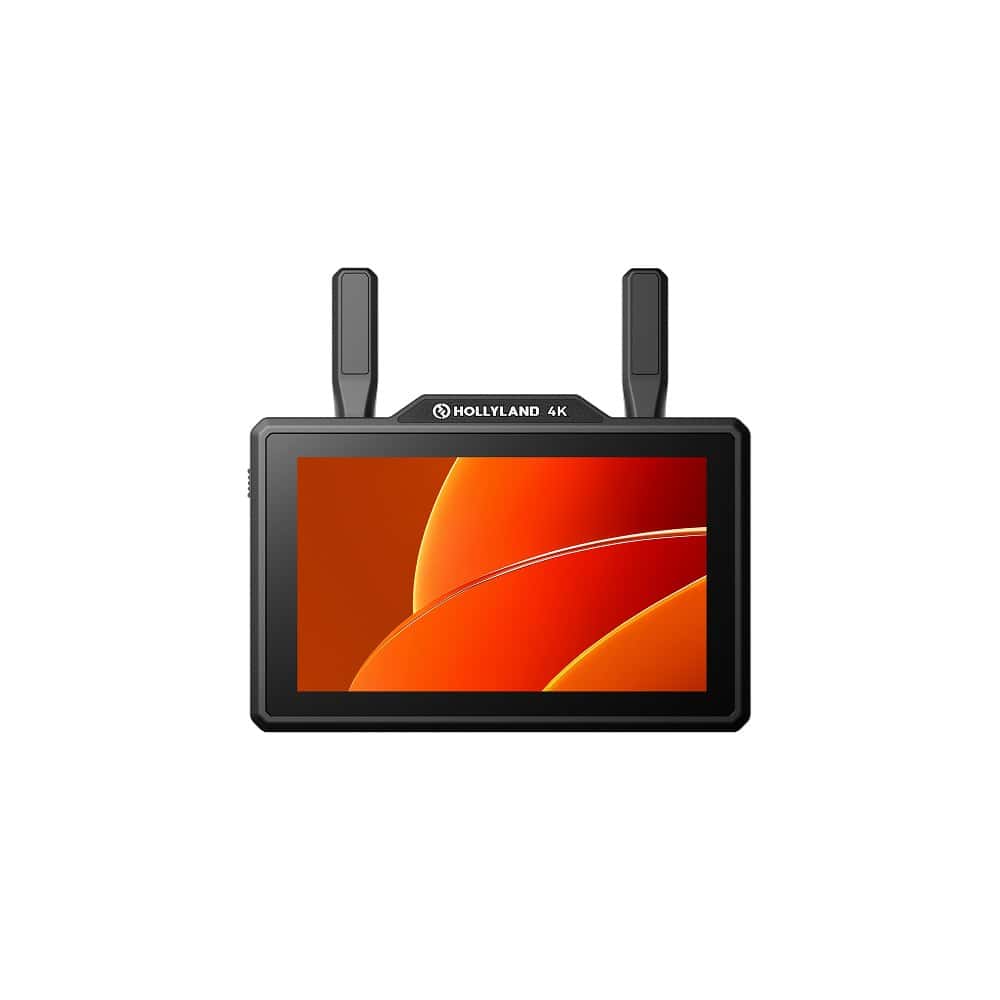

Pyro 5 4K is a 5.5-inch wireless monitor that works as a transmitter, a receiver or a standalone monitor, now with full 4K30 input and output. It joins the Pyro ecosystem, so it pairs directly with Pyro Ultra, Pyro S, Pyro H, Pyro 7 and Vcore.
Its 1500-nit screen stays visible in daylight, WifiBroadcast lets one transmitter feed up to four receivers, and dual-band transmission reaches up to 400 m (1,300 ft) with around 60 ms latency. Direct camera control, proxy recording to an SD card and RTMP live streaming turn Pyro 5 4K into a real multi-tasking hub on set.
This package
Pyro 5 4K includes the transmitter and receiver functions in the monitor itself: one unit can be switched between TX, RX and monitor modes.
Key features
- 4K30 input and output
- TX, RX and monitor all in one
- 5.5-inch screen, 1500 nits
- Up to 1 TX and 4 RX
- 400 m LOS range, approx. 60 ms latency
- Direct camera control and proxy recording
- RTMP live streaming
- Pyro ecosystem direct connection
Specifications
| Input Port |
Transmitter Mode: HDMI 1.4b + 3G SDI
Receiver Mode: / |
| Output Port |
Transmitter Mode: Loop-Out HDMI 1.4b
Receiver Mode: HDMI 1.4b |
| Color Depth Capability |
Transmitter Mode: HDMI Input: YUV 422 / YUV 444 8-bit
Receiver Mode: HDMI Output: RGB 888 |
| Audio Format |
Transmitter Mode: HDMI 1.4b 2-Channel
Receiver Mode: HDMI 1.4b 2-Channel |
| Antenna |
SMA Male |
| Power Input |
DC Input (2.0mm core socket) |
| Headphone Jack |
3.5mm |
| Upgrade Port |
USB-C (USB 2.0 OTG) / SD Card Slot |
| Screen Size |
5.5″ Touchscreen |
| Screen Resolution |
1920*1080 Pixels |
| Color Gamut |
Rec.709 |
| Aspect Ratio |
16 : 9 |
| Screen Brightness |
1,500 nits |
| Contrast Ratio |
1000 : 1 |
| Power Input Voltage |
NPF: 6V – 16V
DC In: 10V – 18V DC |

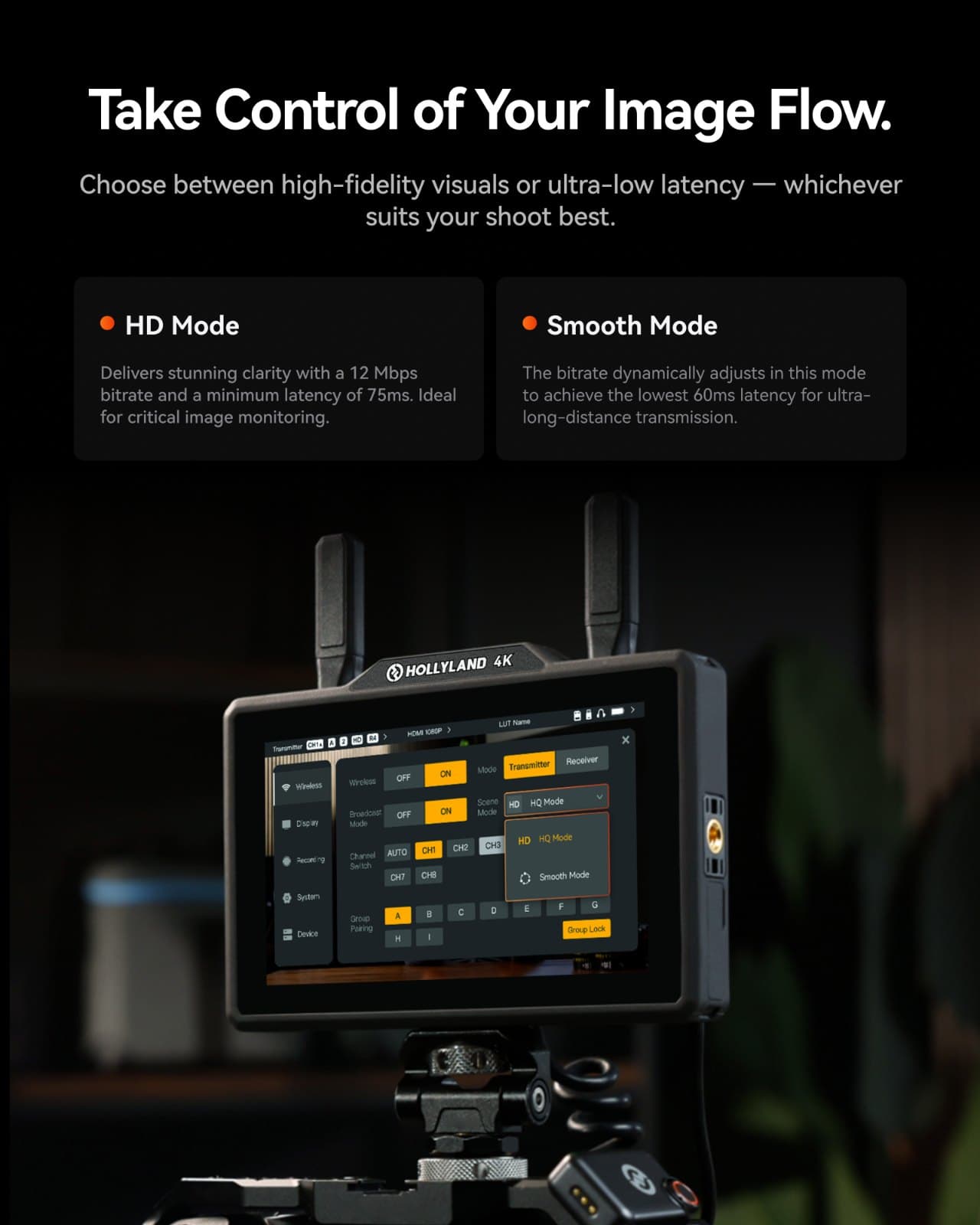

| Video Bitrate |
Maximum 12 Mbps |
| Video Encoding Format |
H.264 |
| Power Consumption |
Transmitter Mode: < 18.9W
Receiver Mode: < 16W |
| Net Weight |
Approx. 410g (14.5oz) |
| Dimensions |
(L×W×H): 151.6×102.3×40.5mm (5.97″ × 4.03″ × 1.59″) |

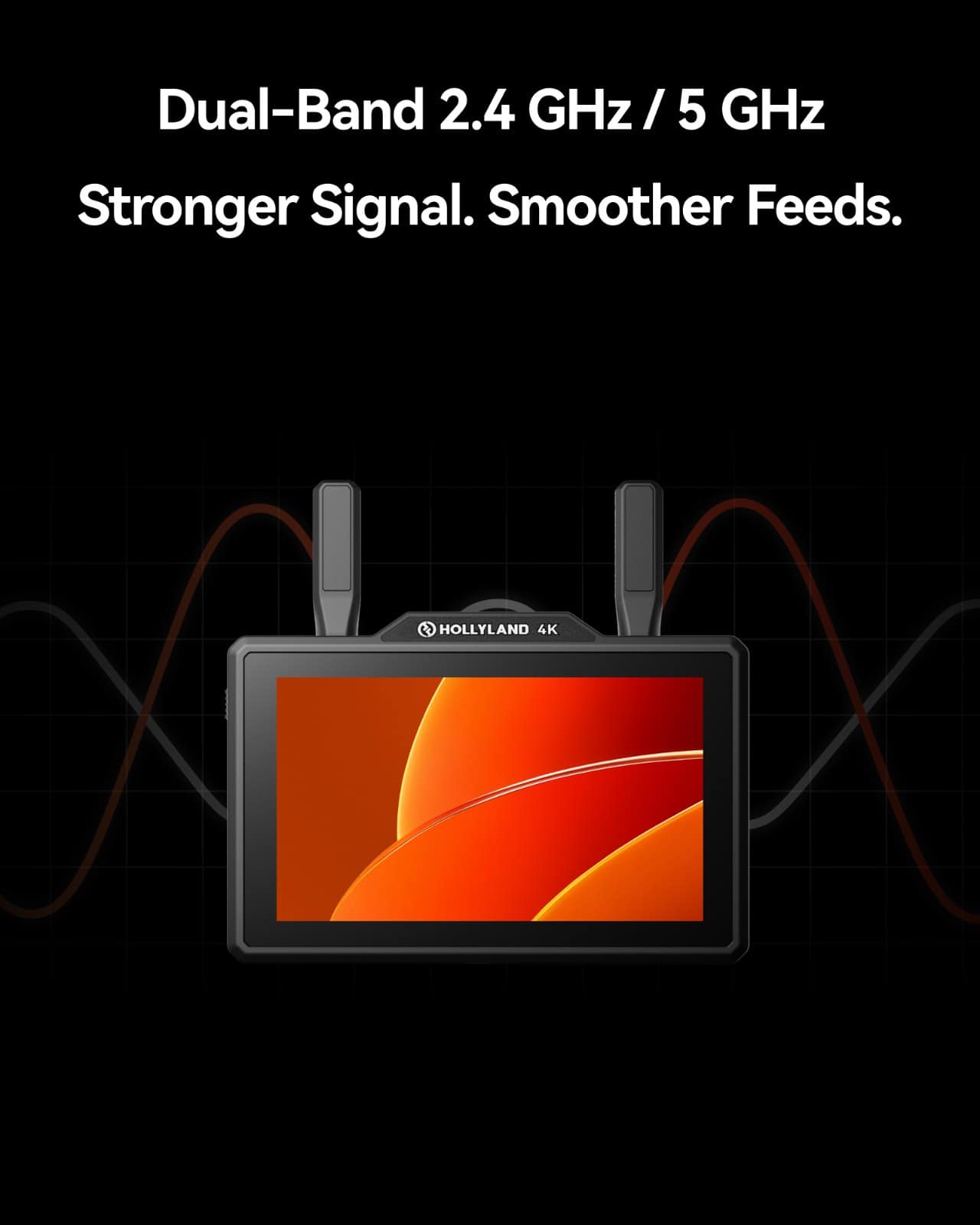

| Operating Frequency |
• 2.412 – 2.484 GHz
• 5.150 – 5.250 GHz
• 5.250 – 5.350 GHz
• 5.725 – 5.850 GHz |
| Transmit Power |
Transmitter Mode: < 23 dBm |
| Receiver Sensitivity |
Receiver Mode: Non-Broadcast: -85 dBm; Broadcast: -80 dBm |
| Transmission Latency |
Approx. 60ms (Tested in a laboratory environment with 1080p60) |
| Bandwidth |
Non-Broadcast: 20 MHz; Broadcast: 40 MHz |
| Operating Temperature |
– 10℃ to 45℃ |
| Storage Temperature |
– 40℃ to 60℃ |
| HDMI Input |
•720p50/59.94/60
•1080i50/59.94/60
•1080p23.98/24/25/29.97/30
•1080p50/59.94/60
•3840*2160p23.98/24/25/29.97/30 Hz |
| HDMI Loopout |
•720p50/59.94/60
•1080i50/59.94/60
•1080p23.98/24/25/29.97/30
•1080p50/59.94/60
•3840*2160p23.98/24/25/29.97/30 Hz |
| HDMI Output |
•720p50/59.94/60
•1080i50/59.94/60
•1080p23.98/24/25/29.97/30
•1080p50/59.94/60 |
| SDI Input |
•1080p50/59.94/60 (Level A)
•1080p50/59.94/60 (Level B)
•1080i50/59.94/60
•1080p23.98/24/25/29.97/30
•1080psf23.98/24
•1080psf25/29.97/30
•720p50/59.94/60 |
| HDMI Loopout |
•1080p50/59.94/60 (Level A)
•1080i50/59.94/60
•1080p23.98/24/25/29.97/30
•1080psf23.98/24
•1080i50/59.94/60
•720p50/59.94/60 |
| HDMI Output |
•1080p50/59.94/60 (Level A)
•1080i50/59.94/60
•1080p23.98/24/25/29.97/30
•1080psf23.98/24
•1080i50/59.94/60
•720p50/59.94/60 |
Specifications as published by the manufacturer. Operating frequencies and transmit power may vary by country or region according to local regulations.
