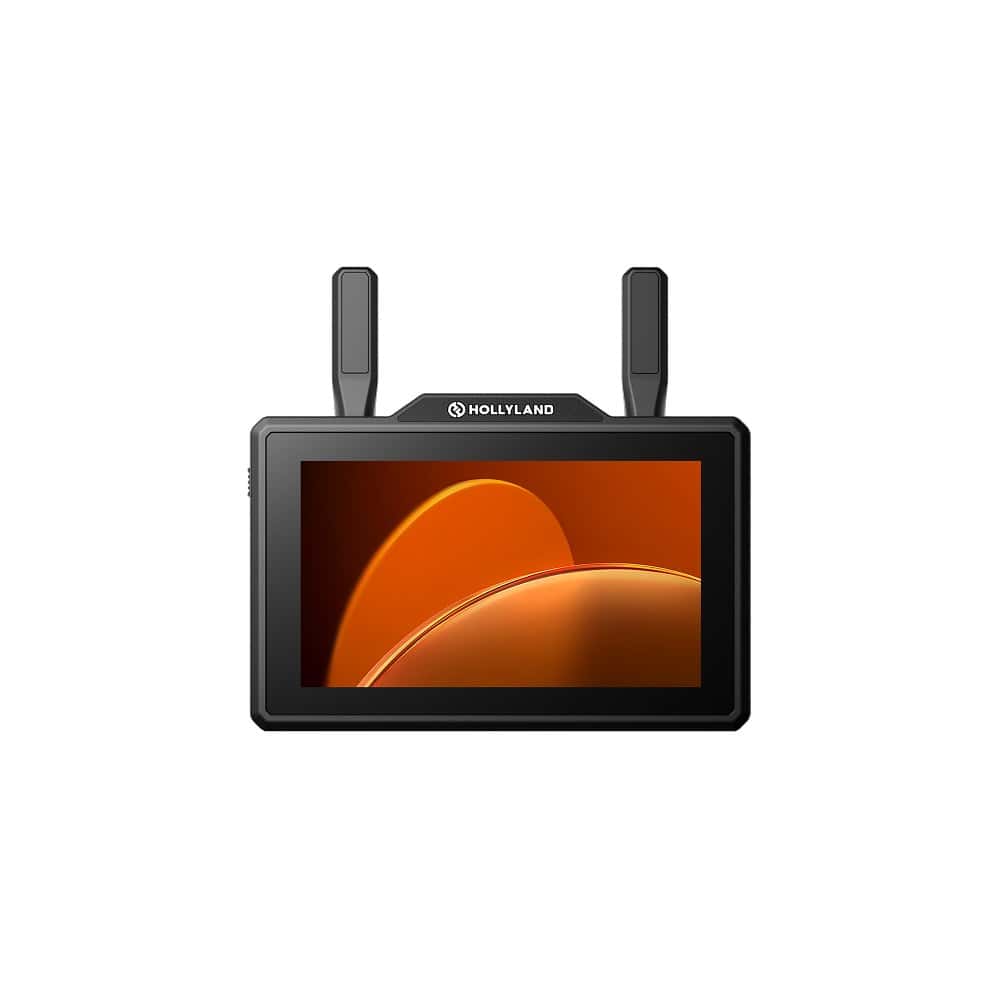

Pyro 5 is a 5.5-inch wireless monitor that can act as transmitter, receiver or monitor. With dual-band 2.4/5 GHz transmission, automatic frequency hopping and a 1500-nit screen, it is a compact all-round monitoring tool for camera operators, focus pullers and directors.
Up to four receivers can be connected to one transmitter in Broadcast Mode, with a range of up to 400 m (1,300 ft) and around 60 ms latency. Camera control, proxy recording and RTMP live streaming are also on board.
This package

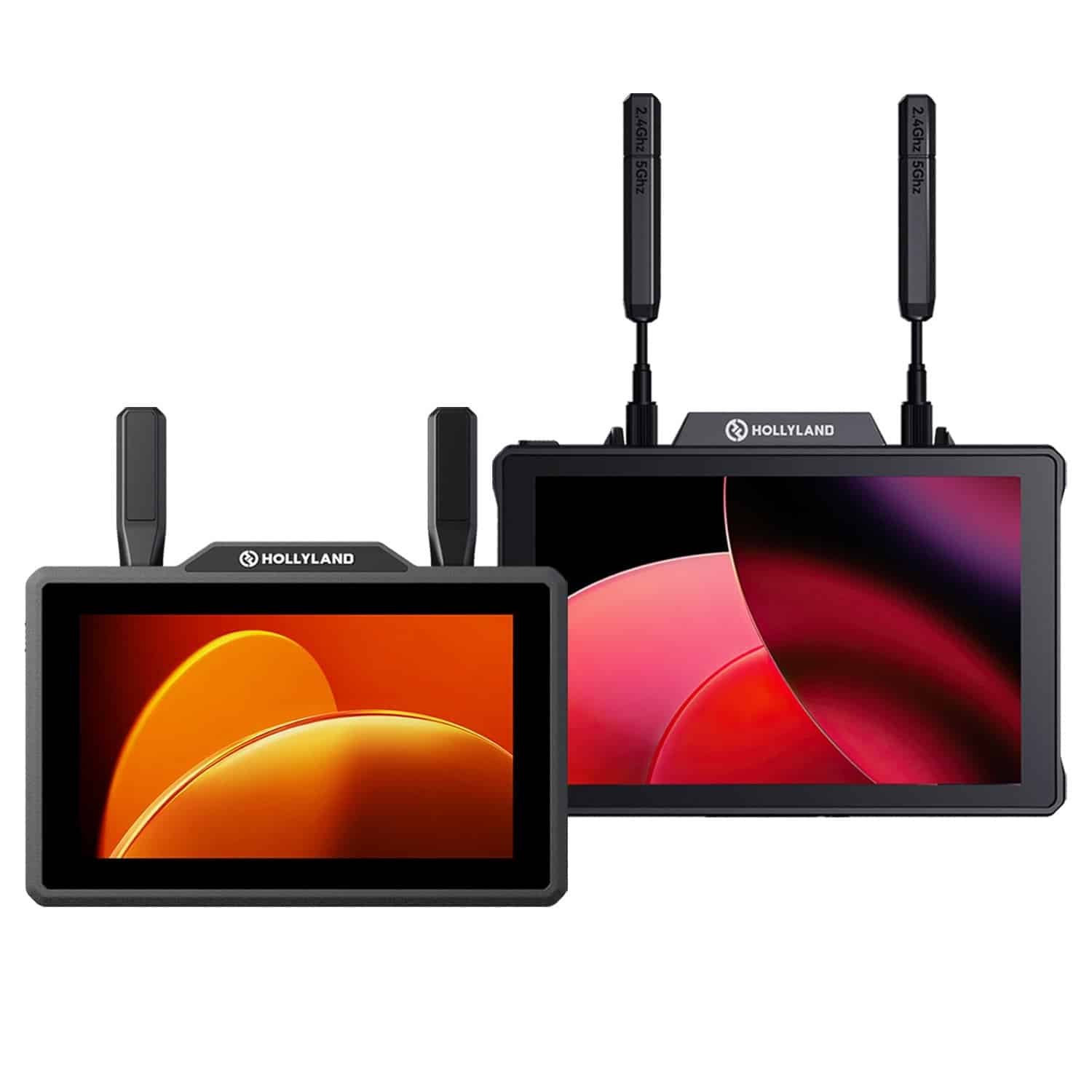

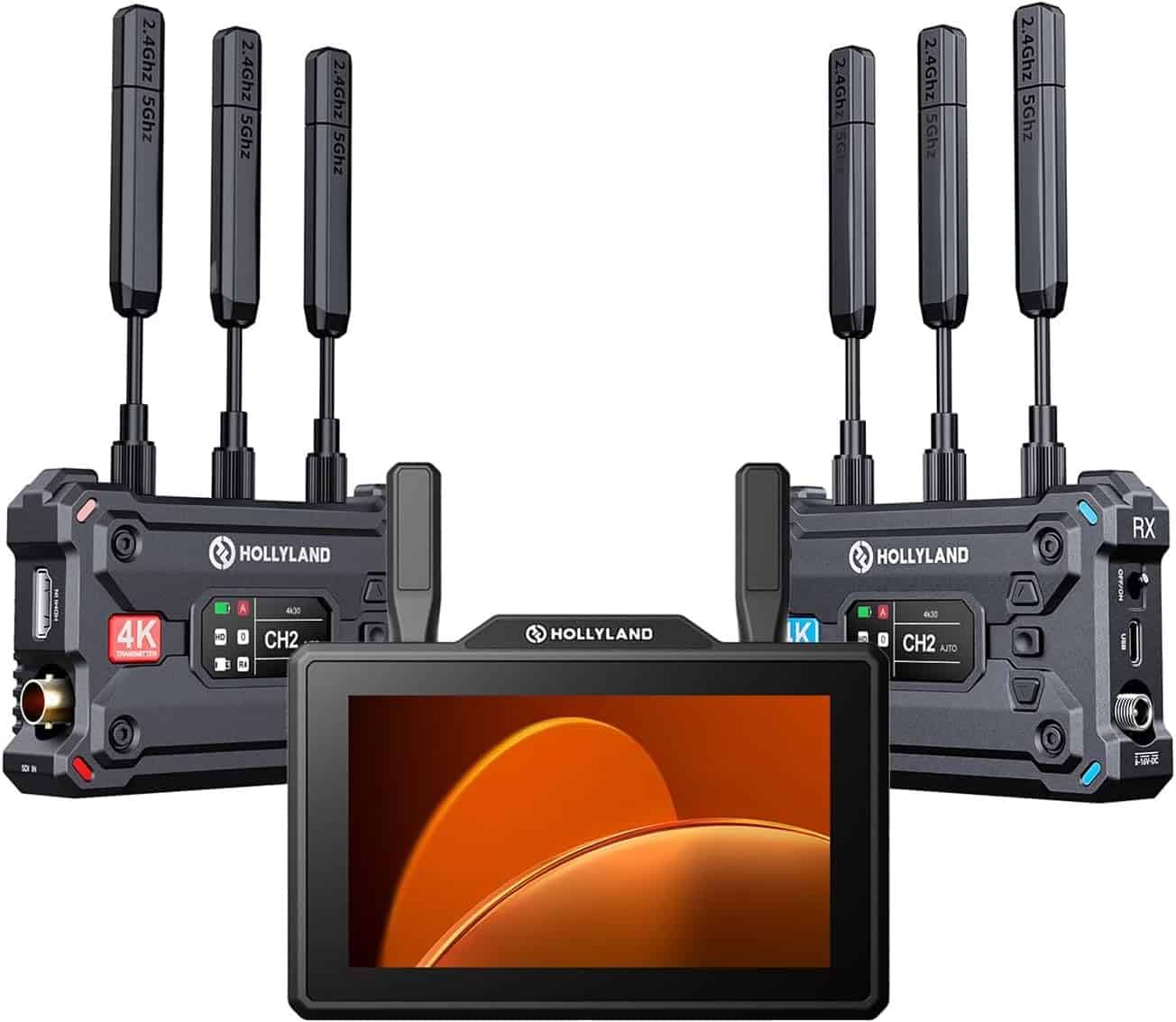

This kit combines a Pyro 5 monitor with a Pyro S transmitter/receiver set, plus a handle, sunhood, screen protector, cold shoe mount and shoulder strap, all in a carry case. End-of-life product, available while stocks last.
Key features
- TX, RX and monitor all in one
- 5.5-inch screen, 1500 nits

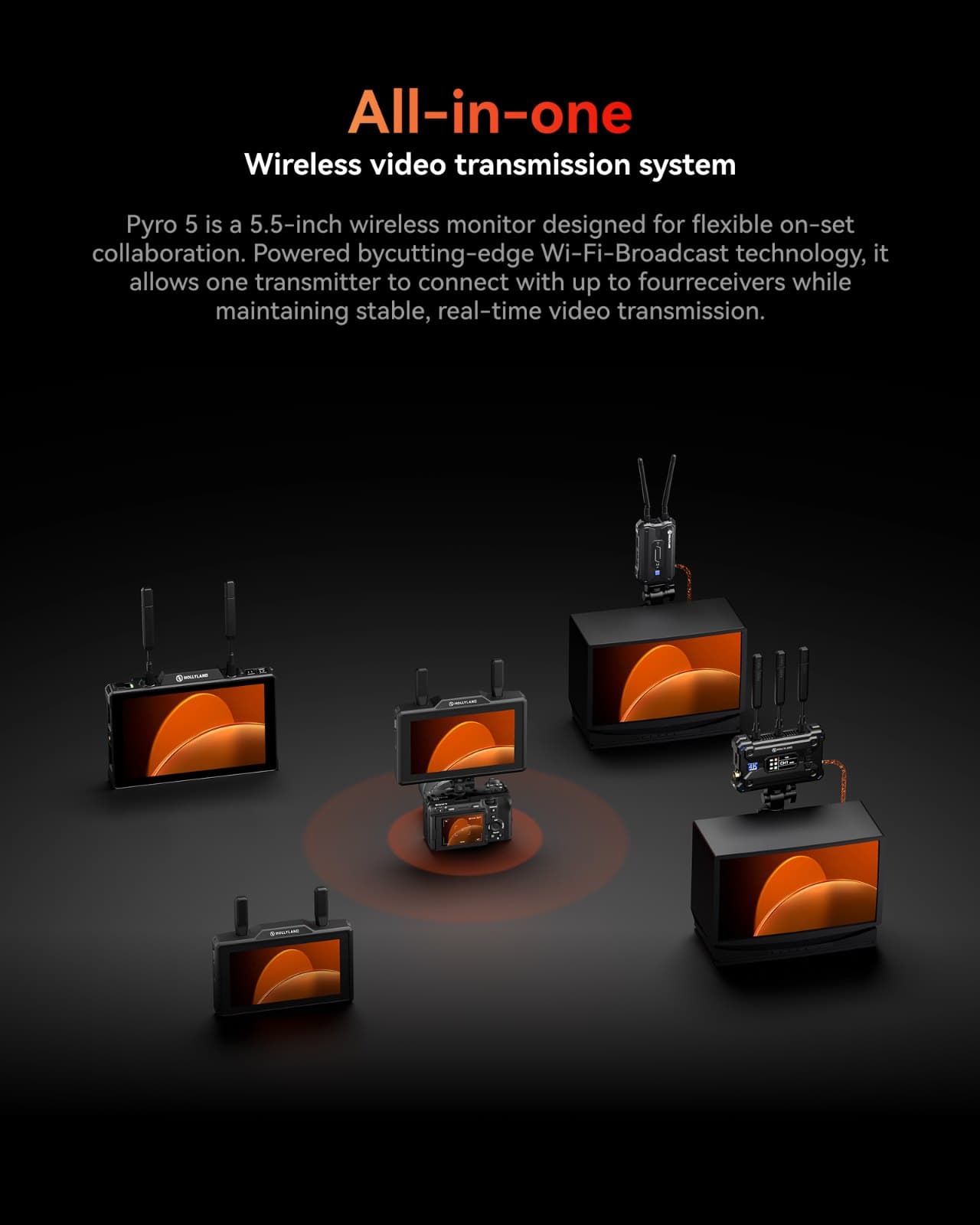

- 1 TX to 4 RX

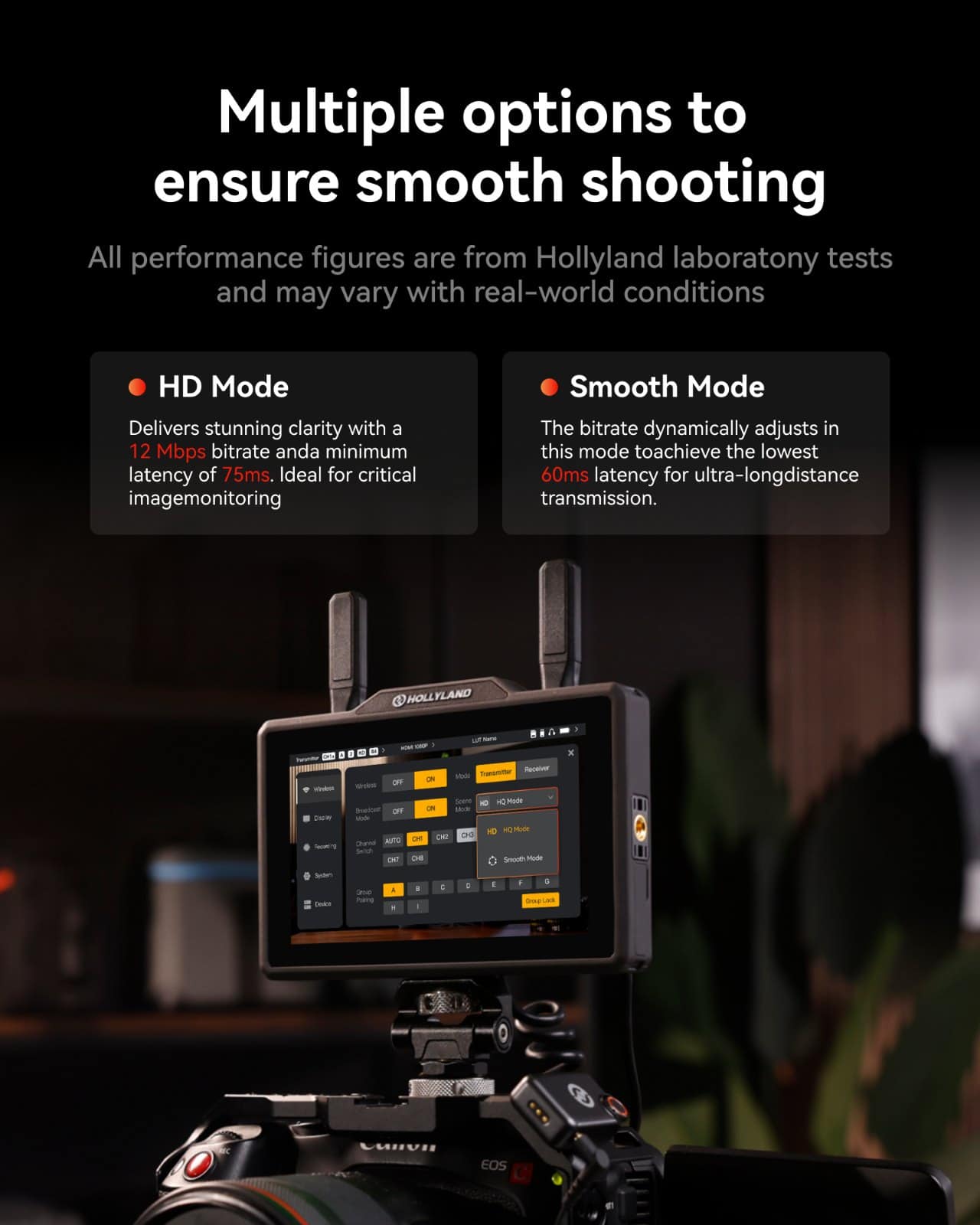

- Up to 400 m range, approx. 60 ms latency

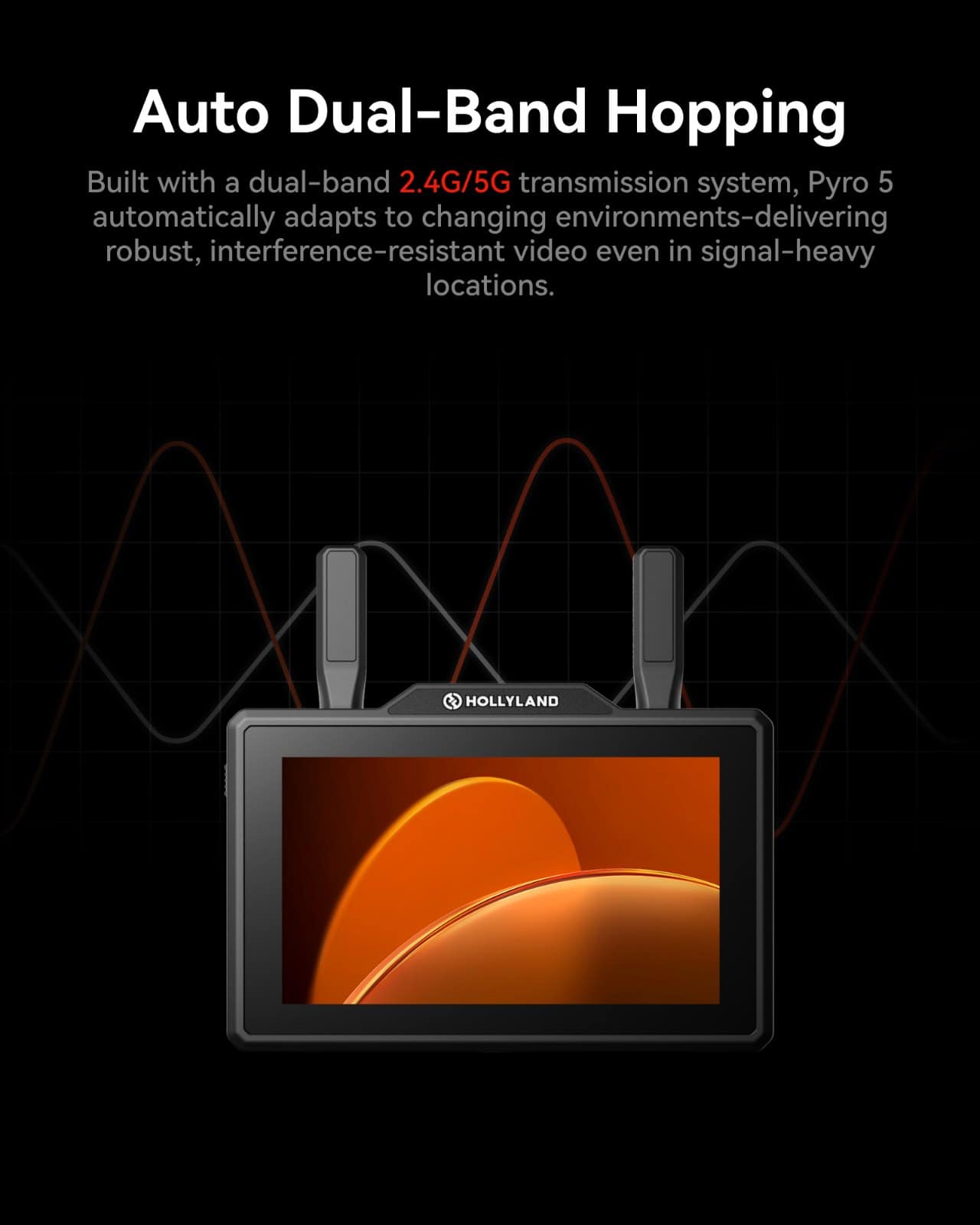

- 2.4 GHz & 5 GHz dual band, Auto Frequency Hopping
- Camera control
- RTMP streaming
Specifications
| Input Port |
Transmitter Mode: HDMI 1.4b + 3G SDI
Receiver Mode: / |
| Output Port |
Transmitter Mode: Loop-Out HDMI 1.4b
Receiver Mode: HDMI 1.4b |
| Audio-Video Parameters |
Transmitter Mode: Color Depth Capability
Transmitter Mode: Input Audio Format
Transmitter Mode: Output Audio Format
Receiver Mode: HDMI Input: YUV422/YUV444 8BIT
Receiver Mode: HDMI 1.4b 8-Channel |
| Antenna |
SMA Male |
| Power Input |
DC Input (2.0mm core socket) |
| Headphone Jack |
3.5mm |
| Upgrade Port |
USB-C (USB 2.0 OTG) / SD Card Slot |
| Screen Size |
5.5″ Touchscreen |
| Screen Resolution |
1920*1080 Pixels |
| Color Gamut |
Rec.709 |
| Aspect Ratio |
16: 9 |
| Screen Brightness |
1,500 nits |
| Contrast Ratio |
1000:1 |
| Power Input Voltage |
NPF: 6V~16V
DC-in: 10-18V DC |
| Video Processing Technology |
Transmitter Mode: Video Bitrate
Transmitter Mode: Video Encoding Format
Receiver Mode: Maximum 12 Mbps
Receiver Mode: H.264 |
| Power Consumption |
Transmitter Mode <16.5W
Receiver Mode <14W |
| Net Weight |
≈ 410g (14.5oz) |
| Dimensions |
(L×W×H): 151.6×102.3×40.5mm |
| Operating Frequency |
5.150-5.250GHz
2.412~2.484GHz
5.250-5.350GHz
5.470-5.600GHz
5.600-5.725GHz
5.725-5.850GHz |
| Transmit Power |
Transmitter Mode: < 23dBm |
| Receiver Sensitivity |
Receiver Mode: Unicast: -85dBm; Broadcast: -80dBm |
| Transmission Latency |
≈60ms (Tested in a laboratory environment with 1080P60 signal transmission) |
| Bandwidth |
Unicast: 20 MHz Broadcast: 40 MHz |
| Operating Temperature |
– 10℃ – 45℃ |
| Storage Temperature |
– 40°C – 45°C |
| HDMI Input |
720p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p50/59.94/60 |
| HDMI Loopout/Output |
720p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p50/59.94/60 |
| SDI Input |
1080p50/59.94/60 (Level A)
1080p50/59.94/60 (Level B)
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080psf23.98/24
1080psf25/29.97/30
720p50/59.94/60 |
Specifications as published by the manufacturer. Operating frequencies and transmit power may vary by country or region according to local regulations.
