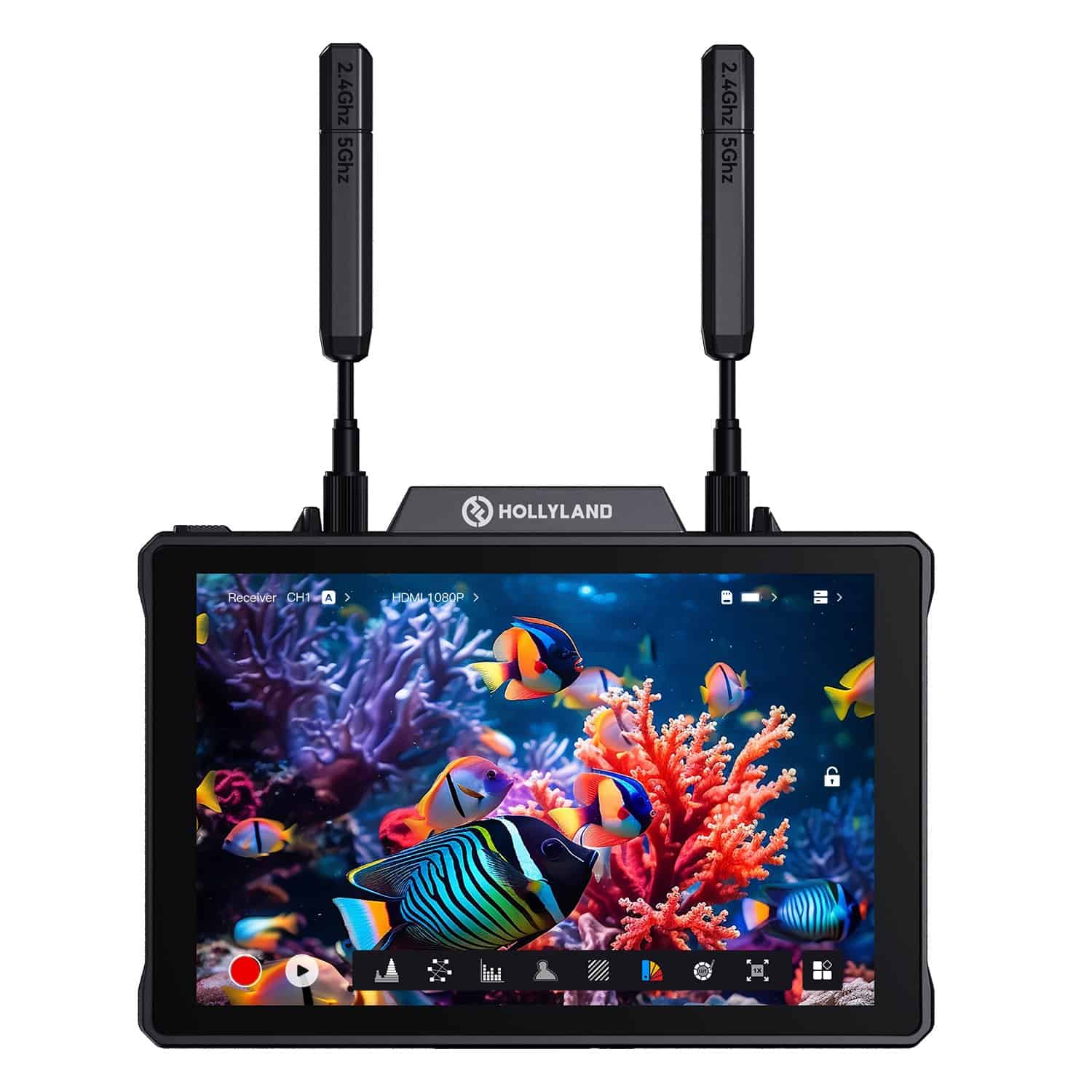

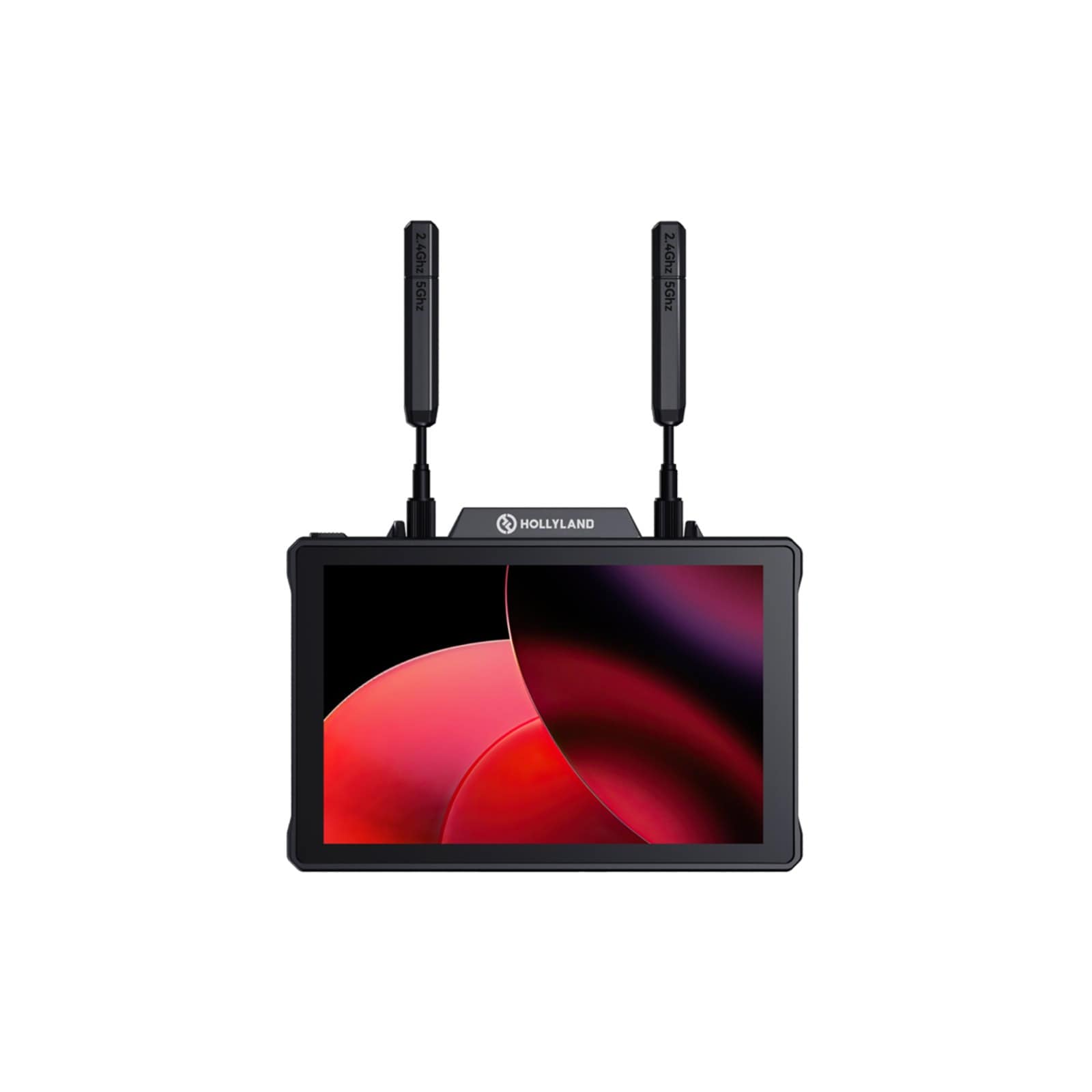

Pyro 7 is a 7-inch wireless monitor that integrates transmitter, receiver and monitor in one unit. Pair it with Pyro S or Pyro H, or use two Pyro 7 units together, to build a flexible wireless monitoring setup where one transmitter can serve up to four receivers.
Its 1500-nit touchscreen (1920 × 1200) stays readable outdoors, while HollyOS offers professional image analysis tools such as waveform, false colour, focus peaking and LUTs. Dual-band 2.4/5 GHz transmission with automatic frequency hopping gives up to 400 m (1,300 ft) of range with around 60 ms latency. HDMI and SDI inputs/loop-outs, RTMP streaming, SD-card recording/export and customisable shortcut keys for dual-camera monitoring make Pyro 7 a versatile tool on set.

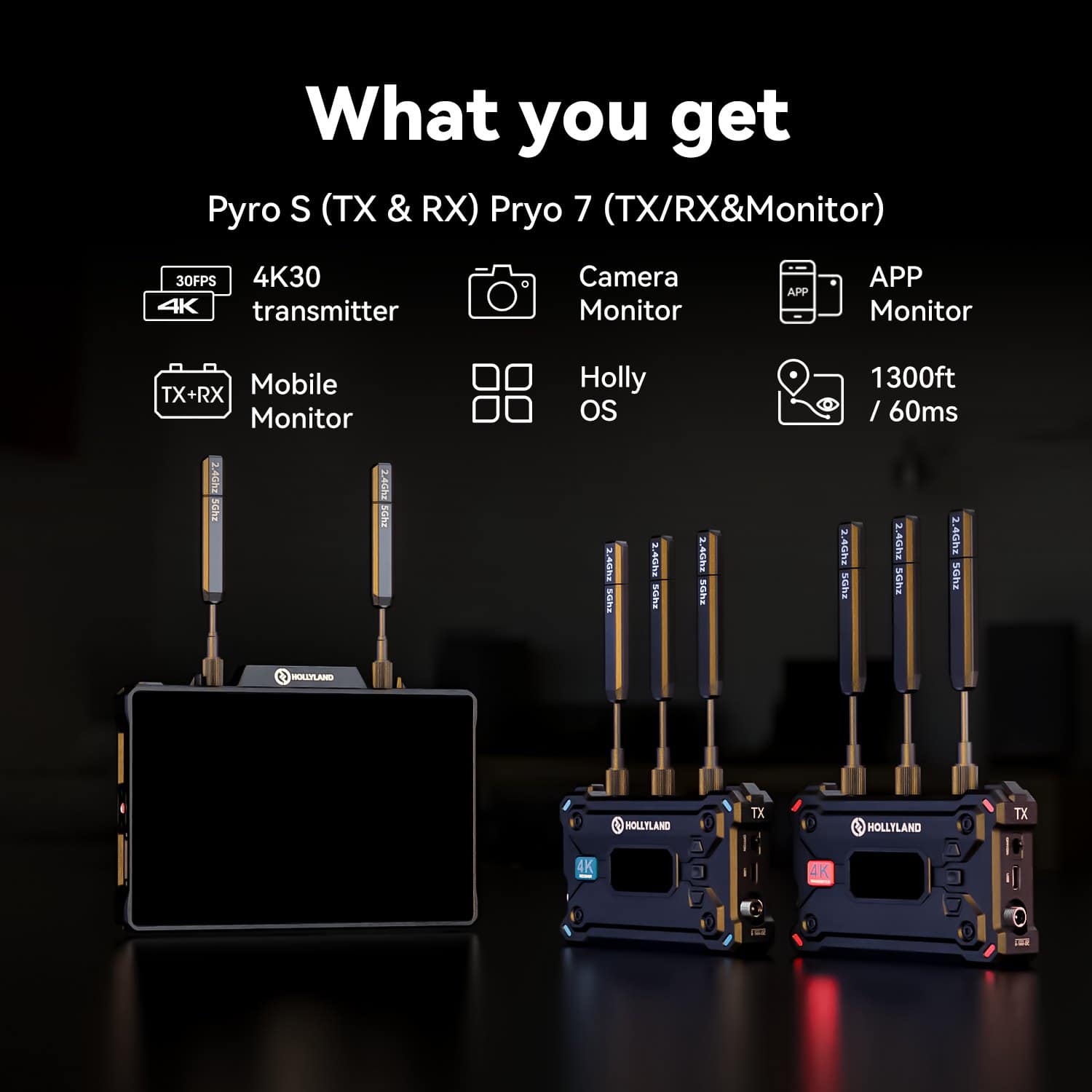

This package
Pyro 7 includes the transmitter and receiver functions in the monitor itself: one unit can be switched between TX, RX and monitor modes.
Key features
- TX, RX and monitor all in one
- 7-inch 1920×1200 touchscreen, 1500 nits
- 1 TX to 4 RX

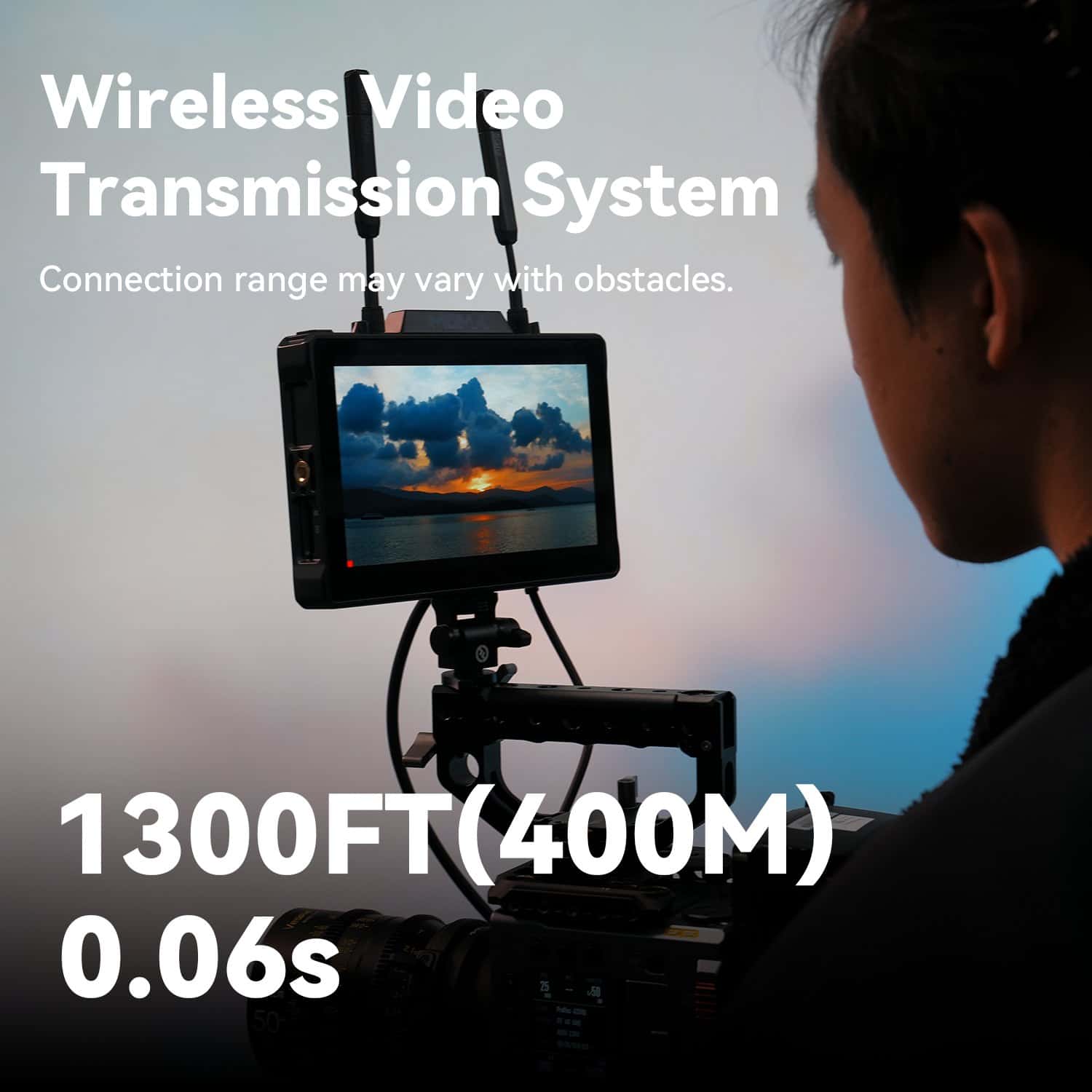

- Up to 400 m (1,300 ft) range, approx. 60 ms latency
- 2.4 GHz & 5 GHz dual band, Auto Frequency Hopping
- HDMI and 3G-SDI with loop-outs
- Image analysis tools, LUT support
- RTMP streaming, SD card slot
Specifications

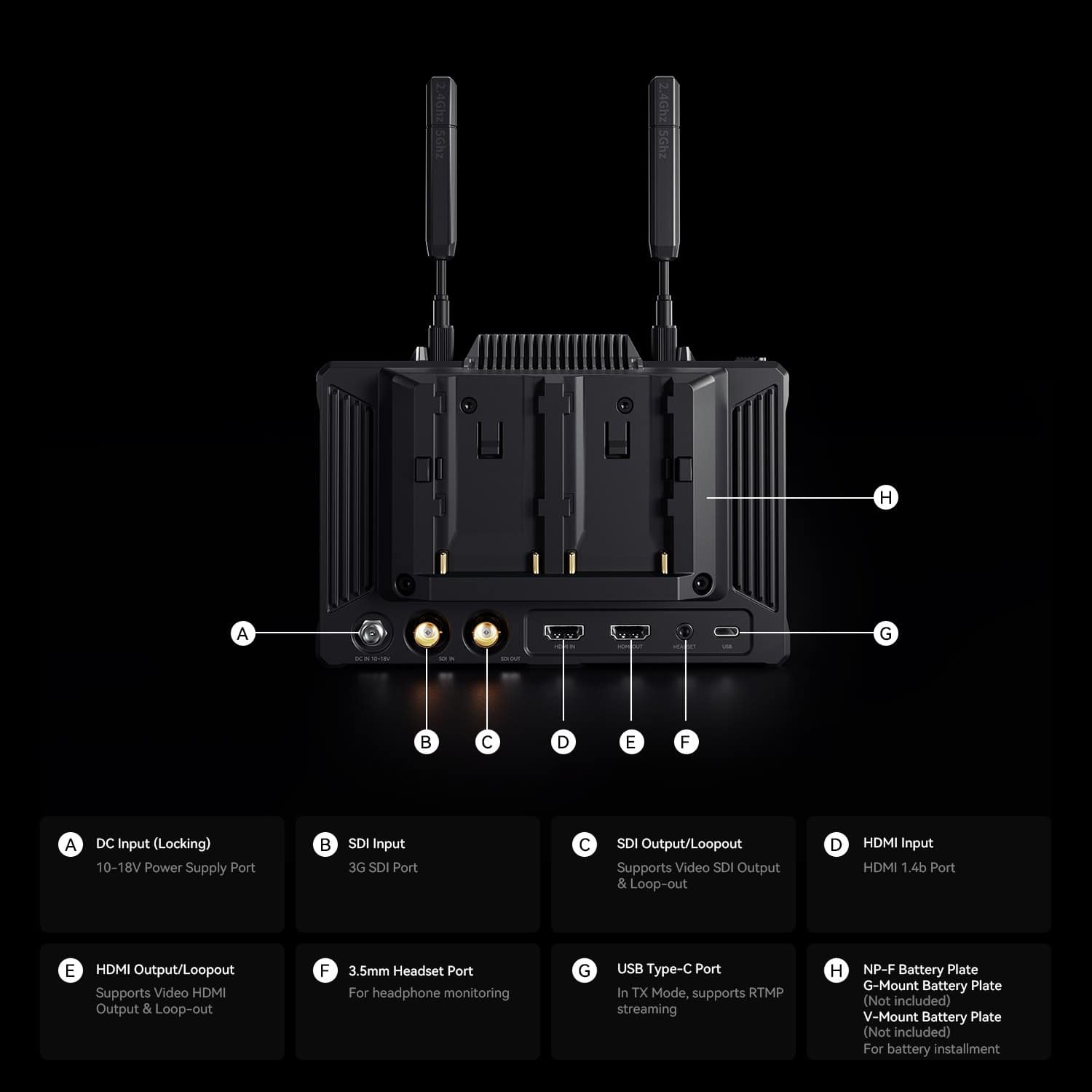

| Input Port |
HDMI 1.4b + 3G SDI |
| Output Port |
HDMI 1.4b + 3G SDI |
| Antenna |
RP-SMA Male*2 |
| Power Input |
DC Input (2.0mm core socket) |
| Headphone Jack |
3.5mm |
| Upgrade Port |
USB-C (USB 2.0 OTG)
SD Card Slot |
| Screen Size |
7″ Touchscreen |
| Screen Resolution |
1920 × 1200 pixels |
| Pixel Density |
323 PPI |
| Aspect Ratio |
16:9 |
| Screen Brightness |
1500 nits |
| Contrast Ratio |
1000:1 |
| Power Input Voltage |
10 – 18V/2.5A DC Input (nominal 12V) |
| Power Consumption |
< 22W |
| Net Weight |
≈ 570g (20.1oz)
with battery plate included and external antennas excluded |
| Dimensions (L × W × H) |
180 × 127 × 31.8mm (7.1″ × 5″ × 1.25″)
with battery plate and external antennas excluded |
| Operating Frequency |
5.1 – 5.8 GHz; 2.412 – 2.484 GHz |
| Transmit Power |
≤ 23 dBm |
| Receiver Sensitivity |
-80 dBm |
| Display Latency |
< 50ms |
| Transmission Latency |
≈ 60ms (test data when 1080p60 signals are transmitted in a laboratory) |
| LOS Range |
•1,300ft (400m)* (Connection to the monitoring app may affect the range);
•650ft (200m)* (in Broadcast mode) |
| Bandwidth |
20 MHz; 40 MHz (in Broadcast mode) |
| Audio Format |
HDMI 1.4b 8-Channel |
| Operating Temperature |
– 10℃ – 45℃ |
| Storage Temperature |
– 40℃ – 60℃ |
HDMI Input
720p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p50/59.94/60
3840*2160 23.98/24/25/29.97/30 |
HDMI Loopout
720p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p50/59.94/60
3840*2160 23.98/24/25/29.97/30
SDI Loopout
720p50/60
1080i50/60
1080p24/25/30
1080p 50/60
1920*1080 24/25/30
HDMI/SDI Output
720p50/60
1080i50/60
1080p24/25/30
1080p 50/60
1920*1080 24/25/30 |
SDI Input
1080p50/59.94/60 (Level A)
1080p50/59.94/60 (Level B)
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080psf23.98/24
1080psf25/29.97/30
720p50/59.94/60 |
HDMI/SDI Loopout
1080p50/59.94/60 (Level A)
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p23.98/24
1080i50/59.94/60
720p50/59.94/60
HDMI/SDI Output
1080p50/59.94/60 (Level A)
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p23.98/24
1080i50/59.94/60
720p50/59.94/60 |
Specifications as published by the manufacturer. Operating frequencies and transmit power may vary by country or region according to local regulations.
