SmallHD

Ultra 5

Powerful, portable, and adaptable, the Ultra 5 offers a dazzling 3000nits brightness and a full suite of large front-facing custom-function buttons for maximum control in all conditions. Experience all your favorite PageOS 5 tools, functions, and settings pages on a fully-loaded 5-inch touchscreen field monitor.

2.143,65€ (ex. VAT)

SKU: 16-0527 Categories: , , Brand:

Powerful, portable, and adaptable, the Ultra 5 offers a dazzling 3000nits brightness and a full suite of large front-facing custom-function buttons for maximum control in all conditions. Experience all your favorite PageOS 5 tools, functions, and settings pages on a fully-loaded 5-inch touchscreen field monitor.

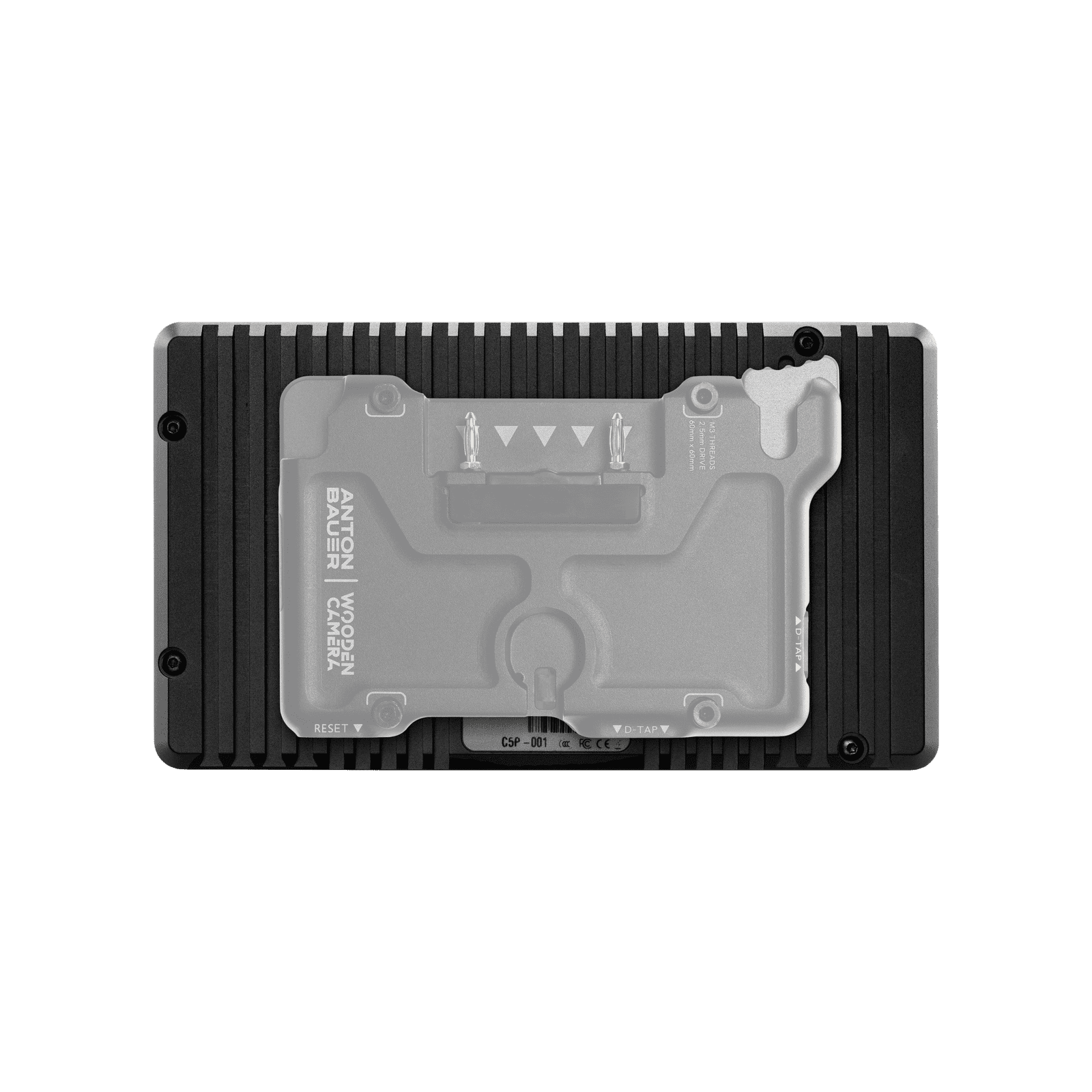

Ultra 5 is designed for the user who wants it all, including optional Gold or V-Mount Micro Battery Plates for a compact power solution and an Ethernet port to enable ARRI and Sony VENICE Camera Control (Camera Control license and cable sold separately).

Camera Control for ARRI, RED®, and Sony VENICE

Transform your touchscreen into the central command hub of your camera. SmallHD’s proprietary software enables unfettered access to ARRI, RED DSMC2, KOMODO®, V-RAPTOR™, and Sony VENICE camera functions and project settings such as Start/Stop Record, FPS, Shutter Speed, ISO, Color Temperature/White Balance, Clip Playback, and more. *Individual Camera Control software licenses are sold separately.

Model Ultra 5
Environmental
Item Weight (oz) 17.8
Package Weight (oz) 3lbs
Height (in) 3.39
Width (in) 5.91
Length/Depth (in) 1.36
Compliance FCC, IC, CE, UKCA, RCM, BIS, ROHS
Operating Temperature 32 F – 105 F
Storage Temperature 0F to 120F
Screen Protection Clear or Matte
Mount Points 6x 1/4-20 Mounting Points (3 Bottom, Left, Right, Top)
Construction Anodized Aluminum unibody
User Function Buttons Joystick
Back-Button
3x Custom-Function Buttons

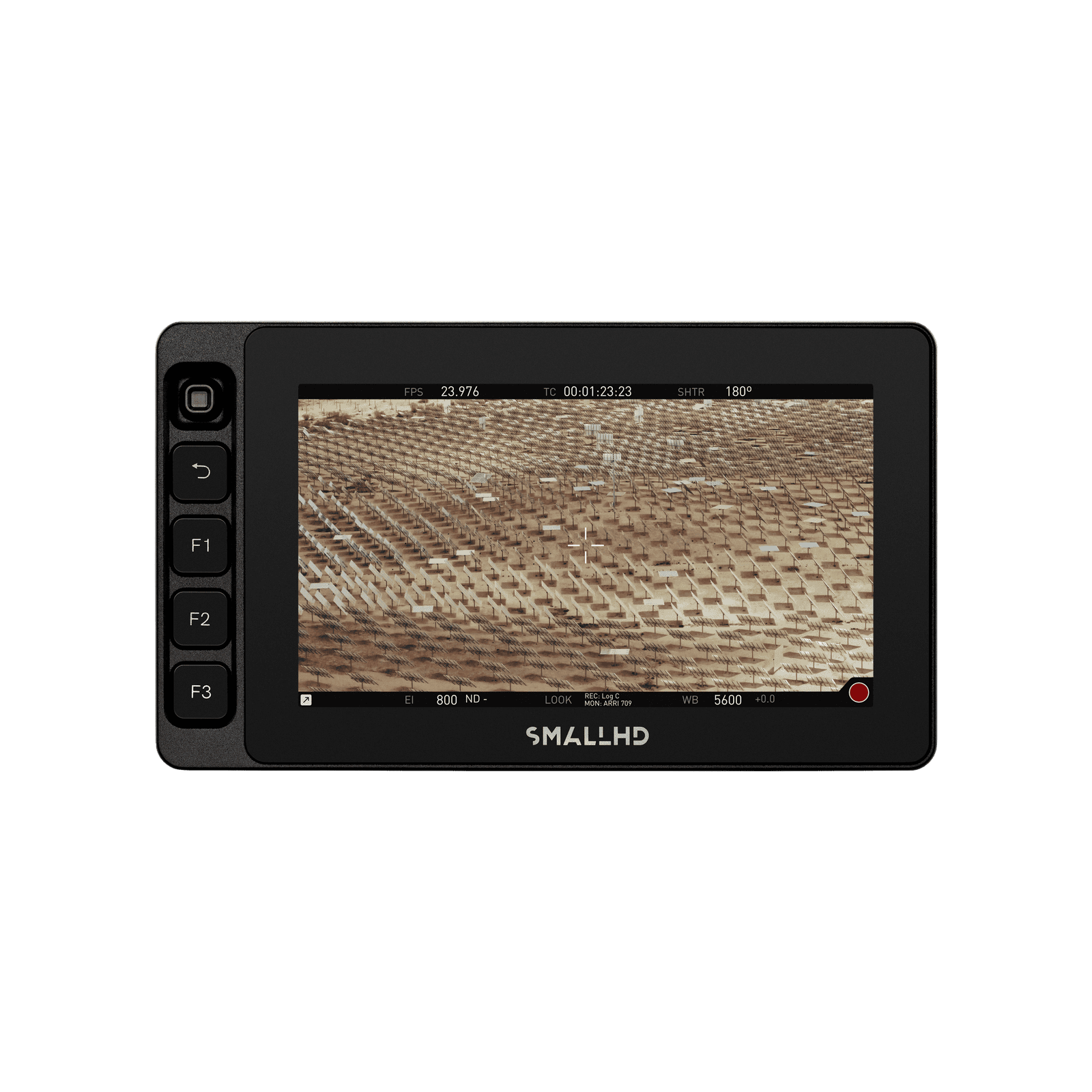

Display
Panel Type IPS LCD with touch
Diagonal Size 4.97″
Resolution 1920 x 1080
Pixel Density 443 PPI
Aspect Ratio 16:9
Active Area 61.88 x 110.02 mm
Max Brightness 3000nits
Contrast 1000:1
Gamut 97% Rec709
Backlight Type Edgelit
Refresh Rate Synchronizes with input from 48Hz to 60Hz
Input Signal
3G-SDI Input Types YCC 4:2:2 @ 10-bits:

1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Input Types YCC 4:2:2 @ 10-bits:

1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Input Types YCC 4:2:2 @ 10-bits:

480i59.94, 576i50
HDMI Input Types YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4:

2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200

YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4
1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
Audio Input Types HDMI & SDI – Monitor through Speakers in Front Bezel or Through Headphone Jack – Metering up to 8 channels
Output Signal
3G-SDI Output Types YCC 4:2:2 @ 10-bits:

1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Output Types YCC 4:2:2 @ 10-bits:

1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Output Types YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Output Types YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4:

2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200

YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4:

1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25,
1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
Audio Output Types HDMI & SDI – Incoming Audio Stream is sent downstream via HDMI or SDI connection and 1x 3.5mm 3-pin Stereo Headphone

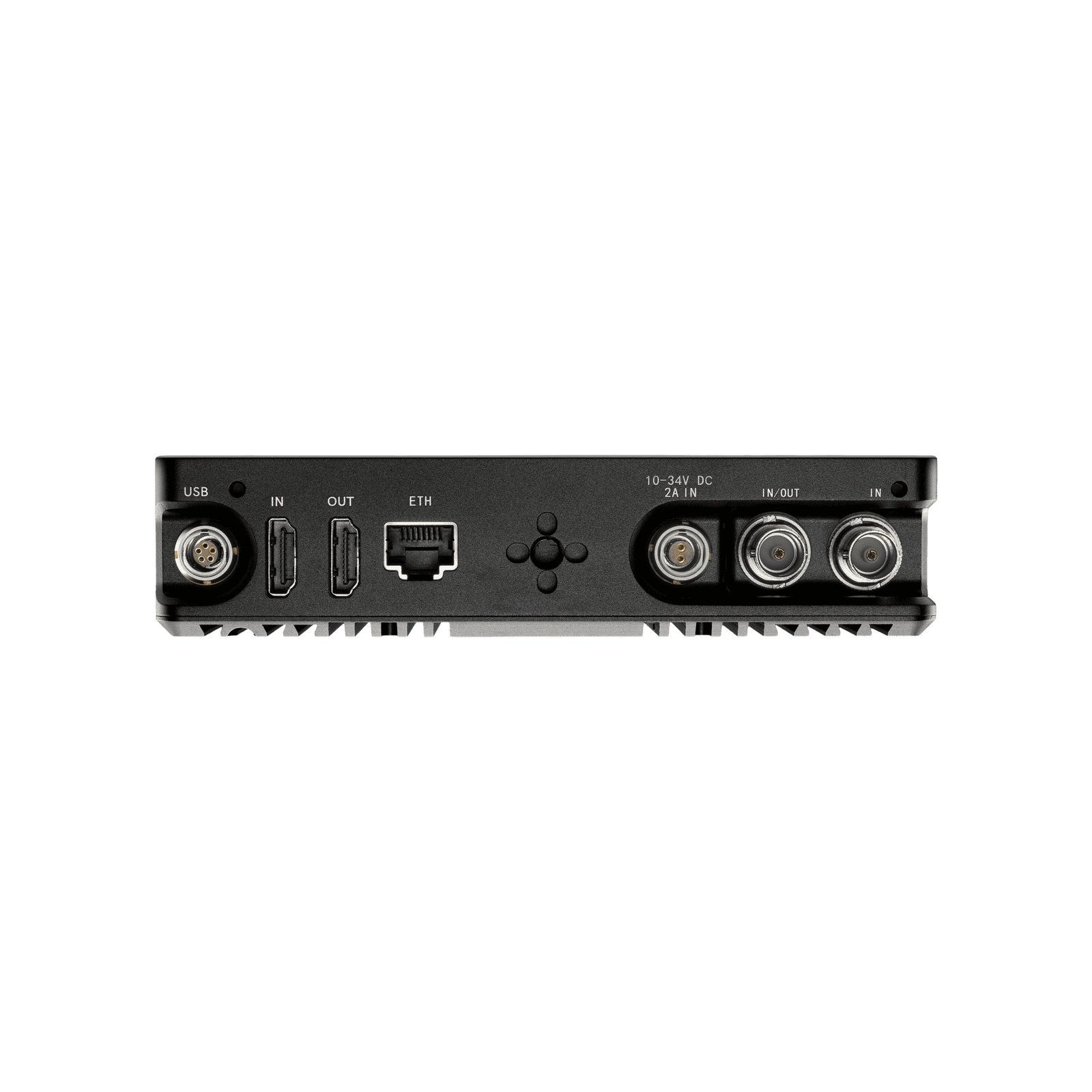

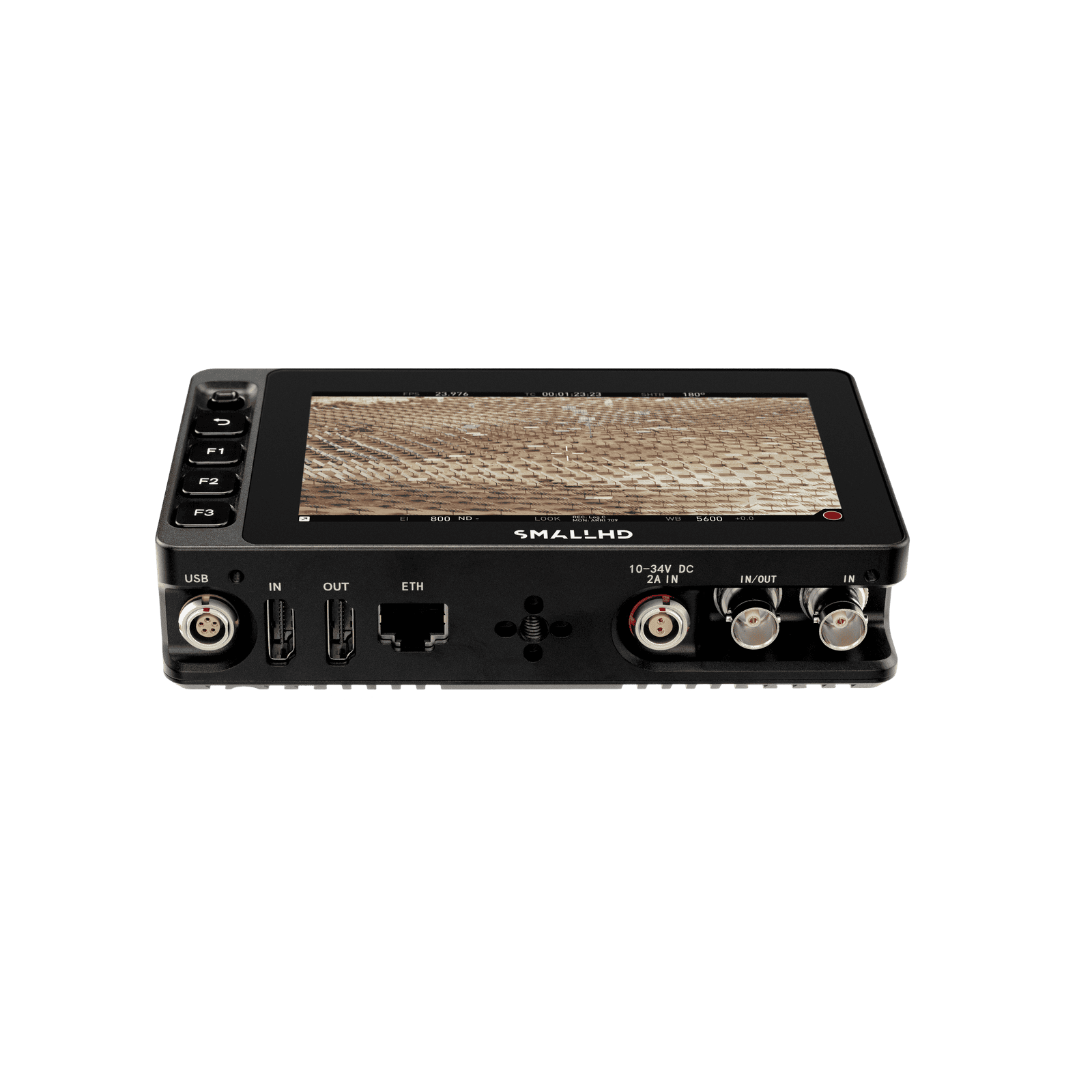

Connector Type
SDI 1x BNC 3G input and 1x BNC 3G selectable input/output
HDMI 1 input and 1 output: HDMI Type-A Receptacles (full size)
Audio HDMI & SDI – Monitor through Headphone Jack – Metering up to 8 channels
Power In 2-pin Locking
USB 5-pin locking USB 2.0
Controls
Record Capture Image Capture Tool
USB 5-pin locking USB 2.0
Data I/O
Connector Type 1x RJ45 Ethernet
SDI 1x BNC 3G input and 1x BNC 3G input/output
HDMI 1 input and 1 output: HDMI Type-A Receptacles (full size)
Audio 1x 3.5mm 3-pin Stereo Headphone Jack
Ethernet RJ45
Storage Media 1x SD Card Slot
USB 5-pin locking USB 2.0
Power
Input 2-pin Locking Power Input
(10-34V DC, 2.1A)
Software
Pixel Zoom Yes
Focus Assist Yes
Peaking Yes
False Color Customizable False Color Overlays
Waveform Customizable 4K Waveform w/Region of Interest Highlighting (Coming Soon)
Custom LUTS 17pt 3D-LUT on Output/Input
33pt 3D-LUT on Output/Input
Camera Control
Camera Control Compatibility Camera Control for ARRI
Camera Control for Sony VENICE
Camera Control for RED® DSMC2™
Camera Control for RED® RCP2™ Cameras (KOMODO®, DSMC3™)

Additional information

Brand

  • 1 x Ultra 5
  • 1 x D-Tap to 2-pin Power Cable – 36in
