AK-HUC01G – HCU250 4K Upgrade Option Board (12G-SDI)

5.150,00€ (ex. VAT)

SKU: AK-HUC01G Categories: , ,

This optional kit outputs 4K video signal on the AK-HC3900 system.

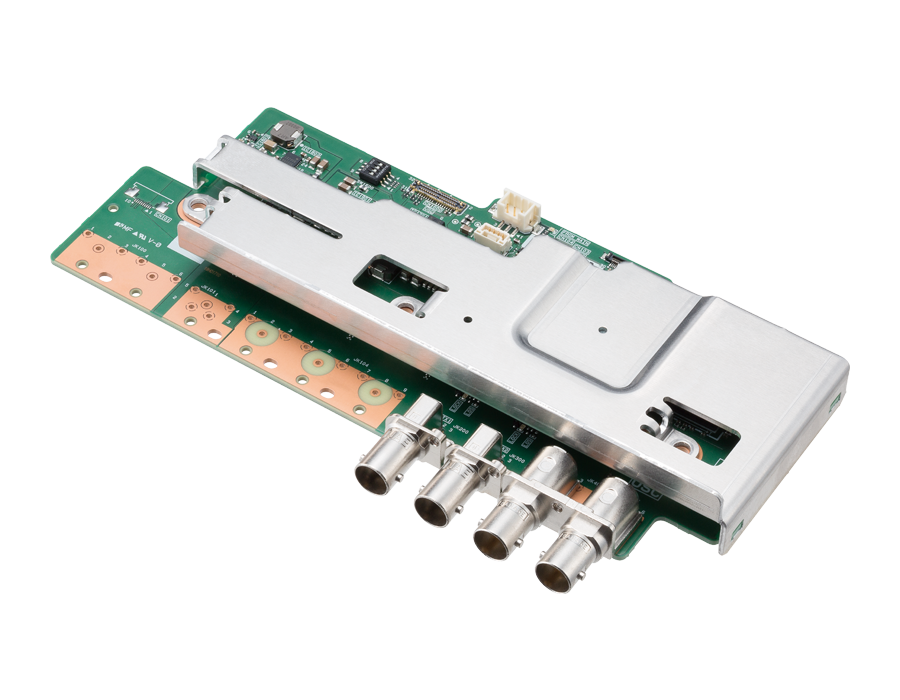

To use these items, the 4K Optical Low Pass Filter is attached to the lens mounting surface of the AK-HC3900 and the 4K Output Board is attached to the Camera Control Unit (CCU) AK-HCU250.

  • Output is switchable between two 12G-SDI systems and 4K SDI with 3G-SDI Quad Link.
  • Horizontal / vertical resolution 2000TV 4K video output supported.
  • Simultaneous output of 4K/HDR/BT.2020 and HD/SDR/BT.709 supported.
Dimensions (W x H x D) Approx. 177 mm x 24.7 mm x 95.3 mm (6-31/32 inches x 31/32 inches x 3-3/4 inches)
Weight Approx. 140 g (0.31 lbs) (including heat sink)
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Humidity 10% to 90% (no condensation)

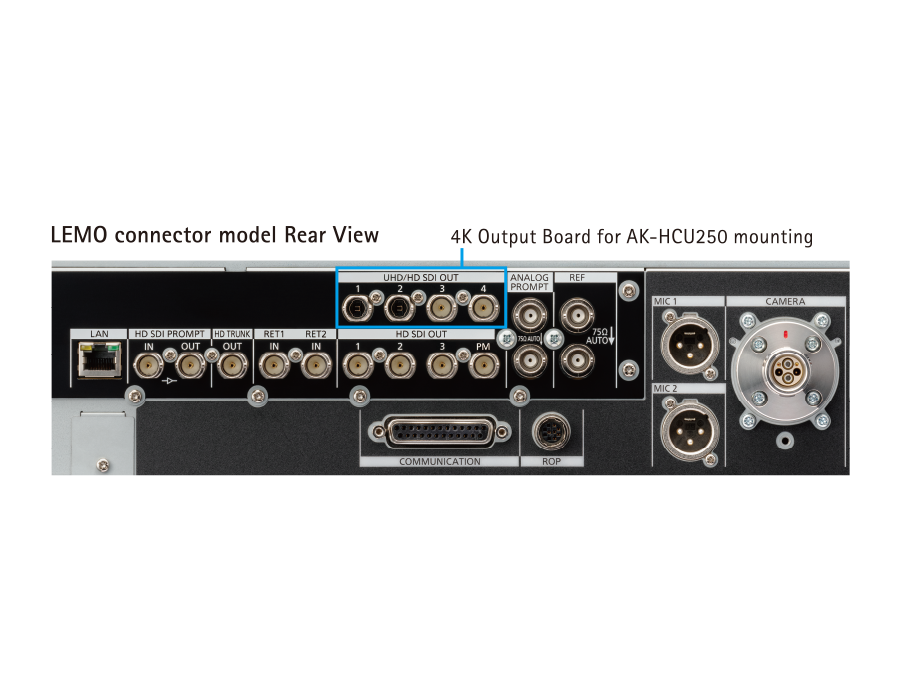

Input/Output Section <UHD/HS/HD SDI OUT1>
terminal		 BNC x 1, 12G / 6G / 3G /1.5G HD SDI : 0.8 V [p-p], 75 Ω
<UHD/HS/HD SDI OUT2>
terminal		 BNC x 1, 12G / 6G / 3G /1.5G HD SDI: 0.8 V [p-p], 75 Ω
<UHD/HS/HD SDI OUT3>
terminal		 BNC x 1, 3G / 1.5G HD SDI: 0.8 V [p-p], 75 Ω
<UHD/HS/HD SDI OUT4>
terminal		 BNC x 1, 3G / 1.5G HD SDI: 0.8 V [p-p], 75 Ω
