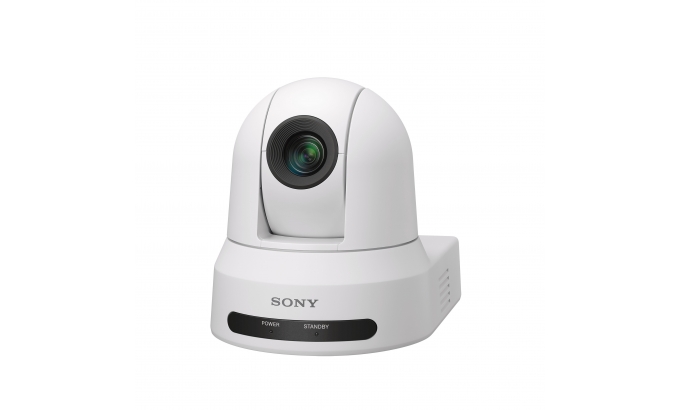

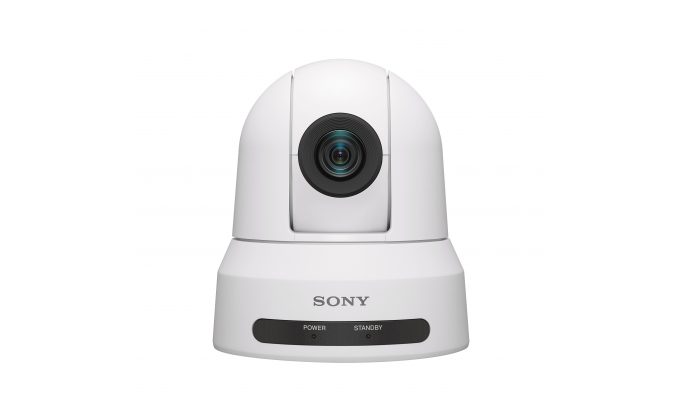

4K 30p resolution, up to 40x CIZ, 20x optical zoom, UVC & HDMI (White)
Capture all the details of your meetings and lectures with the white SRG-X40UH 4K PTZ Camera from Sony. This camera captures video at resolutions up to UHD 4K30 via HDMI and up to 1080p60 via USB. The SRG-X40UH camera is equipped with an 8.5MP CMOS sensor and a 4.4-88mm lens with a wide 70° field of view. Clear Image Zoom Technology can extend the 20x optical zoom up to 40x, enabling frame-filling close-ups in 1080p.
Professional communication with 4K detail, natural images and 40x zoom
Built for almost any space, the SRG-X40UH matches high quality images with ease of use and simple installation. This remotely controlled PTZ camera can cover everything from crowded operating theatres to huge auditoriums, making it perfect for business, education and medical settings. See all the details, textures and colours you need, with a 1/2.5-type Exmor R™ CMOS image sensor. Capture up to 4K images with minimal noise, even in low light. Create better FHD images, thanks to oversampling from the 4K sensor. Get crisp close-up shots with the SRG-X40UH, which features 20x optical zoom, and 40x zoom in FHD and 30x in 4K with Clear Image Zoom technology. Meanwhile, an horizontal viewing angle of approximately 70° lets you zoom out for much wider images. And smooth, fast PTZ movements make any transitions seamless. Place the SRG-X40UH on a desk or mount it to the ceiling for more discreet filming. Simple UVC or HDMI connections make it easy to integrate into your existing set-up. And PoE+ support and VISCA/VISCA over IP control command let you remotely operate and power it through a single LAN cable.
Key features
Clear, detailed 4K images—anywhere — The sensitive 1/2.5-type Exmor R™ CMOS image sensor captures high-quality 4K images with very little noise, even in dimly-lit environments.
Natural images and colours — The powerful sensor reproduces colours as they appear in the real world, so you see a realistic image every time.
Detailed pictures, even in the dark — Our Day/Night function automatically switches between Day mode (full colour) and Night mode (black & white) so you always see clearly. See detailed pictures in almost complete darkness, thanks to boosted sensitivity.
Powerful 40x zoom and wide angle — Get detailed close-ups or capture an entire room through the integrated lens. Utilize the 20x optical zoom, and with Clear Image Zoom technology, you can zoom up to 40x in FHD and 30x in 4K, with an horizontal viewing angle of approximately 70°.
Flexible mounting options — Choose between a desktop mount or ceiling mount so you can record from almost anywhere, whether you’re in a boardroom or an auditorium.
Smooth movement — Fast, smooth pan-tilt-zoom movements let you keep up with anything that’s happening, while pan angle up to 170° of rotation means you can cover a bigger space with fewer cameras.
Easy connection — A choice of USB and HDMI connections let you integrate the camera into your existing systems. Then USB Video Class (UVC) gives you smooth video communication.
Remote control and simple power — With a single LAN cable, you can power and remotely control your camera, thanks to PoE+ support and VISCA/VISCA over IP control command. Minimal cabling, effort and cost.
1700 TV line (Center)(4K) , 1000 or higher TV line (Center)(FHD)
Gain
Auto/Manual (0 to +48 dB) High Sensitivity On
Shutter Speed
1/1 to 1/10000 sec (59.94 Hz system) 1/1 to 1/10000 sec (50Hz system)
Exposure Control
Auto/Manual/Priority AE (Shutter, Iris)
White Balance
Auto1/Auto2/One Push WB/Indoor/Outdoor/Manual
Zoom Capability
30x (4K with CIZ*), 40x (HD with CIZ)
*CIZ = Clear Image Zoom
Focusing System
Auto/Manual
Horizontal Viewing Angle
Approx. 70 degree(Wide)
Focal Length
f=4.4mm(Wide) to 88.0mm(Tele) F2.0 to F3.8
Minimum Object Distance
80 mm (Wide)~ 800 mm (Tele)
Pan/Tilt Angle
Pan: ±170° Tilt: +90°/-20°
Pan/Tilt Speed (Max)
Pan: 300°/s Tilt: 126°/s
Pan/Tilt Speed
Pan: 1.1° to 101°/s Tilt: 1.1° to 91°/s
Pan/Tilt Speed (Slow)
Pan: 0.5° to 60°/s Tilt: 0.5° to 60°/s
Pan/Tilt Slow Mode
Yes
Pan/Tilt Operation Noise
NC30 or less* * Sony measurement conditions
Preset Position
100 (VISCA)
Picture Freeze Preset
No
PTZ Motion Sync
No
Camera Features
Auto ICR (Auto mode of IR Cut filter Removal)
Yes
Day/Night
Yes
Visibility Enhancer
Yes
Image Stabilizer
Yes
Image Flip
Yes
Picture Setting File
No
Flicker Cancel
On/Off
Hide OSD Menu
On/Off
Standby Mode
Yes
Remote Standby
Yes
Web UI
Ver Up
Yes

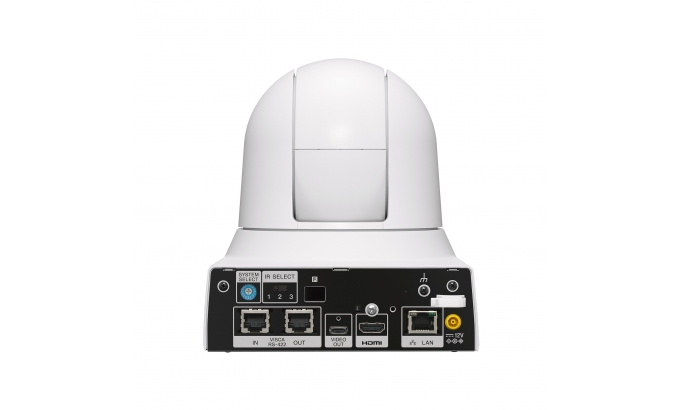

Interface
4K Video Output
HDMI x 1
HD Video Output
HDMI x 1 USB x 1
Remote Video Format Switching
Yes
HDMI Color Space
YCbCr, 4:2:2 8bit RGB, 4:4:4 8bit
Camera Control Interface
VISCA RS-422 RJ45(In/Out)
VISCA over IP RJ-45
UVC(USB) USB Type-C (ver.2.0)
IR Remote Control
Yes
Sync. System
INT
UVC Format
MJPEG
UVC Version
1.1
General
Power Requirements
DC 12V (DC 10.8 to 13.2V), PoE+(IEEE802.3at compliant)
Power Consumption
25.5W(Max)
Operating Temperature
0 °C to 40 °C 32 °F to 104 °F
Storage Temperature
-20 °C to +60 °C -4 °F to +140 °F
Dimensions (W x H x D)*1
158.4 x 177.5 x 200.2mm 6 1/4 x 7 x 8 inch
Mass*1
Approx. 1.6 kg
3 lb 8.43 oz
Camera Body Color
White/Black
Size of Screw Hole for Tripod
1/4-20UNC x 1
Mountable Angle
< ±15°
Ceiling Mount
Yes
Supplied Accessories
AC power adaptor (1) IR Remote Commander Unit (1) Ceiling bracket (2) Wire rope (1) Screw M3 x 8 (9) Screw M2.6 x 6 BLACK (1) HDMI cable fixing plate (1) Safety regulation (1) Download site information (1) Warranty (1)
Notes
*1
The values for dimensions and mass are approximate
