Panasonic

AW-UE160WEJ 4K Integrated PTZ Camera, White version (requires additional 12V 5A power supply)

13.300,00€ (ex. VAT)

SKU: AW-UE160WEJ Categories: , ,

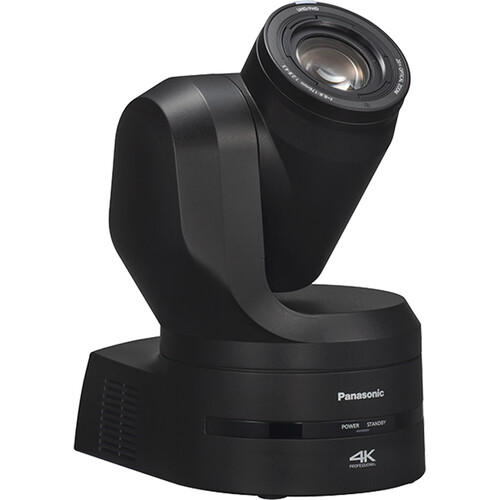

Capture optimal 4K images, even in the most challenging lighting conditions with the black AW-UE160 UHD 4K 20x PTZ Camera from Panasonic. This pro PTZ camera outputs up to UHD 4K 60p over a variety of 4K connections including 12G-SDI, HDMI, optical fiber, and IP streaming. It features a large 1″ type MOS sensor, a 20x optical zoom with a wide 75.1° angle-of-view, and PoE++ compatibility.

A 2x high-speed mode enables smooth slow-motion capture, and a built-in OLPF (optical low-pass filter) reduces any moiré effects when shooting against an LED wall or in similar situation. Additional camera features include PDAF (phase-detection autofocus), HDR/HLG compatibility, front and rear tally lights, 1/4, 1/16, and 1/64 ND filters, and live streaming via RTMP.

4K 1″ MOS Sensor
The AW-UE160 features a newly developed 4K 1″ MOS sensor that offers the highest sensitivity of Panasonic’s entire PTZ lineup. This sensitivity enables you to easily capture clear images even in the most challenging lighting conditions, including concert venues and houses of worship.
Low-Pass Filter
A new optical low-pass filter reduces moiré effects, producing clearer picture quality when shooting against an LED wall, which is especially important for staging or worship environments.
High-Speed Frame Rates
2x high-speed capture enables you to create smooth slow-motion video suitable for sports, Esports, and other dynamic events.
Phase Detection AF
PDAF (phase-detection autofocus) technology enables you to focus on moving subjects with high speed and precision.
Sensor Type 1″-Type MOS Sensor
Horizontal Resolution (TV Lines) 1600 TV Lines
Sensor Resolution Effective: 9.62 Megapixel
Built-In ND Filter Mechanical Filter Wheel with 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters
Low Pass Filter Optical
Focus Control Autofocus
Manual Focus
Exposure Control
Shutter Speed 1/2000 to 1/48 Second
Gain 0 to 36 dB
Precise Scan Rate Control Yes
Flip / Mirror Support Image Flip
White Balance 2000 to 15,000K
Lens
Focal Length 8.8 to 176mm (35mm Equivalent Focal Length: 24.5 to 490mm)
Optical Zoom Ratio 20x
Field of View Horizontal: 75.1 to 4°
Vertical: 46.7 to 2.3°
Diagonal: 82.8 to 4.6°
Maximum Aperture f/2.8 to 4.5
Video Capture
External Recording Modes SDI/BNC / HDMI / RJ45
UHD 4K (3840 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps
HD (1920 x 1080p) at 23.98/24.00/25/29.97/50/59.94/60.00 fps
HD (1920 x 1080i) at 50/59.94 fps
1280 x 720 at 50/59.94 fps
Broadcast Output NTSC/PAL
Gamma Curve HDR-HLG, Normal 1
Control
Move Speed Pan: 0.08 to 1800°/sec
Tilt: 0.08 to 1800°/sec
Movement Range Pan: 350° (-175 to 175°)
Tilt: 240° (-30 to 210°)
Tally Light Yes
Supported Control Protocols IP
RS-422
Max Cable Length 328.1′ / 100 m (Cat 5e, Cat 6)
Interface
Video I/O 1 x BNC (12G-SDI) Output
2 x BNC (3G-SDI) Output
1 x HDMI 2.0 Output
Audio I/O 2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input
Other I/O 1 x RJ45 (LAN) Control
1 x RJ45 (RS-422)
Expansion Slots 1 x SFP+ Slot
Power
PoE Support PoE++ 802.3bt
Power I/O 1 x XLR 4-Pin (12VDC at 1.5 A) Input
Power Consumption 10.8 to 13.2 VDC at 5 A
PoE: 42 to 57 VDC
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 122°F / -20 to 50°C
Operating Humidity 20 to 90%
General
OS Compatibility Android
Chrome OS
macOS 10.13 to 15
*As of December, 2022: Check with manufacturer for the most up-to-date compatibility
Dimensions (W x H x D) 10.9 x 9.4 x 8.4″ / 27.7 x 24 x 21.3 cm (Without Protrusions, Bracket)
Weight 10.1 lb / 4.6 kg
