AIDA‘s 20x Full HD IP Broadcast PTZ Camera offers four simultaneous video outputs, all supporting up to 1080p60 resolution. While the SDI, HDMI, and USB outputs must be set at the same resolution, the IP streaming port can output at a different resolution at frame rates from 1 to 60 fps.
The camera features RS-232 input/output for serial control. It uses the VISCA control protocol and TCP/IP and RTSP/RTMP IP protocol. Up to 10 presets can be assigned and managed via the included IR remote controller, and up to 128 can be managed over serial control. Other features include a motion-compensated temporal noise reduction filter, which allows for noise reduction without blur.
Simultaneous SDI, HDMI, USB, and IP outputs
Up to 1080p60 resolution video output
H.264 / H.265 streaming
RS-232 input/output
VISCA control protocol
TCP/IP, RTSP/RTMP IP protocol
10 presets via included IR remote controller, 128 presets over serial control
Motion-compensated temporal noise reduction filter allows for noise reduction without blur
SMPTE 424M/292M standard
Built-in OSD controls
4:2:2 (YCbCr) 10-bit color space
White Balance: auto, manual, auto tracking, one push, indoor, outdoor
Be the first to review “Broadcast/Conference FHD IP/SDI/HDMI/USB3 PTZ Camera 20X Zoom” Cancel reply

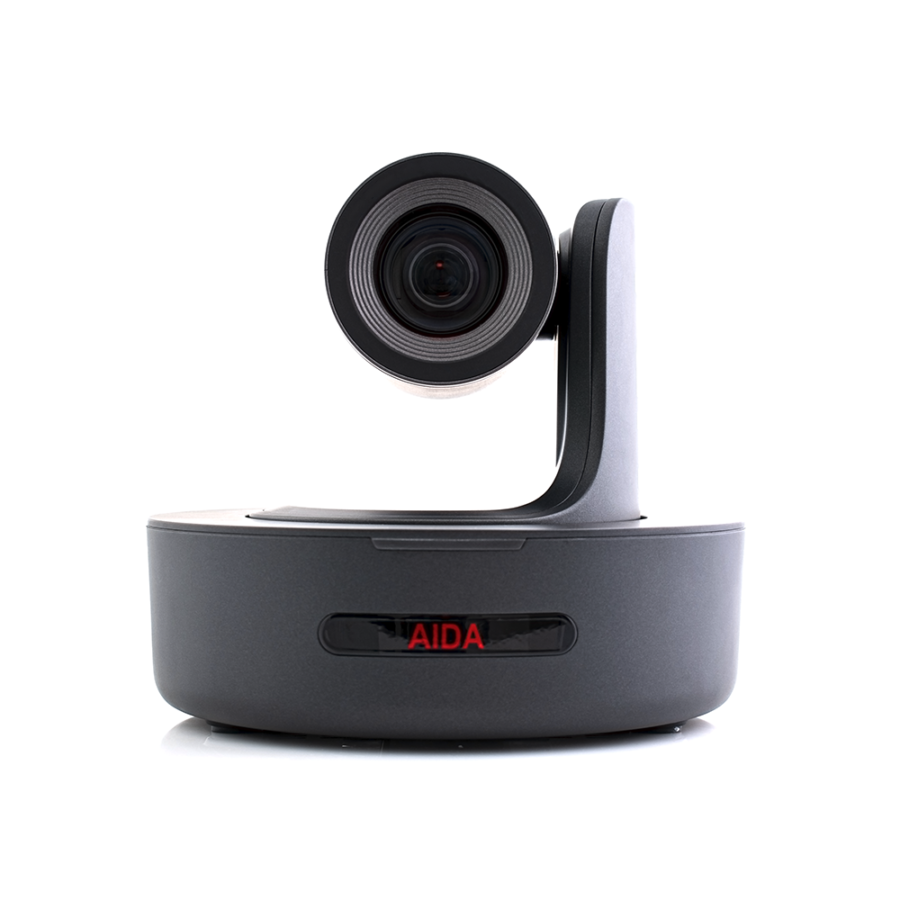

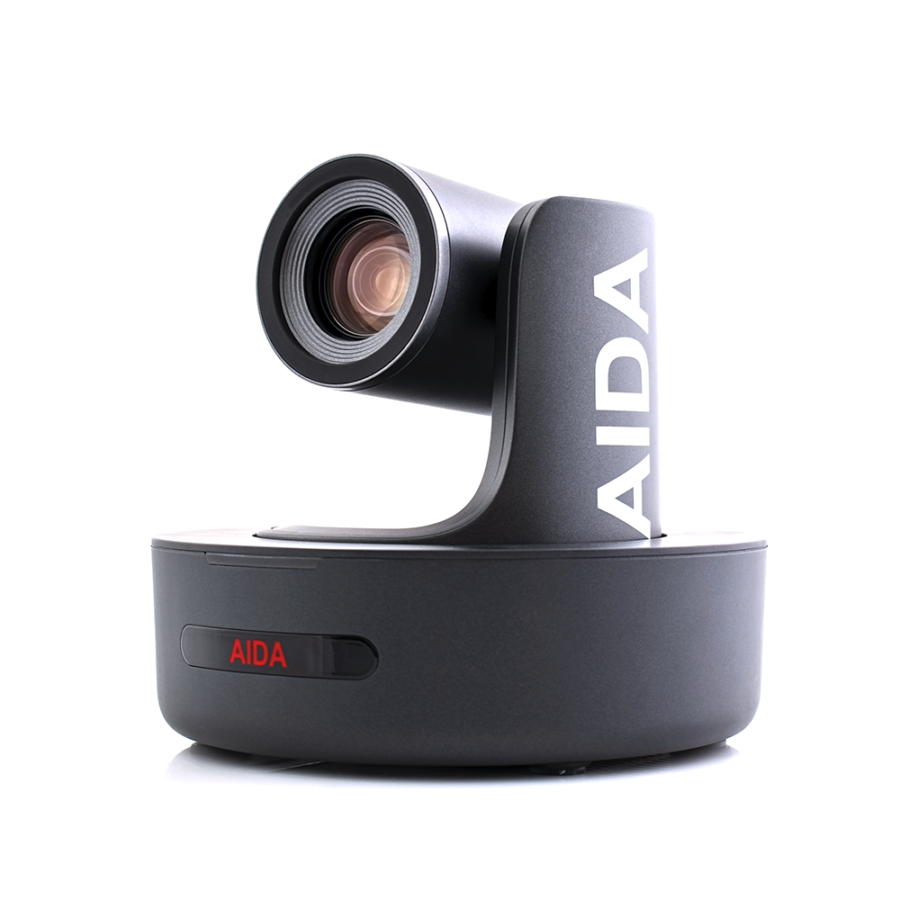

AIDA Imaging 20x Full HD IP Broadcast PTZ Camera
Remote Controller
Mounting Bracket
USB 3.0 Cable
Power Adapter
Power Cord
Limited 2-Year Manufacturer Warranty
