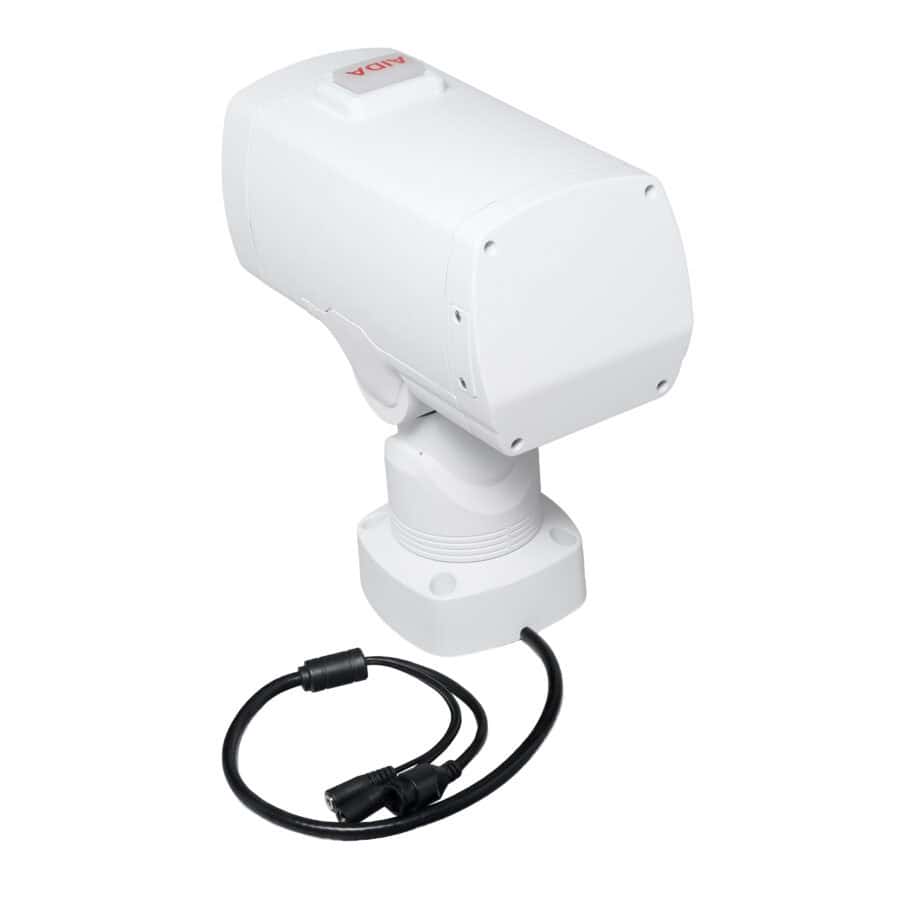

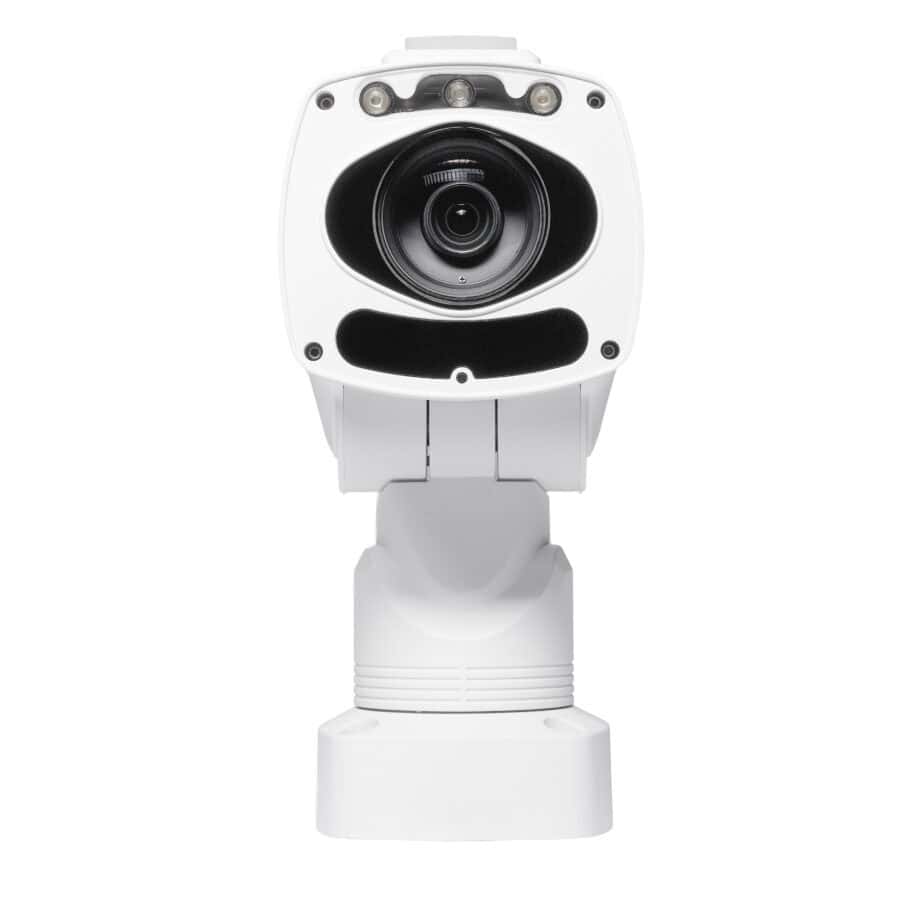

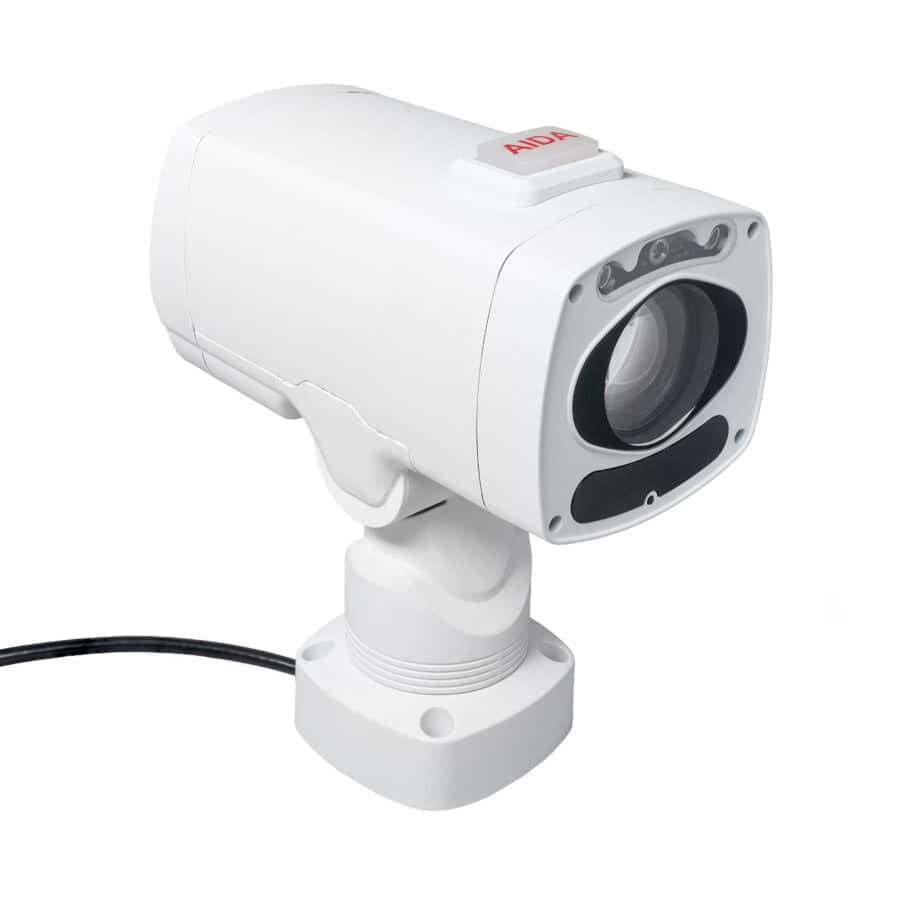

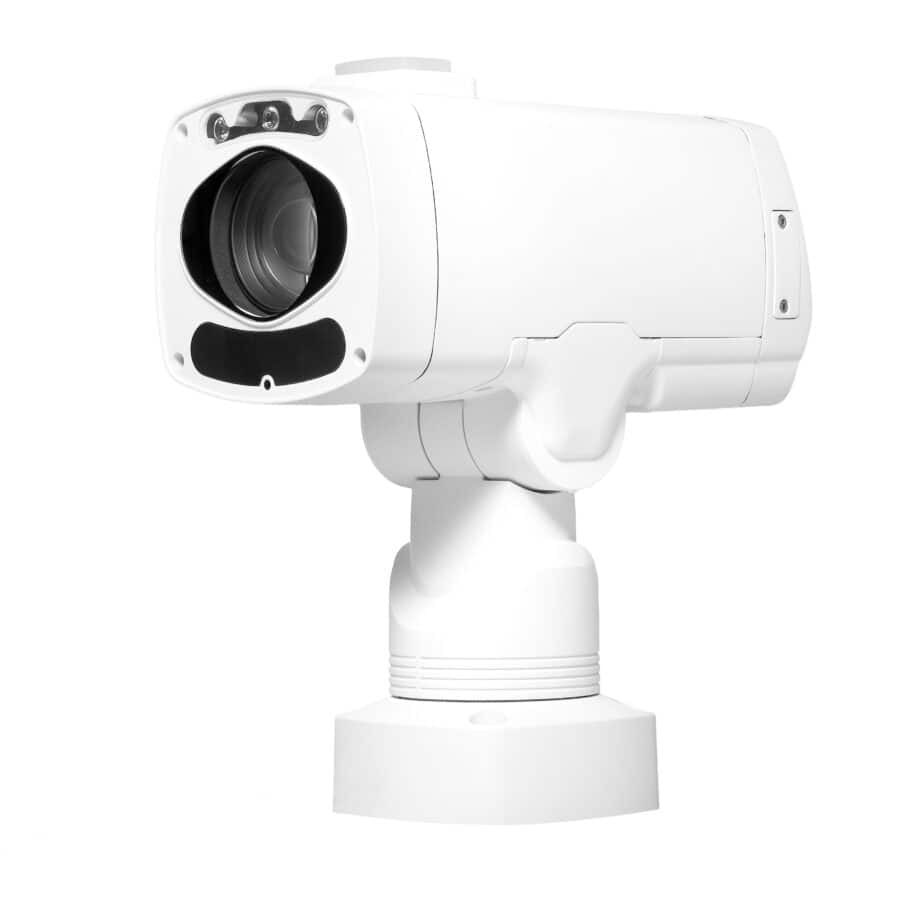

NDI®|HX3/IP/SRT 30X Zoom, Tally & IR Night Vision Outdoor Weatherproof (IP66) 4K60 PTZ Camera (White)
NDI®|HX3/IP/SRT 30X Zoom, Tally & IR Night Vision Outdoor Weatherproof (IP66) 4K60 PTZ Camera (White) - Image 2
NDI®|HX3/IP/SRT 30X Zoom, Tally & IR Night Vision Outdoor Weatherproof (IP66) 4K60 PTZ Camera (White) - Image 3
NDI®|HX3/IP/SRT 30X Zoom, Tally & IR Night Vision Outdoor Weatherproof (IP66) 4K60 PTZ Camera (White) - Image 4
NDI®|HX3/IP/SRT 30X Zoom, Tally & IR Night Vision Outdoor Weatherproof (IP66) 4K60 PTZ Camera (White) - Image 5
NDI®|HX3/IP/SRT 30X Zoom, Tally & IR Night Vision Outdoor Weatherproof (IP66) 4K60 PTZ Camera (White) - Image 6
Aida

NDI®|HX3/IP/SRT 30X Zoom, Tally & IR Night Vision Outdoor Weatherproof (IP66) 4K60 PTZ Camera (White)

The PTZ4KWP-NDI3-X30 is AIDA’s first weatherproof PTZ camera, designed to deliver reliable 4K performance in environments where conditions are anything but predictable.

3.064,00€ (ex. VAT)

SKU: PTZ4KWP-NDI3-X30 Categories: , , Brand:
  • Stream pristine UHD (3840×2160) video at 60fps across universal IP protocols, including NDI HX3, NDI HX2, and SRT!
  • Contains a 1/1.8” 4K SONY CMOS sensor guarantees flawless imaging across extreme lighting—from glaring sunlight to near-total darkness.
  • A switchable IR cut filter instantly unlocks true infrared sensitivity for enhanced night vision.
  • An integrated, variable-intensity white LED provides tailored, on-demand illumination for low-light environments.
  • Built-in auxiliary climate controls (heating and cooling) ensure reliable operation across extreme ambient temperatures.
  • Native PoE++ support for streamlined setups.
  • A powerful 4K 30X optical zoom module captures crisp, detailed close-ups from 120–140 feet away.
  • A dedicated 3.5mm Line-in ensures perfectly synchronized, zero-latency audio and video across all IP streams.
  • An exceptionally cost-effective 4K PTZ, delivering uncompromised UHD broadcast quality for entry-level studios.
  • Full Setting parameter control over the webUI, HTTP or VISCA over IP.

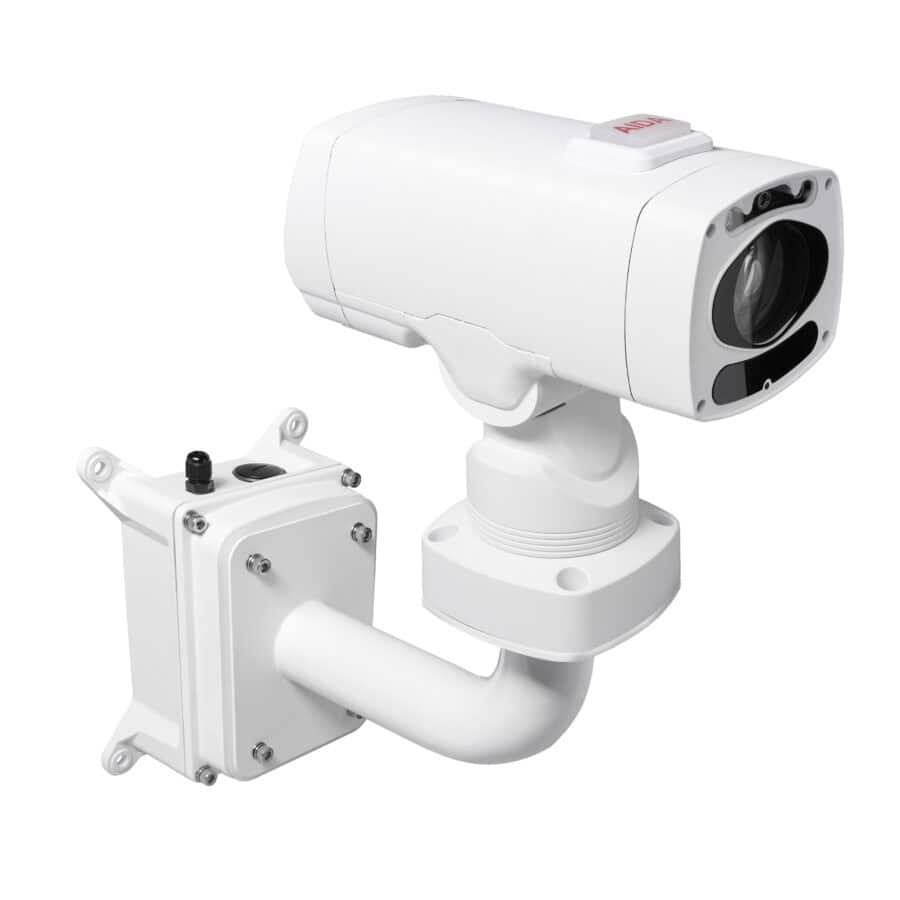

  • Securely wall-mount via our WM-PTZ-JTYPE*, seamlessly integrating with the JBOX-PTZWP* junction box to fully weatherproof your wiring.
Key Specs
Image Sensor
1/1.8″-Type
Max Optical Zoom
30x
Max Video Output
4:2:2 10-Bit via RJ45
Up to UHD 4K at 24.00/25/29.97/30.00/50/59.94/60.00 fps
Max Recording Modes
No
Broadcast Output
NTSC/PAL
Supported Protocols
Video Streaming
NDI|HX2/NDI|HX3/RTMP/RTSP/SRT
IP Streaming
1280 x 720 to 3840 x 2160 up to 60p
Wireless
No
PoE Support
Yes: PoE++ 802.3bt
Imaging
Image Sensor
1/1.8″-Type CMOS
IR Cut Filter
Yes
Focus Control
Autofocus
Exposure Control
Minimum Illumination
0.2 Lux
Lens
Max Optical Zoom
30x
Field of View
Horizontal: 60 to 2°
Maximum Aperture
f/1.35 to 4.6
Video Capture
Video Output
4:2:2 10-Bit via RJ45
3840 x 2160p at 24.00/25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080p at 24.00/25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720 at 50/59.94/60.00 fps
Embedded Audio
IP
Internal Recording
No
Broadcast Output
NTSC/PAL
Supported Protocols
Video Streaming
NDI|HX2/NDI|HX3/RTMP/RTSP/SRT
IP Streaming

1280 x 720 to 3840 x 2160 up to 60p
Control
Pan/Tilt
Pan: 334° (-167 to 167°) at 0.5 to 60°/s
Tilt: 109° (-59.5 to 49.5°) at 0.2 to 34.2°/s
Tally Light
Yes
Networking
Wireless
No
Interface
Video I/O
1x RJ45 (NDI) Output
Audio I/O
1x 1/8″ / 3.5 mm TRS Stereo Line Input on Camera Body
Built-In Microphone
No
Built-In Speaker
No
Power
PoE Support
Yes: PoE++ 802.3bt
Power I/O
1x DC (9 to 15VDC) Input
Environmental
Operating Conditions
-10 to 55°C
Impact Resistance
No
Environmental Resistance
Weather-Resistant (IP66)
General
Dimensions (W x H x D)
30.5 x 25.5 x 12.5 cm
Weight
4.8 kg (Body Only)
