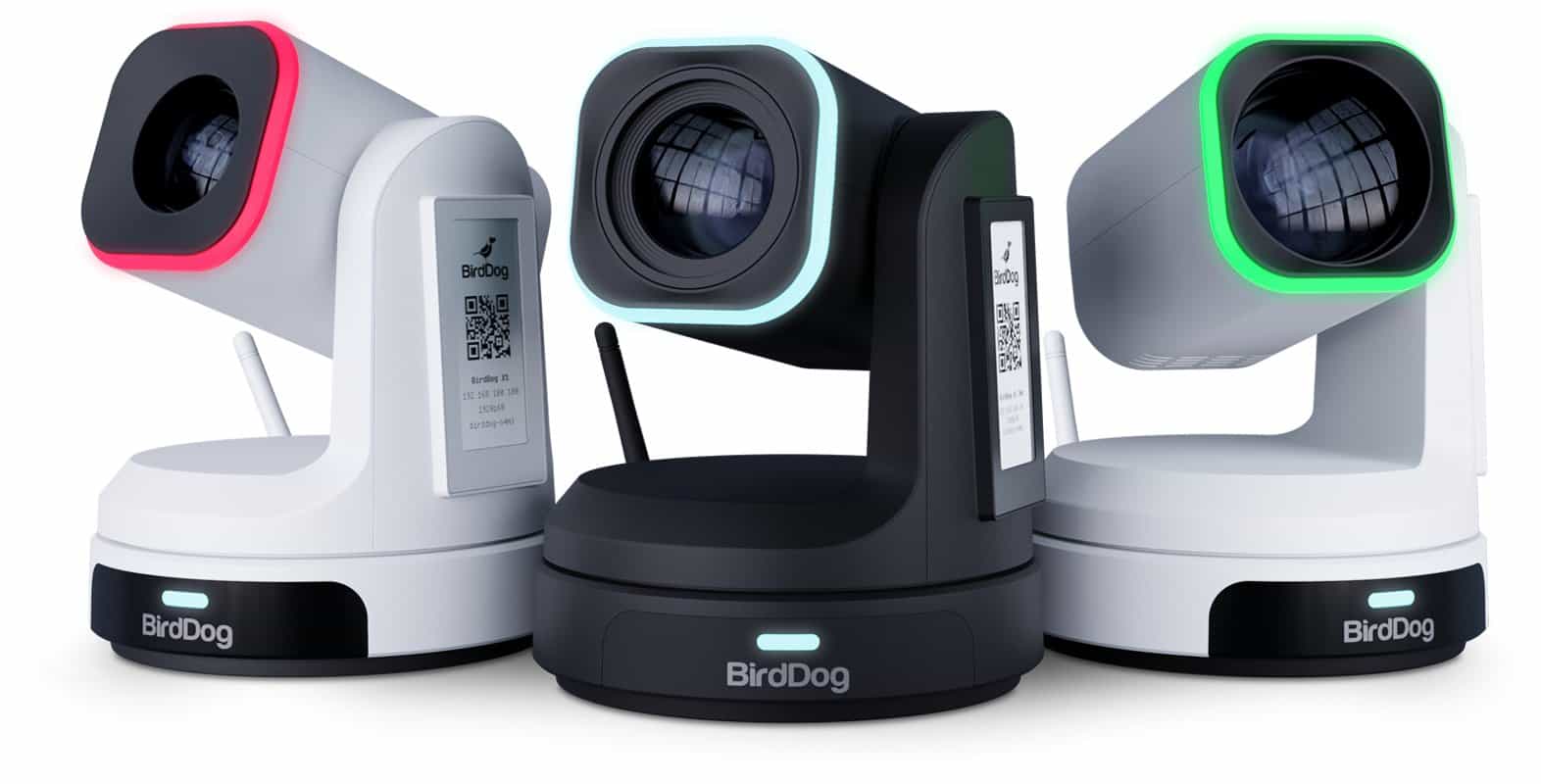

X1 30x Full HD NDI® PTZ Camera with 30x Zoom (Black)

X1 30x takes the X1 platform further with a 30x optical zoom, a wider angle of view and a native 9:16 vertical video mode. It delivers Full HD NDI® | HX3, HDMI, USB-C webcam and Wi-Fi connectivity, with AI tracking, Halo tally and an always-on e-ink label.

945,00€ (ex. VAT)

SKU: BDX1-30B Categories: , , Brand:

X1 30x takes the X1 platform further with a 30x optical zoom, a wider angle of view and a native 9:16 vertical video mode. It delivers Full HD NDI® | HX3, HDMI, USB-C webcam and Wi-Fi connectivity, with AI tracking, Halo tally and an always-on e-ink label. This model is finished in black.

Key features

  • Sony 1/2.8″ Full HD sensor with 30x optical zoom and 52mm filter ring; 9:16 vertical output
  • NDI® | HX3 (and HX2) with ultra-low latency, plus SRT, RTMP and RTSP streaming

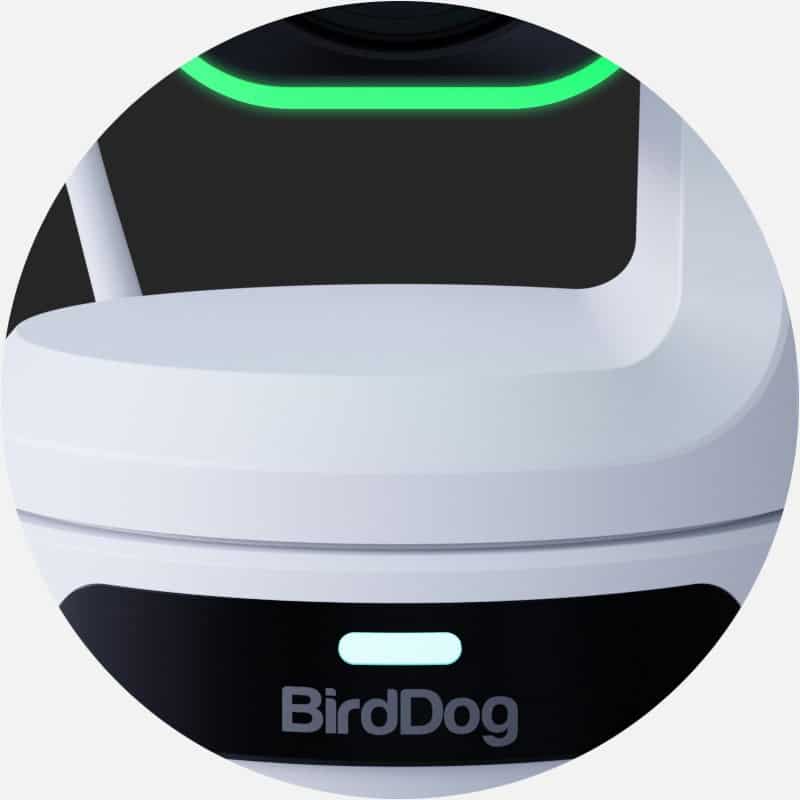

  • Integrated NDI® | HX decoder on the HDMI output for confidence monitoring, return feeds or teleprompter

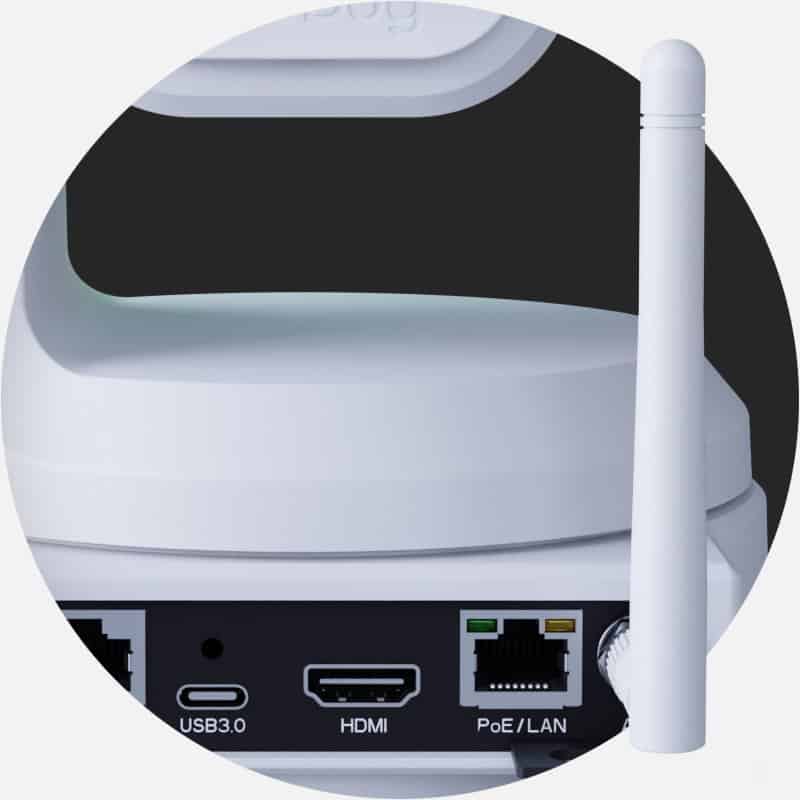

  • Built-in Wi-Fi in addition to Ethernet with PoE
  • HDMI baseband output and USB-C UVC webcam for Zoom, Teams and other apps
  • AI subject tracking

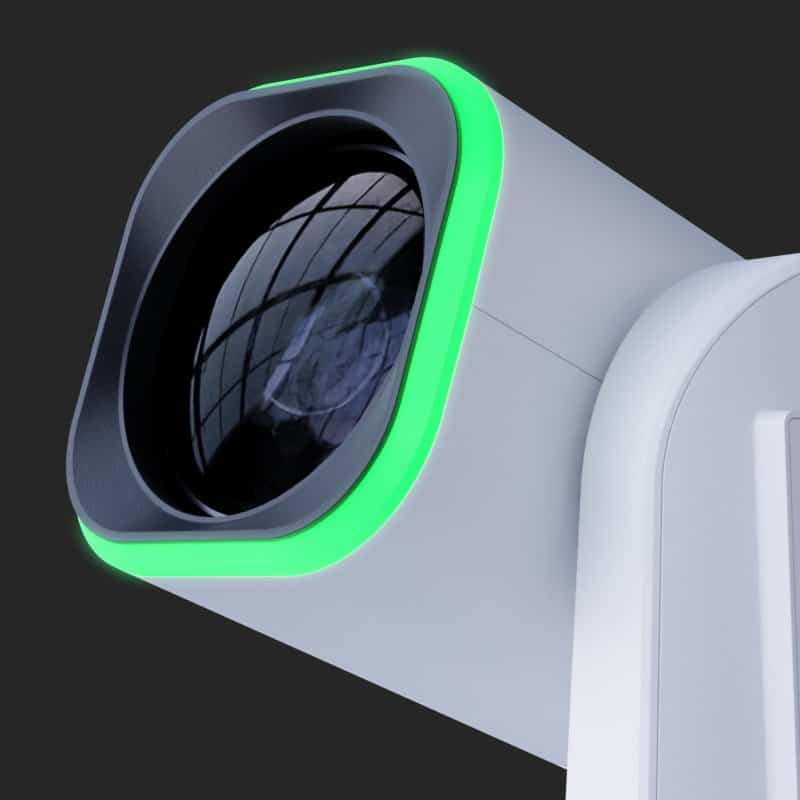

  • Halo tally around the lens (front) and illuminated interchangeable rear numbers

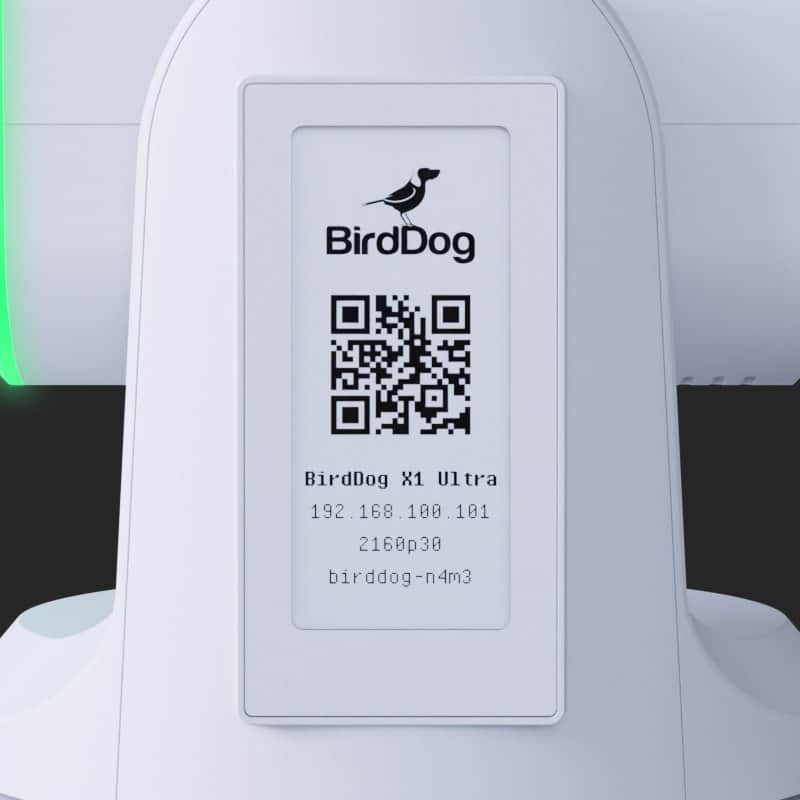

  • Always-on e-ink label showing network details, even when powered off

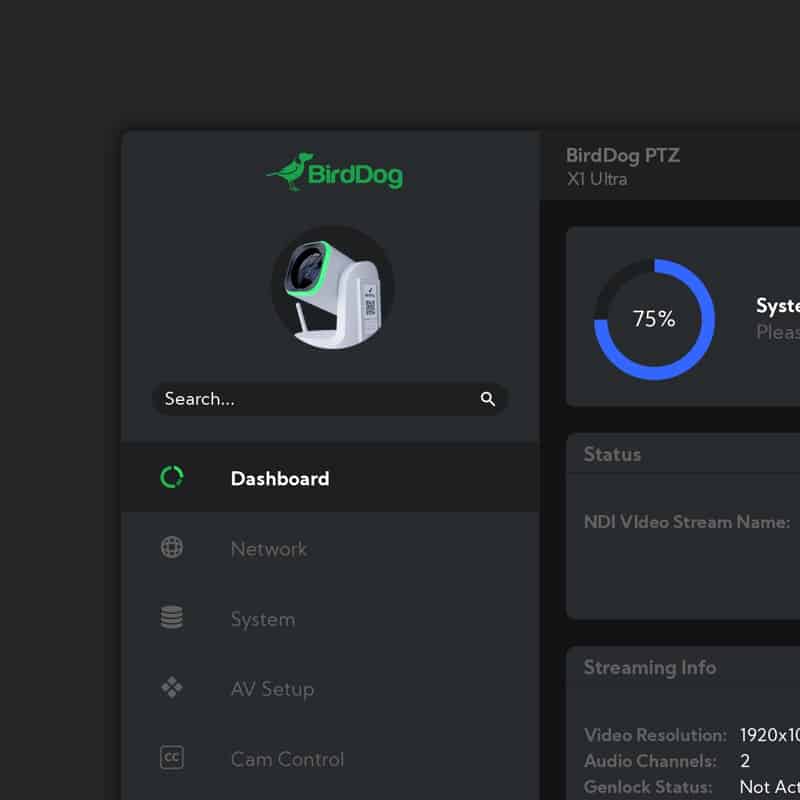

  • Iris enabled: cloud-based remote control, AI framing and monitoring from any browser
  • Full colour matrix with 6-axis saturation control
  • Control via IR remote, VISCA / VISCA-IP, NDI®, RS232/RS485, BirdDog KBD, Skaarhoj, CyanView, Stream Deck and more; RESTful API 2.0
  • 5-year global BirdDog warranty
IMAGING
Image Sensor Sony 1/2.8” CMOS • FULL HD
Lens f=5.2mm ~ 148.4mm
Optical Zoom 30x
Video Format 1080p @ 60/59.94/50/30/29.97/25fps
720p @ 60/50/30/25fps
608x1080p (9:16 ratio) @60/59.94/50/30/29.97/25fps
Horizontal angle of view 58.1° (W) – 2.14° (T)
Vertical angle of view 33.8° (W) – 1.2° (T)
Diagonal angle of view 65.4° (W) – 2.48° (T)
Aperture F1.3 ~ 4.8
Focus Auto, Manual
Exposure Auto, Shutter Priority, Iris Priority, Manual
Backlight Compensation Yes
Digital Noise Reduction 2D and 3D Noise Reduction
Minimum Illumination .5 lux
SNR >50dB
Effective Pixels 2.07 MP
Filter Ring (52mm) YES
MECHANICAL
Pan/Tilt Rotation ±175°, -90°～+90°
Pan Control Speed 0.1 -80°/sec
Tilt Control Speed 0.1 -60°/sec
Preset Number 255 presets
Integrated Tally Light Halo Style, RGB (Front), Number Style (Rear), ATEM Tally Support
I/O INTERFACE
Video Output Interfaces HDMI, USB-C UVC 1.1, Network
Video Compression Format H.264, H.265
Network Interfaces 100M adaptive Ethernet port; POE IEEE802.3af, Wi-Fi IEEE 802.11ac
Encoder Network Protocols NDI|HX2, NDI|HX3, SRT, RTSP, RTMP
HDMI Decoder Network Protocols NDI|HX2, NDI|HX3
Control Interfaces 10M/100M Ethernet, Wi-Fi IEEE 802.11ac, RS232 (input & output), RS485, TYPE-C(UVC1.1)
Control Protocols VISCA Baud Rate: 38400/9600/4800/2400, VISCA-IP, NDI
3rd Party Control Protocols Support for Q-sys, Crestron and BitFocus Companion modules
GENERAL PARAMETER
Input Voltage DC 12V, POE IEEE802.3af
Input Current 2.0A (Max.)
Power Consumption 13W (Max.)
Working Temperature -10℃ ～ +40℃
Working Humidity 20% ～ 80%
Dimension (W*H*D) 171.6*192.6*171.6mm/ 260*217*197mm (before/ after packing)
Net and Gross Weight 1.35kg/2.05kg (Net/Gross weight)

Additional information

Brand

  • 1 x camera
  • 1 x power supply
  • 1 x IR remote control
  • 1 x Wi-Fi antenna
