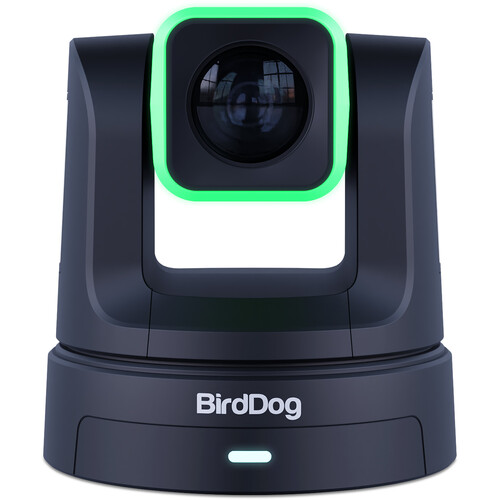

X5 Ultra 4K60 NDI® PTZ Camera with 12G-SDI (Black)

X5 Ultra is BirdDog’s flagship 4K60 NDI® | HX3 PTZ camera, combining a Sony 4K60 sensor with an advanced motor drive system for ultra-fine, natural on-air moves. It offers 12G-SDI, dual HDMI, NDI® | HX3, SRT, RTMP, RTSP and USB webcam outputs, plus a built-in NDI® decoder, Halo tally and dual e-ink displays.

2.674,00€ (ex. VAT)

SKU: BDX5UB Categories: , , Brand:

X5 Ultra is BirdDog’s flagship 4K60 NDI® | HX3 PTZ camera, combining a Sony 4K60 sensor with an advanced motor drive system for ultra-fine, natural on-air moves. It offers 12G-SDI, dual HDMI, NDI® | HX3, SRT, RTMP, RTSP and USB webcam outputs, plus a built-in NDI® decoder, Halo tally and dual e-ink displays. This model is finished in black.

Key features

  • Sony 4K60 image sensor with 20x optical zoom
  • NDI® | HX3 in 4K60 with low network impact
  • 12G-SDI, dual HDMI and USB-C webcam outputs, plus SRT, RTMP and RTSP streaming
  • Integrated simultaneous NDI® | HX decoder for return feeds, confidence monitoring or teleprompter
  • Advanced motor drive for precise, smooth pan/tilt acceleration and deceleration
  • Next-generation AI tracking and framing with extra neural processing headroom
  • Halo tally visible from the front
  • 49mm filter ring for ND or polarising filters

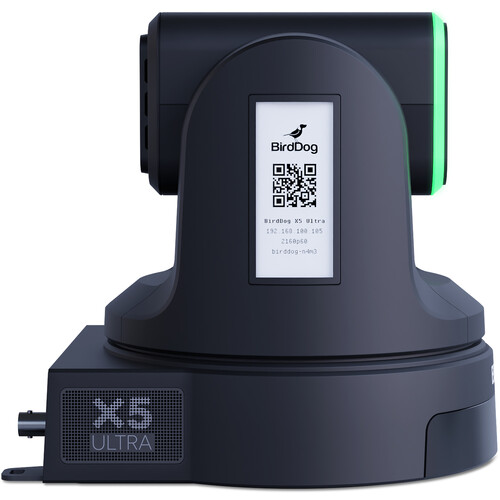

  • Dual always-on e-ink labels
  • BirdUI browser interface with dashboard; RESTful API, VISCA-IP, NDI® and BirdDog KBD control
  • 5-year global BirdDog warranty
IMAGING
Image Sensor Sony 1/2.8” CMOS – ULTRA HD
Lens f=5.4-104mm
Optical Zoom 20x
Video Format 2160p @ 60, 59.94, 50, 30/29.97/25fps,
1080p @ 60, 59.94, 50, 30/29.97/25fps,
720p @ 60, 59.94, 50fps
Horizontal Angle of View 56.6°(W)-3°(T)
Vertical Angle of View 32.5°(W)-1.7°(T)
Diagonal Angle of View 64.7°(W)-3.5°(T)
Aperture F1.6(W)-F3.6(T)
Focus Auto, Manual
Exposure Auto, Shutter Priority, Iris Priority, Manual, BLC, WDR
Shutter Speed 1/1 – 1/10000s
Backlight Compensation Yes
Digital Noise Reduction 3D Noise Reduction
SNR >50dB
Effective Pixels 8.46 MP
Filter Ring ∅49mm
AI Tracking Presenter
MECHANICAL
Pan/Tilt Rotation ±170°, -30° ~ +90°
Pan Control Speed 0.1 -200°/sec
Tilt Control Speed 0.1 -200°/sec
Preset Number 128 presets, Speed Adjustable
Integrated Tally Light Halo style, RGB
Pan/Tilt Drive System Ultra-fine drive
Quietness Max 28dB at full speed pan
I/0 INTERFACE

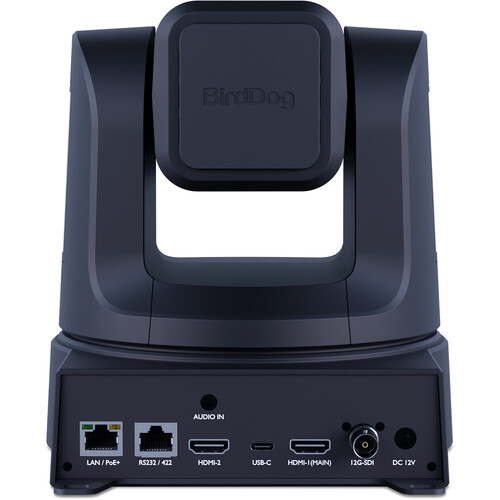

Video Output Interfaces 12G-SDI, HDMI 2.0, HDMI 1.4, USB-C UVC 1.1, 1Gb Network
Video Compression Formats H.264, H.265
Network Interfaces 1GbE adaptive Ethernet port; PoE+ IEEE 802.3at
Encoder Network Protocols NDI®|HX2, NDI®|HX3, SRT, RTSP, RTMP*
HDMI Decoder Network Protocols NDI®|HX2, NDI®|HX3
Decoder Supported Resolutions HDMI 1 – 2160p30, 1080p60, 1080p30, 720p60
HDMI 2 – 1080p60, 1080p30, 720p60
Control Interfaces 1GbE Ethernet, RS232 (input & output), RS422, TYPE-C(UVC1.1)
Control Protocols VISCA Baud Rate: 38400/9600/4800/2400, VISCA-IP, NDI®
Analogue Audio 3.5mm Mic In / Line In (Stereo)
Digital Audio Embedded with Main and Secondary HDMI, 12G-SDI, Network Video, USB (UVC)
GENERAL
Environmental Operation Indoor
Input Voltage DC 12V, PoE+ IEEE 802.3at
Input Current 2.0A (Max)
Power Consumption 18W (Max)
Working Temperature 0ºC ~ +40ºC
Working Humidity 20% ~ 80%
Dimension (W*H*D) mm 185.7*171.9*200.90mm/ 271*275*245mm (before / after packing)
Dimension (W*H*D) in 7.31*6.76*7.90in/ 10.6*10.8*9.6in (before / after packing)
Net and Gross Weight 2.31kg/3.76kg (Net/Gross weight)

Additional information

Brand

  • 1 x camera
  • 1 x power supply
  • 1 x IR remote control
