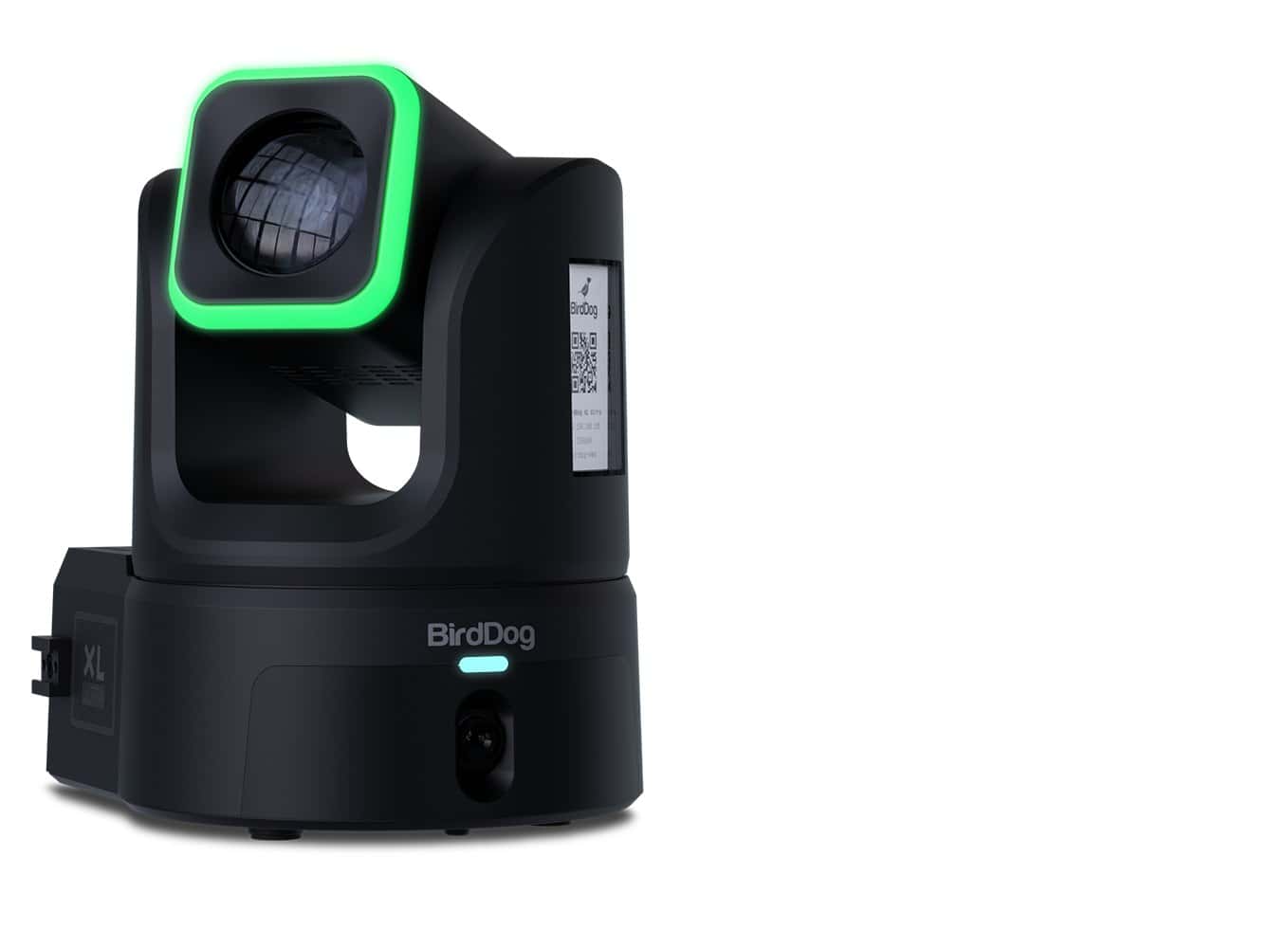

XL Ultra 4K60 Large-Sensor NDI® PTZ Camera (Black)

XL Ultra is a cinematic PTZ camera built for broadcast, virtual production and premium AV. A large 4/3″ CMOS sensor with 20x optical zoom (40x in HD tele mode) delivers 4K60 images with shallow depth of field and excellent low-light performance, while a second built-in 100° panoramic 4K60 camera provides an independent wide shot.

6.246,00€ (ex. VAT)

SKU: BDXLUB Categories: , , Brand:

XL Ultra is a cinematic PTZ camera built for broadcast, virtual production and premium AV. A large 4/3″ CMOS sensor with 20x optical zoom (40x in HD tele mode) delivers 4K60 images with shallow depth of field and excellent low-light performance, while a second built-in 100° panoramic 4K60 camera provides an independent wide shot. This model is finished in black.

Key features

  • 4/3″ CMOS main sensor, 20x optical zoom (40x in HD tele mode), 4K60
  • Second integrated 100° panoramic camera (1/1.8″ sensor, 4K60), independently controllable and output simultaneously
  • Simultaneous Full NDI® (High Bandwidth) and NDI® | HX3; SRT, RTSP and RTMP; NDI® 6.1 ready
  • 12G-SDI, 3G-SDI and HDMI outputs, optical 12G-SDI via SFP+, SFP for fibre or long-distance copper
  • Studio/XR ready: OLPF to reduce moiré on LED walls, genlock and timecode, FreeD for AR/XR, built-in ND filters
  • Balanced XLR audio inputs with phantom power, RS232/422 control, PoE++, cold shoe
  • Next-generation AI tracking with adjustable motion profiles
  • RGB Halo tally, rear numbering tally and side e-ink displays
  • Colour profiles to match other professional cameras; full colour matrix
  • BirdUI, API and BirdDog KBD support
  • 5-year global warranty with advance replacement in supported regions
Primary Camera
Image Sensor 4/3″ Sony CMOS 5K Sensor
Lens 20x Optical Zoom Lens
Video Format 2160p60
Additional Resolutions 2160p60, 59.94, 50, 29.97, 25
1080p60, 59.94, 50, 30, 29.97, 25
1080i60, 59.94, 50
720p60, 59.94,50
Focal Length 9.8mm ~ 186mm
Apeture f2.8~f4.5
Focus Auto, Manual
AF Method PDAF (Phase Detection Auto Focus)
Horizontal Field of View 71° ~ 4°
Exposure Auto, Shutter Priority, Iris Priority, Manual, BLC, WDR
Shutter Speed 1/1- 1/10,000s
3D Noise Reduction Yes
SNR 300lux-600lux 45-50dB
Effective Pixels 20.89 MP
Vertical Field of View 40° ~ 2°
Diagonal Field of View 79° ~ 4.5°
ND Filter Yes 1, 1/4/ 1/16, 1/64
Optical Low Pass Filter (OLPF) Yes
Image Stabilization Digital
Digital Zoom 16x Supersampling
Secondary Panoramic Camera
Image Sensor 1/1.8″ Sony CMOS 4K sensor
Lens Fixed
Focal Length 4.4mm
Aperture f2.0
Horizontal Field of View 85°
Vertical Field of View 53°
Diagonal Field of View 93°
Mechanical
Pan/Tilt Rotation ±170°, -30° ~ +90°
Pan Control Speed 0.05° ~ 120°/s
Tilt Control Speed 0.05° ~ 90°/s
Preset Number 256
Integrated Tally Light Halo Style, RGB (Front), Number Style (Rear), ATEM Tally Support
e-Ink Display 2x 3″ Grayscale e-Ink Displays
Pan/Tilt Drive System Ultra-fine drive
Quietness NC 50 (with a sound pressure level corresponding to the 500Hz – 1kHz frequency band being 49 – 51 dB)
I/O Interface
Video Output Interfaces 12G-SDI, 3G SDI x 2, HDMI 2.0, USB-C, 1Gb RJ45, SFP+ Cage (12G-SDI)
Video Compression Formats H.264, H.265, SpeedHQ
Network Interfaces 1x 1GbE Adaptive Ethernet port, PoE++, 1x SFP Cage (Ethernet)
Encoder Network Protocols High-Bandwidth NDI® (SpeedHQ), NDI® HX3, NDI® HX2, SRT, RTSP, RTMP
Control Interfaces 1Gb Ethernet, SFP+, RS232 (input & output), RS422, TYPE-C (UVC)
Control Protocols VISCA-IP, NDI®, VISCA Serial, Pelco-P, Pelco-D
FreeD Protocol Supported – UDP
Analogue Audio Balanced Audio XLR x2
Digital Audio Embedded with Main and Secondary HDMI, 12G-SDI, Network Video, USB (UVC)
Genlock Supported
Timecode Supported
SD Card Slot MicroSD – Recording supported
Kensington Lock Supported
WebUI Control Integrated BirdDog BirdUI 2.0
API Support API Support
AI Features
Presenter Tracking Advanced with Secondary camera assistance
Auto-Framing Advanced with Secondary camera assistance
Zone Tracking Supported
Gesture control Supported
General
Environmental Operation Internal
Input Voltage DC-12V, PoE++
Input Current 5A
Power Consumption ＜60W (Max.)
Working Temperature 0°C ~ 40°C (32°F ~ 105°F)
Working Humidity ~20% ~ 80% (Non-condensing)
Dimension (W*H*D) 218.6 x 291.6 x 263.3mm (8.61 x 11.48 x 10.37in)
Weight ≈4KG
