Sony

IP Remote Control Unit for BRC, SRG cameras

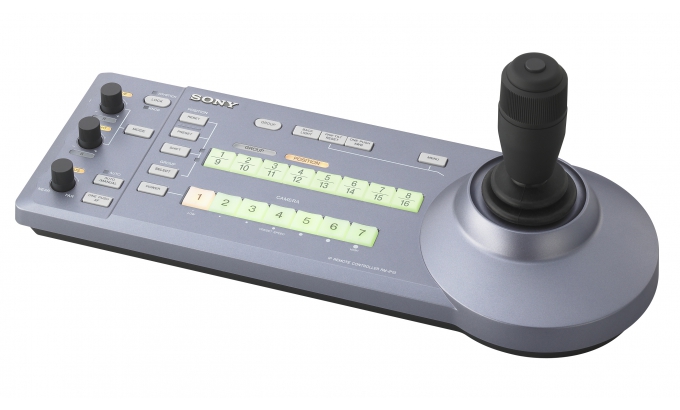

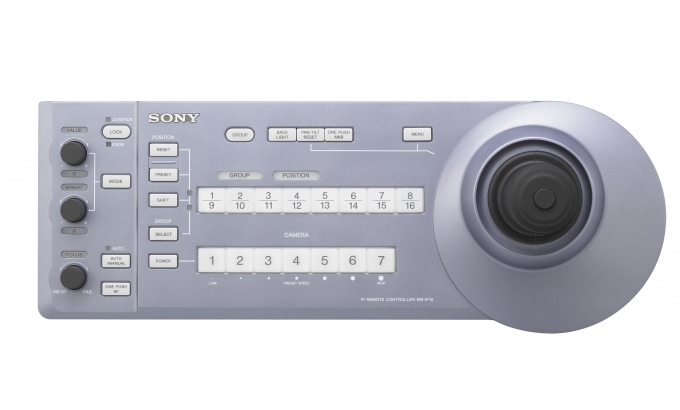

The RM-IP10 remote control panel gives you control of up to 112 BRC cameras over an IP network, or 7 cameras over a traditional VISCA-controlled network. Up to 5 remote control panels can share control of the system.

1.352,00 (ex. VAT)

SKU: RM-IP10 Categories: , ,
Control of up to 112 BRC cameras via IP
The RM-IP10 remote control panel gives you control of up to 112 BRC cameras over an IP network.
Additional ability to use VISCA control
The RM-IP10 can also control up to 7 BRC cameras over a traditional VISCA (Video System Control Architecture) network.
Compatible Sony cameras
The RM-IP10 is compatible with Sony‘s BRC-X400, SRG-X400, SRG-X120, BRC-X401*, SRG-201M2*, SRG-HD1M2*, BRC-H900, BRC-H900, BRC-H800, BRC-X1000, SRG-300SE, SRG-300H, SRG-120DU, SRG-120DH and SRG-120DS cameras when they are fitted with the BRBK-IP10 option board, and the BRC-Z700 camera when it is fitted with the BRBK-IP7Z option board.

*Model sold in China only

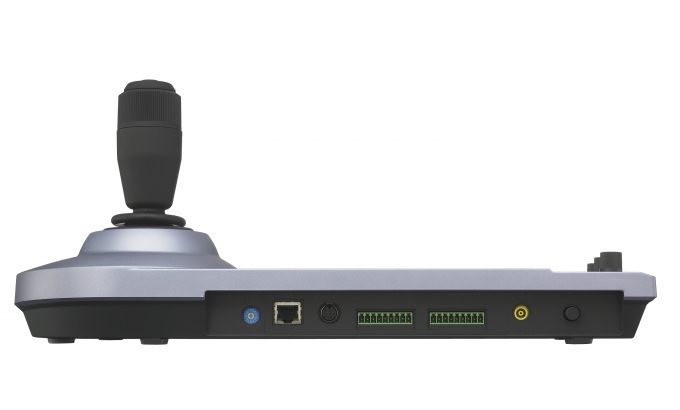

Simple RJ-45 (10Base-T/100Base-TX) connection for easy connection
The RM-IP10 links to an IP network with via a RJ-45 connector providing very easy, low cost and speedy installation.
PC configuration software supplied
The RM-IP10 provides for convenient configuration of system IPs and BRCs numbers, with location free configuration of anetwork.
Up to 5 controllers can operate on a single network
Up to 5 RM-IP10 control panels can be used on a single network allowing shared control and simultaneous multi-operator control of large camera systems.
Simultaneous Preset recall to all cameras under control
Instantaneous set-up of multiple cameras provides a big time saving for camera adjustments.
