✓ Compatible Cameras
Works with ANY cinema camera, mirrorless, or DSLR with HDMI or SDI output including:
- Sony: FX6, FX9, FS7, FS7 Mark II, Burano, A7S III, FX3
- Canon: C70, C80, C50, C300 Mark III, C500 Mark II, C400, C200, EOS R5/R6
- RED: KOMODO, V-RAPTOR, DSMC2, DSMC3
- Panasonic: EVA1, Varicam LT, GH6, S5 II
- Blackmagic: URSA Mini Pro, Pocket Cinema Camera
- ARRI: Alexa Mini, Alexa 35
Requires 4K HDMI or 3G SDI output from your camera
Please allow 4 weeks for delivery!

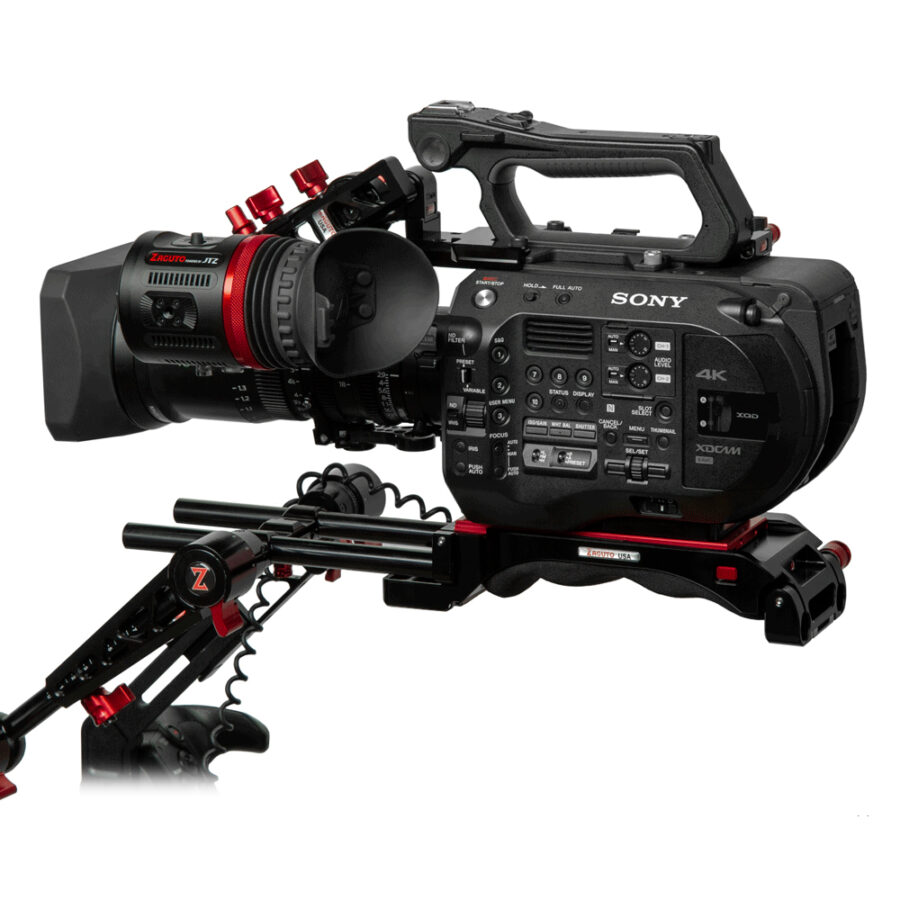

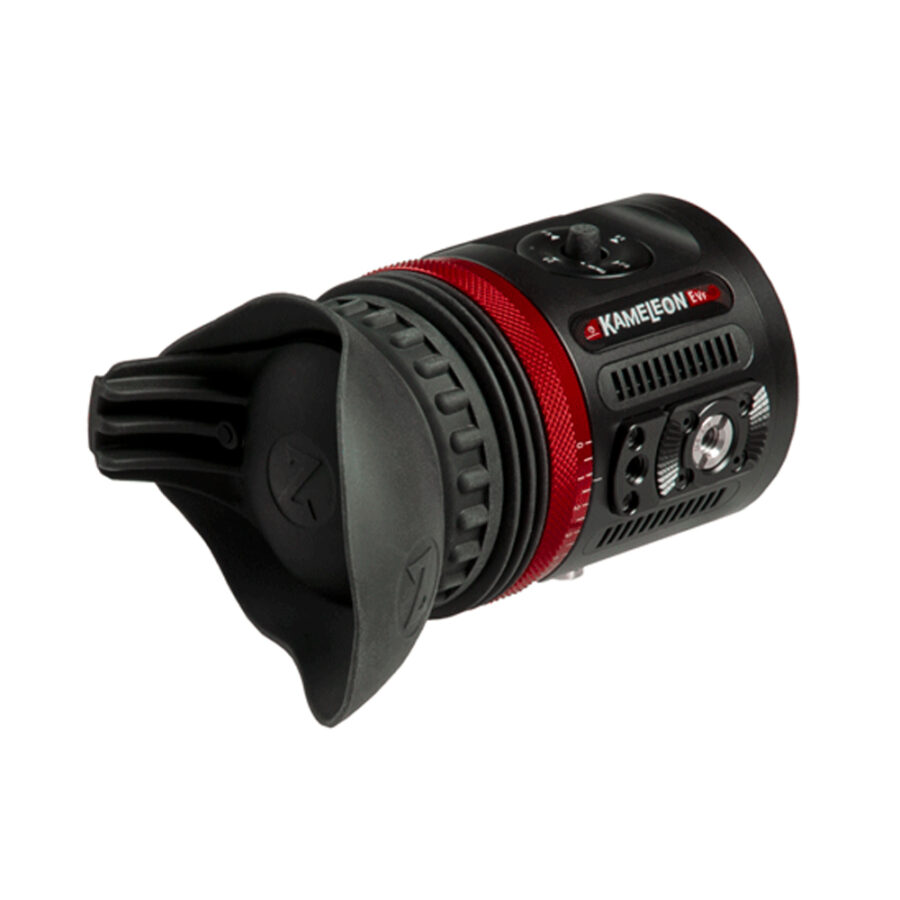

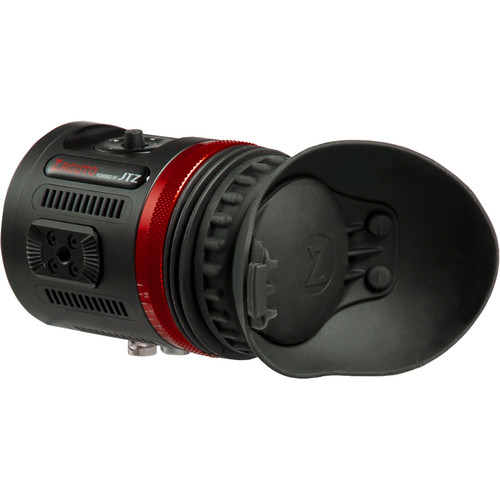

The Kameleon Pro EVF, ‘powered by JTZ’, offers all the excellent features of a professional EVF including Waveform, Vectorscope, and a new display interface. With this EVF, we have an EVF for every shooting style. The Kameleon offers 4K HDMI input downscaled to 1080P, and 3D LUTS.

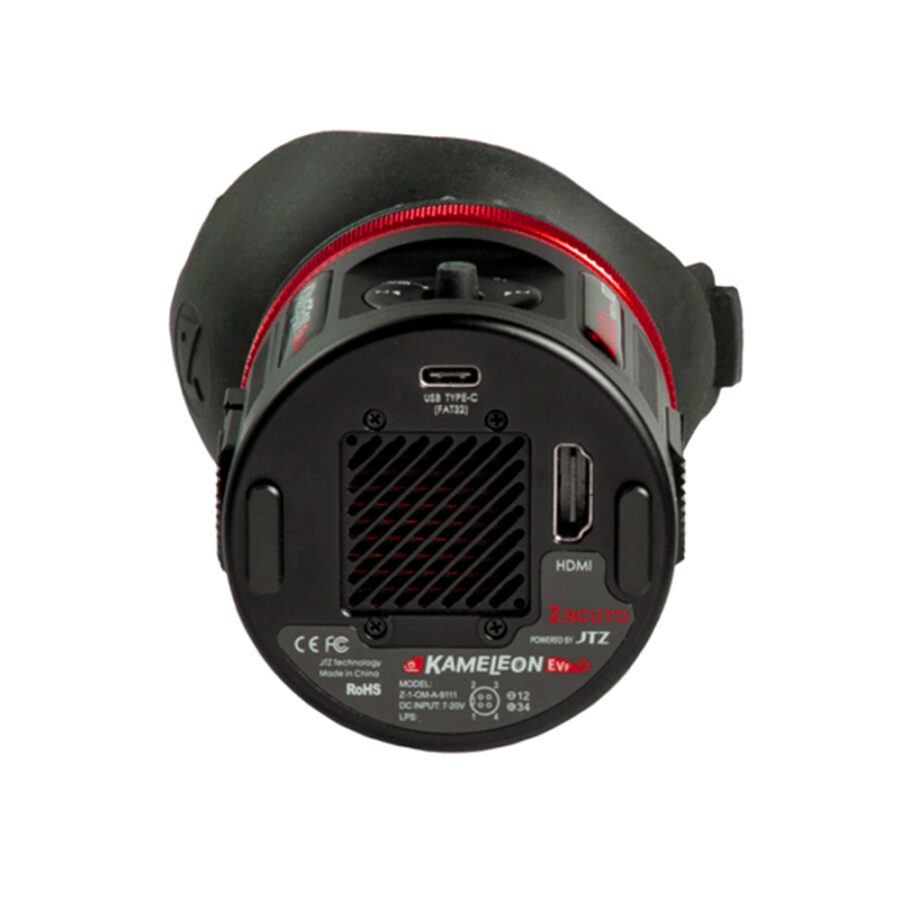

The Kameleon has a 4 pin Lemo power jack and a single SDI and HDMI input.
The Kameleon is the perfect EVF for Cinema, Mirrorless and DSLR cameras. It features a built-in -1 to +4 diopter range and Zacuto’s patented essential anti-fog coating formula. It never fogs in humidity or freezing temperatures. An auto-closing eyecup door helps prevent your display from getting burned by the sun.
Tech Specifications
Dimensions: 4.9″x 2.75″ x 2.83″
Weight: 15 oz
Micro-OLED Display:
Dimension: 0.71″ diagonal
- Contrast: 10,000:1
- Color depth: 24-bit RBG
- 6.5 million pixels for a hugely expanded
- Pixel Info – 3103 PPI
Power:
- Power input: 7-20V
- Power input port: 4 LEMO 0B
- Power consumption: 5W
Connections:
HDMI x 1
- SDI x 1
- USB-C x1 for LUT imports & Firmware updates
HDMI input: 4K DCI, 4K, 1080p, 1080i, 720p
SDI input: 3G SDI, 1080p, 1080i, 720p
Physical Features:
Joystick menu/function button
- Adjustable diopter ring
- Drop in diopters for additional correction (+1, +2, +3, +4)
- Auto Closing Eyecup
- 2-step anti-fog shields
- Arri Rosette on both sides
- Cooling fan
Software Features:
Custom Scaling
- Frame lines
- Calibration Settings
- Center marker/crosshair
- Anamorphic
- 4:1 Zoom
- Image Flip
- False
- Red Line Peaking
- Edge Enhancement Levels 1-3 Peaking
- Freeze
- Zebras
- Waveform
- Vectorscope
- Histogram
- Audiometers
- 4 programmable hotkeys
- 3D LUT import
- SMPTE Color Bars
Q: Can the Kameleon be powered by the USB port?
No, this is not intended to be used for power and can cause harm to the viewfinder. Incorrect use is not covered under warranty.
