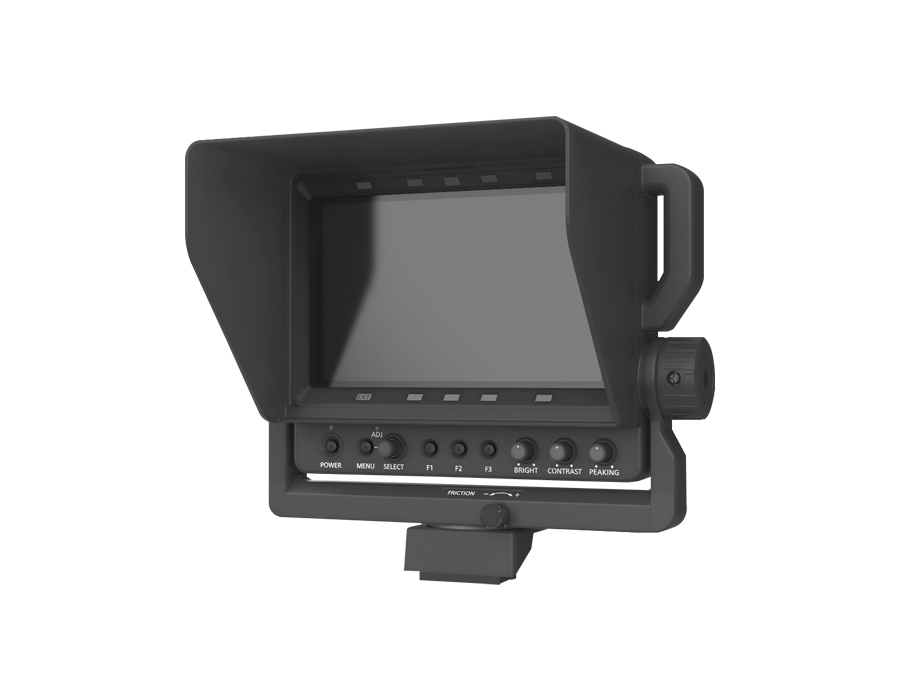

Professional camera monitor with sunshade and control buttons.
Panasonic

AK-HVF75GJ

4.000,00€ (ex. VAT)

SKU: AK-HVF75GJ Categories: , , , Brand:

Equipped with 1280 x 800 (WXGA) resolution 17.8cm (7 inches) color LCD panel.

  • Wide horizontal/vertical viewing angle of 176°, screen brightness of 400 nits and contrast of 800:1.
  • Equipped with focus assist functions (Focus in Red, Pixel to Pixel).
  • Direct camera menu control is possible.
  • Equipped with three assignable function switches.
  • Contrast, brightness, and peaking can be adjusted.
  • Tilting (90° up, 60° down) and panning (90° left and right) is possible.
Power DC 12 V (supplied from camera)
Power Consumption 11 W
Operating Temperature 0 °C to 45 °C (32 °F to 113 °F )
Storage Temperature −20 °C to 60 °C (−4 °F to 140 °F)
Operating Humidity 10% to 85% (no condensation)
Weight Approx. 1.6 kg (3.53 lbs.) (not including hood)
Dimensions (W x H x D) 243.5 mm x 212 mm x 85 mm
(9-19/32 inches x 8-11/32 inches x 3-11/32 inches)
(not including hood)
243.5 mm x 212 mm x 172 mm
(9-19/32 inches x 8-11/32 inches x 6-25/32 inches)
(including hood)
Display Panel
Dimensions 7.0 inches
Number of Pixels 1280 x 800 (WXGA)
Display Color Approx. 16.77 million colors
Switch Function/Connector
Operation <POWER> switch, <MENU> button, <SELECT> dial button,
<F1>/<F2>/<F3> buttons, <BRIGHT> knob, <CONTRAST> knob,
<PEAKING> knob
Connector Camera I/F connector (D-sub 29 pins x 1)
Switch Function/Connector
CAM 1080/59.94i, 1080/50i
