Pyro Ultra is Hollyland’s flagship wireless video transmission system for professional sets. Built on Hollyland’s proprietary TWiFi technology, a single transmitter can feed an unlimited number of receivers in Broadcast Mode, while Focus Mode brings latency down to as low as 20 ms so focus pullers can follow every lens adjustment in real time.
The system carries true 4K60 video over HDMI 2.0 and 3G-SDI, reaches up to 1.5 km (4,900 ft) line of sight in non-broadcast mode and uses automatic frequency hopping (DFS certified) to stay clear of interference. Pyro Ultra is fully integrated into the Pyro ecosystem, so it works together with Pyro 7, Pyro 5, Pyro H, Pyro S and Vcore, and it can also stream via UVC or RTMP.
This package

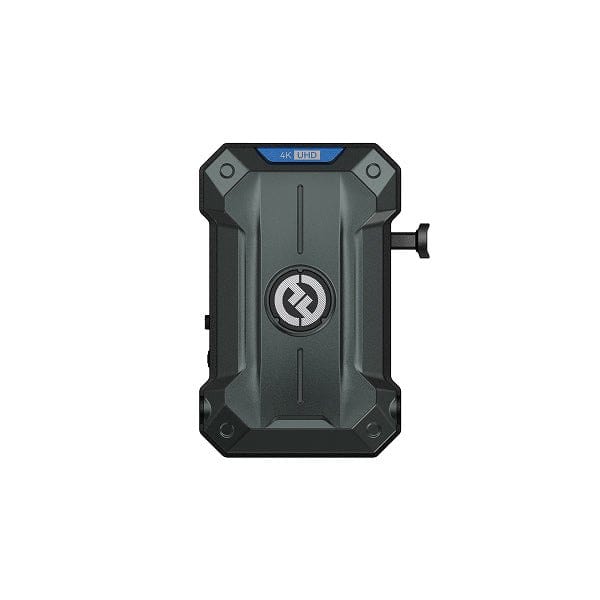

Additional Pyro Ultra receiver, to add an extra monitoring position to a Pyro Ultra system (Broadcast Mode supports an unlimited number of receivers).
Key features
- 1 transmitter to unlimited receivers (Broadcast Mode)
- True 4K60 UHD transmission
- Focus Mode with latency as low as 20 ms
- Proprietary TWiFi technology, up to 1.5 km LOS range
- Automatic frequency hopping, DFS certified
- HDMI 2.0 and 3G-SDI inputs/outputs with HDMI loop-out on the transmitter
- UVC and RTMP streaming
- Compatible with the whole Pyro ecosystem
Specifications
|
Transmitter |
Receiver |
| Interfaces |
DC IN: 2.0 Barrel Connector
HDMI IN: HDMI 2.0
HDMI LOOPOUT: HDMI 2.0
SDI IN: 3G SDI
Type-C: USB 2.0
Antenna: SMA Male Connector |
DC IN: 2.0 Barrel Connector
HDMI OUT: HDMI 2.0
SDI OUT: 3G SDI
Type-C: USB 3.0
Antenna: SMA Male Connector |
| Power Supply Voltage Range |
Battery Power Input: 6.8-8.4V
DC Power Input: 6-16V |
Battery Power Input: 11.8-16.8V
DC Power Input: 6-16V |
| Power Consumption |
Non-broadcast: 11W
Broadcast: 14W |
7W |
| Net Weight |
320g |
320g |
| Dimensions |
(L*W*H): 124.5*80*34.9mm |
(L*W*H): 124.5*80*34.9mm |
| TX Power |
< 23dBm |
/ |
| RX Sensitivity |
/ |
Non-broadcast: -85dBm
Broadcast: -80dBm |
| Input/Output Video Formats |
HDMI:
720p50/59.94/60
1080p23.98/24/25/29.97/30/50/59.94/60
4k(3840*2160)23.98/24/25/29.97/30/50/59.94/60
SDI:
720p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.97/30/50/59.94/60 |
HDMI:
720p50/59.94/60
1080p23.98/24/25/29.97/30/50/59.94/60
4k(3840*2160)23.98/24/25/29.97/30/50/59.94/60
SDI:
720p50/59.94/60
1080p23.98/24/25/29.97/30/50/60 |
| Operating Frequency[8] |
5G
5.150 – 5.250 GHz
5.250 – 5.350 GHz
5.470 – 5.725 GHz
5.725 – 5.850 GHz
2.4G
2.412 – 2.484 GHz |
5G
5.150 – 5.250 GHz
5.250 – 5.350 GHz
5.470 – 5.725 GHz
5.725 – 5.850 GHz
2.4G
2.412 – 2.484 GHz |
| Transmission Latency |
Focus Mode: 1080p25 ≥ 20ms |
Focus Mode: 1080p25 ≥ 20ms |
| Bandwidth |
20MHz (Broadcast: 40 MHz) |
20MHz (Broadcast: 40 MHz) |
Specifications as published by the manufacturer. Operating frequencies and transmit power may vary by country or region according to local regulations.
