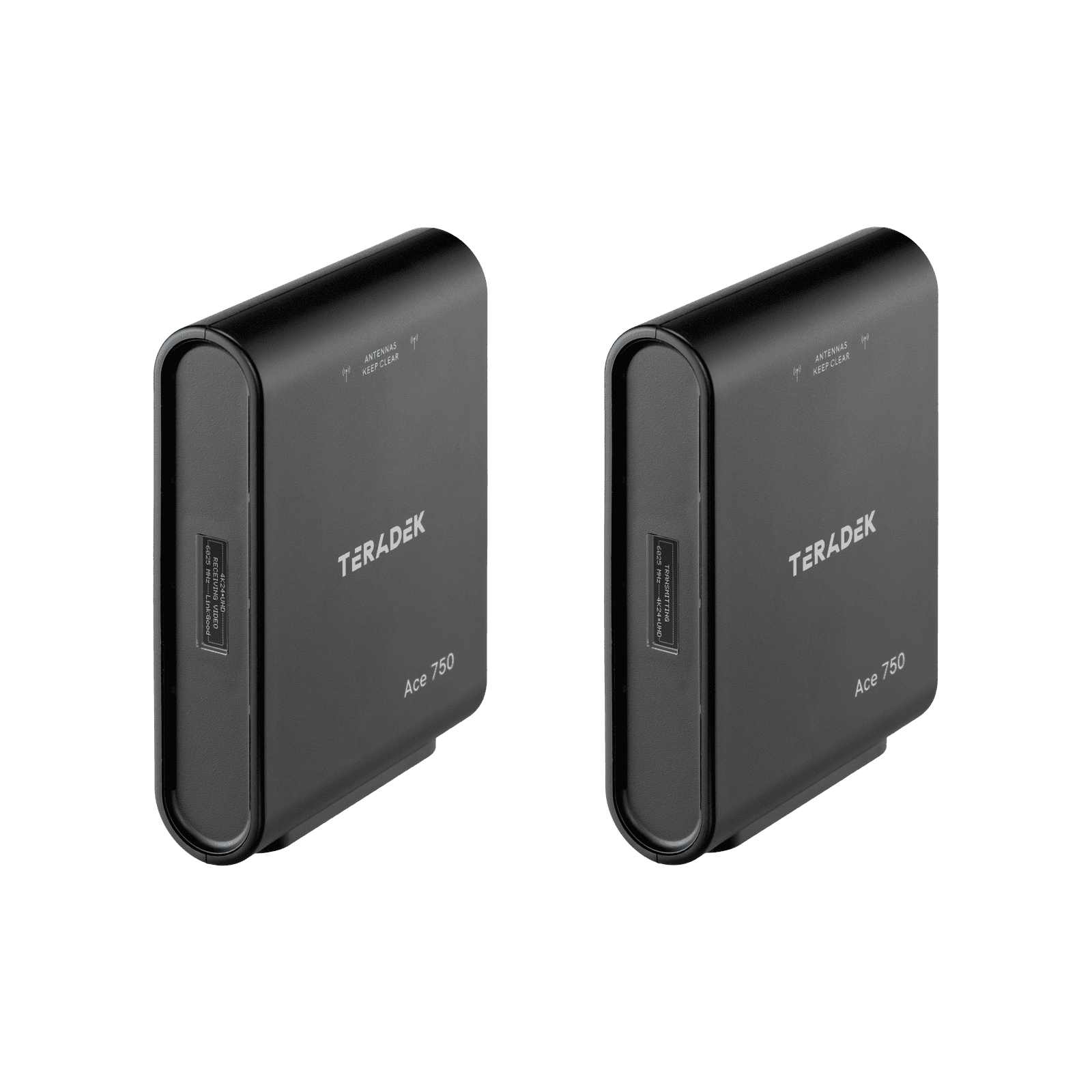

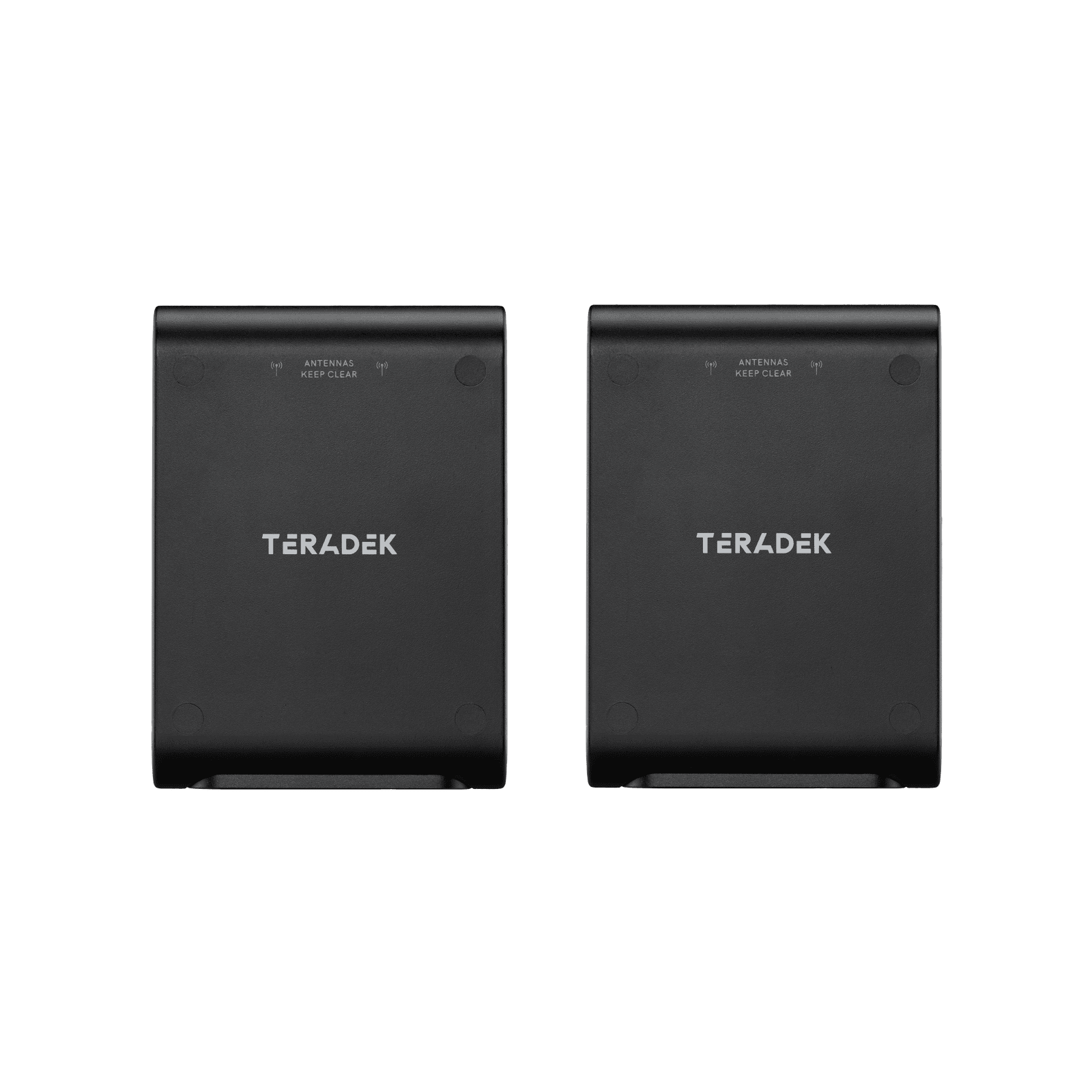

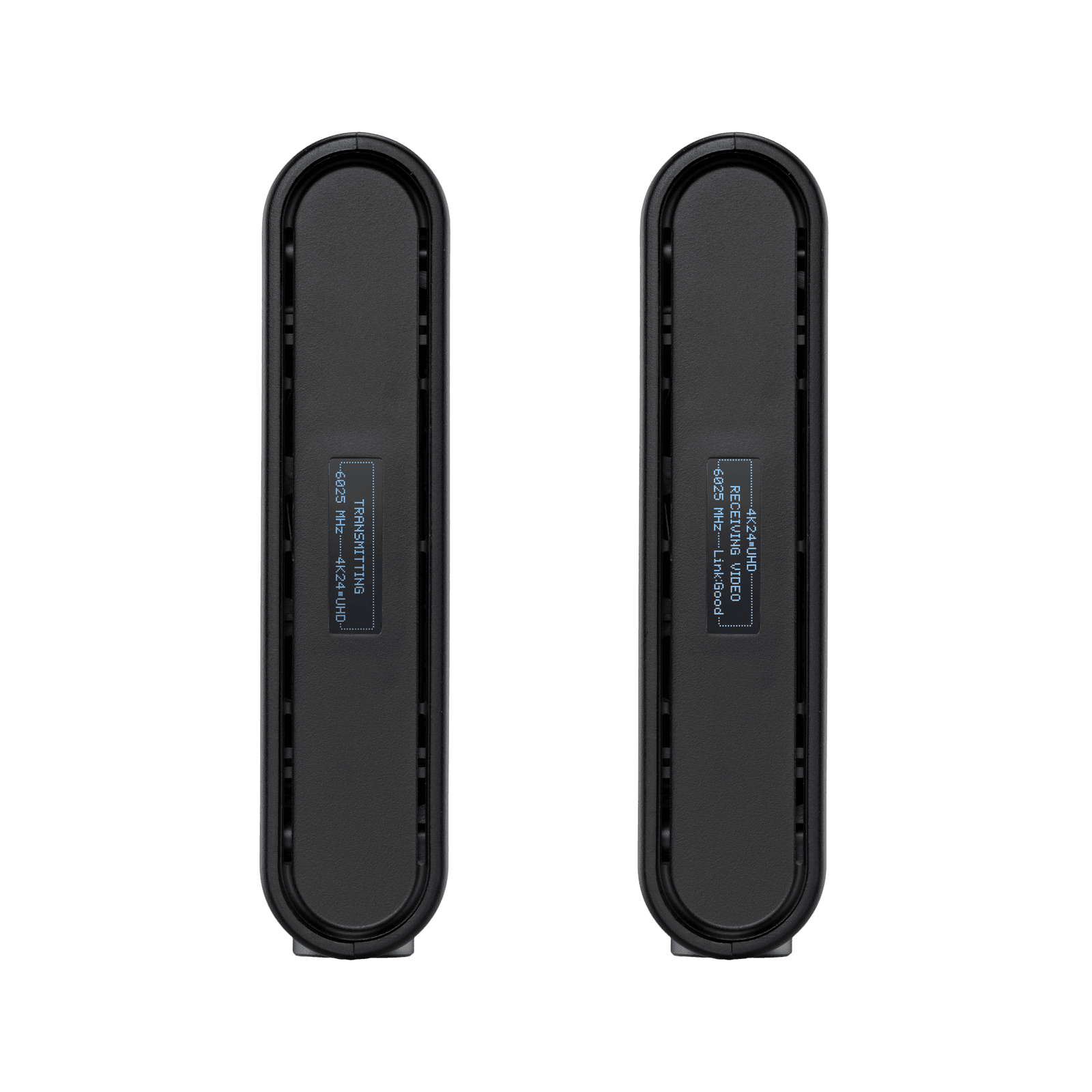

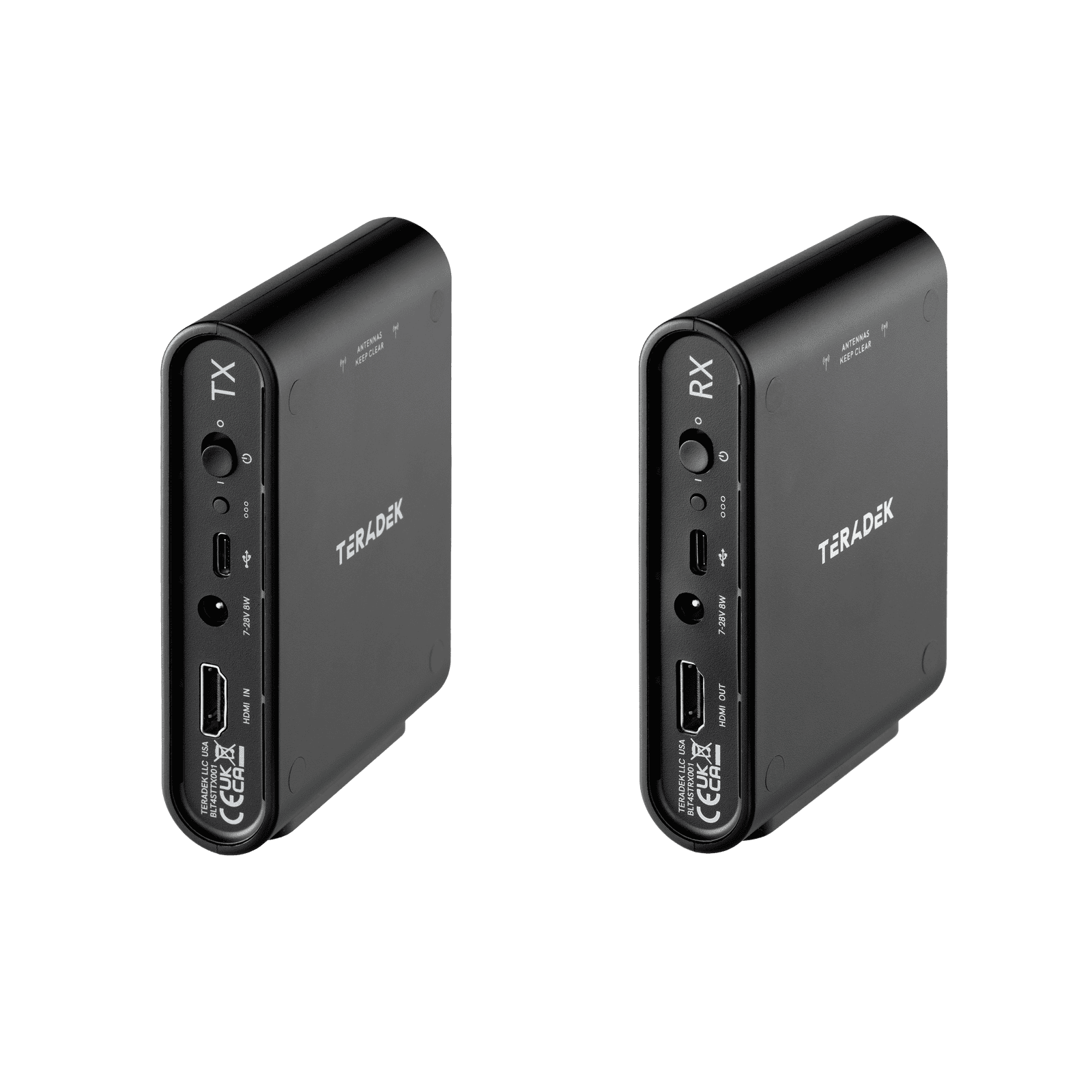

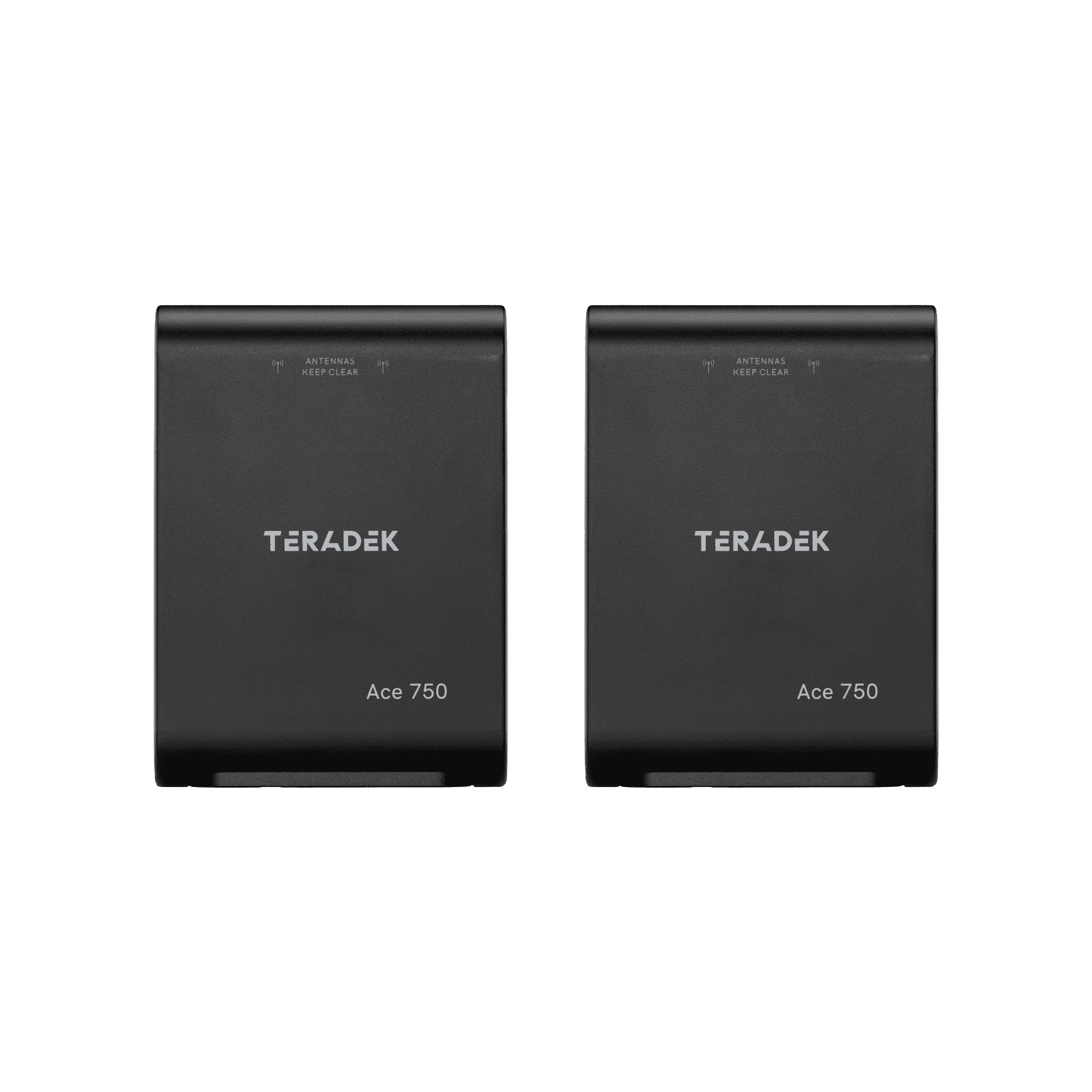

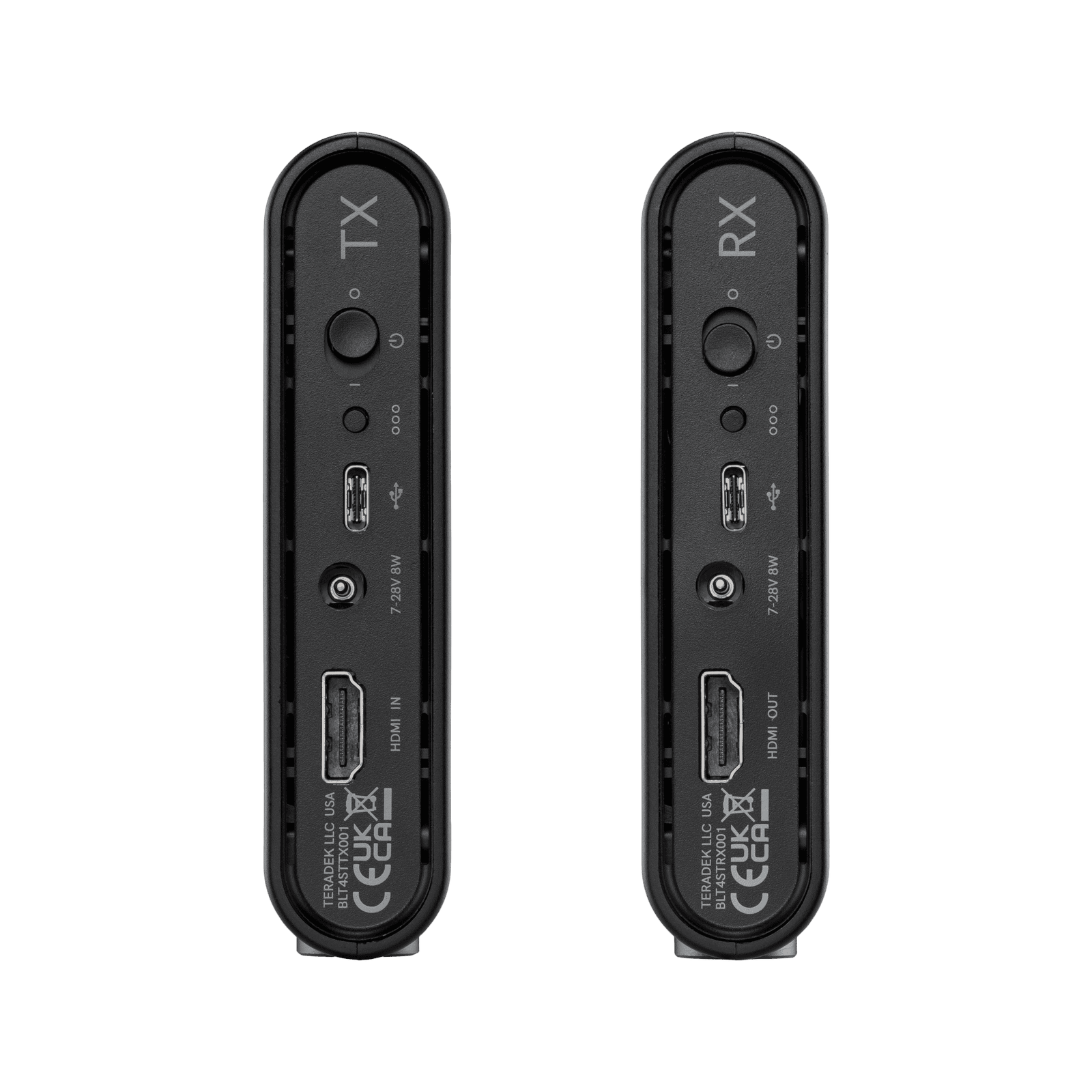

Ace 750 TX/RX Set

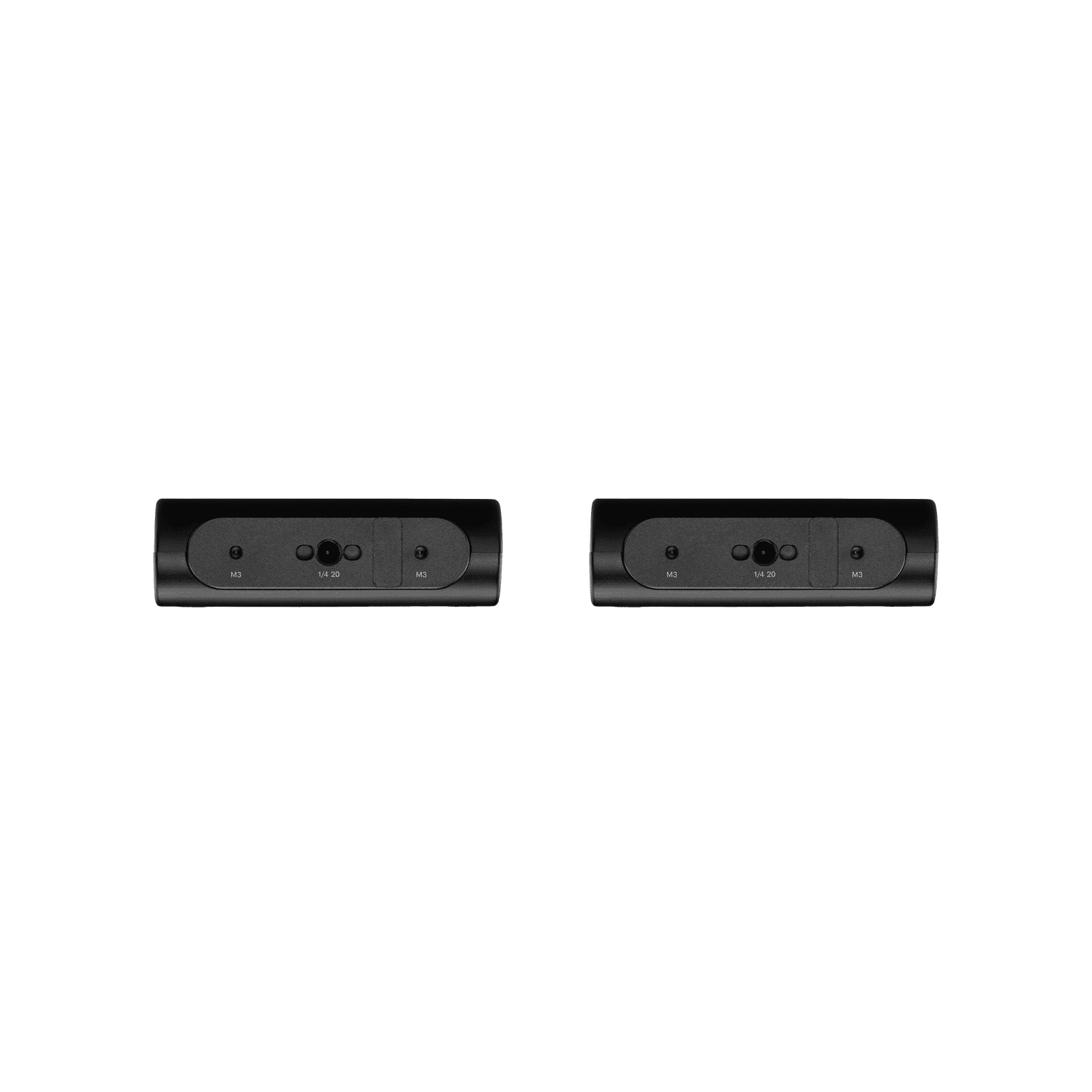

Ace 750 is a lightweight, compact, HDMI wireless video camera transmission system with built-in antennas designed to be used with mirrorless cameras, camcorders, action cameras and A/V workflows. It sends uncompressed zero-delay, 4Kp30, HDR video and audio with up to 750 feet (230m) of range. Ace 750 is cross-compatible with Bolt 4K and Bolt 6 in 5GHz and 6GHz modes and is fully compliant with FCC and CE frequency usage and power output guidelines. Ace 750 features an integrated hole pattern for mounting and can be powered with NP-F or LP-E6 batteries using an optional L-shaped plate.

The transmitter (TX) and receiver (RX) units automatically detect and select the 5Ghz or 6GHz RF channel with the least interference and employ Auto-Frequency Switching to maintain optimal signal quality. Ace comes paired out of the box. The TX can send video to up to six RX devices at the same time using the Bolt Manager app for iOS or Android.

Ace 750 is built with the same reliable wireless technology found in our acclaimed Bolt product line. Because of this, Ace 750 is fully compatible with all Bolt 4K and Bolt 6 models.

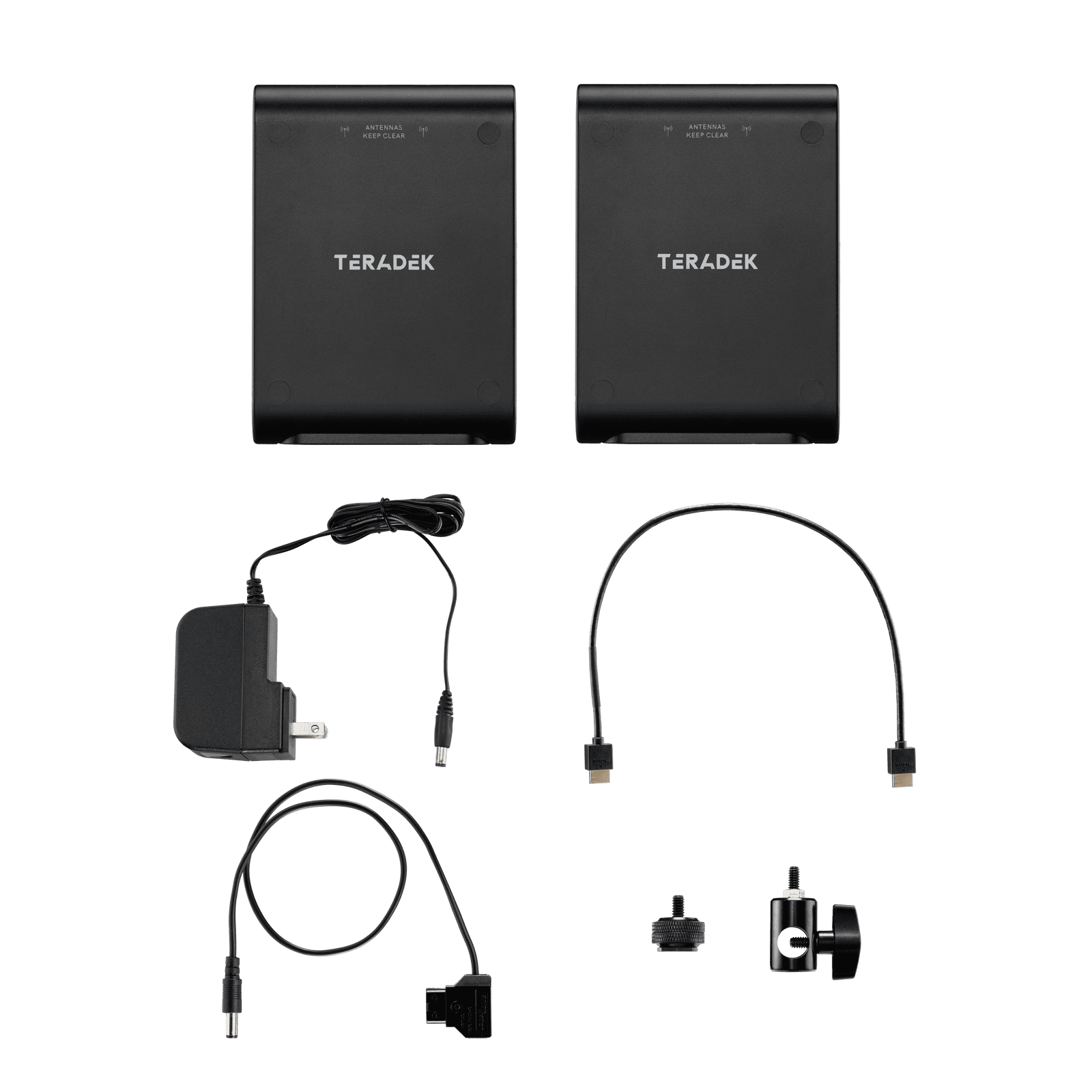

The Ace 750 kit includes one AC power supply and one D-Tap to barrel cable, allowing the transmitter to draw power from the camera. For setups requiring both units to run on AC power, an additional 18W AC Adapter can be purchased separately
