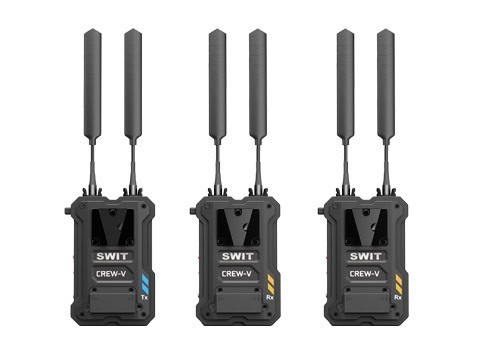

SWIT CREW-V Tx+2Rx – 4000feet(1200m) 3rd Gen. professional Wireless FHD Video 1Tx+2Rx Transmission with dual V-mounts, Super Multicast, Super Anti-interference, No-delay.
The V-mount version of the new generation CREW family wireless system, upgraded with twice longer transmission distance, enhanced reliable image quality, and uncompromised multicast capabilities. The CREW system continues to deliver the same rock-solid transmission stability as FLOW series, for professional broadcast and film productions.
Key features
- KUWI 2.0 Pro wireless tech, NOT WIFI
- Proprietary anti-interference RF
- 5GHz License-Free DFS Comply
- Auto scan and select optimal channel
- 3GSDI & HDMI® HD video transmission
- 1.2km / 4000ft (Line-of-Sight) distance
- USB-C Video Capture out for PC/Mac
- H.265 up to 26.8Mbps visual lossless
- Consistent 32ms ultra low latenty
- Uncompromised 1T to 4R Multicast
- Support up to 8 pairs transmission together
- MetaData & TC trigger transmission
- High bright OLED display & configuration
- AES-256 dual encryption protection
- Dual Sided V-mount power and install
- 2-pin LEMO / USB-C Power Supply
1.2km Long Range Wireless Video
Professional RF, NOT WIFI
Dual Sided V-mount Install
SMBus Data Pins Pass-through
The CREW-V is the dual sided V-mount version of CREW family, can be mounted on the camera V-mount plate, using a V-mount battery to power both the CREW-V and the camera, compact and convenient. The battery SMBus data pins are pass through, so that the camera can still read battery digital power information.
KUWI 2.0 Professional Chip, Stable As Always
The New Generation KUWI2.0 professional chip for wireless video, 5.1-5.9GHz License-Free, inherits the stability advantages of SWIT wireless products, ensures the stable transmission in the most complex environment.
Professional Video Production Applications
The CREW series Wireless System is engineered for exceptional stability and reliability, the solution for professional video productions like sports broadcast productions, cinematic filmset shooting and high end event productions. CREW ensures seamless, real-time transmission with minimal latency and zero signal dropouts, providing production teams with the confidence and flexibility needed for flawless on-set and on-location workflows.
Reliable 1.2km Long Distance Transmission
CREW features advanced video codec and optimized intelligent RF power, enabling transmission range of up to 1.2 km (4000 ft) in line of sight, to significantly expand the monitoring coverage, provide greater flexibility and freedom for live video production.
32ms Consistent Low Latency
The ultra-low latency has exceeded the limits of human visual perception, achieving visually lossless performance, suitable for the professional wireless follow focus, the most demanding application in terms of latency. The latency is consistent, never changed regardless of the environment interference. In multi-camera productions, using CREW would ensure the strict synchronization among the multiple wireless channels.
Uncompromised 1T to 4R Multi-Cast
The CREW supports 1 Transmitter to up to 4 Receivers Stable Multi-Cast Transmission, with no compromise on Distance, Latency or Video quality for film crew application. All the CREW family Tx and Rx are fully cross-compatible for multicast.
3G-SDI / HDMI / UVC
The Transmitter: 3G-SDI in×1, loop out×1, HDMI in×1 The Receiver: 3G-SDI out×2, HDMI out×1USB-C Video Capture out×1* Whether Tx input SDI or HDMI, all Rx interfaces can output simultaneously.
USB-C Video Capture
For PC/Mac Livestreaming
The CREW wireless receiver provides USB-C port video capture output, and can be connect to a computer for ivestreaming productions, 1080P50/60 High Quality Video Capture, Driver-free for both PC and Mac.
USB-C Video Capture
Monitor by Smart Devices
Connect CREW Receiver to a smart phone or tablet via USB-C port, to watch the camera video wirelessly instead of a pro video monitor.* Compatible with all 3rd party “USB camera” APP.
Visually Lossless High Video Quality
The CREW series wireless transmission adopts H.265 High Quality Encoding, bit rate up to 26.8 Mbps, visually lossless compared to cable video.
Display and Configuration
High Bright Color OLED Screen
Both the Tx and Panel Rx Wireless is equipped with a high bright 450nits OLED screen that remains clearly visible even in direct sunlight. It displays essential transmission status information such as video format, frequency channel, signal strength, etc. A user-friendly joystick allows for easy configuration of all functions, including Tx/Rx pairing, channel switching, fan on/off control, firmware upgrades, and more.
MetaData Transmit
CREW supports to wirelessly Transmit SDI embedded MetaData from cine cameras, for DIT livegrading, record and manage the camera information.
TimeCode Trigger Transmit
The CREW wireless system also supports the transmission of SDI embedded timecode and Start/Stop trigger from the camera.
Dual Encryption protection
The CREW wireless system has Dual Encryption protection: 1. Use exclusive KUWI chip of proprietary RF;2. Adopt AES-256 high level encryptionto ensure that the video signals captured on movie sets are not leaked to third parties.
Multiple Power Supply
The CREW-V wireless can be powered up by V-mount battery or D-tap to 2-pin LEMO cable that provided in package.You can also power the CREW conveniently via its USB-C port.
Group Tagging
4 colors Tags are provided to be placed on the antennas. Different pairing groups of Tx and Rx are distinguished by different colored Tags.
Backup High Gain Antennas
CREW standard antennas are soft-base 3dBi gain, transmit a reliable 900m range in line-of-sight. The package also provides 4× 5dBi high-gain backup antennas that can prolong the distance to 1.2km and improve wall-cross stability.
Standard 1T 1R Package
The CREW wireless provides 1 Tx + 1 Rx package including all essential accessories and comes in a carrying case for easy storage and transport.
1T 2R Package Option
CREW is also available in a 1 Tx + 2 Rx kit, including all necessary accessories and a carrying case, the ideal 1T2R setup commonly used for DP and 1st AC monitoring on filmset.
