Teradek

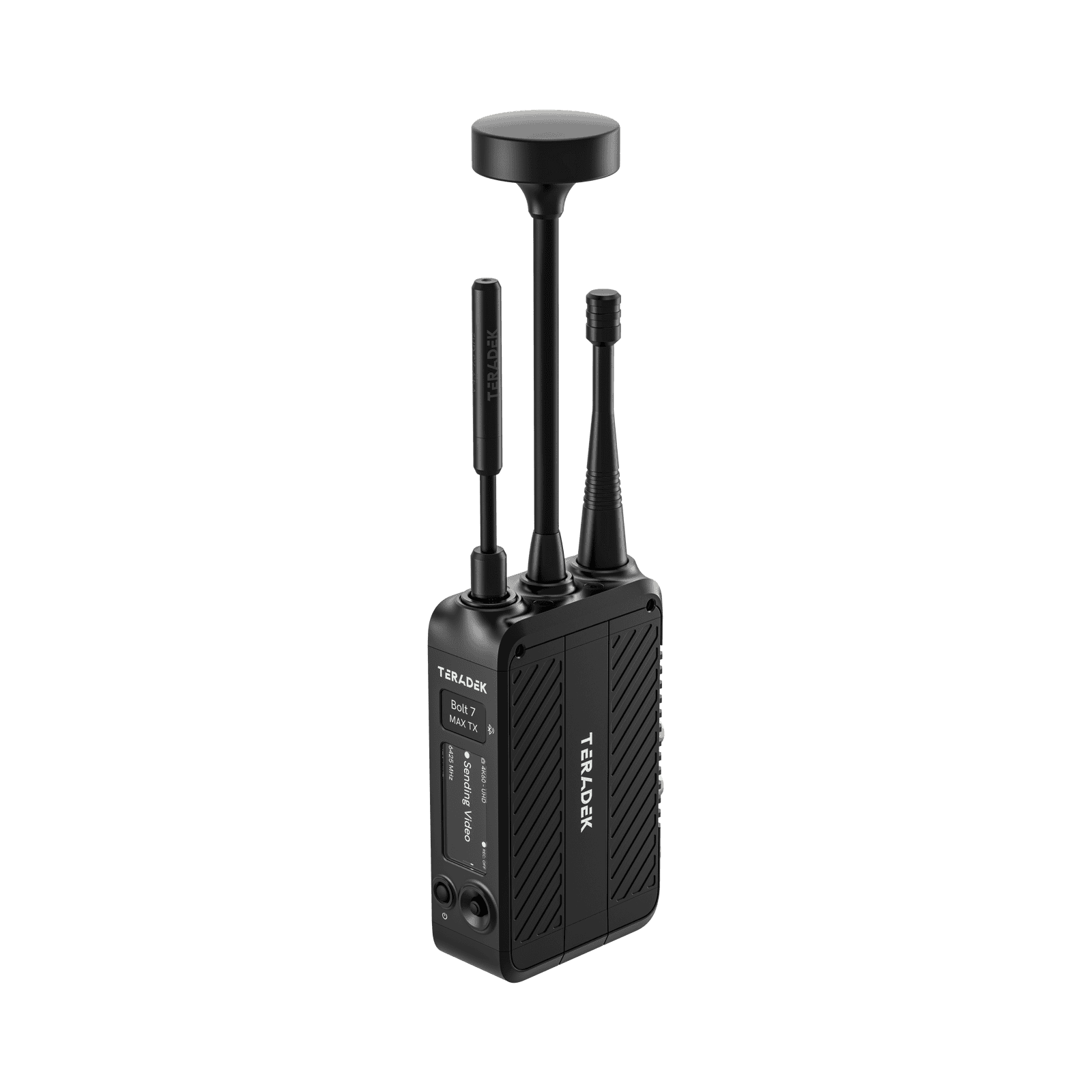

Bolt 7 MAX 12G-SDI/HDMI Wireless TX

The Bolt 7 Wireless Transmitter brings our most advanced zero-delay wireless video technology to virtually any professional camera.

6.662,59€ (ex. VAT)

SKU: 10-2721 Categories: , , Brand:

The Bolt 7 Wireless Transmitter brings our most advanced zero-delay wireless video technology to virtually any professional camera. Available in 750ft (228m), 1,500ft (450m), and MAX (up to 5000ft/1.5km) models, Bolt 7 TX transmits 4K HDR video over 12G-SDI and HDMI while simultaneously enabling production-critical data workflows through its dedicated 900 MHz wireless data channel.

Designed with a significantly smaller form factor than previous generations, Bolt 7 TX integrates seamlessly onto handheld, Steadicam, gimbal, and broadcast camera rigs without adding unnecessary bulk.

Support for DisplayPort Alt Mode over USB-C also enables emerging workflows with compatible cameras using a single cable for video and communications.

Pairing is faster than ever thanks to new wireless and wired pairing options.

Bolt 7 maintains backward compatibility with Bolt 4K, Bolt 6, and RF-X systems, allowing productions to seamlessly integrate it into their current Teradek ecosystem and scale set capabilities.

Model Bolt 7 MAX 12G-SDI/HDMI Wireless TX
Video
Video Inputs 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1)
1 x HDMI 2.0 Type-A receptacle
1 x USB-C Display Port ALT mode video input
Video Outputs 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1)
Sdi Ancillary Data Support Supports transmitting timecode and start/stop flags from most camera manufacturers. More metadata for Arri and Sony cameras.
Color Sampling SDI: YCbCr 4:2:2, 10-bit.
HDMI: RGB/YCbCr; 4:4:4/4:2:2/4:2:0; 8/10-bit
Delay Tx To Rx <0.001sec
Input Cross Conversion Yes (HDMI input to SDI loopout)
Other Tools SDI Eye Pattern Display
Supported Resolutions
Supported Resolutions 4Kp23.98/24/25/29.97/30/50/59.94/60
1080p23.98/24/25/29.97/30/50/59.94/60
1080psf23.98/24/25/29.97/30
1080i50/59.94/60
720p50/59.94/60
480p59.94 576p50
480i(NTSC)/576i(PAL)
Video Processing
Video Compression Visually Lossless
Color Correction None
Audio Processing
Audio Format 48kHz 24-bit PCM
Inputs
Audio Input Embedded SDI/HDMI Audio Input (2 Channel)
Physical
Dimensions 112 x 66 x 32 mm
Weight 400g (14.1 Oz)
Construction Milled Aluminum(Chassis) and regulation-compliant PCB
Mountability Multiple mounting options with 1/4″x20 and M3 holes
Interfaces

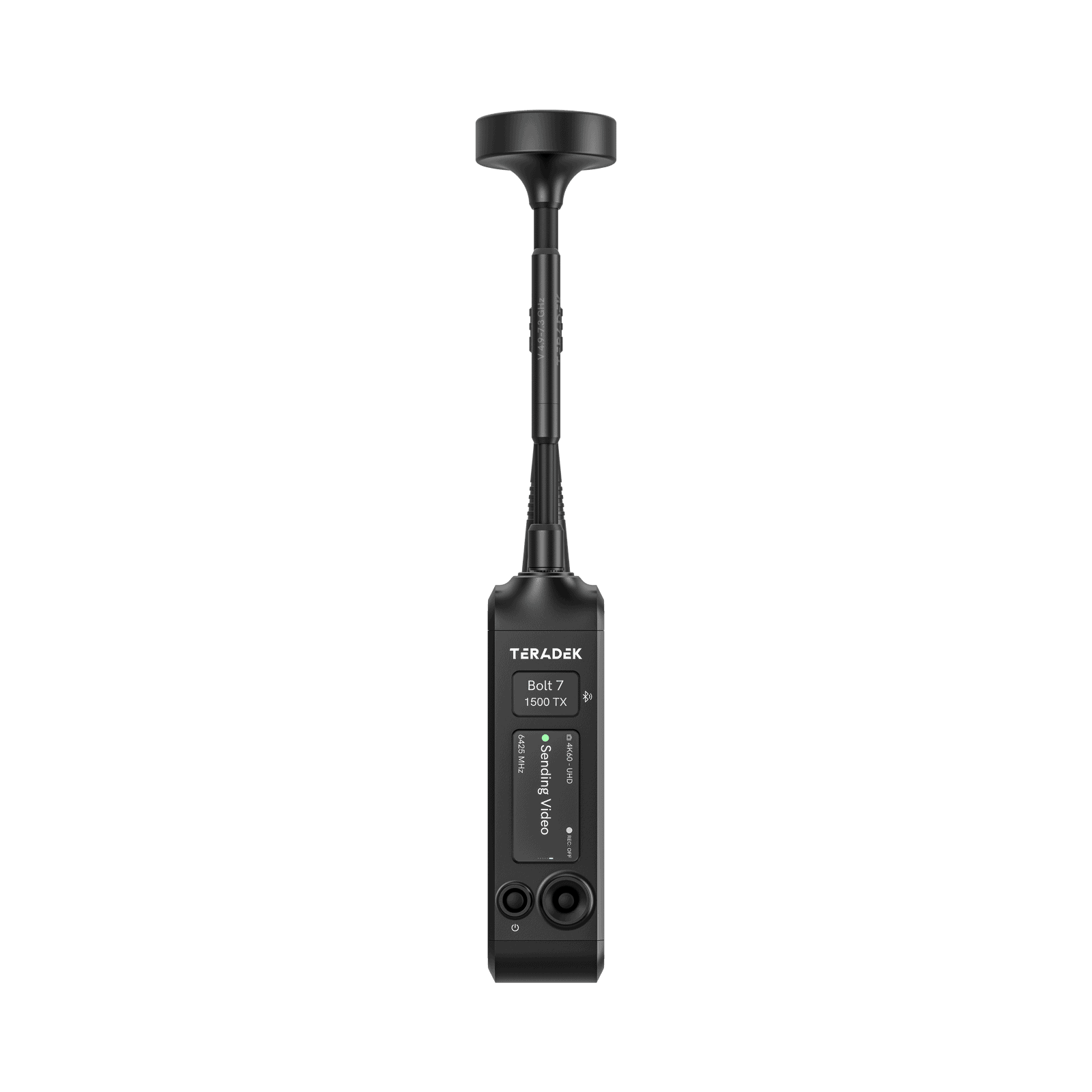

Configuration Interfaces Color OLED with Menu, Joystick Navigation
Switches On/Off Switch
Usbc Port Firmware upgrade
Display Port ALT mode video in
Device setup via Bolt Manager desktop app
Locking5Pin Usb Port USB host port for camera control via smart cables (optional)
Bluetooth Compatibility BLE for device setup and monitoring via smart phone app
Network
Ethernet Via smart cable connected to Locking 5 pin USB port

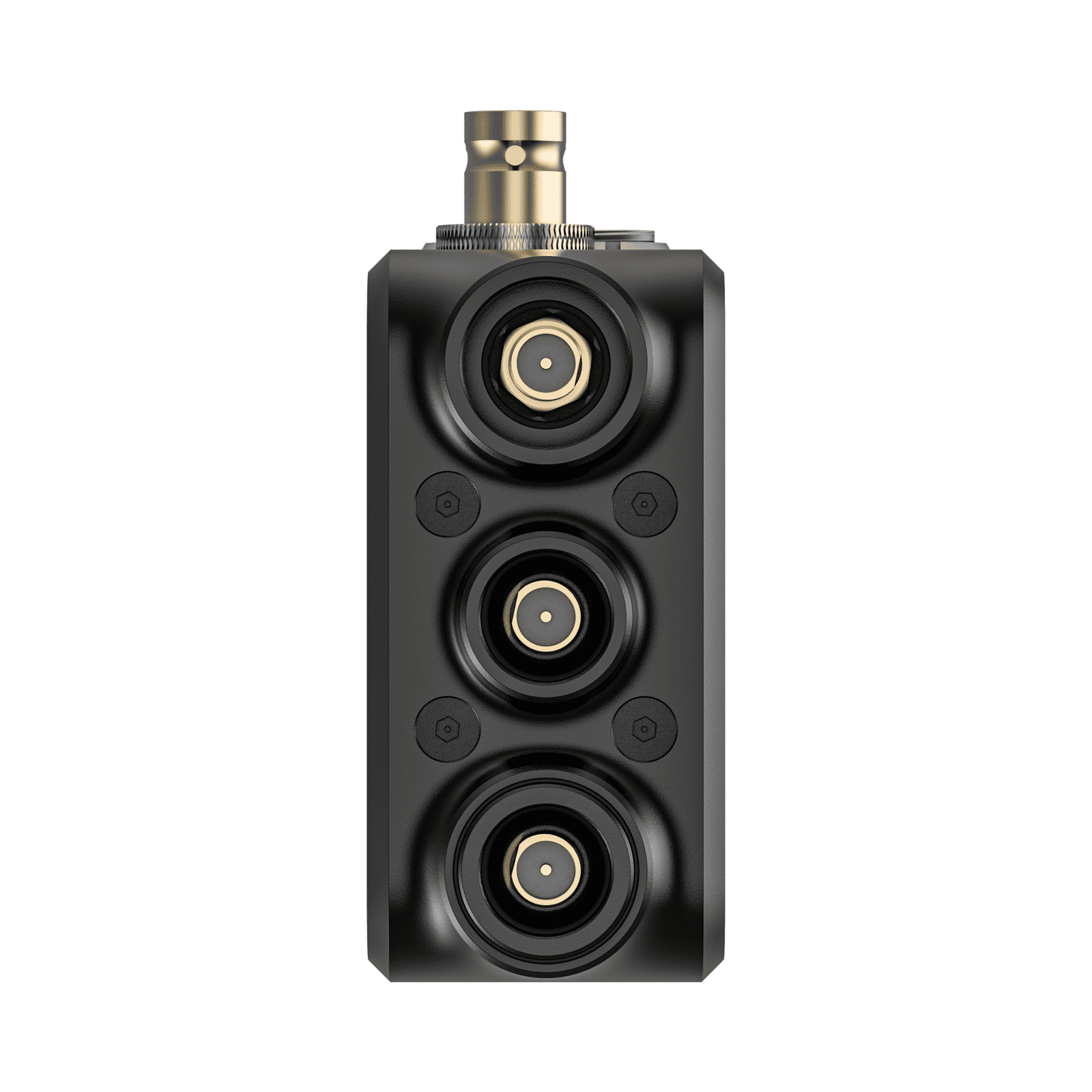

Antennas 3 External, 2 Internal
Wireless Non-DFS Frequencies:
5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz
DFS Frequencies:
5.270 ~ 5.670 GHz
Bluetooth 2.4 GHz
Rf Channel Selection Auto, Manual
Encryption AES-256, RSA-1024 key exchange
Rf Power 23 dbm EIRP
Range Up to 5000 ft, line of sight
Unicast Multicast Can connect one Transmitter to up to 6 Receivers
Noise Rejection Can coexist with WiFi and 5GHz cordless phones
Can operate up to 6 receiver sets in same location
Interoperability Compatibility Compatible with all Bolt 4K, Bolt 6 and Bolt 7 products
Broadcast Yes, transmitter can transmit to 250 receivers
Camera Control Radio 900 MHz
Power
Power Input 2-Pin Circular locking Connector 6-28 VDC
Battery None, optional field installable Gold- or V-Mount dual battery plate
Nominal Power Consumption 20 Watts
Environmental
Operating Temperature 0-40℃

Additional information

Brand

  • 1 x Antenna 2dBi Flex V 4.9-7.3Ghz RP-SMA
  • 1 x Antenna 2dBi Flexible H Mushroom V4.9-7.3Ghz RP-SMA
  • 1 x Antenna 865-926 MHz SMA
  • 1 x SDI 12G BNC to BNC Cable Length: 18in / 46cm
  • 1 x DP ALT Mode USB-C Straight to USB-C Straight Cable, 36in
  • 1 x 2pin Conn. to PowerTap – 18in Cable
