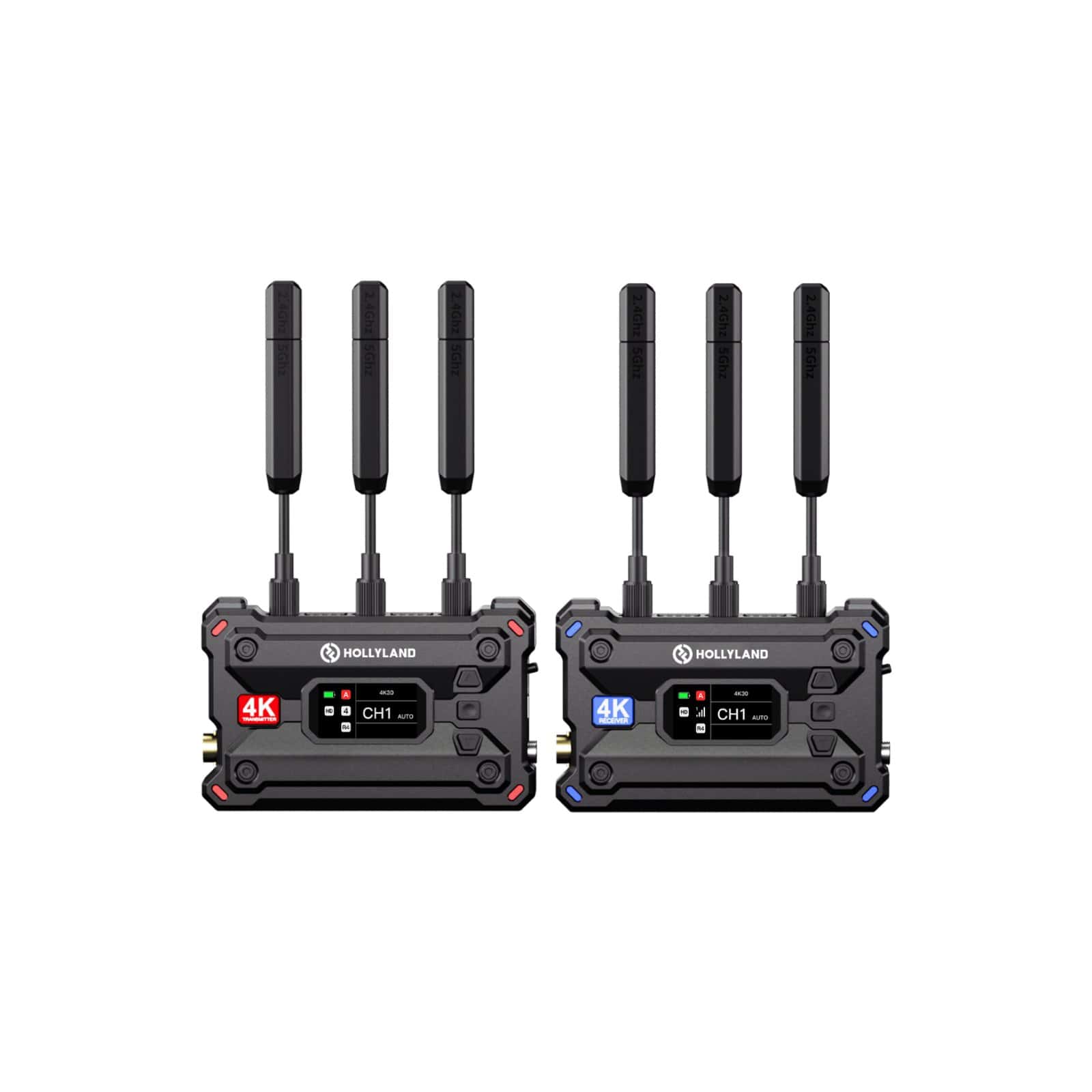

Pyro S is a compact 4K30 wireless video transmission system with both HDMI and SDI connectivity. Thanks to Hollyland’s WifiBroadcast technology, one transmitter can feed up to four receivers at the same time, making it ideal for multi-user monitoring on film sets, live events and ENG/EFP productions.
Auto Dual-Band Hopping (ADH) on 2.4 GHz and 5 GHz automatically selects the cleanest channel for a stable link up to 400 m (1,300 ft) line of sight with latency as low as 50 ms. Selectable Smooth and HD modes, UVC and RTMP streaming, a full-colour LCD, a two-speed cooling fan and a lightweight magnesium-alloy housing complete the package. Each unit can be powered by an NP-F battery or a DC source.
This package

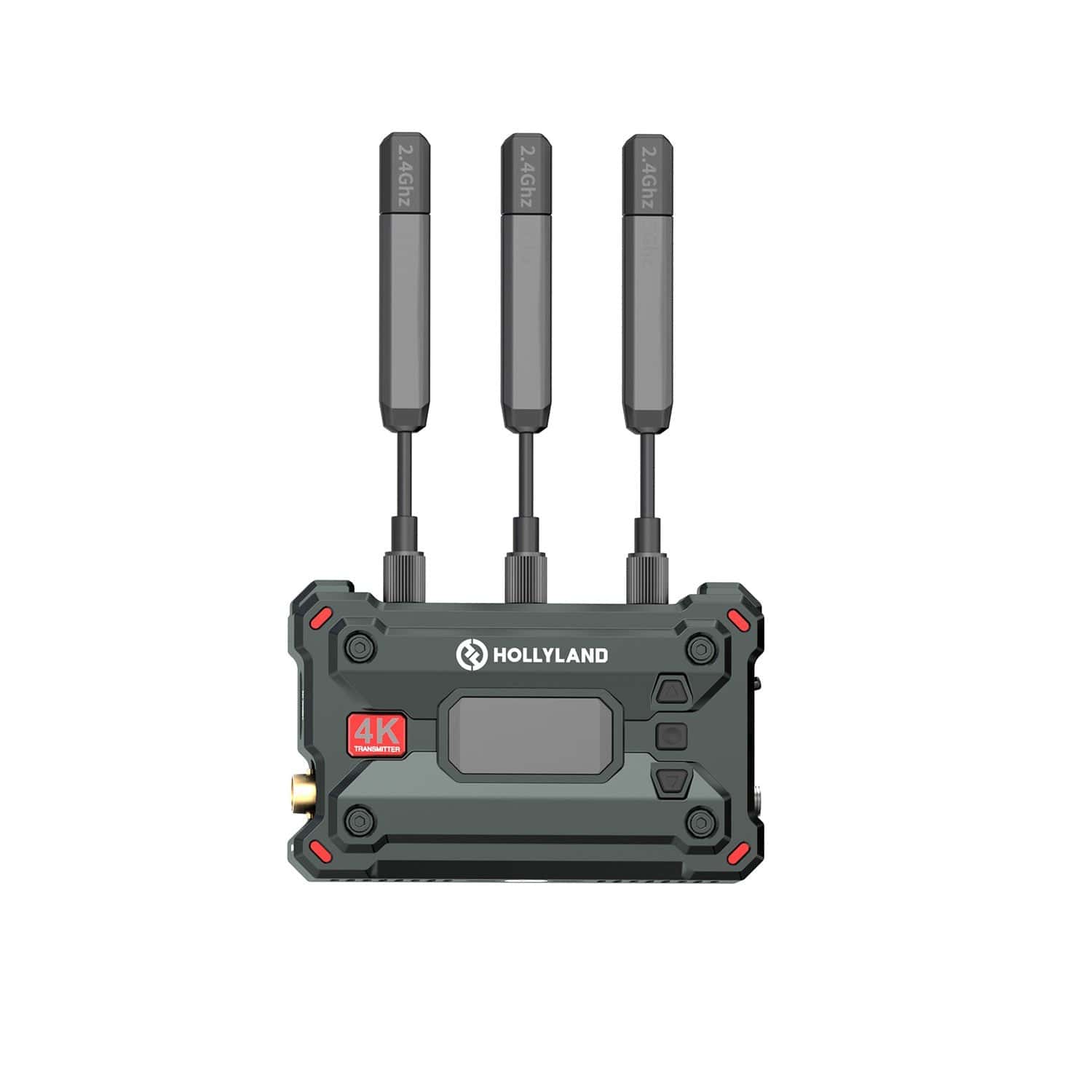

Single Pyro S transmitter with HDMI and 3G-SDI inputs. Also compatible with Pyro 7 and Pyro 5 receivers.

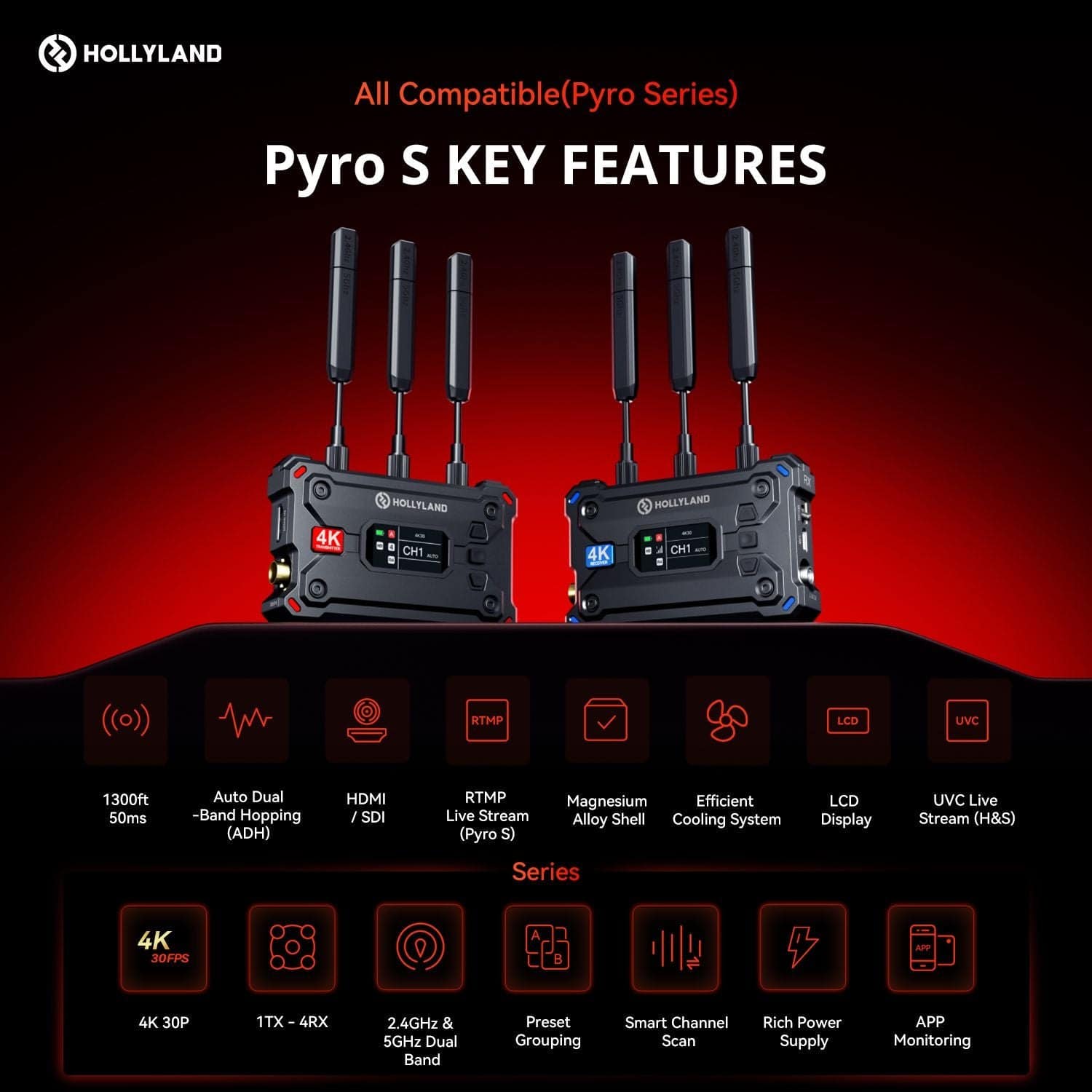

Key features
- 1 transmitter to up to 4 receivers (WifiBroadcast)

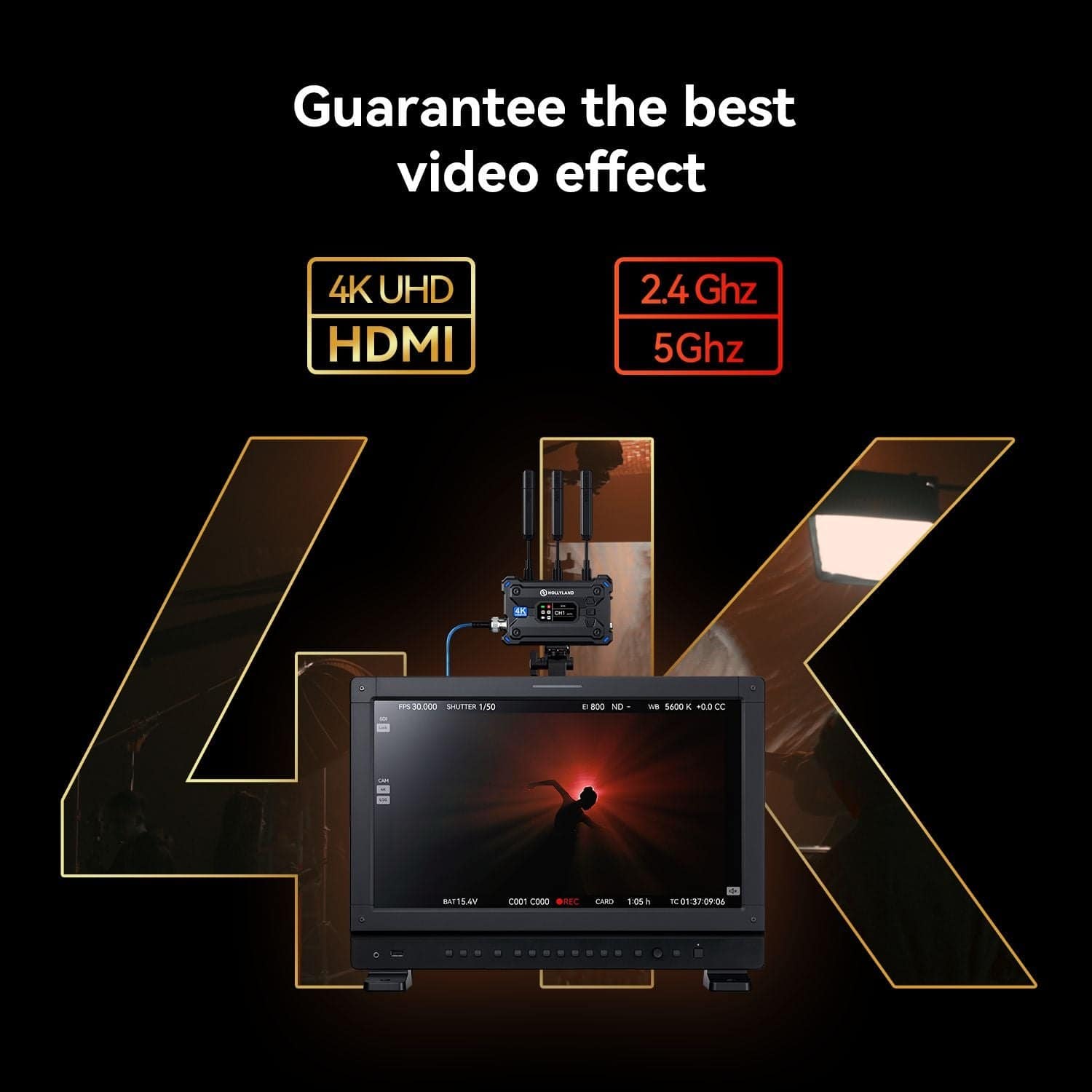

- 4K30 transmission
- Up to 400 m (1,300 ft) LOS range
- Latency as low as 50 ms

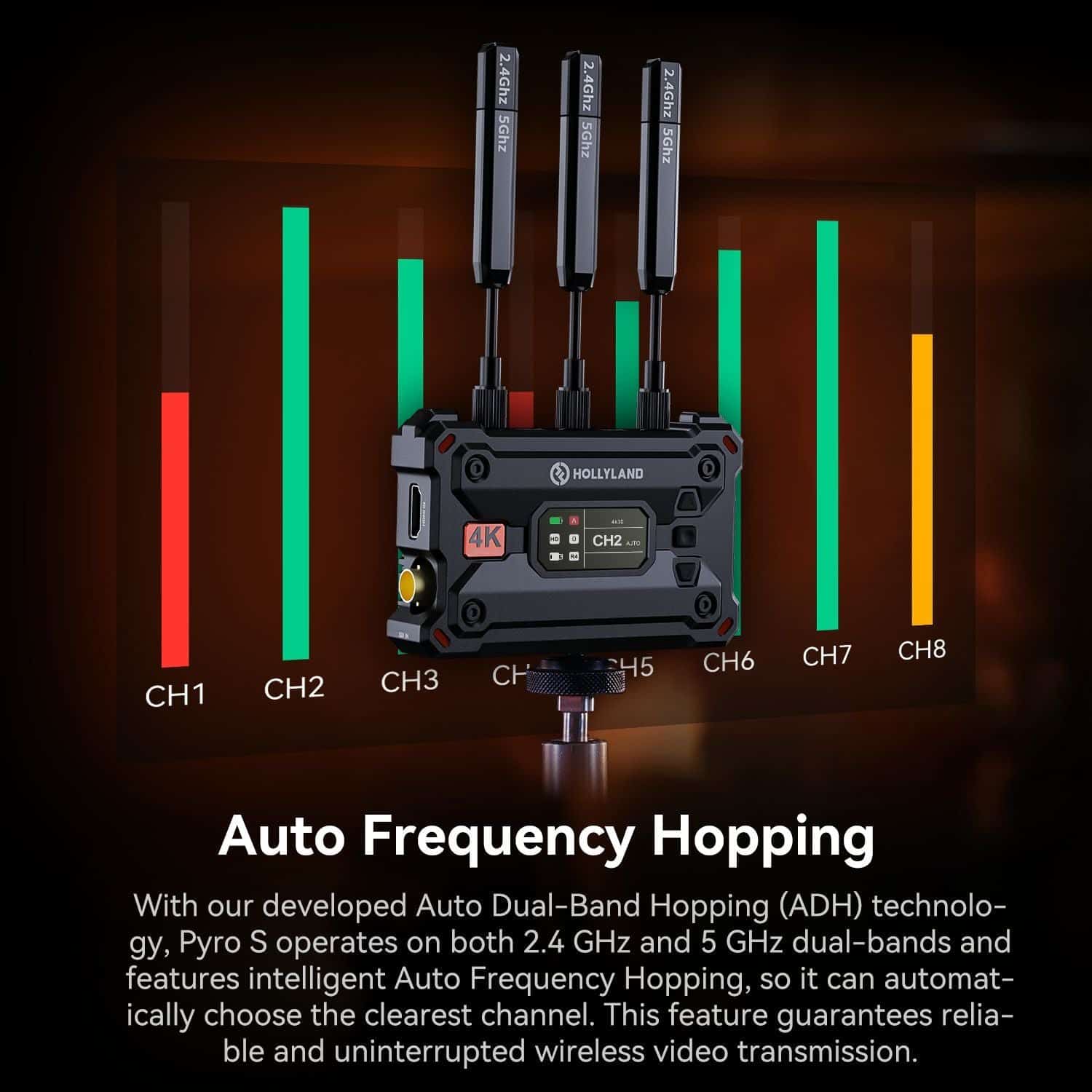

- 2.4 GHz & 5 GHz dual band with Auto Frequency Hopping
- HDMI and 3G-SDI input/output
- UVC & RTMP streaming

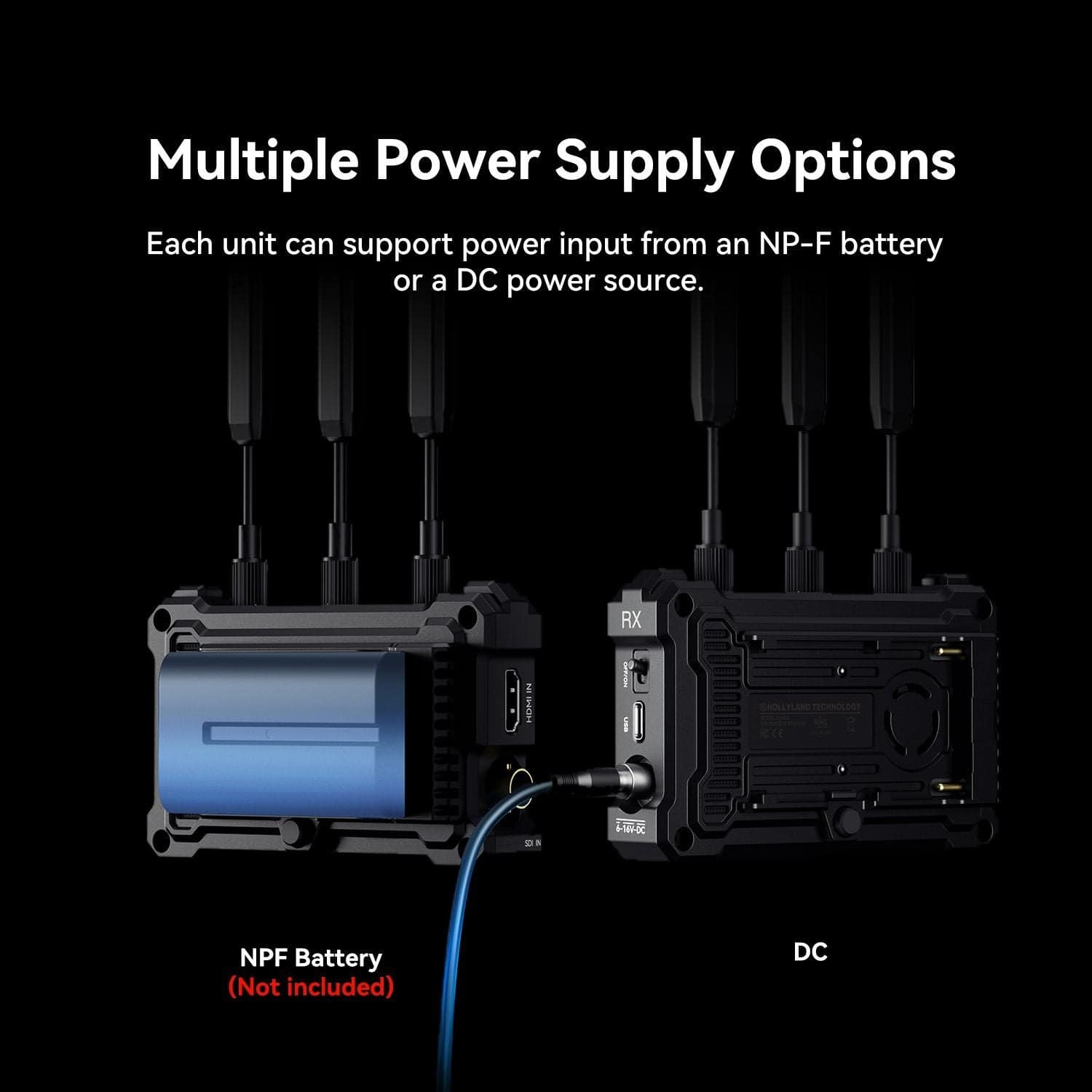

- NP-F battery or DC power
- Preset grouping & pairing, ready out of the box
Specifications
| Transmitter |
| Port |
DC Input: 2.0mm Core Socket
HDMI Input: HDMI 1.4b
SDI Input: 3G SDI
USB-C: USB 2.0 OTG
Antenna: SMA Male |
| Power Supply |
Battery Voltage Range: 6.8 – 8.4V
DC Voltage Range: 6 – 16V |
| Power Consumption |
< 11W |
| Net Weight |
207g |
| Dimensions |
L × W × H: 112 × 71.2 × 34.1mm (4.4 × 2.8 × 1.3in.) |

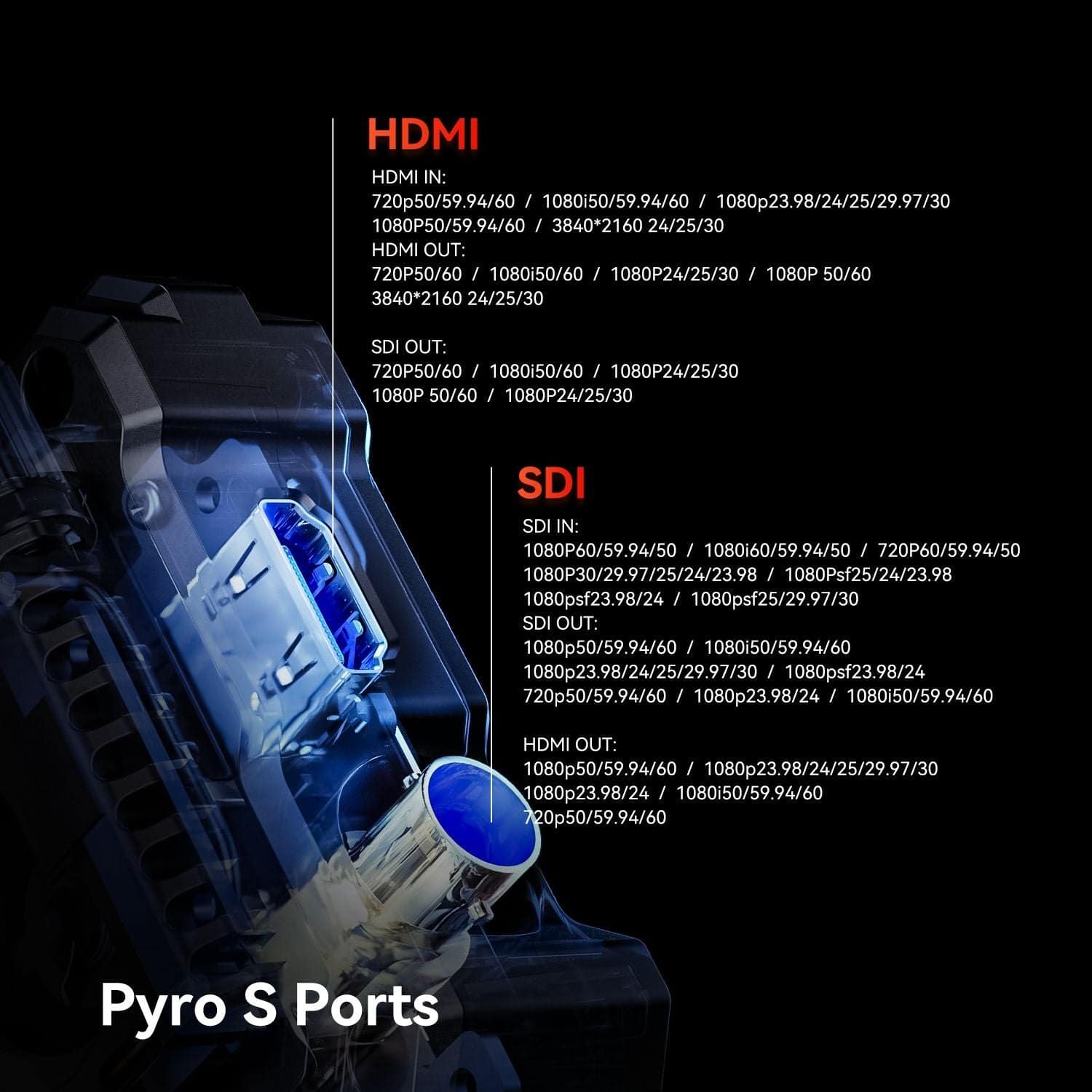

| Input/Output Format |
HDMI Input
720p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p50/59.94/60
3840*2160 30/25/24/29.97/23.98
SDI Input
1080p60/59.94/50
1080i60/59.94/50
1080p30/29.97/25/24/23.98
720p60/59.94/50
1080psf23.98/24
1080psf25/29.97/30 |
| Operating Frequency |
5 GHz Frequency Band
5.150 – 5.250 GHz
5.250 – 5.350 GHz
5.470 – 5.725 GHz
5.725 – 5.850 GHz
2.4 GHz Frequency Band
2.412 – 2.484 GHz |
| Transmit Power |
< 23 dBm |
| Receiver Sensitivity |
/ |
| Latency |
as low as 50ms |
| Bandwidth |
20 MHz
(Broadcast: 40 MHz) |
| Temperature |
-10 – 45℃ (working)
-40 – 60℃ (storage) |

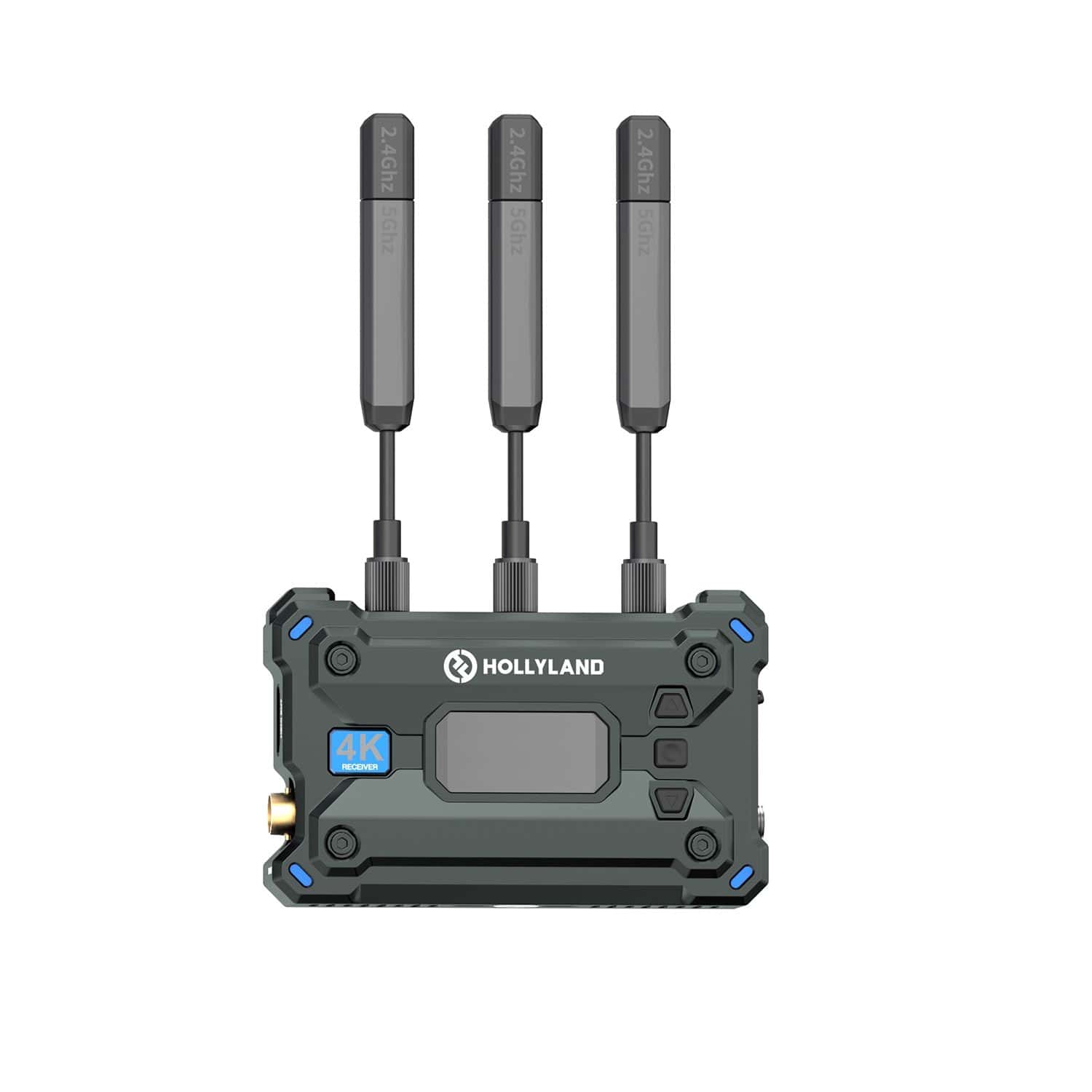

| Receiver |
| Port |
DC Input: 2.0mm Core Socket
HDMI Output: HDMI 1.4b
SDI Output: 3G SDI
USB-C: USB 2.0 OTG
Antenna: SMA Male |
| Power Supply |
Battery Voltage Range: 6.8 – 8.4V
DC Voltage Range: 6 – 16V |
| Power Consumption |
< 8W |
| Net Weight |
207g |
| Dimensions |
L × W × H: 112 × 71.2 × 34.1mm (4.4 × 2.8 × 1.3in.) |
| Input/Output Format |
HDMI Output
720p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p50/59.94/60
3840*2160 30/25/24/29.97/23.98
SDI Output
1080p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.97/30
720p50/59.94/60
1080p23.98/24
1080i50/59.94/60 |
| Operating Frequency |
5 GHz Frequency Band
5.150 – 5.250 GHz
5.250 – 5.350 GHz
5.470 – 5.725 GHz
5.725 – 5.850 GHz
2.4 GHz Frequency Band
2.412 – 2.484 GHz |
| Transmit Power |
/ |
| Receiver Sensitivity |
-85 dBm (Broadcast: -80 dBm) |
| Latency |
as low as 50ms |
| Bandwidth |
20 MHz
(Broadcast: 40 MHz) |
| Temperature |
-10 – 45℃ (working)
-40 – 60℃ (storage) |
Specifications as published by the manufacturer. Operating frequencies and transmit power may vary by country or region according to local regulations.
