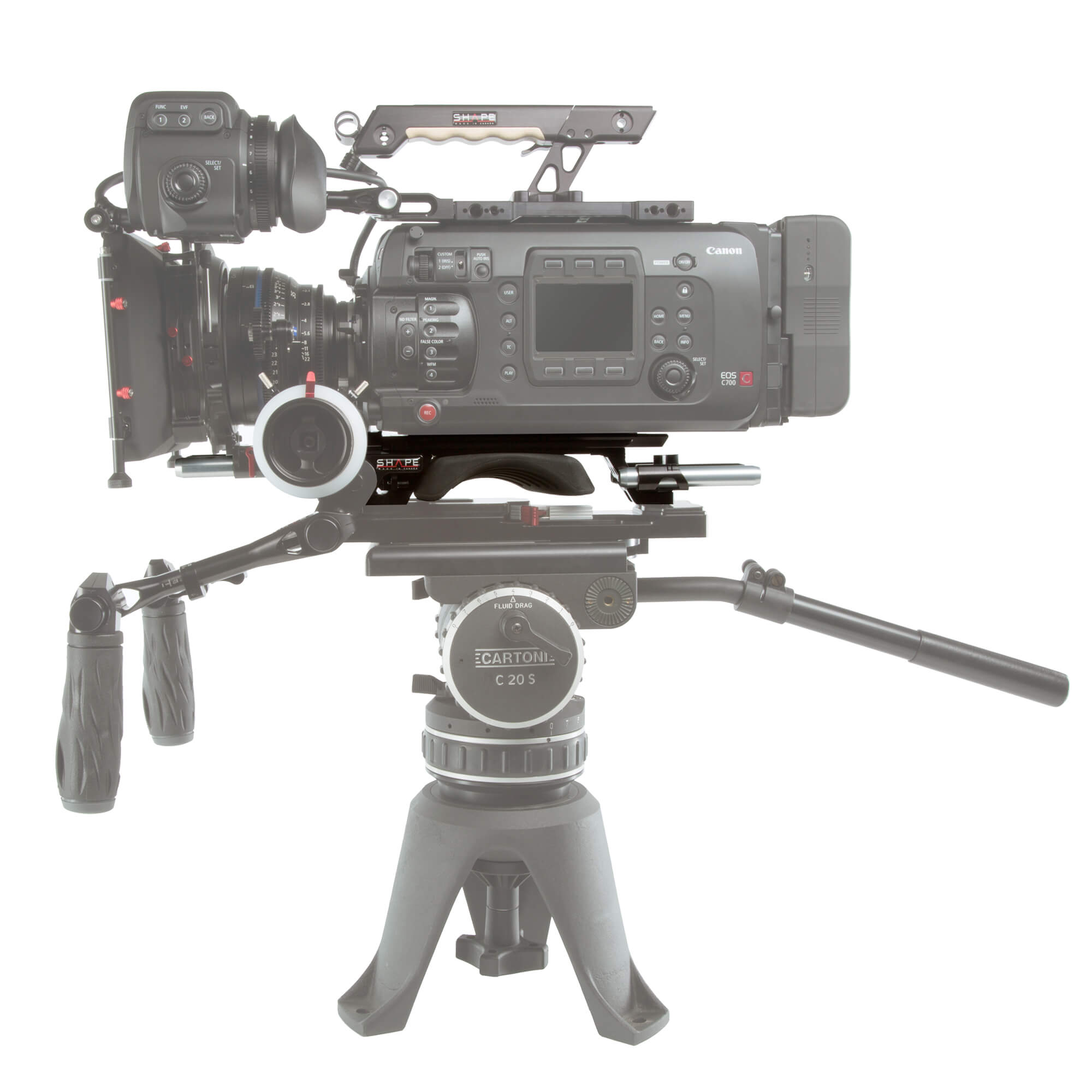

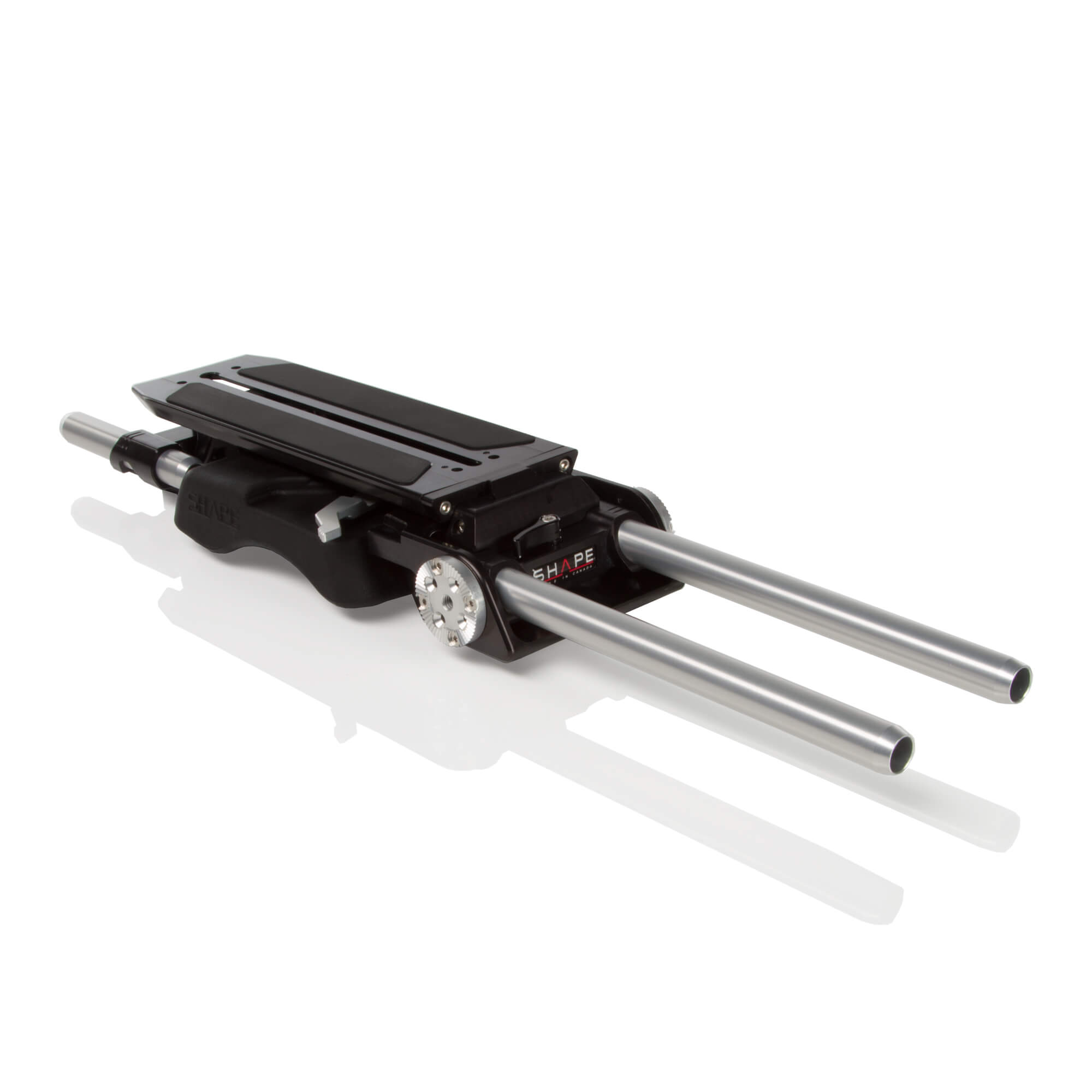

The REVOLT VCT Universal Baseplate (BP10) offers a unique design, created for both amateur and professional filmmakers seeking camera supports & stabilizers of high-quality. It features a front to back sliding plate allowing quick positioning of your camera accessories for an optimal adjustment of your camera’s center of gravity and weight distribution. It is designed with 2 standard Arri rosettes for handles mount and there is a standard quick release adapter plate compatible with most VCT tripod plate. There is also a protective rubber pads on top of the plate to protect your camera._x000D_
_x000D_
Two 15 mm lightweight rod blocs can be fixed to the front and rear of the baseplate, allowing you to install more camera accessories. It comes with 2 pairs of 15 mm rods (8”and 4”) made of reliable aluminum coated with a clear finish. The safety ratchet knobs are built in a way to apply an optimal pressure to the rods. The thick shoulder pad produces maximum comfort and is made of gel padding and slip-free material. The baseplate is also designed with a sophisticated tool box to store your extra screws and Allen key. Quick access to your extra screws and Allen key can be a time saver, even more so, when you are in the middle of a shoot. The shoulder plate is equipped with 1/4-20 & 3/8-16 threaded holes allowing extra screws to be stored and there is a magnet at the back to attach your Allen key._x000D_
_x000D_
Front to back sliding plate for quick positioning of your camera accessories and an optimal adjustment of your camera’s weight distribution._x000D_
Match your camera’s optical center. Being able to adjust the height of your rod bloc to match your camera’s optical center is exactly what you can do._x000D_
Comfortable and moveable shoulder pad made of slip-free material and gel padding (BP-0100)._x000D_
Front and rear 15 mm lightweight rod blocs with 2 pairs of 15 mm rods (8”, 4”) to mount more camera accessories._x000D_
Safety pins prevents the upper plate from sliding._x000D_
Ratchet knob applies an optimal pressure to the rods._x000D_
Sophisticated tool box to store your extra screws and Allen key_x000D_
_x000D_
Compatible with the following cameras:_x000D_
_x000D_
RED (DSMC2)_x000D_
Arri (Amira and Alexa Mini)_x000D_
Sony (Venice, FS7, FS7M2, F5, F55, EX1, EX3)_x000D_
Canon (C200, C300, C300M2, C700)_x000D_
Panasonic (EVA1, Cinema Varicam LT 4k S35, Panasonic Ag-af100, Panasonic Ag-af101 Varicam LT, Panasonic P2)_x000D_
Blackmagic (Ursa Mini)_x000D_
and many other camera models with interchangeable lenses_x000D_
_x000D_
15 mm 4″ rods (15TUBE4)
This pair of SHAPE 15 mm Aluminum Rods (4″) connect into your camera rig, extend it, and let you add various SHAPE and third-party accessories compatible with 15 mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch.
The rods are each 15 mm in diameter, 4 inches long, hollow, non-threaded, and made of reliable aluminum coated with a clear finish.
15 mm 8″ rods (15TUBE8)
Pair of 15 mm rods 8″ long that fit studio and LWS 15 mm rod clamps, allowing you to use available rod mounted accessories. The rods are machined from hollow aluminum tubes and feature chamfered ends that make it easier to insert into 15 mm rod clamps, even if the rod isn’t perfectly aligned or is at a slight angle to the rod clamp.
