Shape

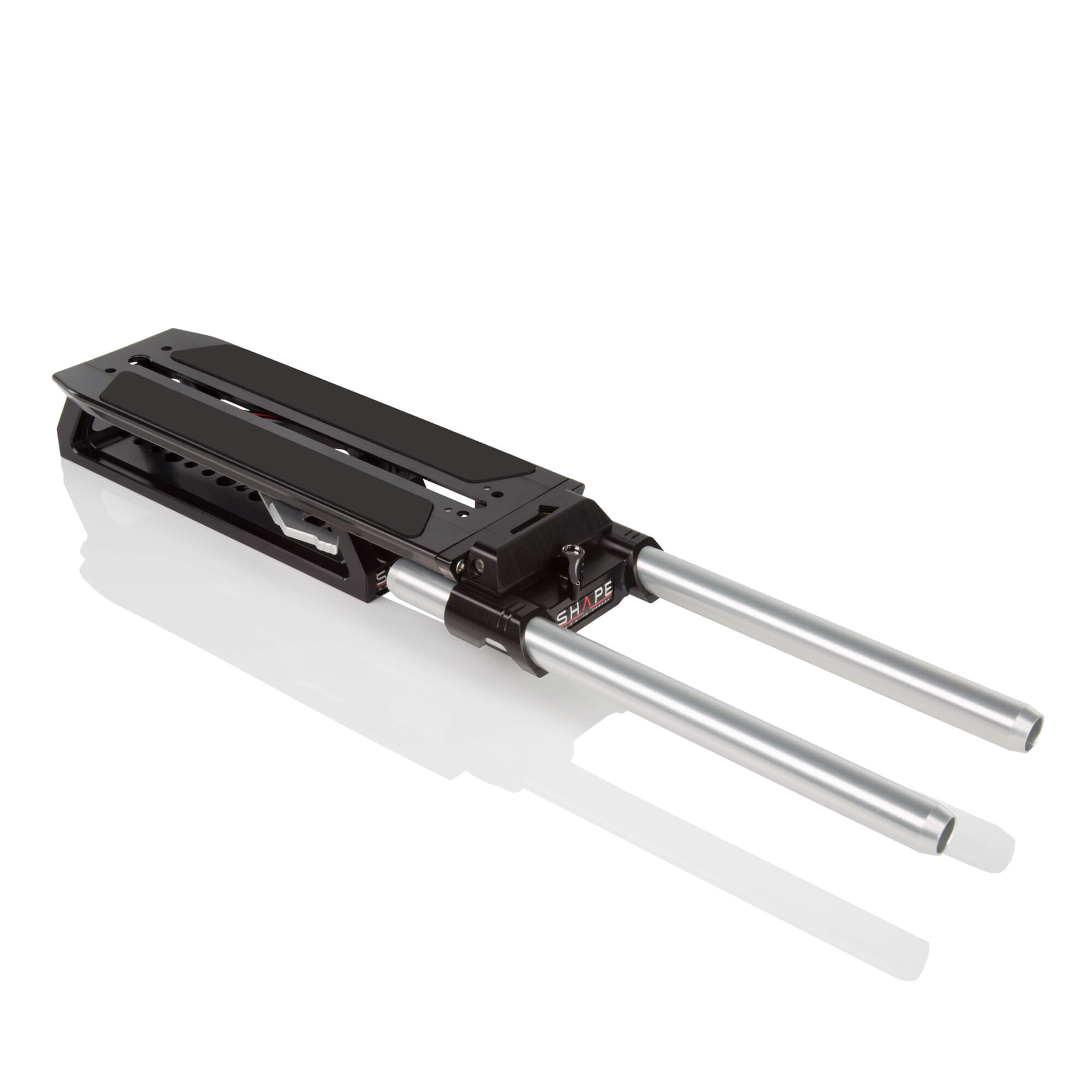

Revolt sliding dovetail riser

Sliding Balance Plate
Wide Camera Compatibility
15 mm LWS Compatible
Height-Adjustable Rod Clamp
Spring-Loaded Levers
Safety Catches

431,04 (ex. VAT)

SKU: RSDR Categories: , ,

Revolt Bridge plate 15 mm LW kit (RSB15)

The Bridge plate allows you to quickly mount or dismount your camera on your tripod instead of your shoulder. It is lightweight (0.36 kg) and made of solid CNC machined aluminum. Its unique design also procures a robust support to your camera rig. The locking lever on the side of the Bridgeplate is easy to access and allows you to adjust the position of your camera rig fixed on your tripod. This way, you can achieve quick positioning of your camera accessories for an optimal adjustment of your camera’s center of gravity and weight distribution. The quick release safety pins prevent the upper plate from sliding and the threaded holes allow to quickly attach your tripod to the plate. The bridge plate sliding feature let you insert & slide the SHAPE REVOLT dovetail riser (RSDR). The dovetail plate  is designed with the ‘standard compatibility for the Arri Amira’, allowing you to quickly and easily mount your camera directly onto the riser.

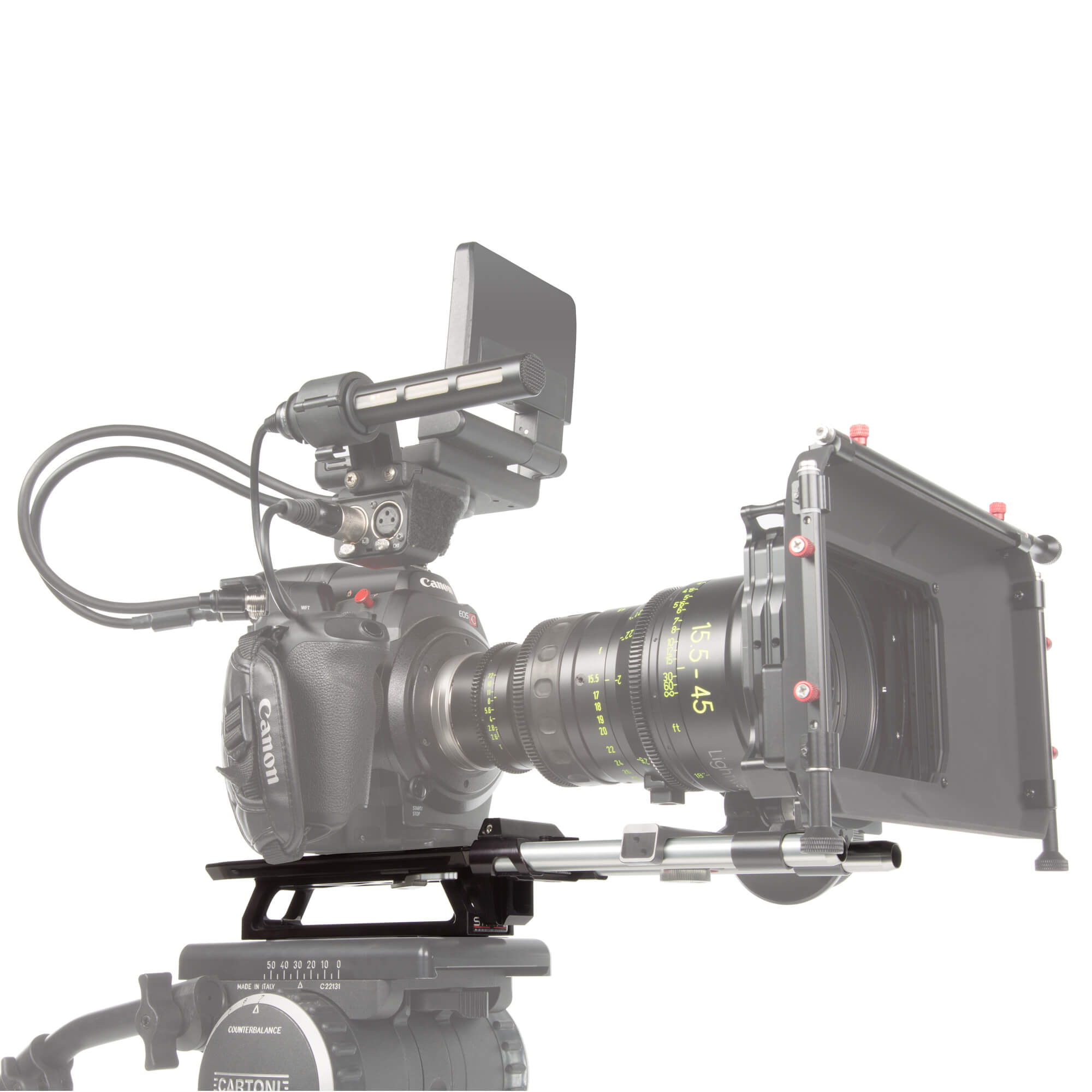

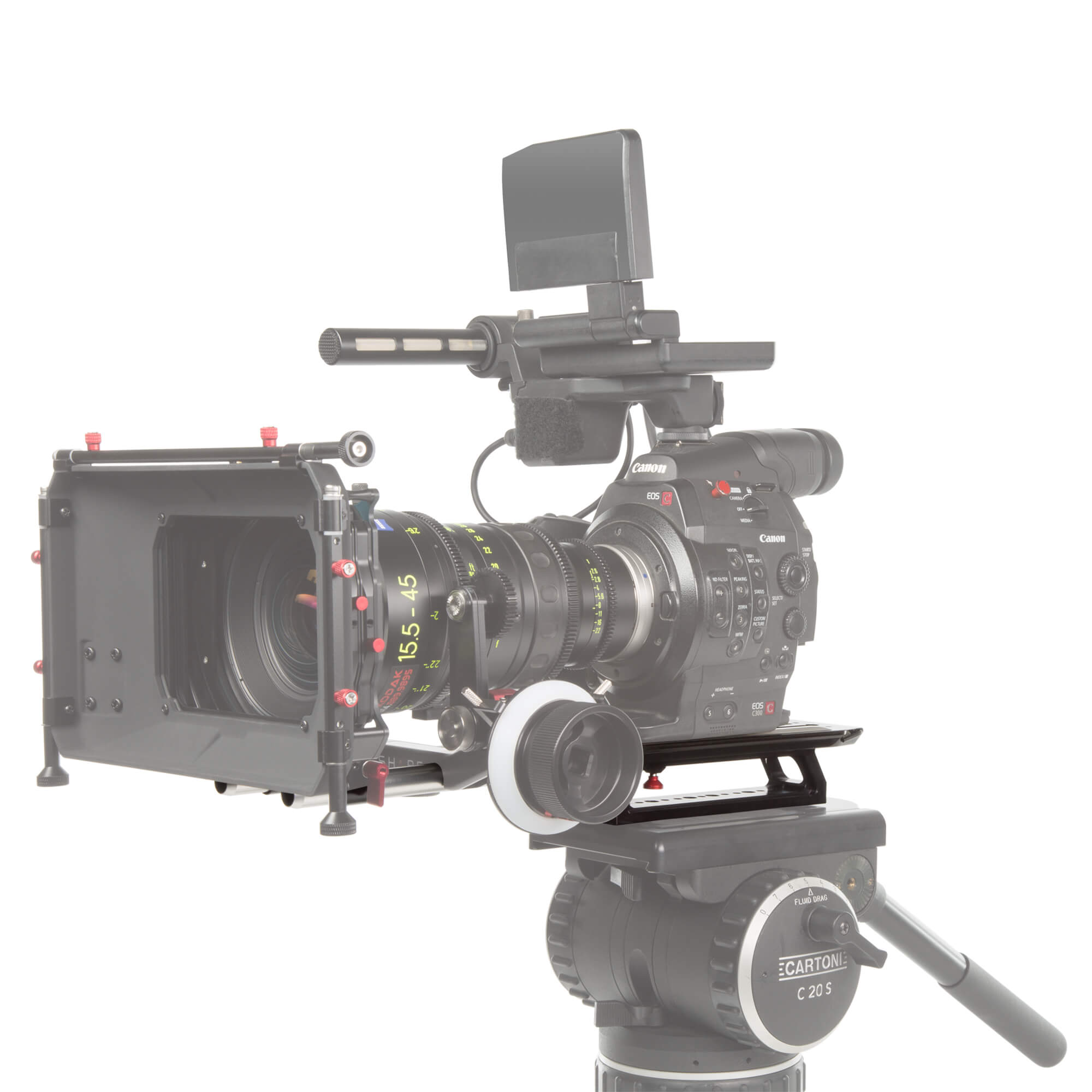

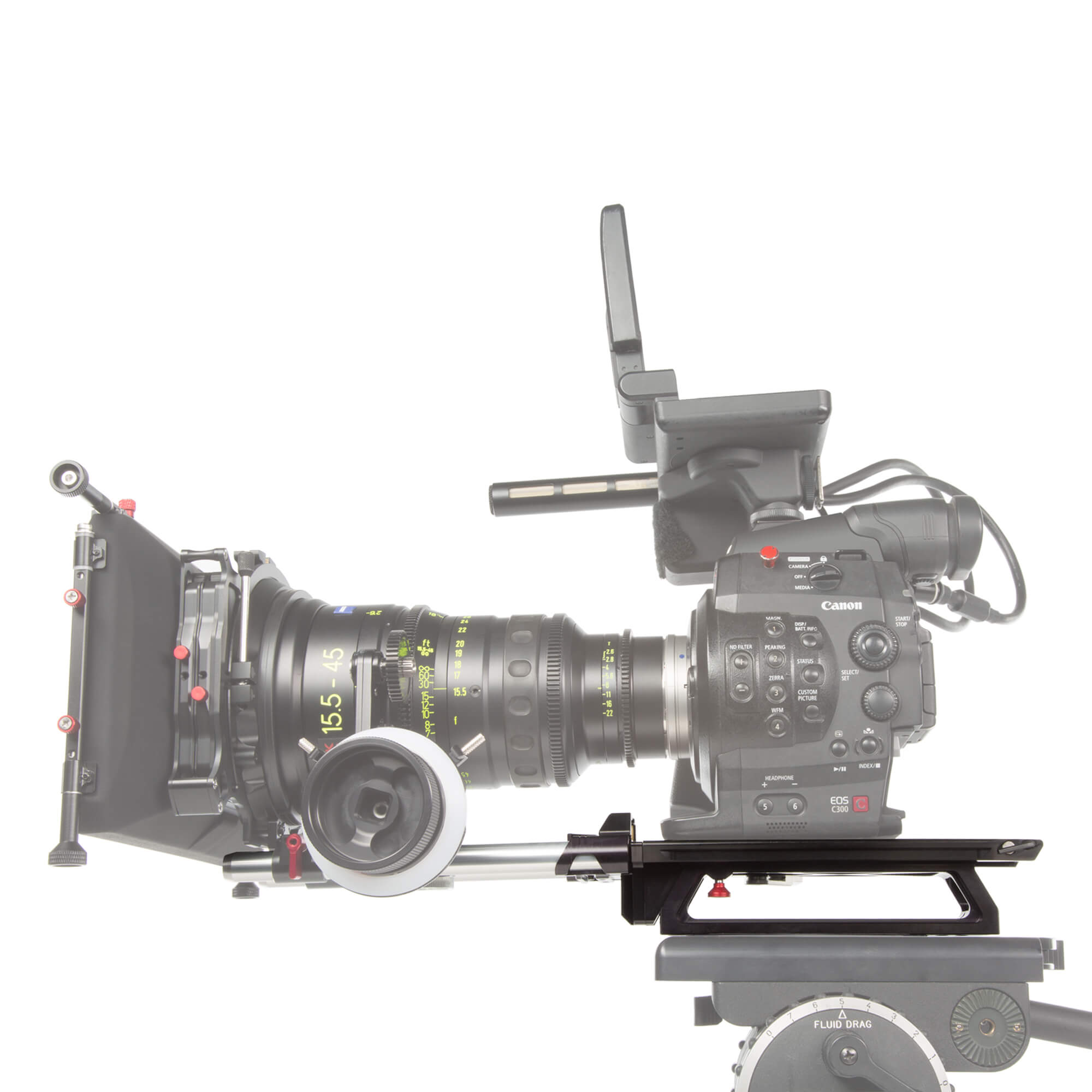

REVOLT Dovetail riser
The bridge plate sliding feature let you insert & slide the SHAPE REVOLT dovetail riser. The dovetail is designed with the ‘standard compatibility for the Arri Amira’, allowing you to quickly and easily mount your camera directly onto the riser.

Front to Back Sliding Plate. It allows quick positioning of your camera accessories for an optimal adjustment of your camera’s center of gravity and weight distribution.
Match your camera’s optical center. Being able to adjust the height of your rod bloc to match your camera’s optical center is exactly what you can do.
15mm lightweight rod bloc in the front of the Baseplate with a pair of 15 mm 4″ rods.
The safety pins prevent the upper plate from sliding.
The ratchet knob applies an optimal pressure to the rods and increase the strength of your rig.
Compatible with the following cameras: Arri (Amira and Alexa Mini), Sony (FS7, FS7M2, F5, F55, EX1, EX3), Canon (C200, C300, C300M2, C700), Panasonic (EVA1, Cinema Varicam LT 4k S35, Panasonic Ag-af100, Panasonic Ag-af101 Varicam LT, Panasonic P2), Blackmagic (Ursa Mini), RED camera and many other camera models with interchangeable lenses.

Additional information

Weight 0,59 g
Dimensions 24,77 × 8,26 × 4,45 mm
Brand

(1) BRIDGEPLATE, (1) SLIDING PLATE, 15MM ROD BLOC SYSTEM, (1 PAIR) 15MM ROD 4 INCHES
