Panasonic Au-Eva1 baseplate follow focus matte box kit

AU-EVA1 Baseplate with shoulder mount and 15 mm Rod System
Panasonic AU-EVA1 Adapter Plate
Telescopic Handles with Push-Button Technology
Follow Focus Pro With A Trusted Engineering
Matte box 4X5.6

2.687,04 (ex. VAT)

SKU: EVAKIT Categories: , ,

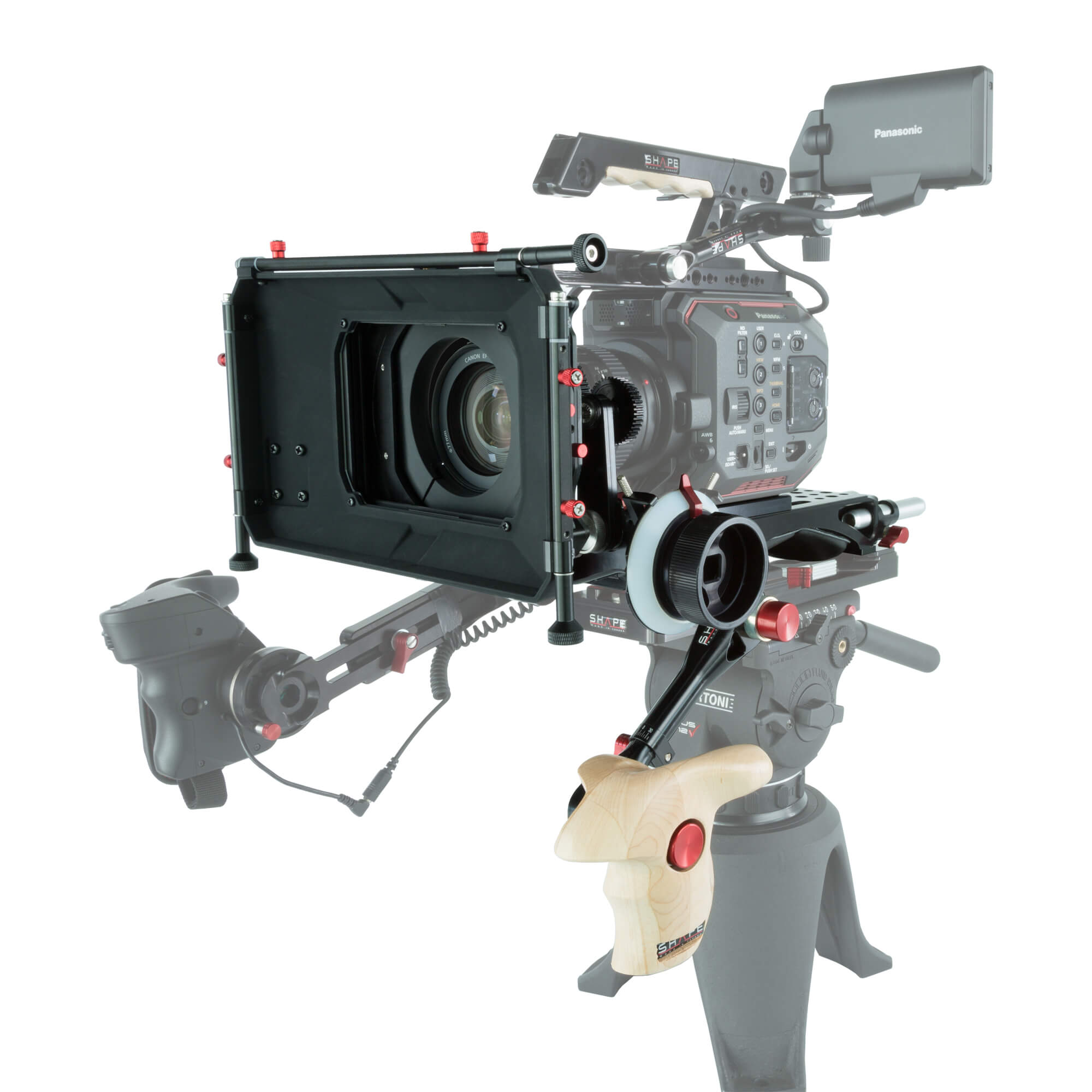

The SHAPE Bundle Rig is a camera support system designed for the Panasonic AU-EVA1 and is suitable for either handheld or shoulder-mounted shooting. It includes the BP0008 V-Lock Quick Release Baseplate, one V-lock replacement pad, a pair of telescopic handles with Push-Button, one two-stage 4×5.6″ matte box, one Follow Focus Pro, and a pair each 8″ and 4″ 15 mm aluminum rods._x000D_
_x000D_

8000 v-lock quick release baseplate (BP0008)

The SHAPE BP0008 V-Lock Quick Release Baseplate is a long format baseplate for larger cameras like the Alexa, F5, C300, and broadcast cameras. It can be used shoulder mounted, tripod mounted, and attached to V-lock tripod adapters. It should be used with cameras with external viewfinders. The baseplate includes a removable shoulder pad and features rosette adapters for ARRI standard handles. It has 1/4″-20 and 3/8″-16 tripod mount threads and a V-lock delta adapter for attaching SHAPE VCT Tripod Plate (VCTSH) or any VCT-14 tripod plate.

The shoulder pad secures on by touch fasteners. The tripod mount threads are located underneath the shoulder pad. Two pairs of 8″ and 4″ 15 mm rods are included for the front and back. For attaching a matte-box and other accessories, the rod adapter can be adjusted vertically if you remove the screw holding it in position. This baseplate also supports optional SHAPE 15 mm Studio and 19 mm Studio adapters in place of the included one. The baseplate features three camera mount slots, all supporting 1/4″-20 and 3/8″-16 screws. The off-center slots allow you to mount your camera offset if you use a 15 mm Studio Adapter. Multiple 1/4″-20 and 3/8″-16 mounting threads are peppered behind the three slots for attaching articulating arms and other accessories. Two 1/4″-20 and two 3/8″-16 camera mount screws are included.

Panasonic Au-Eva1 adapter plate (EVAAP)

The AU-EVA1 Adapter Plate let you quickly attach your camera to your rig. The position of the captive screws perfectly matches the threaded holes of the Panasonic AU-EVA1 camera base.

Telescopic SHAPE handle Arri rosette (HAND12)

Left and right telescopic handgrips with ARRI rosettes that can be attached to cameras or camera support hardware that has standard ARRI rosettes, which allow you to lock your arms in place. Each arm features four points of articulation (2 Push-button and 2 ratchet knob) to adjust the arms position. The ratchet knob along the arms allows you to extend the arms up to 2 inches and rotate the handgrips throughout 360°. The one near the rosette gives you more option to position the arm for your comfort.

SHAPE is well known for its patented Push-button handle, now used by so many professionals in the industry. The technology was developped to give filmakers quick and easy adjustment. By simply pressing the button, you are allowed a 360-degree rotation to place the handle in the best position for your use. Push, adjust, release, and then its lock. The Push-button system on the Handle articulating joint provides additional articulation near the rosette, while the second push-button articulation joint allows you to rotate and precisely position the rubber handgrips.

Follow Focus Pro (FFPRO)

Manufactured in sleek black aluminum anodized, this special edition professional follow focus unit combines sleek look with trusted engineering and a classic design. The SHAPE Follow Focus Pro is an industry workhorse and has already proven itself on countless tough shoots all over the world, so you needn’t worry about it letting you down. SHAPE engineering is internationally renowned and there is one of the most robust motion picture accessories ever built. It mounts on 15 mm rods and features an adjustable arm which puts the gear at the optimal position for the lens, no matter what the diameter is._x000D_
_x000D_
The unit snaps onto 15 mm rods, allowing for quick attachment, removal, and repositioning. Two 0.8 pitch gears come included and give you a choice of either 28 teeth or 43 teeth – depending on the throw distance of the lens. Additional features include two adjustable hard stops, removable marking disc, and an industry standard accessory port for using optional whips and cranks. While the Follow Focus Pro contains the essentials for pulling focus on any type of project production, the choice of either 15 mm rod adaptors means that you can SHAPE the system to meet your particular requirements.

Matte box 4×5.6 (MAT4X56)

The 2-Stage 4 x 5.6″ matte box from SHAPE can be used as a clip-on matte box and can be mounted on industry-standard 15 mm rod system. It is designed for light control, insertion, and adjustment of filters. It features a two-stage rotating 4 x 5.6″ filter holder. The matte box accepts lenses with a front diameter up to 114 mm. It comes with a 82 mm filter ring and six step-up rings that allow you to fit lenses with an outer diameter (52-82, 58-82, 62-82, 67-82, 72-82, 77-82)mm.

15 mm 4″ rods (15TUBE4)

This pair of SHAPE 15 mm Aluminum Rods (4″) connect into your camera rig, extend it, and let you add various SHAPE and third-party accessories compatible with 15 mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch.
The rods are each 15 mm in diameter, 4 inches long, hollow, non-threaded, and made of reliable aluminum coated with a clear finish.

15 mm 8″ rods (15TUBE8)

Pair of 15 mm rods 8″ long that fit studio and LWS 15 mm rod clamps, allowing you to use available rod mounted accessories. The rods are machined from hollow aluminum tubes and feature chamfered ends that make it easier to insert into 15 mm rod clamps, even if the rod isn’t perfectly aligned or is at a slight angle to the rod clamp.

Additional information

Weight 3,00 g
Dimensions 31,75 × 22,86 × 48,26 mm
Brand

(1) BASEPLATE WITH SHOULDER MOUNT AND ROD BLOC SYSTEM (BP0008), (1) REMOVABLE SHOULDER PAD (BP0050), (1) PANASONIC AU-EVA1 ADAPTER PLATE, (1 PAIR) 15MM RODS 8 INCHES, (1 PAIR) 15MM RODS 4 INCHES, (1 PAIR) OF TELESCOPIC HANDLES WITH PUSH-BUTTON, (1) FOLLOW FOCUS PRO, (1) MATTE BOX 4X5.6
