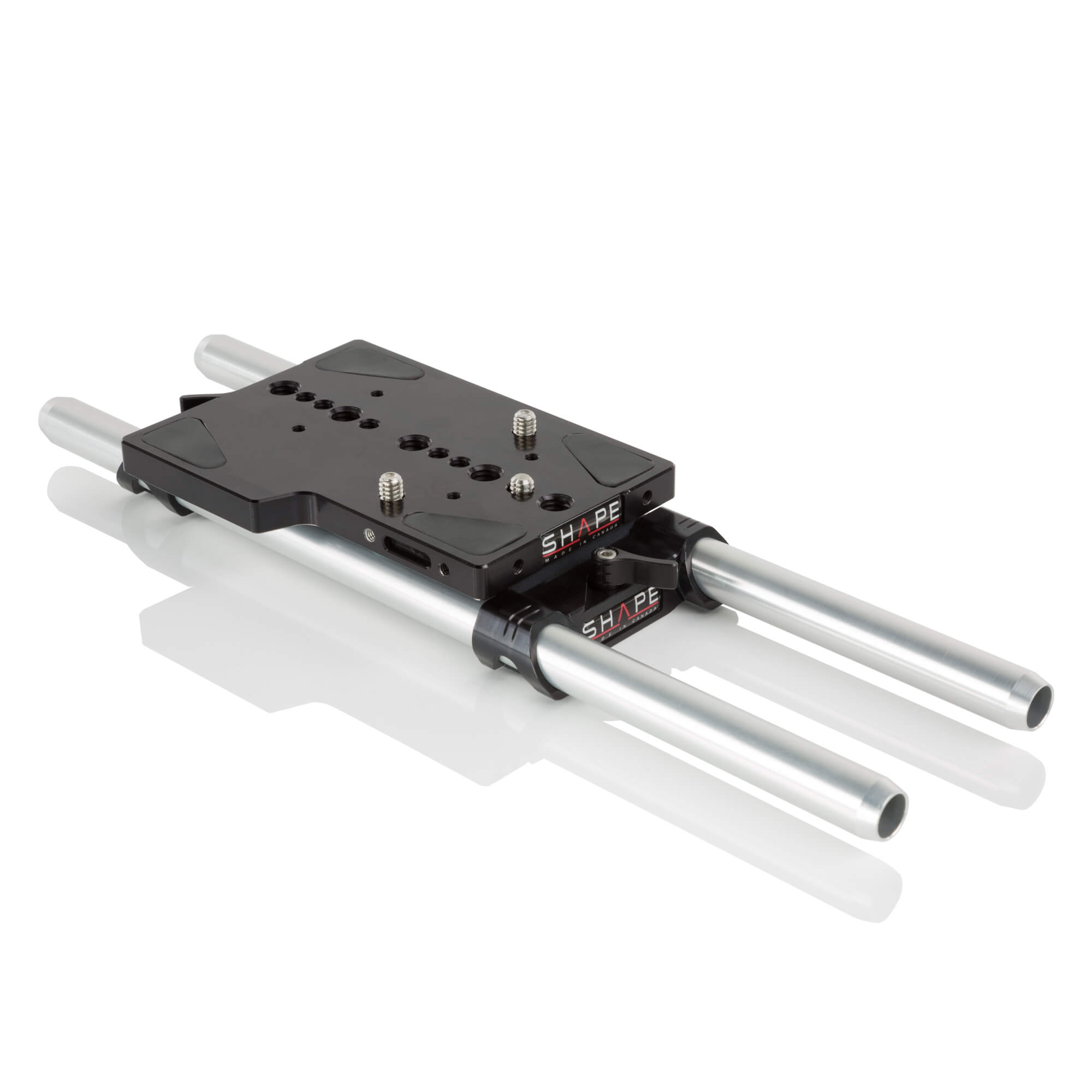

Material and Design
The baseplate is manufactured from solid CNC machined aluminum to provide robustness and durability.
Mounting System
It features a 15 mm LW Rod System aligned with the Canon C200 optical center, and attaches underneath the camera using 3/8-16 and 1/4-20 screws with four points of attachment for stability.
Adjustability and Compatibility
Includes ratchet key knobs for repositioning the rod block system, and an adapter plate with several threaded holes allowing optimization of camera balance on tripods, gimbals, or drones.
Included Tools
An Allen key is magnetically fixed at the bottom of the baseplate for easy access and adjustments.
Key features
- Made of solid and robust CNC machined aluminum
- 15 mm LW Rod System designed to respect the C200 optical center
- Ratchet key knobs to reposition the rod bloc system
- Features a pair of 15 mm rods 12in through the length of the baseplate
- Attaches underneath the camera with 3/8-16 and 1/4-20 screws
- 4 points attachment to strongly secure the camera and for tripod plate attachment (3 x 1/4-20 and 1x 3/8-16)
- 4 rubber pads at the top of the base to protect and securely sit your C200 & C200B cameras

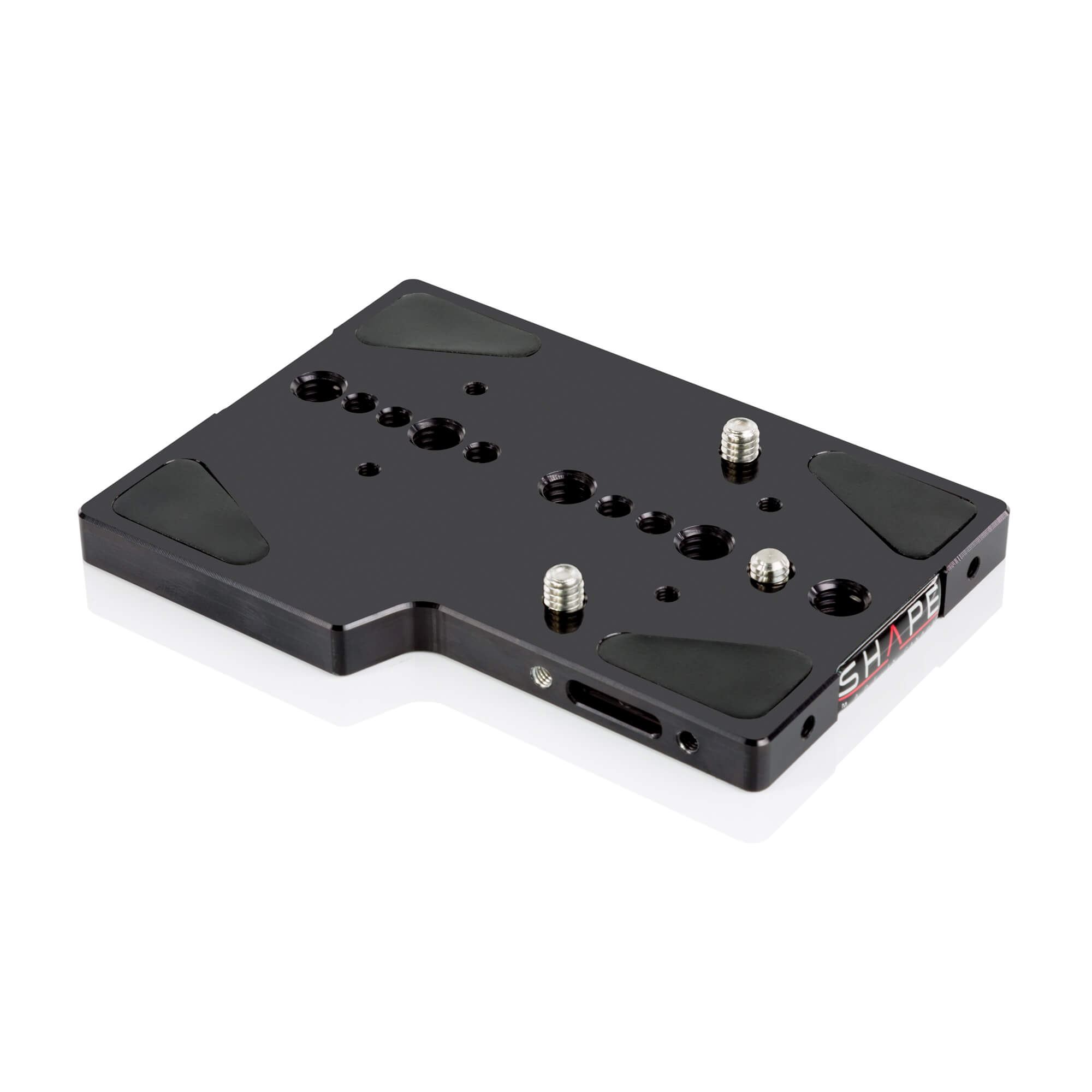

- Designed with an adapter plate featuring several 1/4-20 and 3/8-16 threaded holes
- Adapter plate is perfect to optimize your C200 camera balance on a tripod, gimbal or drone
- The Allen key is easily accessible and securely magnet-fixed at the bottom of the Baseplate
Compatible with
- Canon C200
- Canon C200B
