Shape

Quick Release VCT Tripod Plate

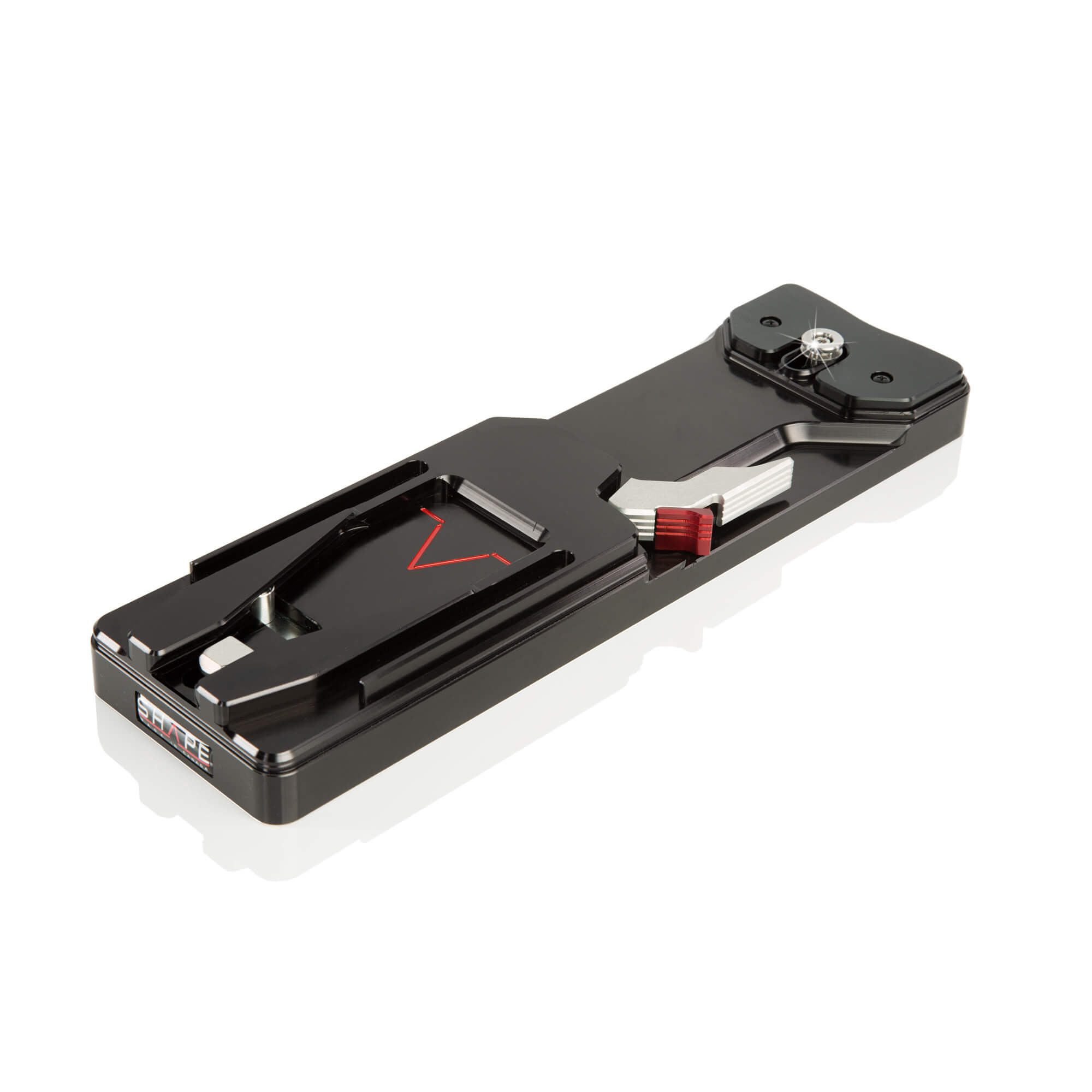

CNC machined aluminum VCT tripod plate featuring a quick-release latch and a V-lock system with front delta attachment and rear pin for fast, secure mounting and unmounting of camcorders.

305,00€ (ex. VAT)

SKU: VCTSH Categories: , , Brand:

Design and Construction

The SHAPE Quick Release VCT Tripod Plate is crafted from CNC machined aluminum, providing a durable and reliable solution for mounting broadcast cameras.

Mounting Mechanism

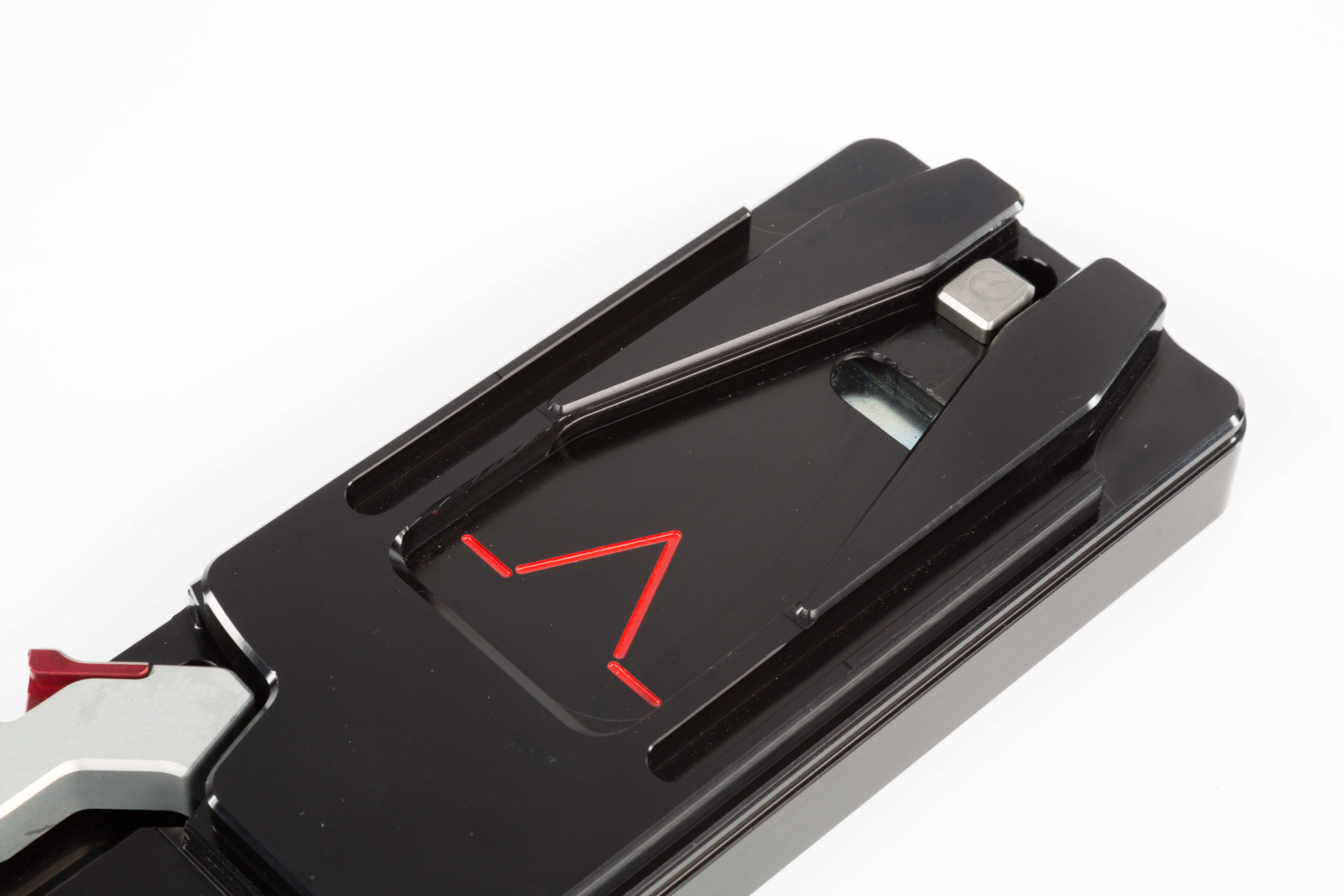

It utilizes a V-lock system enhanced by a delta attachment at the front and a rear pin to enable rapid and secure mounting and unmounting of camcorders.

Compatibility and Features

Equipped with 1/4-20 and 3/8-16 threaded holes on the underside, it supports attachment of various tripod quick-release plates and is compatible with a wide range of VCT baseplates.

Key features

  • Made of CNC aluminum

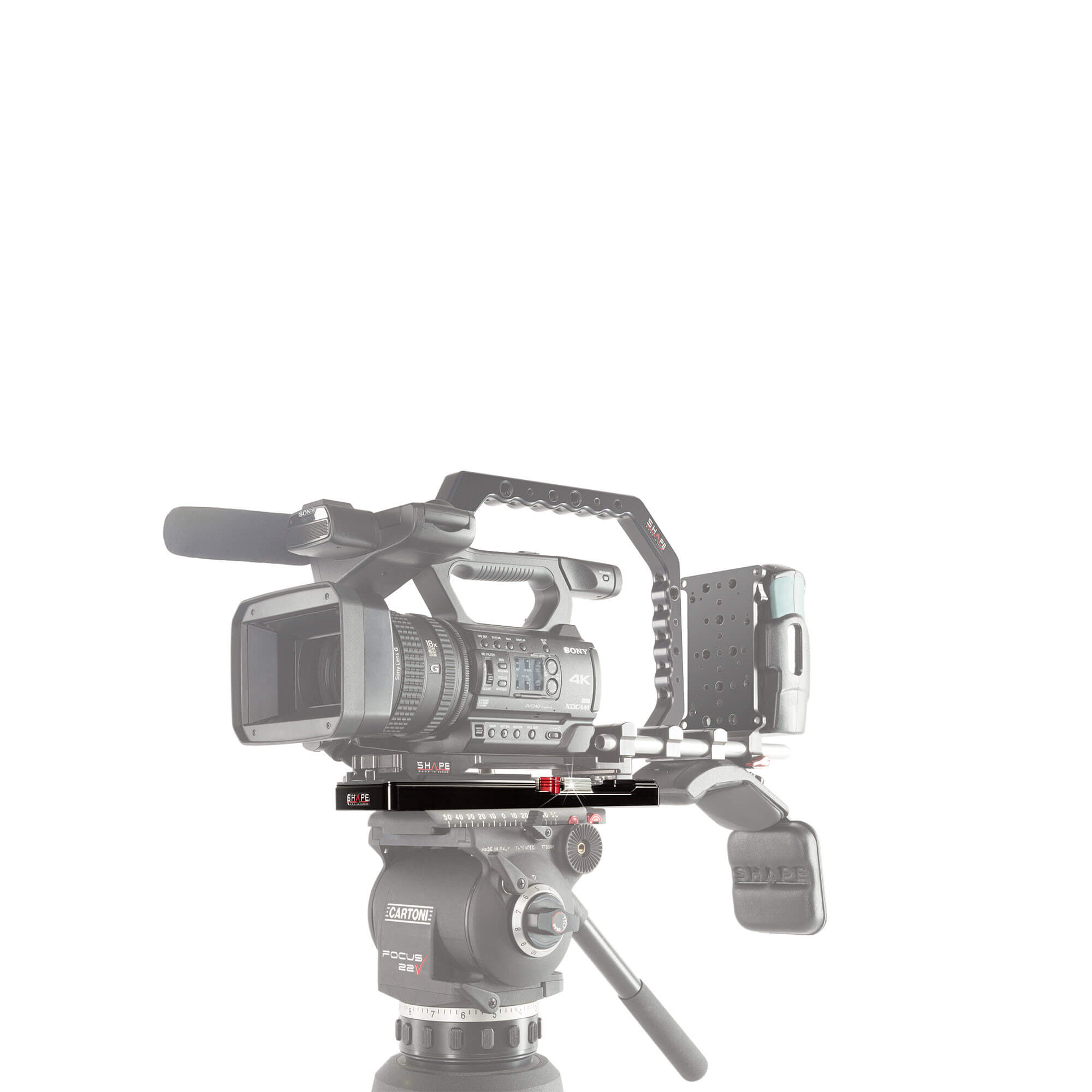

  • Quickly mount and dismount your camcorder from a tripod

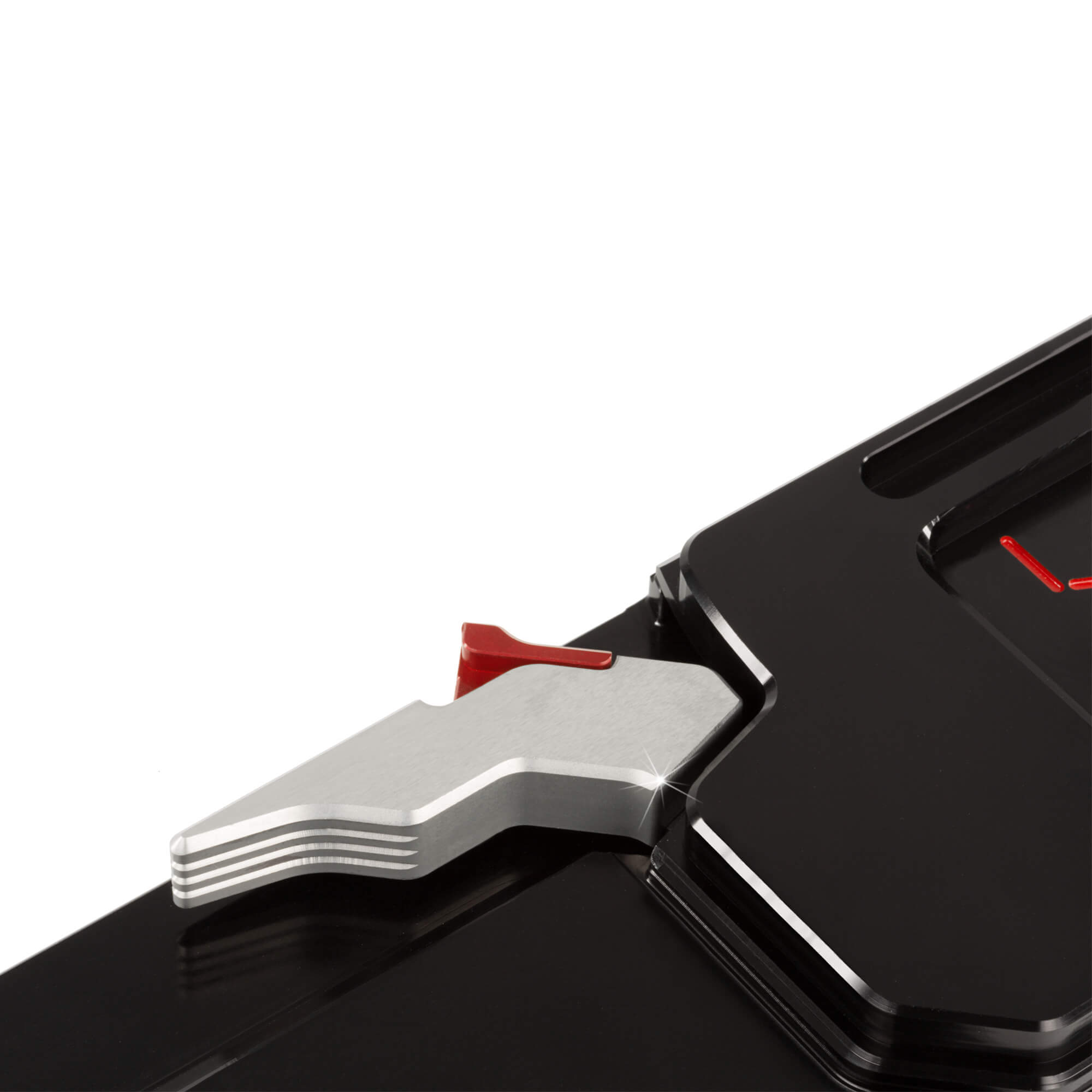

  • Quick-release latch to unlock the baseplate from the VCT plate
  • 1/4-20, 3/8-16 threaded holes underneath to attach tripod quick-release plates

Compatible with

  • Compatible with a wide variety of VCT baseplates
Brand Shape
Reference VCTSH
EAN 629266006498
Country of origin Canada
Compatible with Compatible with a wide variety of VCT baseplates

Additional information

Weight 0,73 kg
Dimensions 27,94 × 8,26 × 2,90 cm
Brand

  • 1 × Quick Release VCT Tripod Plate
