Sachtler

aktiv10

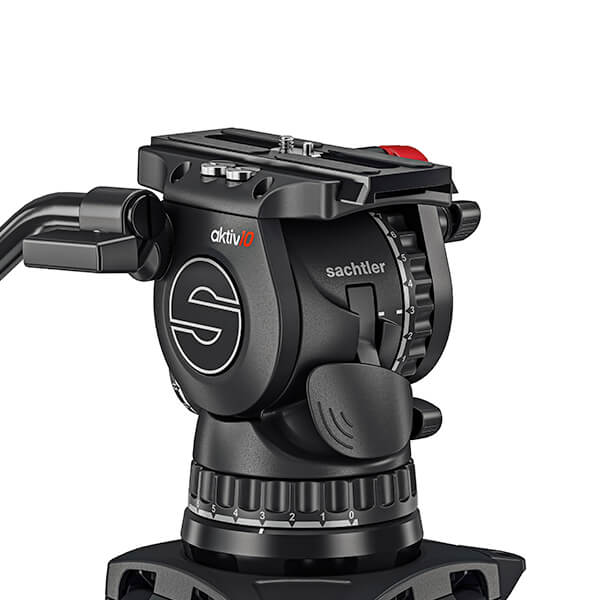

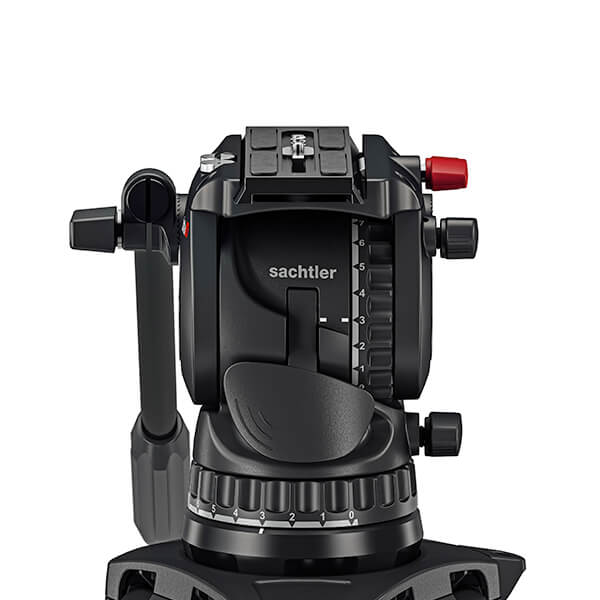

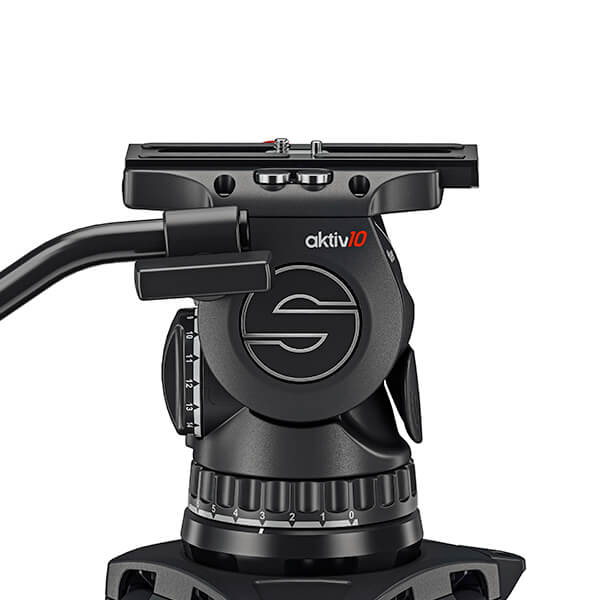

Sachtler aktiv10 fluid head Sideload with SpeedLevel and SpeedSwap technology

2.430,00€ (ex. VAT)

SKU: S2072S Categories: , , Brand:

This Sachtler aktiv™ 100 mm fluid head for payloads of up to 12 kg (26.5 lbs.), with unique SpeedLevel™ technology, can be levelled in seconds giving you time to get the perfect shot in documentary, corporate or news applications. The SpeedSwap™ system delivers the fastest way to switch between tripod and slider in seconds giving you ultimate flexibility.

Product Highlights

  • Level and lock your head in an instant without missing a second of action
    Unique SpeedLevel technology.
  • Visible from any height or angle – day or night.
    Innovative PrismBubble.
  • Capture extreme low angle shots right down to the ground.
    Innovative streamlined mounting system.
  • Switch between tripod and slider in seconds.
    Revolutionary SpeedSwap system.
  • Create moving stories, whatever the weather.
    Performance tested to the extreme.

Details

100 mm with SpeedSwap, SpeedLevel, 7+7 drag, sideload plate S, 1 pan bar

0 – 12 kg (0 – 26.5 lbs) payload

Temperature Range -40 – 60 °C
Camera Plate Sideload plate S

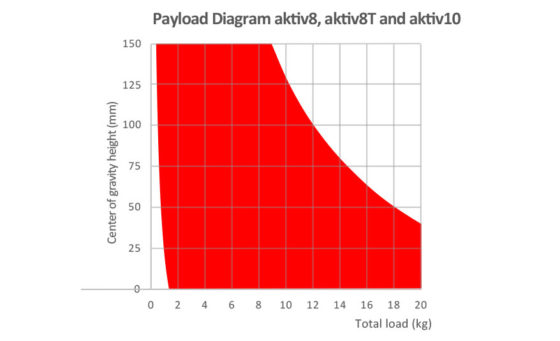

Payload @ 100mm cog 0 – 12 kg
Payload 0 – 12 kg
Counterbalance 15 + 0 steps

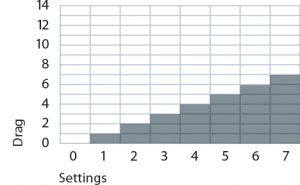

Drag 7 + 0 drag settings
Weight 2.9 kg
Bowl Size 100 mm
Pan Bar Count 1
Sliding Range 120 mm
Tilt Range 90° to -70°
Pan Bar Length 430 mm
Pan Bar Type Pan bar DV 75
Pan Bar Attachment ⌀ 16/-/28 mm
Level Bubble Yes, illuminated PrismBubble
Battery Type CR2032
Part number S2072S
EAN 5060520688404

Additional information

Weight 2,9 kg
Brand

  • aktiv10 fluid head with one pan bar DV 75 and one camera plate Sideload plate S
  • Pan bar DV 75
  • Sideload plate S / Ace plate
