The Vector 75 is ideal for broadcast cameras and lenses, whether ENG or full box lenses. The unique pantographic balance mechanism is quick and simple to adjust, perfectly balancing even large payloads. This counterbalance mechanism, combined with the Vinten infinitely adjustable LF drag system provides the ultimate in smooth, precise quality of movement.
The head includes a retractable “T” bar slide plate positioner for easy positioning of the camera package, and standard prompter bar mountings on the front of the platform.

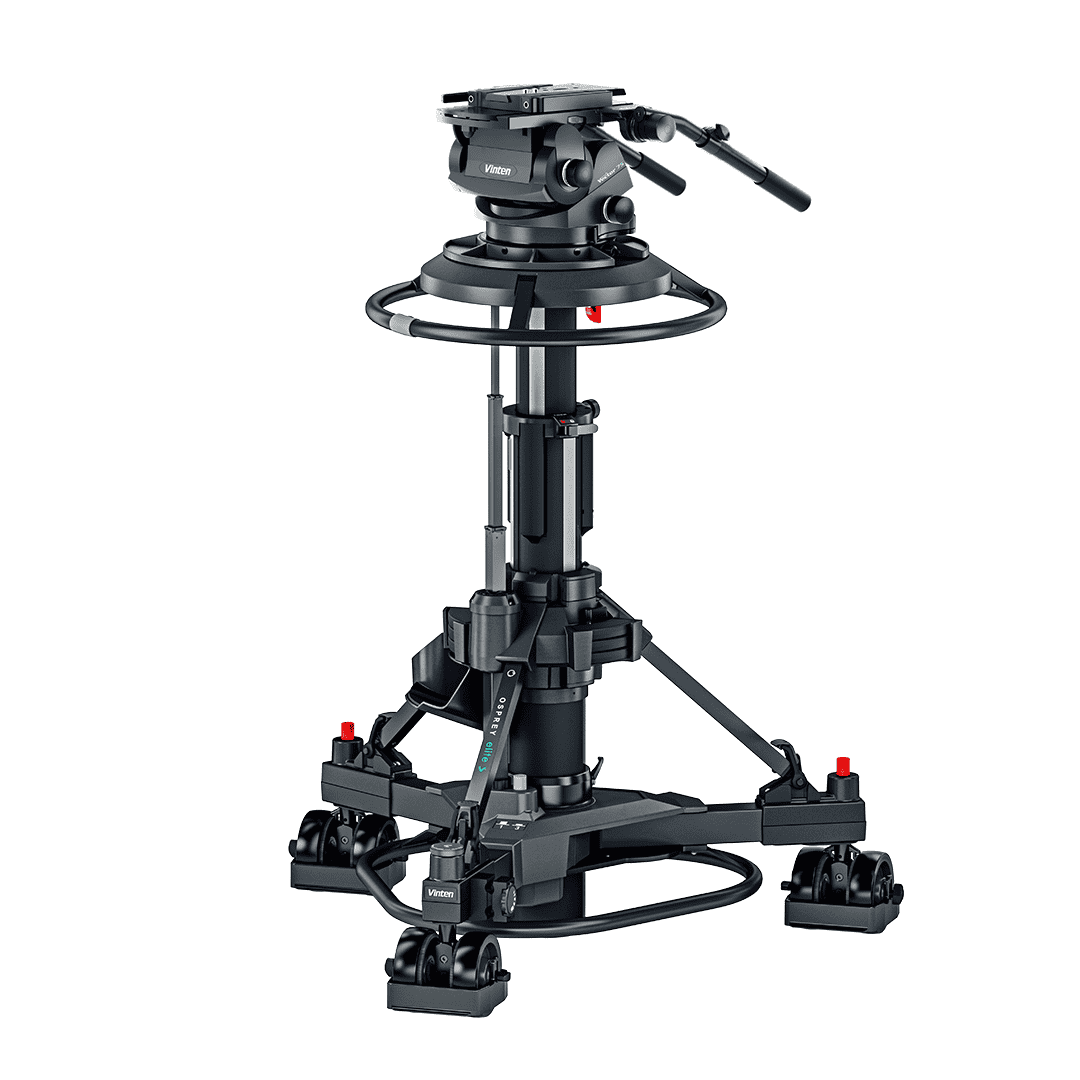

In this system the Vector 75 is combined with an Osprey Elite S pedestal, mounting easily via the included Quickfix adaptor. The Osprey Elite S is a portable, fully-featured studio pedestal. It can track talent eyelines from a seated to standing position ‘on shot’ with its extended perfectly balanced range. With an inlet valve for any air source, Perfect Balance is easy to achieve. A detachable skid allows the pedestal to be simply broken down into two sections for easy storage and transportation. The Osprey Elite S has a selector for both single wheel and all wheel crab steering, and comes with 12.5cm / 5 inch wheels and adjustable cable guards for studio use.
Details
Vector 75 (V4095-0001), additional telescopic pan bar Vector (3219-82), wedge plate (3053-3), Osprey Elite S pedestal (V4172-0001)
10.0 – 60.0 kg (22.0 – 132 lb) payload
