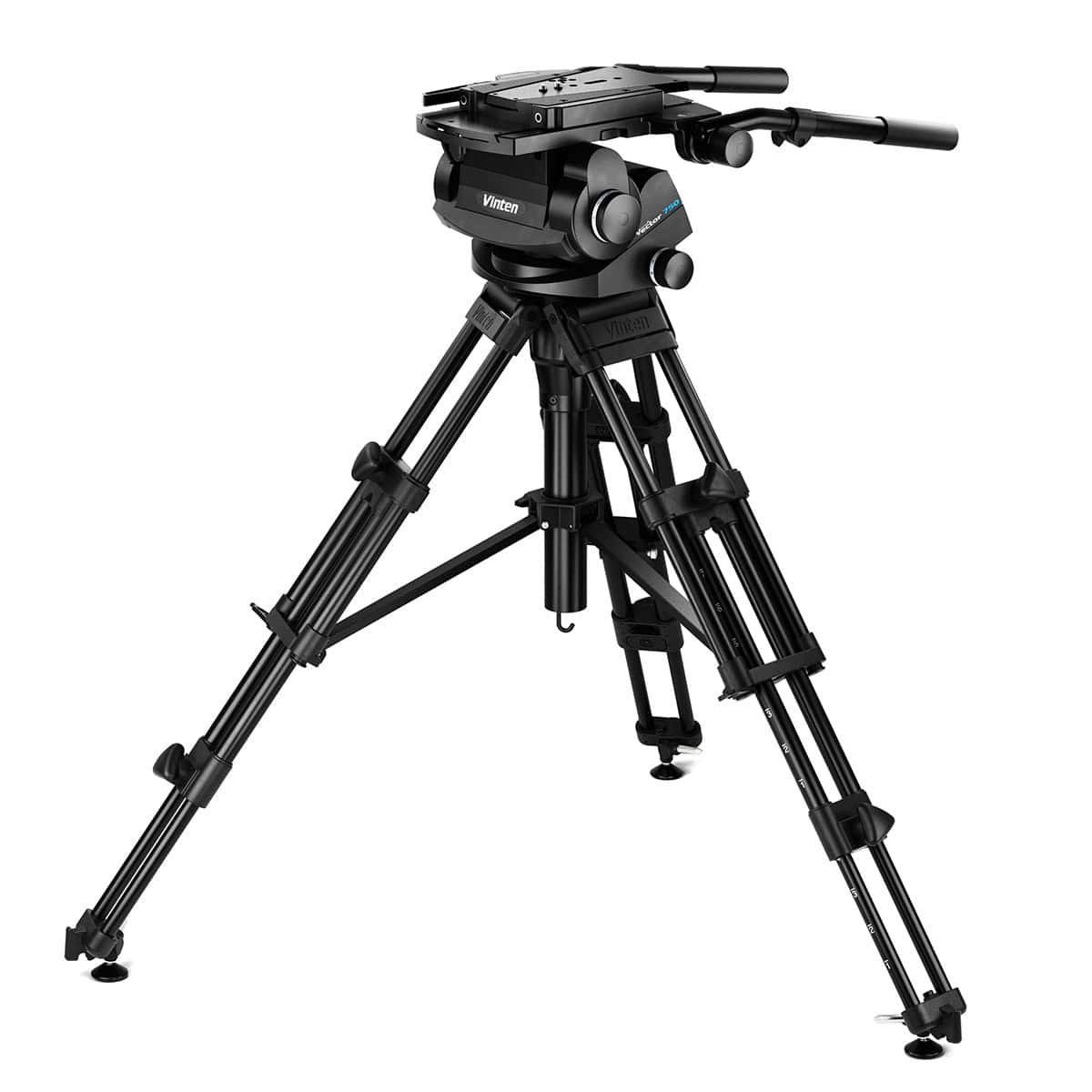

The Vector 750 is a versatile head for all Studio and OB broadcast applications, with a payload covering ENG/EFP and box lenses, teleprompters and talent monitors. The unique pantographic balance mechanism is quick and simple to adjust, perfectly balancing every setup. This is combined with TF drag to offer the widest possible range of drag, an extensive operating temperature range from -40˚C to +60˚C (-40˚F to +140˚F) and outstanding whip pan control.
The head includes a retractable “T” bar slide plate positioner for easy positioning of the camera package, and standard prompter bar mountings on the front of the platform.
In this system the Vector 75 is paired with the HDT-2 two-stage heavy-duty tripod o create a dependable solution for fixed positions in both studio and OB. Offering the widest height range available, the HDT-2 features maximum torsional rigidity, and a clamping system that provides progressive resistance with a positive stop to indicate when the leg is locked, making it ideal for large camera and lens combinations.
The HDT-2 also includes a single piece mid-level spreader for exceptional strength and easy removal, an integral carry handle for convenient repositioning, and three-position swivel feet with spikes, pads, or sockets to suit different locations. Engraved leg markings enable rapid, even deployment, while an integral bubble level allows precise levelling adjustments.
Details
Vector 750 (V4034-0001), additional telescopic pan bar Vector (3219-82), wedge plate (3053-3), tripod HDT-2 (3902-3)
10.0 -75.0 kg (22.0 – 165.3 lb) payload
