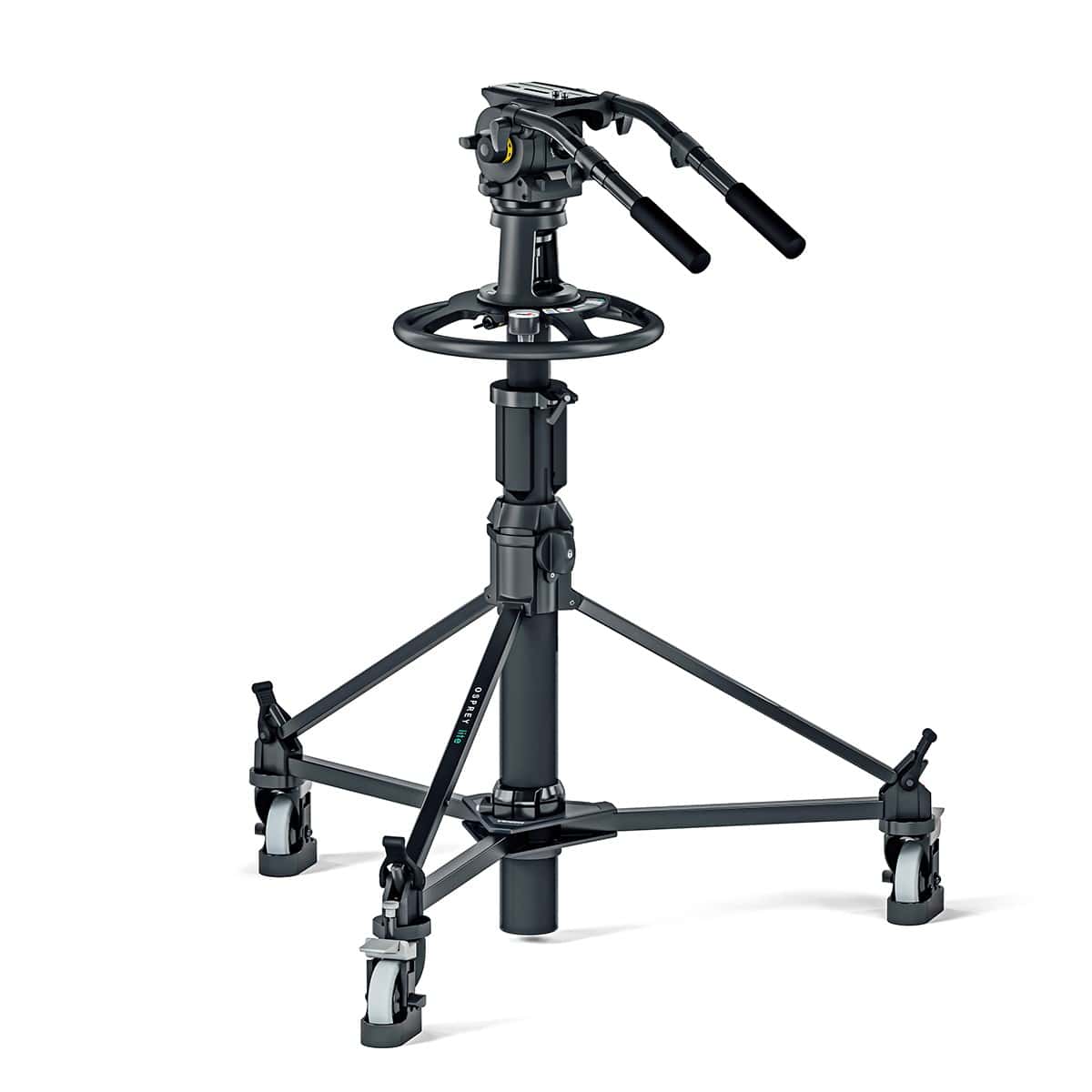

System Vision 100 Osprey Lite

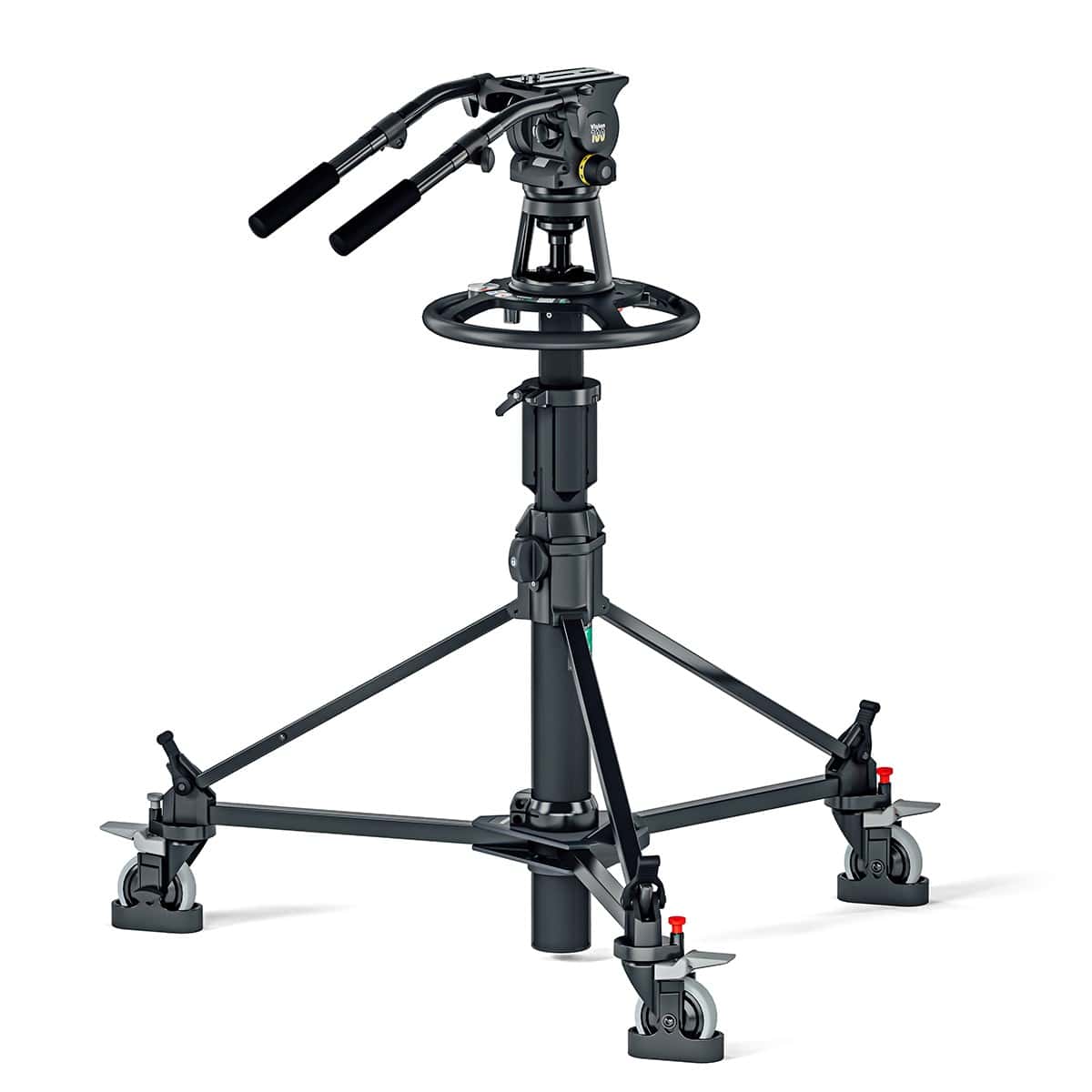

System Vision 100 Osprey Lite – view 2

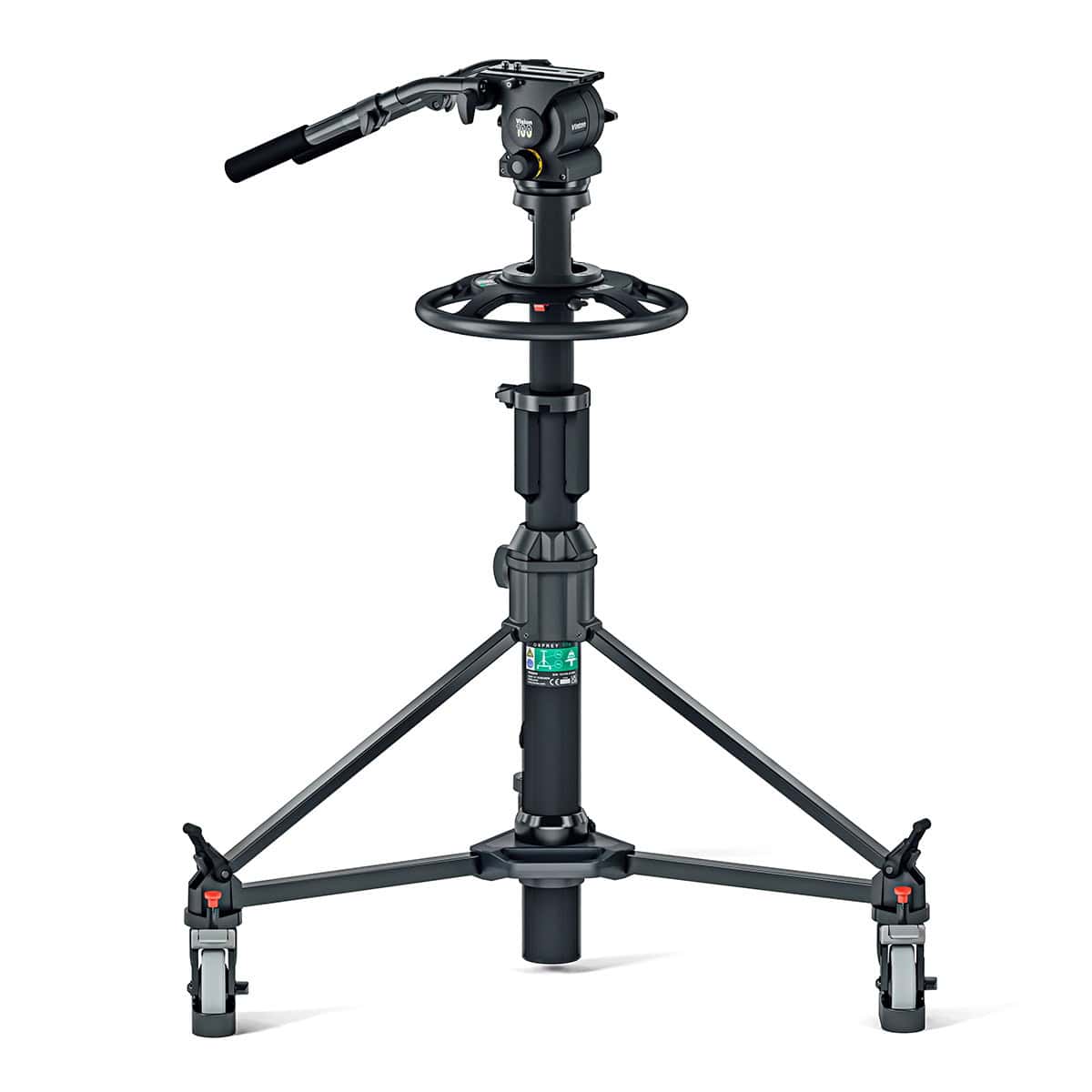

System Vision 100 Osprey Lite – view 3

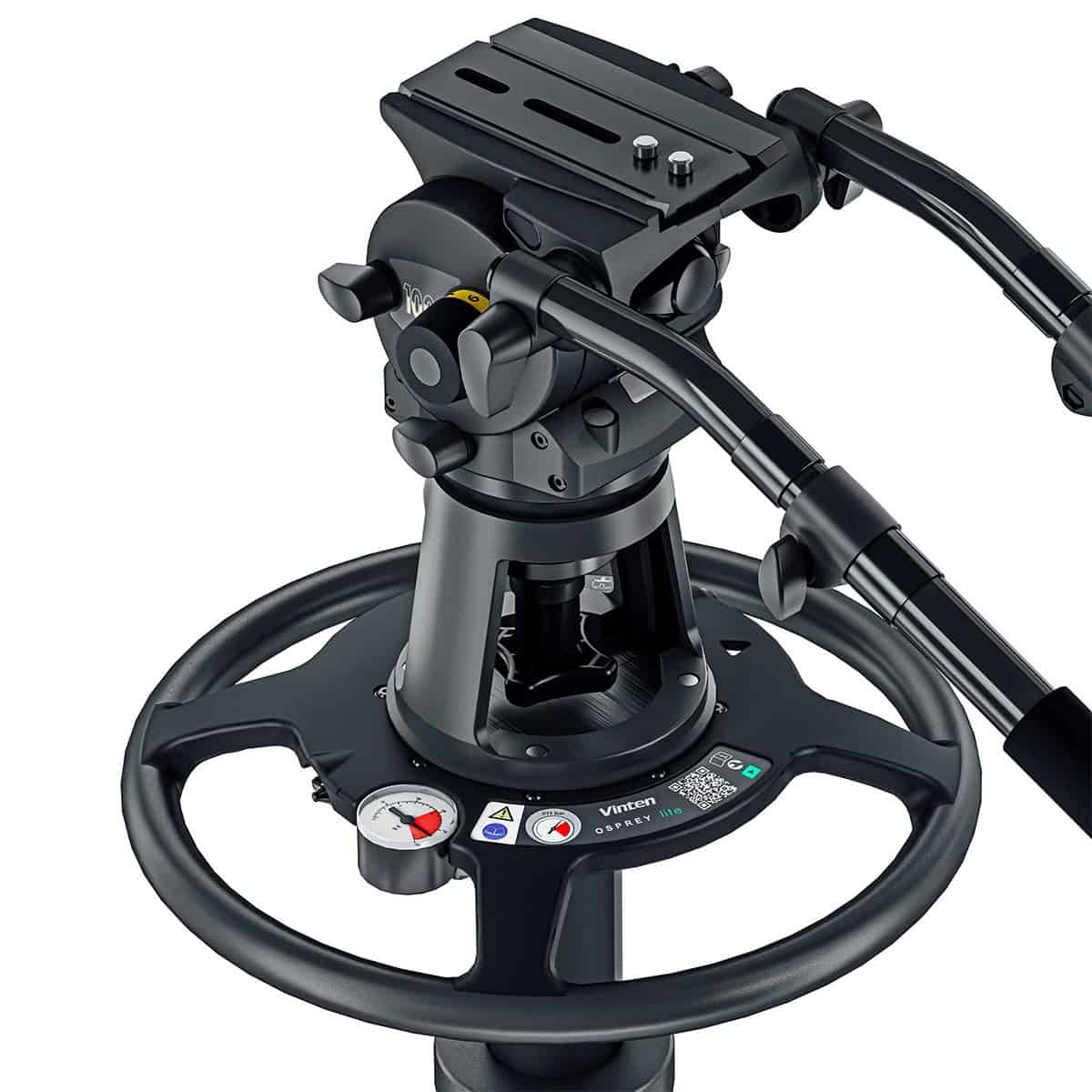

System Vision 100 Osprey Lite – view 4
Vinten

System Vision 100 Osprey Lite

Premium quality and performance for ENG applications

11.970,00€ (ex. VAT)

SKU: VB100-OL Categories: , , Brand:

Combining Perfect Balance with the TF drag system, the Vision 100 allows total control and consistent performance in the toughest conditions. Illuminated drag controls and a digital counterbalance readout ensure simple and repeatable camera set-up in any lighting situation.

This Vision 100 system comes packaged with a Vision Ped Plus pedestal.

Details

max payload 20 kg

Counterbalance Perfect Balance infinitely adjustable spring balance with readout
Payload 7 – 20 kg
Weight 17 kg
Drag TF Drag System with backlit and calibrated control
Pan Bar Count 2
Bowl size 100 mm
Application Broadcast Studios, Corporate, Events, Houses of Worship
Operating Temperature -40 – 60 °C
Camera Compatibility Can balance System cameras with ENG/EFP lenses, viewfinders & lens controls
Head Type Vision 100
Part number VB100-OL
EAN 5060896402604

Additional information

Weight 17 kg
Brand

  • Vision 100 (3466-3), 2 telescopic pan bars (3219-91), Osprey Lite (V4169-0001), bowl adaptor 100mm to 4-bolt flat base (3330-16)
  • Manual pump
