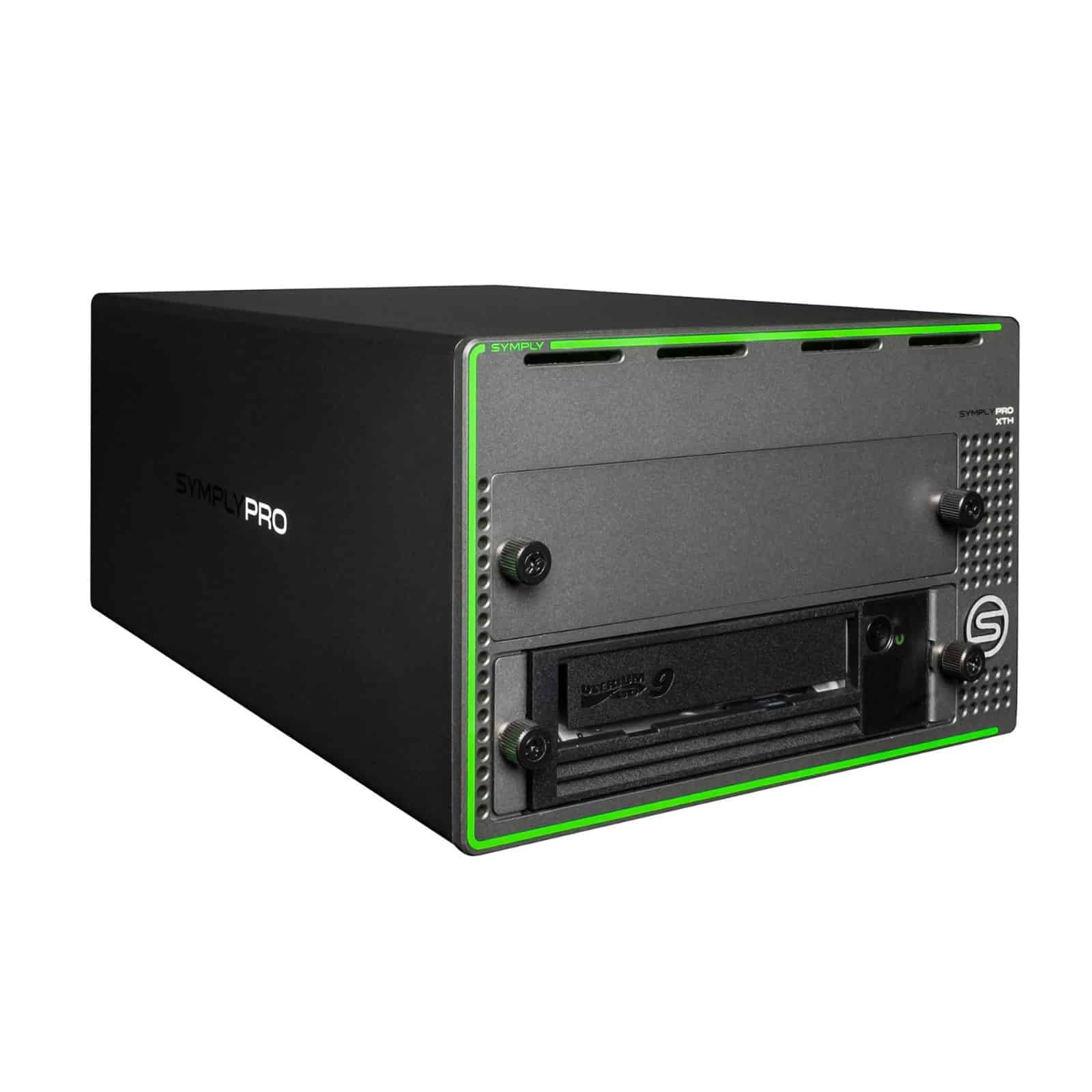

SymplyPRO XTH Ethernet Desktop with Hot-Swap Dual Drive Bays, 2x10Gb Ethernet SFP LC Host Interface & 12Gb SAS (SFF-8644) Expansion, in a sleek space grey rugged metal alloy enclosure. The 12Gb SAS (SFF-8644) Expansion supports an additional 2 external SAS tape drives. Includes 1 x LTO-9 Half-Height tape drive (upgradable to two drives). LTO-9 boasts a native capacity of 18TB (45TB compressed) and native performance of 300MB/Sec (750MB/Sec compressed), supports 256-bit encryption along with WORM media. Compatible with LTFS (Linear Tape File System) making backup and archive operations easier to an open source and interchangeable tape format. Symply tape products feature massive interoperability and are compatible with industry leading software providers. Premium cooling fans and power supply (Internal Auto-Switching Power Supply, 110-240v). Kit includes 1 x macOS iSCSI License, 1 x data cartridge, 1 x cleaning cartridge, 2 x 3m LC-LC OM4 Data Cables, 1 x 5m RJ45 management cable. 3 Year Worldwide warranty, with optional extension to 5 years.
Key features
- Desktop Dual Drive Form Factor
- Dual 10Gb Ethernet Interface (LC & RJ45)
- Supports 2 Internal & 2 External LTO Drives
- Includes 1xLTO-9 Half-Height Tape Drive TAA
- LTFS drag-and-drop compatible
- Includes 3 Year Advanced Exchange Warranty & Comprehensive Accessories Kit
Compatibility
Microsoft Windows; macOS (Intel & Apple Silicon); Linux; Requires iSCSI Initiator
Resources
Product information
| Manufacturer |
Symply |
| Part number |
SYPRO-DE1L9H2B-A0 |
| LTO generation |
LTO-9 |
| Drive height |
Half-Height |
| Compatibility |
Microsoft Windows; macOS (Intel & Apple Silicon); Linux; Requires iSCSI Initiator |
| Manufacturer warranty |
3 Year |
System
| Form factor |
Desktop XTH, Half-Height |
| Number of drives supported |
1 or 2 |
| LTO generations supported (chassis) |
LTO-7, 8, 9 |
| Host interface |
2 x 10GbE iSCSI |
| Expansion interface |
1 x SFF-8644 |
| Dimensions (D x W x H) |
30.0 x 21.1 x 13.6 cm (11.8 x 8.3 x 5.4 in) |
| Weight |
5.6 kg (12.3 lb) |
Tape drive performance & capacity (native / compressed)
| LTO-9 media |
300 MB/s (750 MB/s) · 18 TB (45 TB) |
Tape drive reliability
| MTBF |
250,000 h @ 100% duty cycle |
| MSBF (mean swaps before failure) |
100,000 |
| Load / unload cycles |
80,000 |
Environmental specifications
| Operating temperature (recommended) |
15 to 25 °C (59 to 77 °F) |
| Operating temperature (allowable) |
15 to 30 °C (59 to 86 °F) |
| Non-operating temperature |
5 to 35 °C (41 to 95 °F) |
| Relative humidity |
20 to 50% recommended, 20 to 80% allowable (non-condensing) |
| Maximum altitude |
3,048 m (10,000 ft) operating, 12,192 m (40,000 ft) non-operating |
| Shipping conditions |
5 to 45 °C (41 to 113 °F); 10% to 80% RH non-condensing |
Specifications from Symply; subject to change by the manufacturer.
– Data Cartridge
– Cleaning Cartridge
– (1) 5m RJ45 Management Cable
– (2) 3m LC-LC OM4 Cable
– (1) macOS ATTO Xtend SAN iSCSI Initiator
– Rack Kit
– Worldwide power cords
– Product documentation
– SymplyATOM LTFS Software
