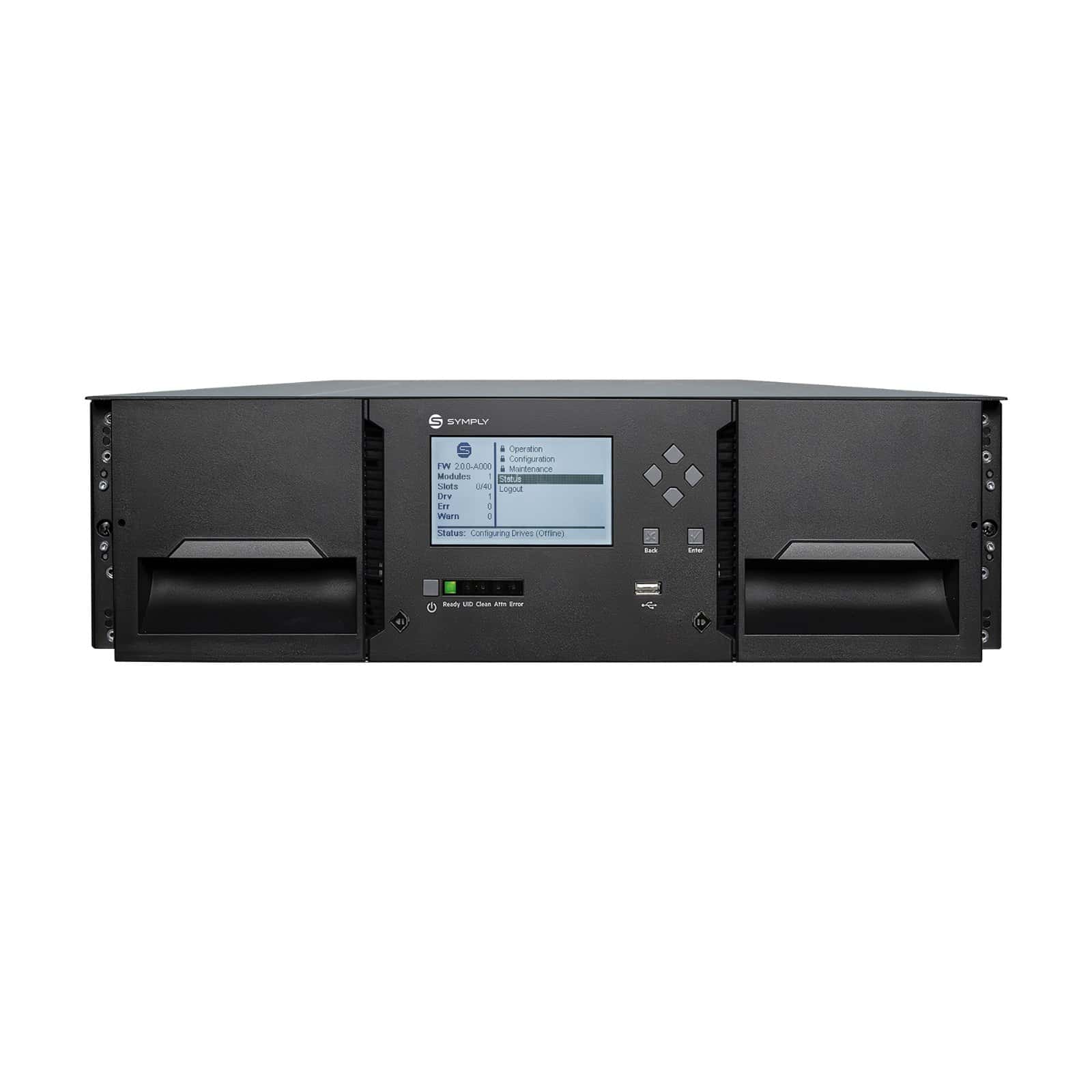

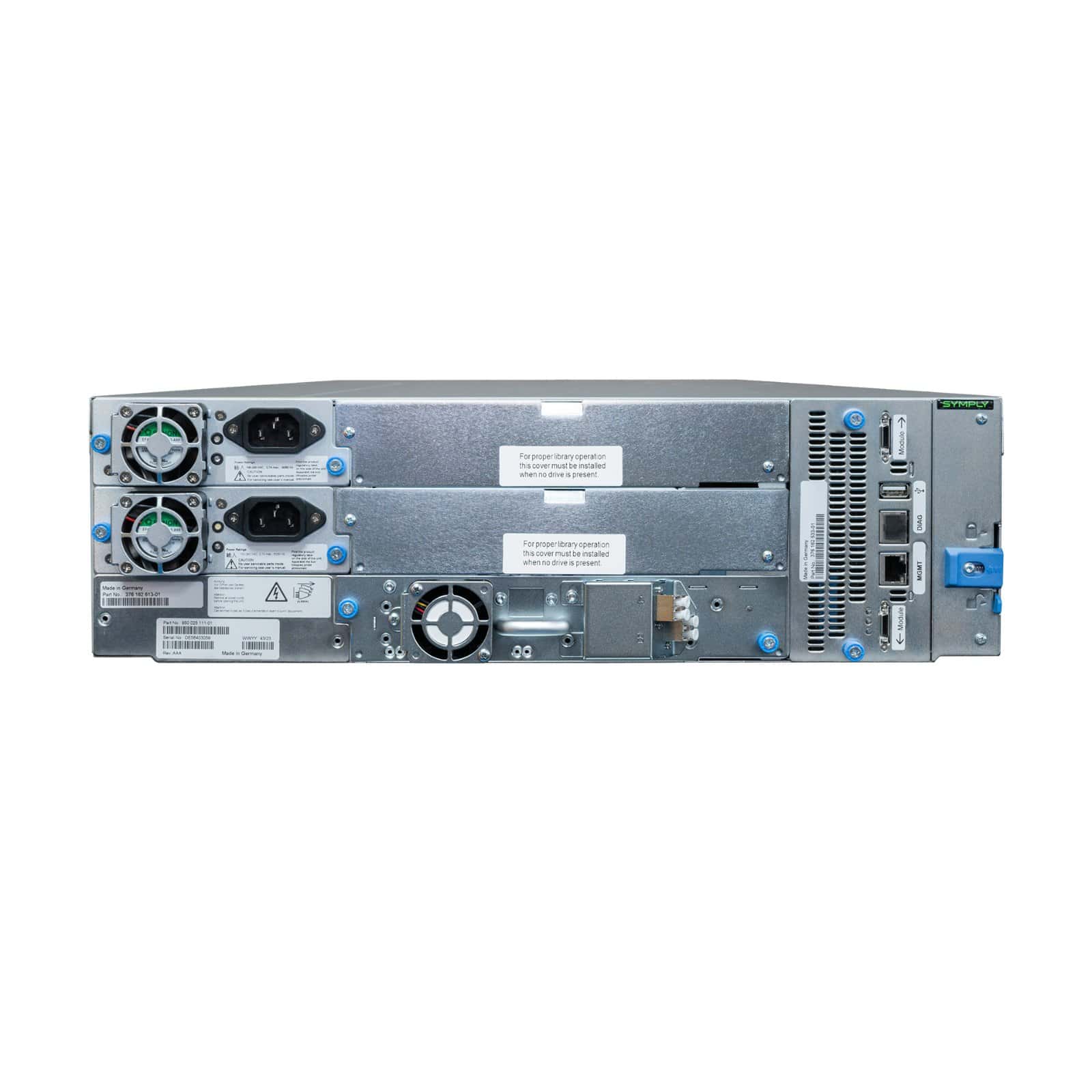

SymplyPRO XTL 40 Slot 3U Scalable Tape Library, Control Module with 1 x Half-Height LTO-9 tape drive 8Gb Fibre Channel interface (scalable up to 3 Tape-Drives in one module, up to 48 Tape-Drives in maximum configuration), 40 LTO-Cartridge slots (scalable up to 640 slots in maximum configuration), 2 removable magazines, 5 mail slots, Barcode Reader, Rackmount-Kit, single Power Supply (upgradable to dual), base module controller, OCP (Operator Control Panel), Remote Management Console, (1) Clean Cartridge, (2) 3M LC-LC OM4 Cable, 5m RJ45 Management Cable, Quick Start Guide, 3 years warranty Return To Base (RTB) includes 3 years Symply Pro Exchange (SPE) Service. Optional Warranty Extension to 5 years.
Key features
- Scalable 3RU Modular Library for Managing Growing Data Sets
- 40 LTO Cartridge Slots and 1 LTO-9 Half-Height FC Drive (Upgradable to Three Drives)
- Expandable to a Maximum of 640 Slots and 48 Half-Height Tape Drives in 48RU
- Robotic MSBF 2,000,000
- Uncompressed capacity from 720TB to 11.5PB with LTO-9 Media
- 3 Years Return To Base (RTB) Warranty including Symply Pro Exchange (SPE) Service
Compatibility
Microsoft Windows; Linux; macOS(Intel & Apple Silicon); Requires a FC HBA
Resources
Product information
| Manufacturer |
Symply |
| Part number |
SYXTL-C40F1L9H3-AT |
| LTO generation |
LTO-9 |
| Drive height |
Half-Height |
| Compatibility |
Microsoft Windows; Linux; macOS(Intel & Apple Silicon); Requires a FC HBA |
| Manufacturer warranty |
3 Year |
SymplyPRO XTL 40 library
| Rack units |
3U per module (48U max) |
| LTO drives supported |
LTO-7, 8, 9, 10 |
| Tape slots |
40 per module (640 max) |
| Half-height drives |
3 per module (48 max) |
| Full-height drives |
1 per module (16 max) |
| Mail slots (import/export) |
5 per module (80 max) |
| Magazines |
2 per module (32 max) |
| Max configuration |
Base module + 15 expansion modules |
| Max partitions |
20 (dynamically configurable) |
| Barcode reader |
Yes |
| Rack mount kit |
Included |
| Native interface |
SAS (LTO-7/8: 6 Gb SFF-8088, LTO-9/10: 12 Gb SFF-8644) or Fibre Channel (8 Gb LC, LTO-10: 32 Gb LC) |
| Optional interface |
10GbE Ethernet or Thunderbolt 3 via internal module |
| Power supplies |
1 or 2 per module, 80 PLUS Gold, 100-240 VAC / 300 W |
| Power consumption |
approx. 170 W with 3 half-height drives |
| Robotic MSBF |
2,000,000 |
| Dimensions (H x W x D) |
133 x 482 x 873 mm (5.25 x 18.98 x 34.37 in) |
| Weight (no tape drives) |
25.1 kg (55.34 lb) |
Tape drive performance & capacity (native / compressed)
| LTO-9 media |
300 MB/s (750 MB/s) · 18 TB (45 TB) |
Tape drive reliability
| MTBF |
250,000 h @ 100% duty cycle |
| MSBF (mean swaps before failure) |
100,000 |
| Load / unload cycles |
80,000 |
Environmental specifications
| Operating temperature (recommended) |
15 to 25 °C (59 to 77 °F) |
| Operating temperature (allowable) |
15 to 30 °C (59 to 86 °F) |
| Non-operating temperature |
5 to 35 °C (41 to 95 °F) |
| Relative humidity |
20 to 50% recommended, 20 to 80% allowable (non-condensing) |
| Maximum altitude |
3,048 m (10,000 ft) operating, 12,192 m (40,000 ft) non-operating |
| Shipping conditions |
5 to 45 °C (41 to 113 °F); 10% to 80% RH non-condensing |
Specifications from Symply; subject to change by the manufacturer.
– Cleaning Cartridge
– (1) 5m RJ45 Management Cable
– (3) 3m LC-LC OM4 Cable
– (1) Power Cable
– Rack Kit
– Quick Start Guide
