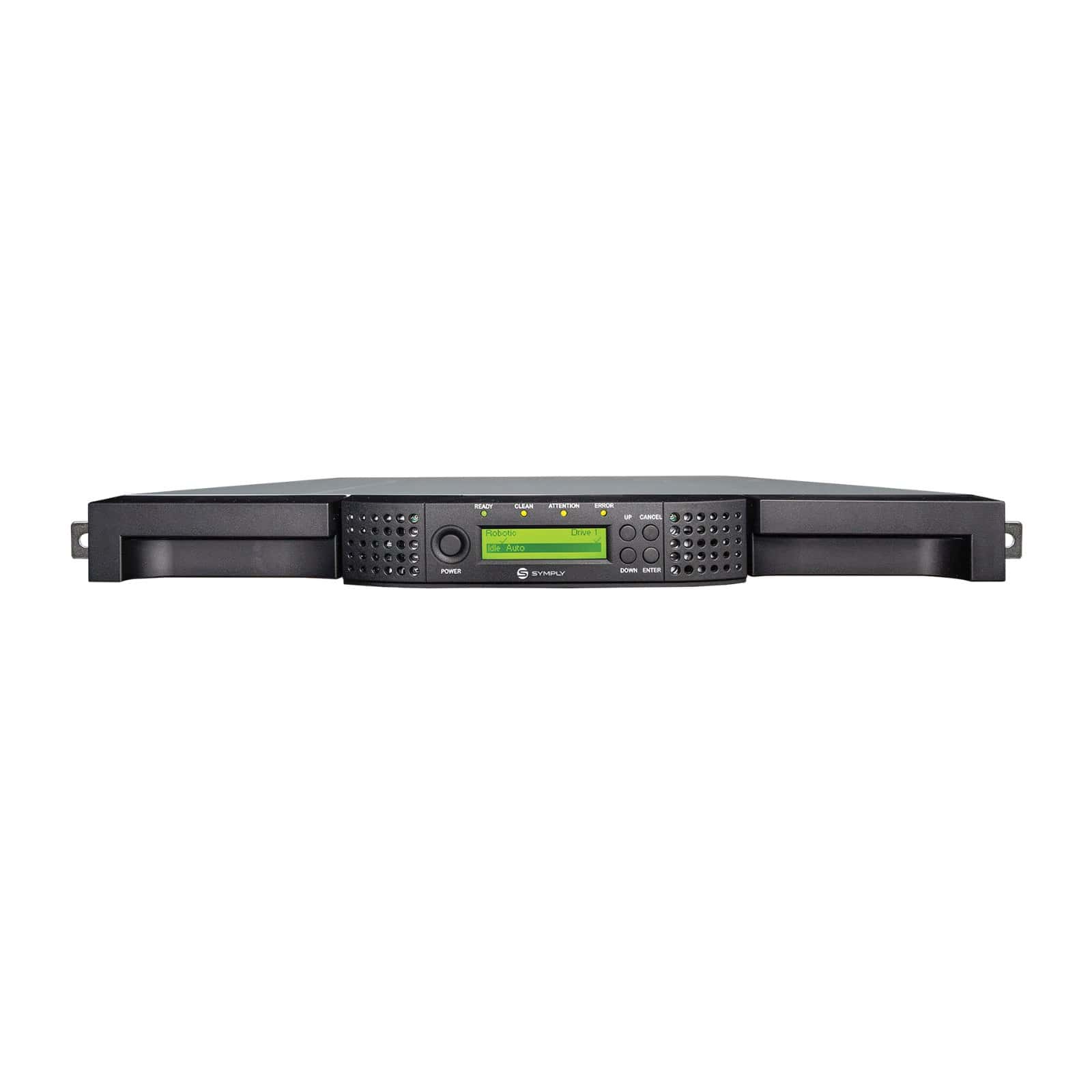

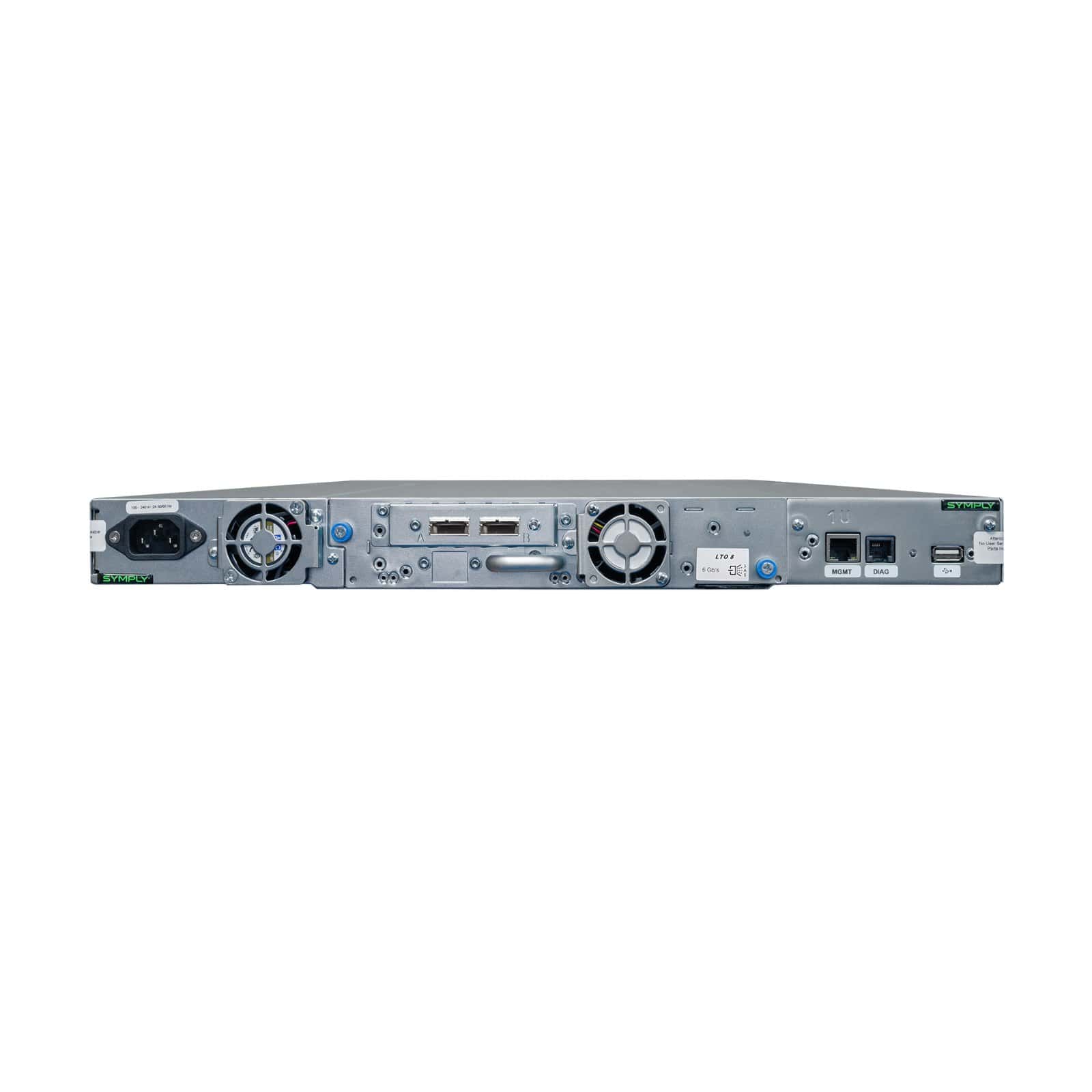

SymplyPRO XTL 8 Slot 1U Gen2 Autoloader with 1 x Half-Height LTO-8 tape drive 6Gb SAS SFF-8088 interface, 8 Cartridge Slots in 2 removable Magazines, 1 Mail Slot, Barcode Reader, Rackmount-Kit, Remote Management Console, Clean Cartridge, 2m SFF-8644 to SFF-8088, 5m RJ45 Management Cable, Quick Start Guide,3 years warranty Return To Base (RTB) including 3 years Symply Pro Exchange (SPE) Service. Optional Warranty Extension to 5 years.
Key features
- Compact 1U Autoloader for Reliable Data Protection
- 8 LTO Cartridge Slots and 1 LTO-8 Half-Height SAS Tape Drive
- Dual Port 6Gb SAS SFF-8088 Connectivity
- Uncompressed Capacity up to 96TB with LTO-8 Media (240TB Compressed)
- Robotic MSBF 1,000,000
- 3 Years Return To Base (RTB) Warranty including Symply Pro Exchange (SPE) Service
Compatibility
Microsoft Windows; Linux; macOS(Intel & Apple Silicon); Requires a TLR-enabled SAS HBA
Resources
Product information
| Manufacturer |
Symply |
| Part number |
SYXTL-C08S1L8H1-BT |
| LTO generation |
LTO-8 |
| Drive height |
Half-Height |
| Compatibility |
Microsoft Windows; Linux; macOS(Intel & Apple Silicon); Requires a TLR-enabled SAS HBA |
| Manufacturer warranty |
3 Year |
SymplyPRO XTL 8 library
| Rack units |
1U |
| LTO drives supported |
LTO-7, 8, 9 |
| Tape slots |
8 |
| Half-height drives |
1 |
| Mail slots (import/export) |
1 |
| Magazines |
2 |
| Barcode reader |
Yes |
| Rack mount kit |
Included |
| Native interface |
SAS (LTO-8: 6 Gb SFF-8088, LTO-9: 12 Gb SFF-8644) or Fibre Channel 8 Gb LC |
| Optional interface |
10GbE Ethernet or Thunderbolt 3 via external bridge |
| Power |
Single PSU, 100-240 VAC / 80 W |
| Robotic MSBF |
1,000,000 |
| Dimensions (H x W x D) |
44 x 482 x 806 mm (1.73 x 18.97 x 31.73 in) |
| Weight (no tape drives) |
11 kg (24 lb) |
Tape drive performance & capacity (native / compressed)
| LTO-8 media |
300 MB/s (750 MB/s) · 12 TB (30 TB) |
Tape drive reliability
| MTBF |
250,000 h @ 100% duty cycle |
| MSBF (mean swaps before failure) |
100,000 |
| Load / unload cycles |
80,000 |
Environmental specifications
| Operating temperature (recommended) |
16 to 25 °C (61 to 77 °F) |
| Operating temperature (allowable) |
16 to 35 °C (61 to 95 °F) |
| Non-operating temperature |
5 to 35 °C (41 to 95 °F) |
| Relative humidity |
20 to 50% recommended, 20 to 80% allowable (non-condensing) |
| Maximum altitude |
3,048 m (10,000 ft) operating, 12,192 m (40,000 ft) non-operating |
| Shipping conditions |
5 to 45 °C (41 to 113 °F); 10% to 80% RH non-condensing |
Specifications from Symply; subject to change by the manufacturer.
– Cleaning Cartridge
– (1) 5m RJ45 Management Cable
– (1) 2m SFF-8644 to SFF-8088 Cable
– (1) Power Cable
– Rack Kit
– Quick Start Guide
