The AJA KONA 5 delivers high-performance capture and playback over 12G-SDI and HDMI 2.0, handling HFR 8K/UltraHD2, 4K/UltraHD, 2K/HD and SD with 10/12-bit color and HDR. As an 8-lane PCIe 3.0 card it provides the bandwidth for the most challenging video and audio pipelines.
AJA
12G-SDI I/O, 10-bit PCIe, HDMI 2.0 Output, ATX Power
The AJA KONA 5 is a blazingly fast 8-lane PCIe 3.0 video and audio I/O card built for the most demanding 8K/UltraHD2, 4K/UltraHD, 2K/HD and SD workflows, with Deep Color and HDR support.
3.993,00€ (ex. VAT)
Host Interface
- 8-lane PCIe 3.0 card
Video Inputs Digital
- 12G-SDI (SMPTE-2082), 6G-SDI (SMPTE-2081), 3G-SDI (SMPTE 425), 1.5G-SDI (SMPTE 292M)
- RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit
- HDMI 2.0 input
Video Outputs Digital
- 12G-SDI / 6G-SDI / 3G-SDI / 1.5G-SDI; RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit
- HDMI 2.0 output
Formats
- 8K/UltraHD2, 4K/UltraHD, 2K/HD and SD; HFR, Deep Color and HDR support
Reference & Timecode

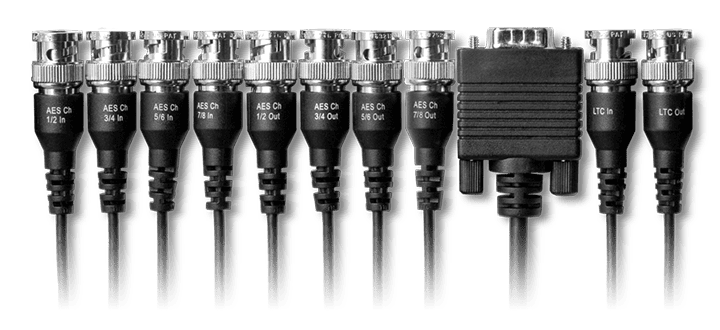

- Genlock/reference input (75 ohm); LTC timecode input and output
Environmental Specifications
- Safe Operating Temperature: 0 to 40°C (32 to 104°F)
- Safe Storage Temperature (Power OFF): -40 to 60°C (-40 to 140°F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
Additional information
| Brand |
|---|
- AJA KONA 5 PCIe card
