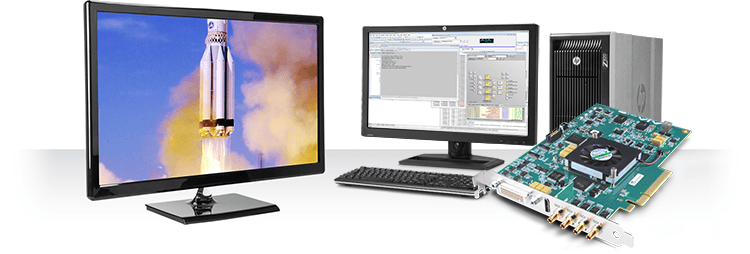

The AJA KONA 4 provides professional capture and playback over SDI and HDMI for SD through 4K, with 10/12-bit color for excellent image clarity and HDR workflow support. It is a versatile PCIe I/O card for post, broadcast and ProAV.
AJA
4K/UHD Quad 3G-SDI I/O, 10-bit PCIe, HDMI Output
The AJA KONA 4 is a powerful 4-channel video and audio desktop I/O card handling SD, HD, 2K and 4K with full 10-bit 4:2:2 and 4:4:4 sampling, 12-bit support and HDR (HDR10, HLG, PQ, Dolby Vision).
2.596,00€ (ex. VAT)
Host Interface
- PCIe card
Video Input Digital
- 3G-SDI (SMPTE 425), 1.5G-SDI (SMPTE 292M); single/dual-link; RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit
- HDMI input
Video Output Digital
- 3G-SDI / 1.5G-SDI; RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit; HDMI output
Formats
- SD, HD, 2K and 4K; HDR support (HDR10, HLG, PQ, Dolby Vision)
Reference & Timecode
- Genlock/reference input; LTC timecode I/O
Environmental Specifications
- Safe Operating Temperature: 0 to 40°C (32 to 104°F)
- Safe Storage Temperature (Power OFF): -40 to 60°C (-40 to 140°F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
Additional information
| Brand |
|---|
- AJA KONA 4 PCIe card
