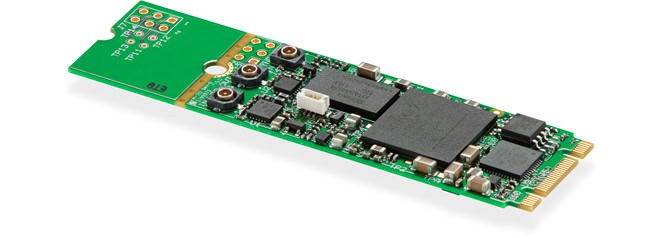

DeckLink SDI Micro

Connections

• M.2: M.2 PCI Express 1 lane generation 3, compatible with B and M key type 2260 and 2280.

Standards

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
  1080i50, 1080i59.94, 1080i60
• SDI Video Sampling: 4:2:2, 4:4:4
• SDI Color Precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes.
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, ITU‑R BT.656 and ITU‑R BT.601.

Available Accessories

• Part Numbers: DeckLink SDI Micro, order code: BDLKMICROSDI SDI Cable, order code: CABLE-BDLKMIR/SDI

Operating Systems

• Mac 15.0 Sequoia,
  Mac 26.0 Tahoe or later.
• Windows 10, 64-bit.
  Windows 11.
• Linux

Power Requirements

• Power Consumption: 4.03 W (max)

Environmental Specifications

• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -40°C to 75°C (-40°F to 167°F)
• Relative Humidity: 0% to 90% non-condensing

Warranty

3 Year Limited Manufacturer’s Warranty.
