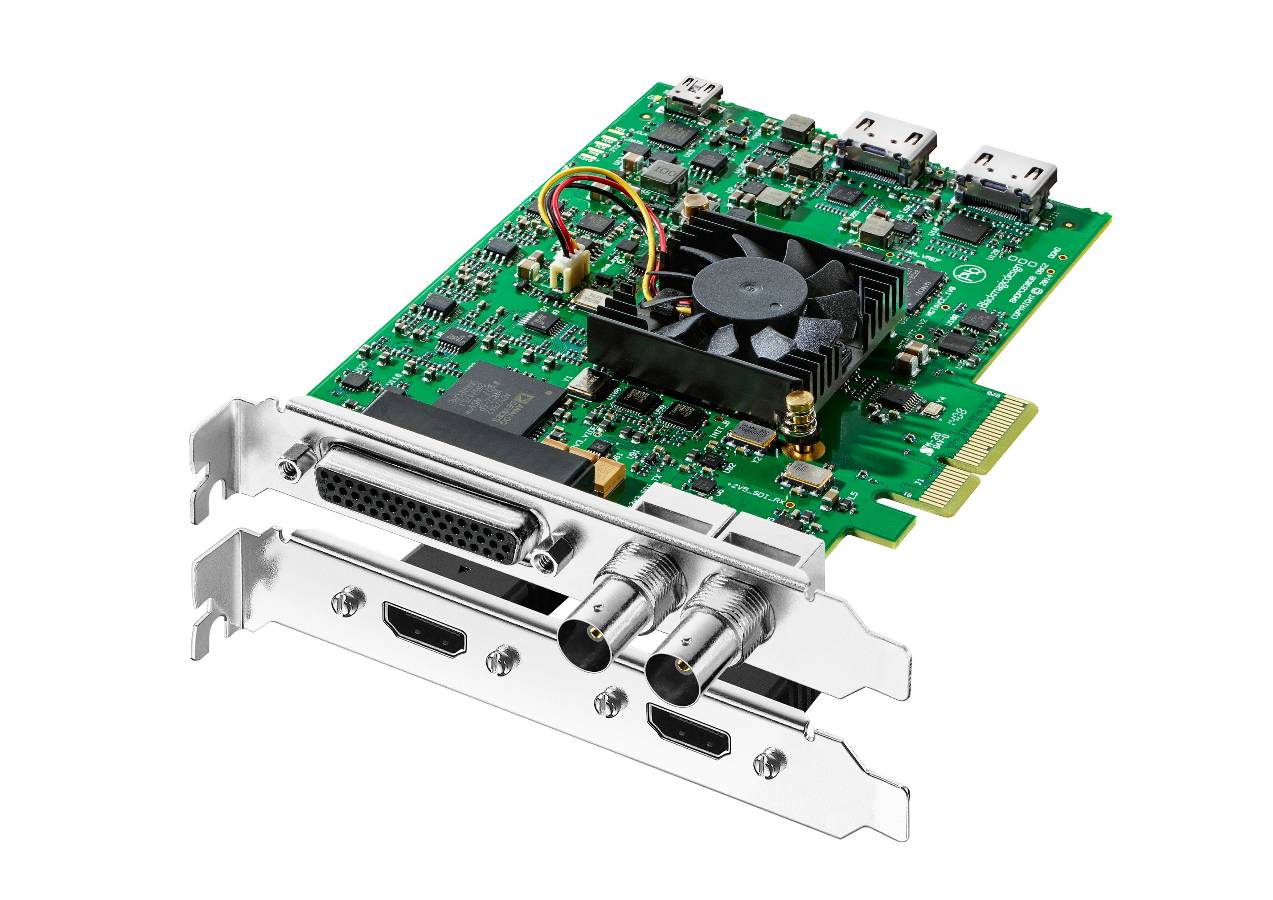

DeckLink Studio 4K

Connections

• SDI Video Inputs: 1 x 10-bit SD/HD/2K/4K. Supports 6G 4:2:2 and 3G 4:4:4.
• SDI Video Outputs: 1 x 10-bit SD/HD/2K/4K. Supports 6G 4:2:2 and 3G 4:4:4.
• Analog Video Inputs: 1 x Component YUV on 3 BNCs, 1 x Composite, 1 x S-Video. Component supports HD and SD.
• Analog Video Outputs: 1 x Component YUV on 3 BNCs, 1 x Composite, 1 x S-Video, 1 x SD-SDI. Component supports HD and SD.
• Analog Audio Inputs: 4 Channels of professional balanced analog audio via 1/4 inch jack connectors.
• Analog Audio Outputs: 4 Channels of professional balanced analog audio via 1/4 inch jack connectors. Channels 3 & 4 can switch to AES/EBU outputs.
• AES/EBU Audio Inputs: 2 Channels unbalanced with sample rate converter.
• AES/EBU Audio Outputs: 2 Channels unbalanced. Analog outputs 3 and 4 can switch to AES/EBU outputs for audio 3 & 4 and 5 & 6 output. This provides a total of 6 AES/EBU output audio channels when using this feature.
• SDI Audio Inputs: 16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD.
• SDI Audio Outputs: 16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD.
• HDMI Video Inputs: 1 x HDMI type A connector.
• HDMI Video Outputs: 1 x HDMI type A connector.
• HDMI Audio Inputs: 8 Channels embedded in SD, HD, 4K.
• HDMI Audio Outputs: 8 Channels embedded in SD, HD, 4K
• Sync Input: Tri-Sync or Black Burst.
• Device Control: Sony™ compatible RS422 deck control ports. Serial ports TxRx direction reversible under software control.
• Computer Interface: PCI Express 4 lane generation 2, compatible with 4,8 and 16 lane PCI Express slots.

Supported Codecs

AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 HQ, DNxHR & DNxHD, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10 bit 4:4:4.

Software

• Software Included: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
• Internal Software Upgrade: Firmware built into software driver. Loaded at system start or via updater software.
• Physical Installation: PCI Express 4 lane generation 2, compatible with 4, 8, 16 lane PCI Express slots on Mac OS, Windows and Linux. Please check the Support pages to see the full system requirements.

Video Standards

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60
  1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
  1080i50, 1080i59.94, 1080i60
• 2K Video Standards (SDI Only): 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
• 4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p*
  * SDI Only
• SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE 2081, ITU-R BT.656 and ITU-R BT.601.
• SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning.
• SDI Video Sampling: 4:2:2, 4:4:4*
  *4K is 4:2:2.
• SDI Color Precision: 8, 10-bit RGB 4:4:4 in all modes up to 1080p25 2K DCI, 8, 10-bit YUV 4:2:2 in all modes.
• Color Space: REC 601, REC 709
• HDMI Video Sampling: 4:4:4, 4:2:2 & 4:2:0
• HDMI Color Precision: 10-bit RGB HD
  10-bit YUV in HD and 4K
• HDMI Configuration: HDMI 1.4b. Automatically configures to connected display.
• Audio Sampling: Television standard sample rate of 48 kHz at 24 bit.
• Color Precision: 10-bit
• Color Space: REC 601, REC 709
• HDMI Resolution: Pixel for pixel up to 4K resolutions.
• Multiple Rate Support: HDMI and SDI video connections are switchable between SD/HD/2K and UHD. Component analog video connections are switchable between SD and HD.
• Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Processing

• HD Down Conversion: Built in, high quality hardware down converter outputs HD-SDI on SDI output, SD on SD-SDI, Composite and S-Video outputs when working in HD video formats on playback. Switch analog video to Component and choose HD or SD output. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles.
• HD Up Conversion: Built in, high quality software up converter from SD to HD on input. Selectable between 16:9 Zoom or anamorphic.
• Cross Conversion: Software based cross conversion from 720HD to 1080HD and 1080HD to 720HD on playback.
• Real Time Effects: DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
• Colorspace Conversion: Hardware based real time.

Operating Systems

• Mac 15.0 Sequoia,
  Mac 26.0 Tahoe or later.
• Windows 10, 64-bit.
  Windows 11.
• Linux

Power Requirements

• Power Consumption: 22 W

Environmental Specifications

• Operating temperature: 5° to 40° C (32° to 104° F)
• Storage temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non-condensing

Warranty

3 Year Limited Manufacturer’s Warranty.
