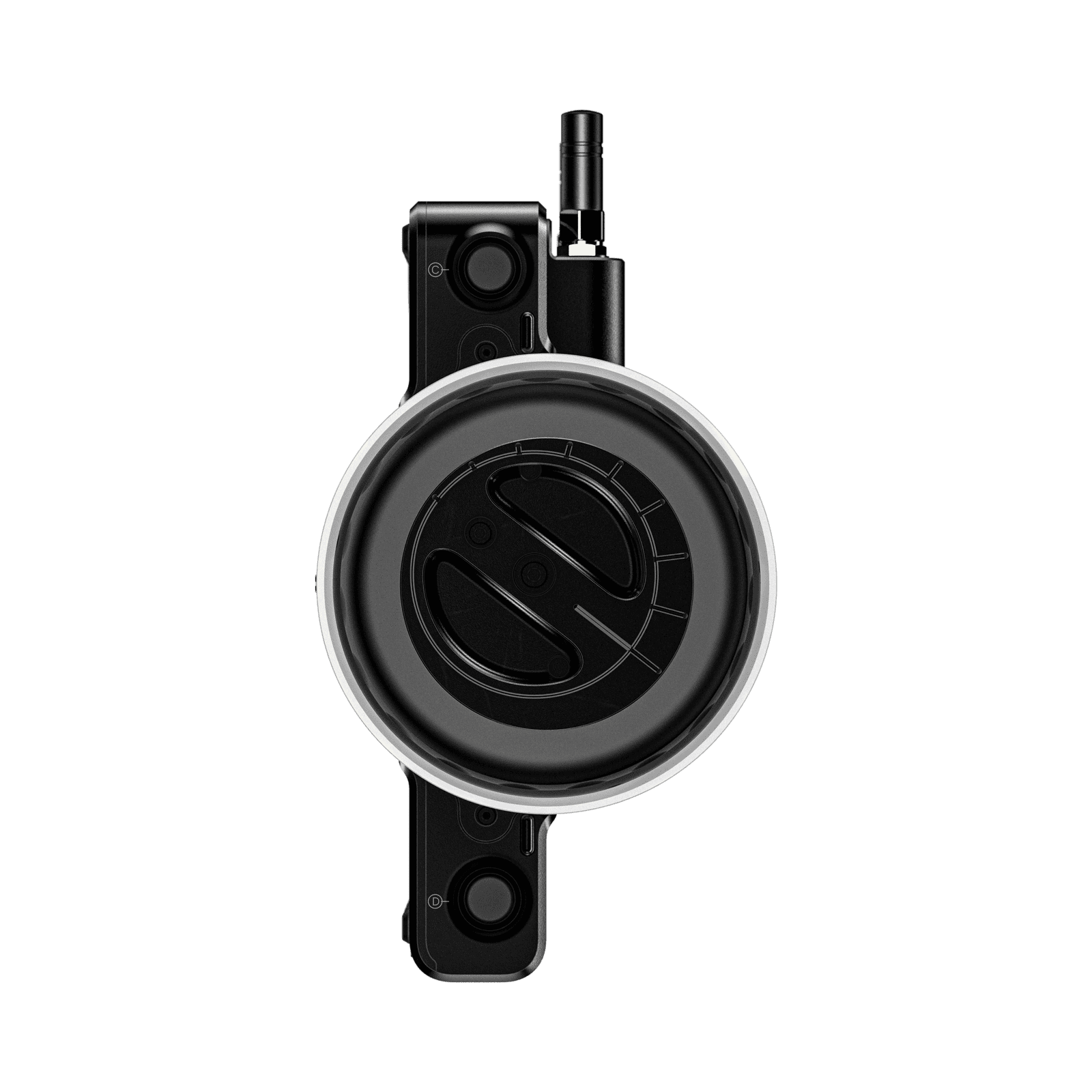

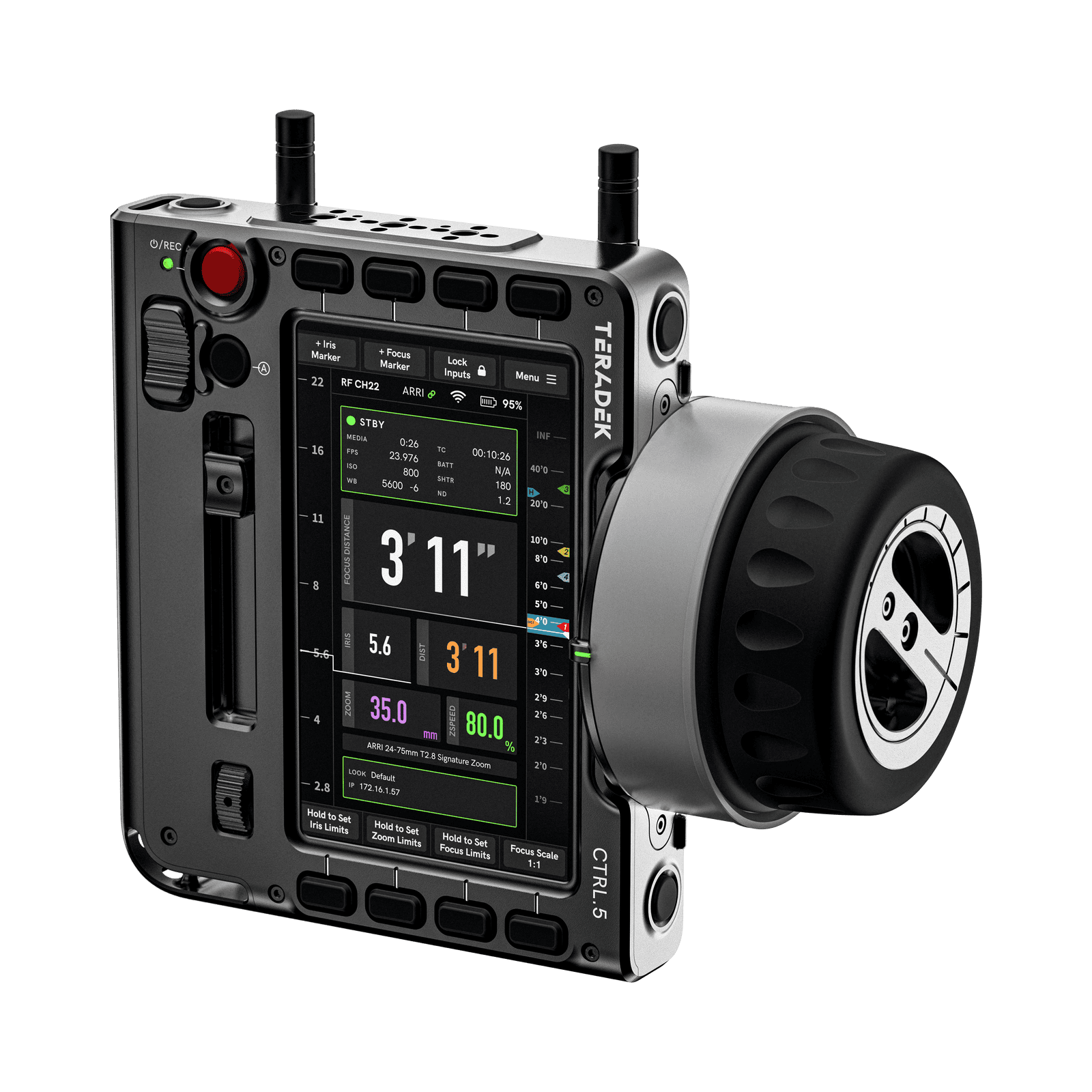

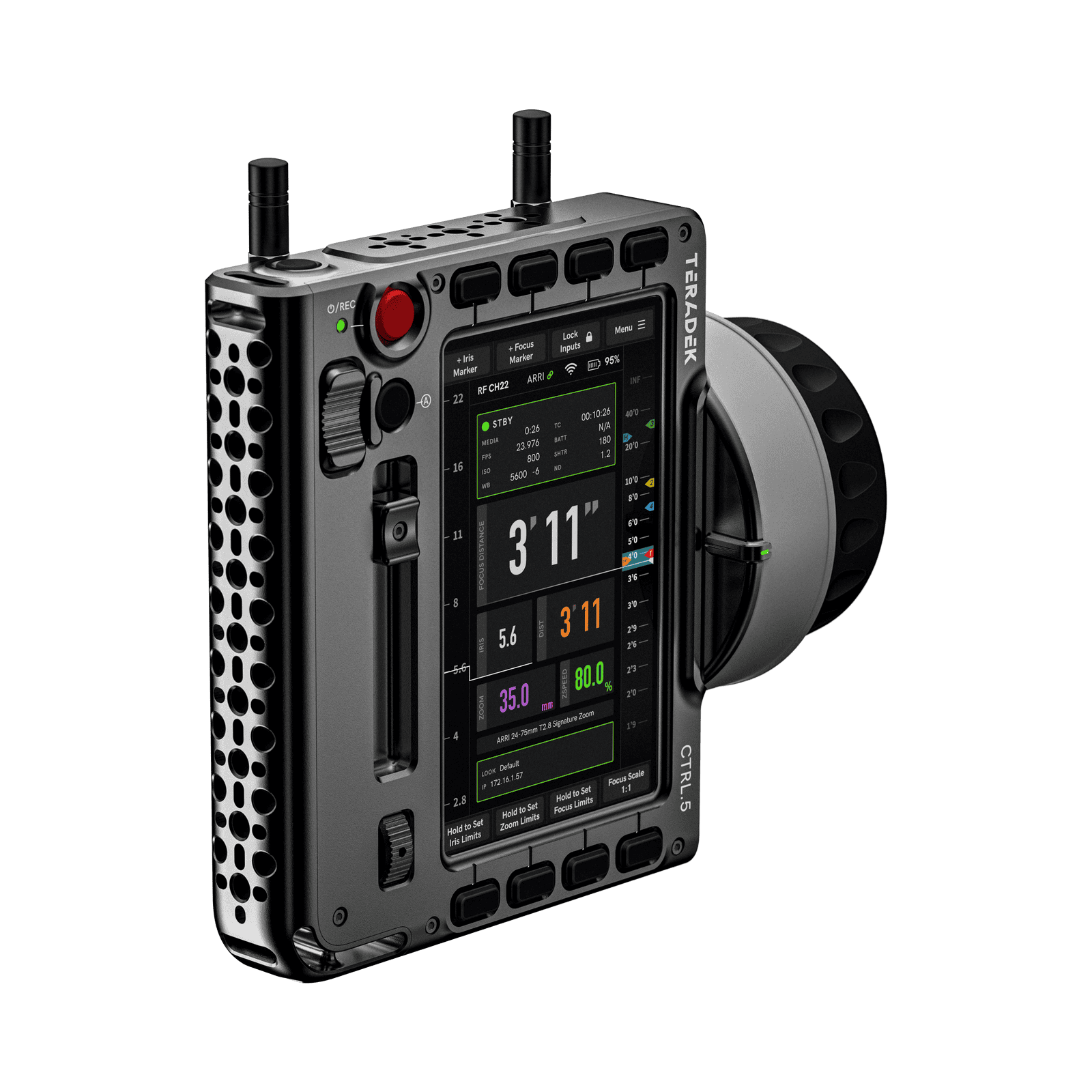

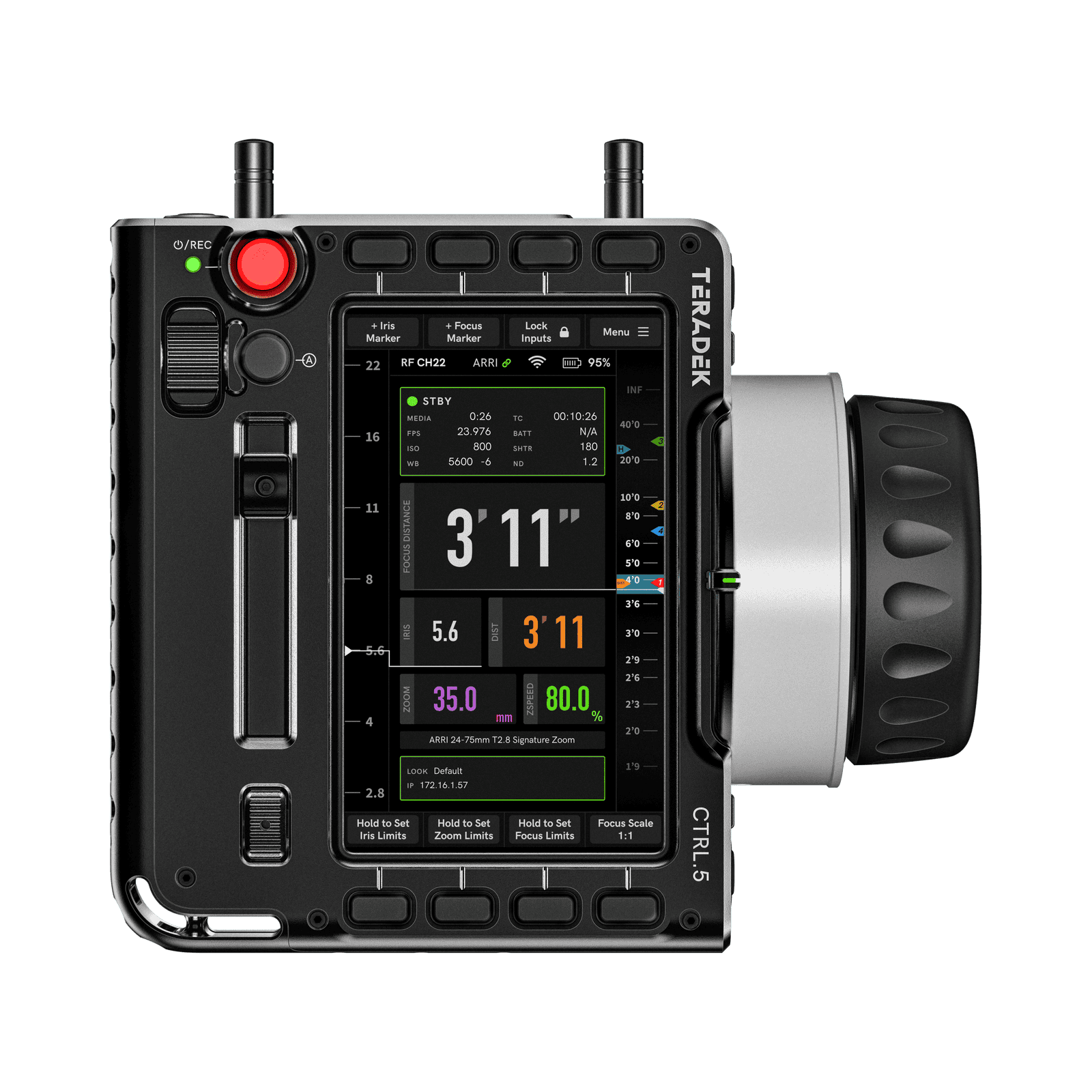

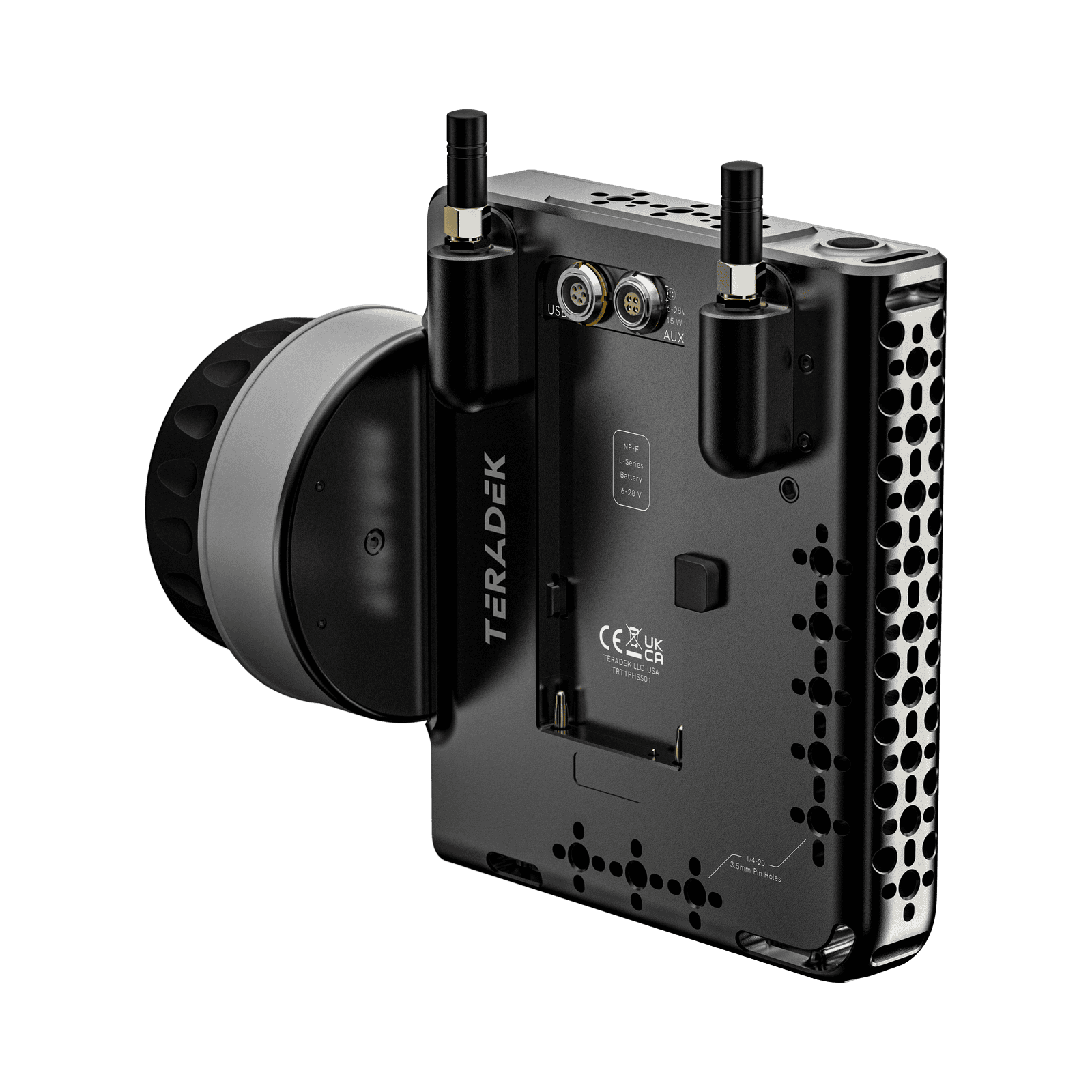

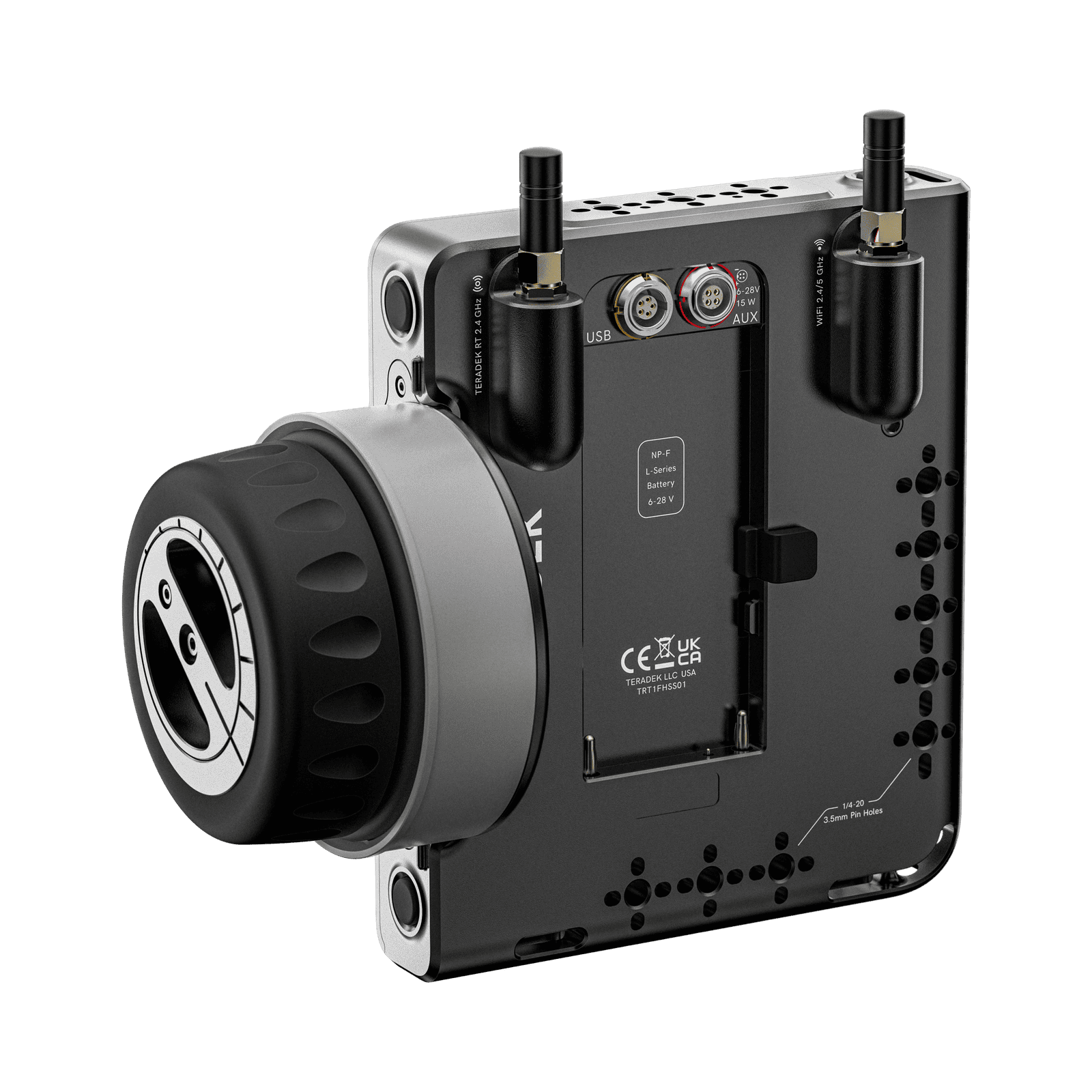

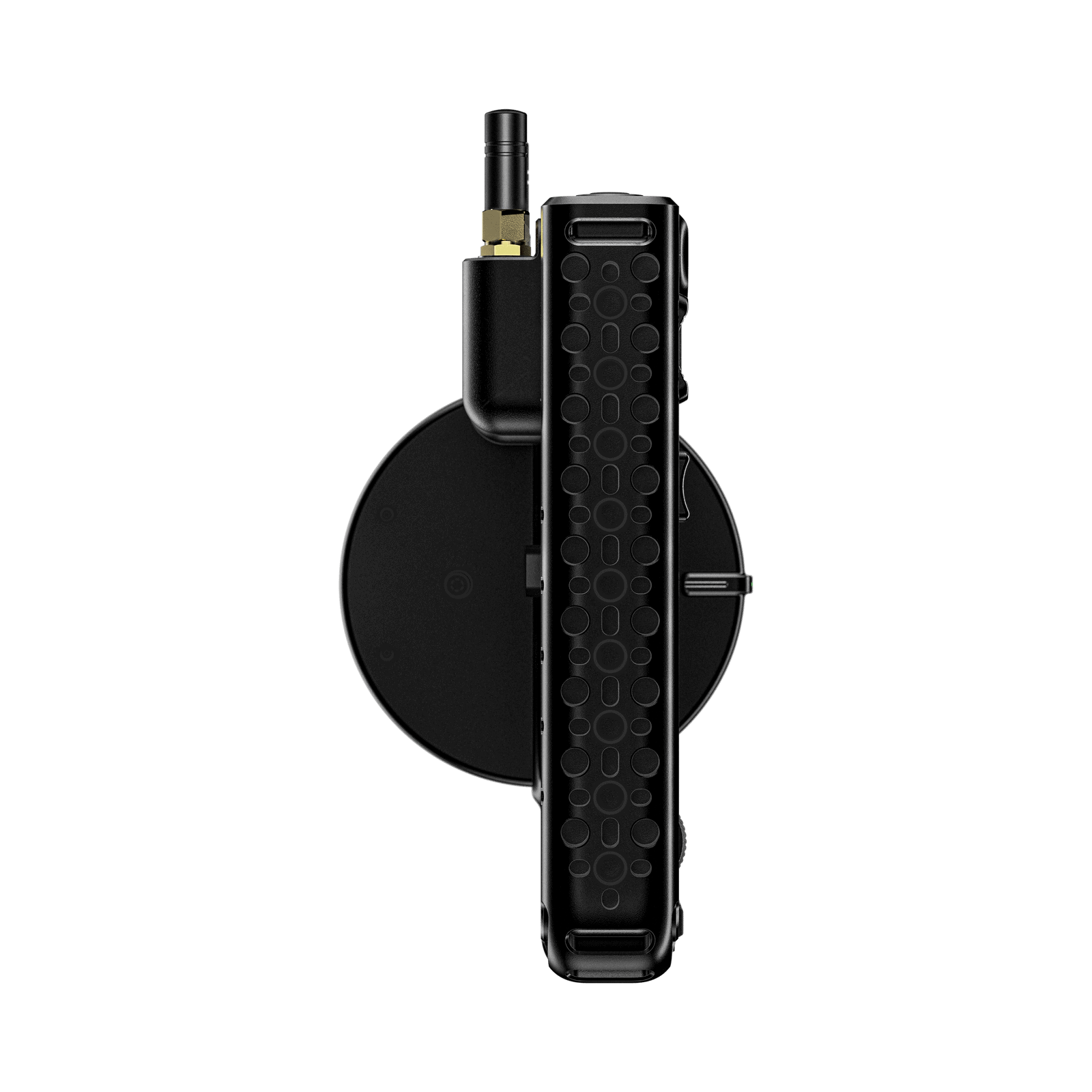

CTRL.5 raises the bar for wireless FIZ lens-control handsets with a 5-inch SmallHD Ultra-bright touchscreen powered by CTRL.OS, a task-specific evolution of SmallHD’s PageOS. View critical lens data overlays while pulling focus without taking your eyes off the video feed. Calibrate lenses to pre-marked focus rings and access configurations at any time via the touchscreen or one of eleven programmable function buttons. The hand unit includes a multitude of mounting points for accessories. CTRL.5 is fully cross-compatible across the Teradek RT Lens Control Ecosystem.
The CTRL.5 is not compatible with the older RT overlay cables. You will need either this 5-pin to USB A or this 5-pin to 5-pin cable and depending on your monitor, this dual 5-pin USB Adapter to convert your USB connection.
Model
CTRL.5
Power
Power Input
NP-F
Power Draw
4w with back light off, 9w with back light full
Interfaces
Connectors
5-pin USB port and 4-pin AUX port
Runstop Control
RED (Epic, Scarlet, Weapon, Raven, etc.), ARRI (Alexa, Amira, etc.), Phantom, Sony F55, LANC (Blackmagic, Canon C100/300/500 Sony FS7)
