Teradek

RT FIZ Kit (CTRL.3, MDR.X, MOTR.S)

Teradek RT systems combine premium lens control technology with smart design for unparalleled accuracy and dependability on set. Integrated Lens Mapping offers auto-calibration of lenses to pre-marked imperial or metric focus rings at the push of a button.

7.147,74€ (ex. VAT)

SKU: 15-0047-1S Categories: , , Brand:

Teradek RT systems combine premium lens control technology with smart design for unparalleled accuracy and dependability on set. Integrated Lens Mapping offers auto-calibration of lenses to pre-marked imperial or metric focus rings at the push of a button. Integrated SmallHD monitor functionality offers live lens data directly on the screen.

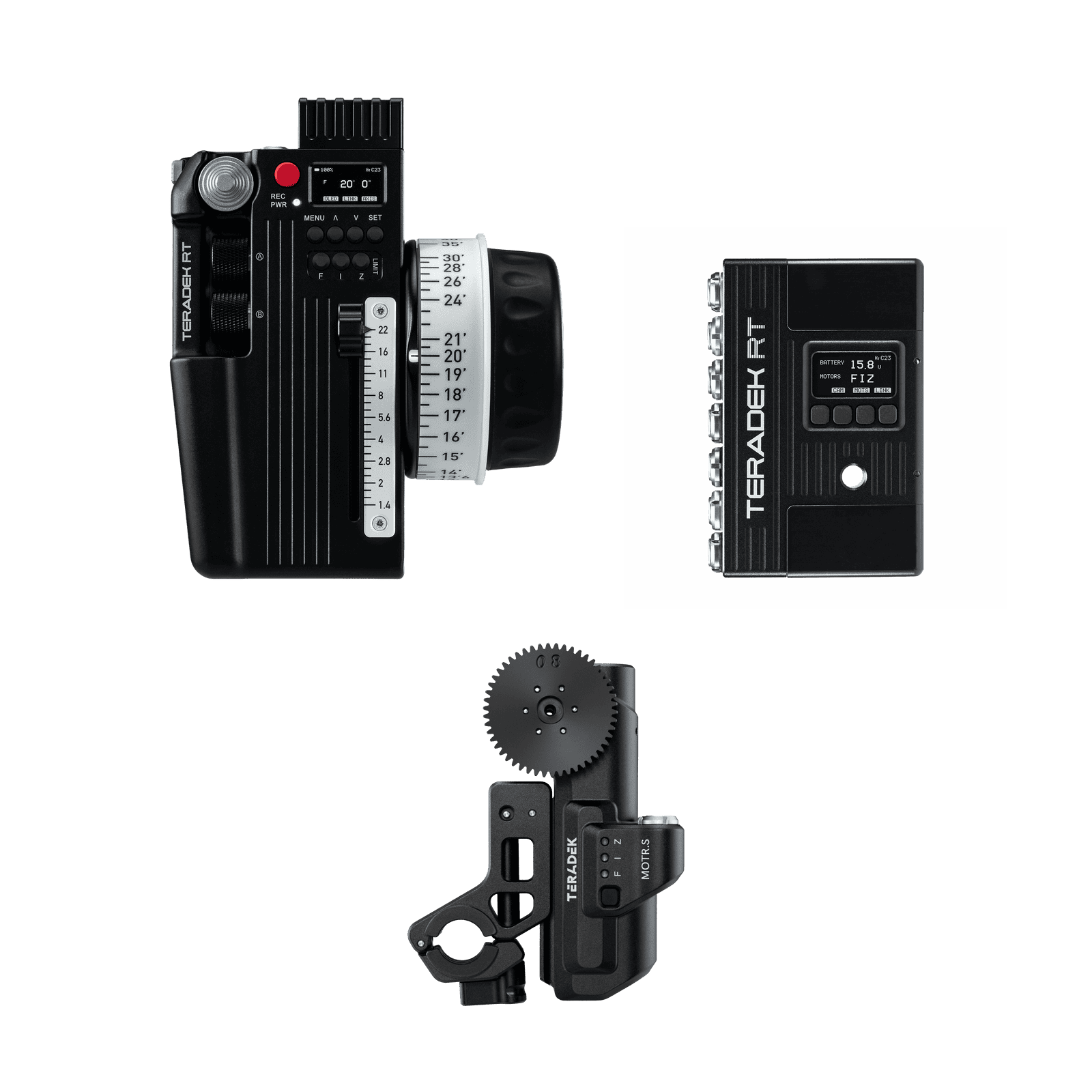

The FIZ Kit includes:
1 x CTRL.3 Handset
1 x MDR.X Receiver
1 x MOTR.S Lens Motor

CTRL.3
Teradek RT controllers move your lens with perfect accuracy and offer up to 6 mappable axes and an adjustable fluid feel control knob. Controllers transmit using long-range, frequency-hopping 2.4GHz which can cut through the toughest interference at up to 5000 feet. Connect any controller with SmallHD and unlock FIZ lens data directly on your monitor.

MDR.X
Teradek RT receivers are easy to mount, can connect to iOS devices via bluetooth for configuration, control, and support for up to three motors. The FIZ kit comes with either the new ultra-lightweight MDR.S receiver which suits extremely compact setups for smaller cameras, drones, and handheld configurations to optimize speed, size, and weight or the more robust multi-motor port MDR.X which offers additional third-party rangefinder integrations (FocusBug and CineRT). The Teradek TOF.1 rangefinder works with both MDR.S and MDR.X.

MOTR.S
Teradek RT motors offer generous power and speed for driving even the heaviest lenses, giving you responsiveness & precision with every pull. Motors are compact, lightweight and operate nearly silently even at the highest speeds thanks to their coreless brushless drive motors. The optional MOTR.S MAX offers over 25% more torque for stiff, resistant dials on heavy-duty lenses. MOTR.S MAX is sold separately.

Note: While three RT Motor Cables are included in the RT FIZ Wireless Lens Control Kit (ST-ST 0.2m, ST-ST 0.4m, and ST-ST 0.6m), additional RT Motor Cables are available in specific lengths for additional motor (20cm, 30cm, or 60cm).

Model FIZ Kit (CTRL.3, MDR.X, MOTR.S)
CTRL.3
Physical
Construction Aerospace-grade aluminum billet
Mountability 4x 1/4-20 threads, 1x Arri rossette w/ M6 thread, lanyard mount
Dimensions Excluding Knob & Antenna: 3 x 1.5 x 5.5″ (76 x 38 x 127 mm)
Including Knob & Antenna: 5.1 x 3.3 x 6.2″ (130 x 84 x 157mm)
Weight 1lb 11oz (754g)
Power
Power Input Controller includes slot for a Canon LP-E6 Battery: 6.2 to 8.4 V
USB Port: 4.75 to 9 V (maximum)
Interfaces
Connectors 1 x 5-pin locking connector for Wired Mode
5pin serial + usb for monitor interface, wired control, USB Mini
Runstop Control RED (Epic, Scarlet, Weapon, Raven, etc.)
ARRI (Alexa, Amira, etc.)
Phantom
Sony F55
LANC (Blackmagic, Canon C100/300/500
Sony FS7)
Axes 6 total:
knob
slider
zoom x/y
rollers: a + b
Bluetooth MDR.X, MDR.ACI, RT iOS App
Network
Wireless Teradek RT FHSS 2.4GHz
Bluetooth 2.4GHz
Wireless Range Up to 5000 ft (1500 m) line-of-sight (in
USA/FCC mode)
Up to 500 ft (150 m) indoors
Latency 2ms
Environmental
Operating Temperature -4 to 122ºF (-10 to 50ºC)
Storage Temperature Range -40 to 185°F (-40 to 85ºC)
Certifications
Certifications FCC/IC/CE
MDR.X
Physical
Construction Aluminum alloy base
Dimensions 2.3”W x 0.7”D x 3.7”H
[58mm x 18mm x 94mm]
Weight 4.8 oz (136g)
Power
Power Input Power via 2-pin LEMO 7-17V input
Interfaces
Connectors 1 x Power input
3 x Motor ports
2 x Slave controller inputs
1 x CAM (Camera control port): 6-pin LEMO 0B
1 x USB: Mini-USB (firmware updates)
Runstop Control Including but not limited to:
ARRI ALEXA, ALEXA Mini, AMIRA, etc.
Blackmagic
Canon C100, C300 (MkII+), C500
Panasonic Varicam
Phantom
RED DSMC2, DSMC, ONE
Sony F5, F55, FS7 (MkII+)
Camera Control Support RED DSMC2, RED DSMC control:
EF/AF Focus/Iris
Shutter
ISO
Button features: 2x Magnification, Edge, Focus Assist
Network
Wireless 1 x 2.4 GHz BLE module
1 x 2.4 GHz RT FHSS wireless module
Wireless Range RT FHSS:
Line-of-sight: Up to 5000′ (1500 m) (in USA/FCC mode)
Indoors: Up to 492′ (150 m)

BLE 5:
Theoretical maximum range of 800ft, actual range will vary.
Environmental
Operating Temperature -4 to 122°F (-20 to 50°C)
Storage Temperature Range -40 to 185°F (-40 to 85°C)
MOTR.S
Physical
Gear Pitch 0.8 Mod standard (others available)
Max Torque 0.55 Nm peak, 0.55 Nm continuous
Max Speed 320 rotations/minute
Construction All aluminium
Mountability Compatible with 19, 15 mm Rods
Dimensions 4.1 x 2.2 x 1.2″ (106 x 56 x 31 mm)
Weight 6.5 oz (184 g)
Power
Operating Voltage 7-32V
Power Input 0.1A idle. 2.5A peak
Interfaces
Connectors 2x 0B.4 (chainable)
Network
Wireless –
Environmental
Operating Temperature –20°C to 50°C
CTRL.3
MDR.X
MOTR.S
Physical
Construction Aerospace-grade aluminum billet
Mountability 4x 1/4-20 threads, 1x Arri rossette w/ M6 thread, lanyard mount
Dimensions Excluding Knob & Antenna: 3 x 1.5 x 5.5″ (76 x 38 x 127 mm)
Including Knob & Antenna: 5.1 x 3.3 x 6.2″ (130 x 84 x 157mm)
Weight 1lb 11oz (754g)
Physical
Construction Aluminum alloy base
Dimensions 2.3”W x 0.7”D x 3.7”H
[58mm x 18mm x 94mm]
Weight 4.8 oz (136g)
Physical
Gear Pitch 0.8 Mod standard (others available)
Max Torque 0.55 Nm peak, 0.55 Nm continuous
Max Speed 320 rotations/minute
Construction All aluminium
Mountability Compatible with 19, 15 mm Rods
Dimensions 4.1 x 2.2 x 1.2″ (106 x 56 x 31 mm)
Weight 6.5 oz (184 g)
Power
Power Input Controller includes slot for a Canon LP-E6 Battery: 6.2 to 8.4 V
USB Port: 4.75 to 9 V (maximum)
Power
Power Input Power via 2-pin LEMO 7-17V input
Power
Operating Voltage 7-32V
Power Input 0.1A idle. 2.5A peak
Interfaces
Connectors 1 x 5-pin locking connector for Wired Mode
5pin serial + usb for monitor interface, wired control, USB Mini
Runstop Control RED (Epic, Scarlet, Weapon, Raven, etc.)
ARRI (Alexa, Amira, etc.)
Phantom
Sony F55
LANC (Blackmagic, Canon C100/300/500
Sony FS7)
Axes 6 total:
knob
slider
zoom x/y
rollers: a + b
Bluetooth MDR.X, MDR.ACI, RT iOS App
Interfaces
Connectors 1 x Power input
3 x Motor ports
2 x Slave controller inputs
1 x CAM (Camera control port): 6-pin LEMO 0B
1 x USB: Mini-USB (firmware updates)
Runstop Control Including but not limited to:
ARRI ALEXA, ALEXA Mini, AMIRA, etc.
Blackmagic
Canon C100, C300 (MkII+), C500
Panasonic Varicam
Phantom
RED DSMC2, DSMC, ONE
Sony F5, F55, FS7 (MkII+)
Camera Control Support RED DSMC2, RED DSMC control:
EF/AF Focus/Iris
Shutter
ISO
Button features: 2x Magnification, Edge, Focus Assist
Interfaces
Connectors 2x 0B.4 (chainable)
Network
Wireless Teradek RT FHSS 2.4GHz
Bluetooth 2.4GHz
Wireless Range Up to 5000 ft (1500 m) line-of-sight (in
USA/FCC mode)
Up to 500 ft (150 m) indoors
Latency 2ms
Network
Wireless 1 x 2.4 GHz BLE module
1 x 2.4 GHz RT FHSS wireless module
Wireless Range RT FHSS:
Line-of-sight: Up to 5000′ (1500 m) (in USA/FCC mode)
Indoors: Up to 492′ (150 m)

BLE 5:
Theoretical maximum range of 800ft, actual range will vary.
Network
Wireless –
Environmental
Operating Temperature -4 to 122ºF (-10 to 50ºC)
Storage Temperature Range -40 to 185°F (-40 to 85ºC)
Environmental
Operating Temperature -4 to 122°F (-20 to 50°C)
Storage Temperature Range -40 to 185°F (-40 to 85°C)
Environmental
Operating Temperature –20°C to 50°C
Certifications
Certifications FCC/IC/CE

Additional information

Brand

  • 1 x CTRL.3
  • 1 x MDR.X
  • 1 x MOTR.S
  • 1x MOTR.S Standard Bracket
  • 1x MOTR.S Compact Bracket
  • 1 x Controller Neck-strap
  • 2 x LP-E6 Duracell 1600mAh Li-ion Battery
  • 1 x LP-E6 Battery Charger
  • 5 x Blank Ring
  • 1 x Pre-Marked Iris Ring, 1-32
  • 1 x Pre-Marked Focus Ring,10in
  • 1 x Pre-Marked Focus Ring, 14in
  • 1 x Pre-Marked Focus Ring, 20in
  • 1 x Pre-Marked Focus Ring, 3 ft 6in
  • 1 x Pre-Marked Focus Ring, 6ft
  • 1 x Pre-Marked Focus Ring,10ft
  • 1 x Pre-Marked Focus Ring, 0.25m
  • 1 x Pre-Marked Focus Ring, 0.5m
  • 1 x Pre-Marked Focus Ring, 1m
  • 1 x Pre-Marked Focus Ring, 2m
  • 1 x Pre-Marked Focus Ring, 3m
  • 1 x CTRL.3 Iris Slider Strip, F1-22
  • 1 x CTRL.3 Iris Slider Strip, F1.4-22
  • 1 x CTRL.3 Iris Slider Strip, F2-22
  • 1 x CTRL.3 Iris Slider Strip, F2.8-22
  • 1 x SmallHD Overlay Cable – 5pin to USB-A 3ft/1m
  • 1 x SmallHD Overlay Cable, 5pin to 5pin USB 10in/25cm
  • 1x 2pin to 2pin Power Cable
  • 1x 2pin to P-Tap
  • 1x Motor Cable – ST-ST 8in/20cm
  • 1x Motor Cable – ST-ST 16in/40cm
  • 1x Motor Cable – ST-ST 23in/60cm
  • 1x CAM port to 3pin RS Cable
  • 1x USB-Mini to USB-A for CTRL.3 + MDR.X FW Updates
  • 1x Monitor Bracket for CTRL.3
  • 1x X-Large CTRL.3 / Three MOTR Case with custom foam
