Teradek

RT FIZ Kit (CTRL.5, MDR.X, MOTR.S MAX)

Teradek RT systems combine premium lens-control technology with smart design, allowing you to view and adjust critical lens data and functions directly on your CTRL.5 screen for unparalleled accuracy and dependability on set.

10.102,53€ (ex. VAT)

SKU: 15-0056 Categories: , , Brand:

Teradek RT systems combine premium lens-control technology with smart design, allowing you to view and adjust critical lens data and functions directly on your CTRL.5 screen for unparalleled accuracy and dependability on set.

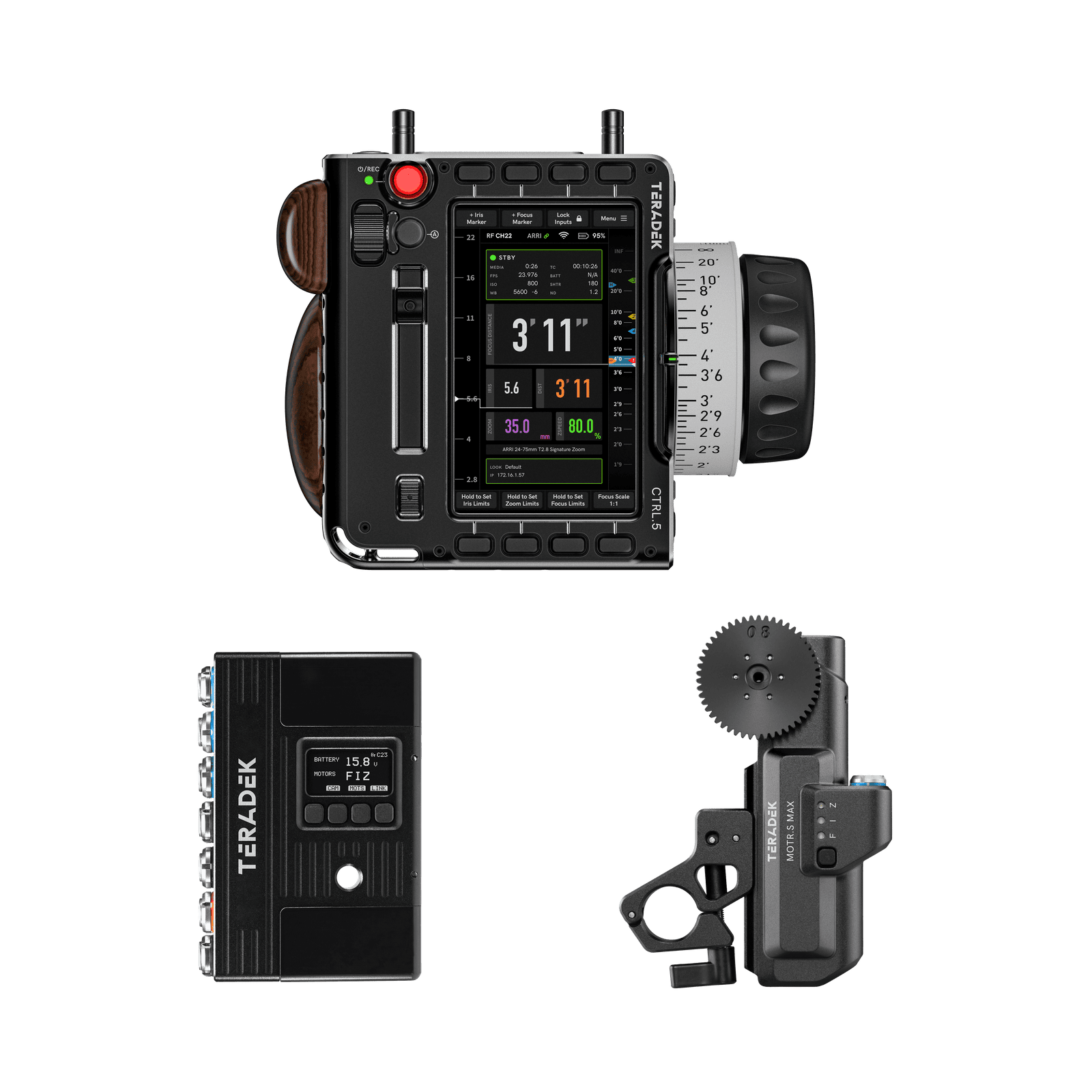

The FIZ Kit includes:
1 x CTRL.5 Handset
1 x MDR.X Receiver
1 x MOTR.S MAX Lens Motor

CTRL.5
CTRL.5 raises the bar for wireless FIZ lens-control handsets with a 5-inch SmallHD Ultra-bright touchscreen powered by CTRL.OS, a task-specific evolution of SmallHD’s PageOS. View critical lens data overlays while pulling focus without taking your eyes off the video feed. Calibrate lenses to pre-marked focus rings and access configurations at any time via the touchscreen or one of eleven programmable function buttons. The hand unit includes a multitude of mounting points for accessories. CTRL.5 is fully cross-compatible across the Teradek RT Lens Control Ecosystem.

MDR.X
Teradek RT receivers are easy to mount, can connect to iOS devices via bluetooth for configuration, control, and support for up to three motors. This FIZ kit comes with the robust multi-motor port MDR.X which offers additional third-party rangefinder integrations (FocusBug and CineRT). The Teradek TOF.1 rangefinder works with both MDR.S and MDR.X.

MOTR.S MAX
Teradek RT motors offer generous power and speed for driving even the heaviest lenses, giving you responsiveness & precision with every pull. MOTR.S MAX offers 2 Nm of peak torque and operates nearly silently even at the highest speeds thanks to its brushless design. The optional MOTR.S is a more compact version of the MAX; it offers high speed while being almost 20% lighter. MOTR.S is sold separately.

Note: While three RT Motor Cables are included in the RT FIZ Wireless Lens Control Kit (ST-ST 0.2m, ST-ST 0.4m, and ST-ST 0.6m), additional RT Motor Cables are available in specific lengths for additional motors (20cm, 30cm, or 60cm).

Model FIZ Kit (CTRL.5, MDR.X, MOTR.S MAX)
CTRL.5
Physical
Dimensions 6.6 x 6.6 x 3.3 (168.28 x 168.29 x 82.90 mm)
Weight 1lb 83 oz (830g)
Power
Power Input NP-F
Interfaces
Connectors 5-pin USB port and 4-pin AUX port
Runstop Control RED (Epic, Scarlet, Weapon, Raven, etc.), ARRI (Alexa, Amira, etc.), Phantom, Sony F55, LANC (Blackmagic, Canon C100/300/500 Sony FS7)
Axes 4 total:
knob
slider
rocker
wheel
Bluetooth Bolt Pairing and Control (coming soon)
Network
Wireless FW Updates
Camera Control (coming soon)
Wireless Range 5000 ft
MDR.X
Physical
Construction Aluminum alloy base
Dimensions 2.3”W x 0.7”D x 3.7”H
[58mm x 18mm x 94mm]
Weight 4.8 oz (136g)
Power
Power Input Power via 2-pin LEMO 7-17V input
Interfaces
Connectors 1 x Power input
3 x Motor ports
2 x Slave controller inputs
1 x CAM (Camera control port): 6-pin LEMO 0B
1 x USB: Mini-USB (firmware updates)
Runstop Control Including but not limited to:
ARRI ALEXA, ALEXA Mini, AMIRA, etc.
Blackmagic
Canon C100, C300 (MkII+), C500
Panasonic Varicam
Phantom
RED DSMC2, DSMC, ONE
Sony F5, F55, FS7 (MkII+)
Camera Control Support RED DSMC2, RED DSMC control:
EF/AF Focus/Iris
Shutter
ISO
Button features: 2x Magnification, Edge, Focus Assist
Network
Wireless 1 x 2.4 GHz BLE module
1 x 2.4 GHz RT FHSS wireless module
Wireless Range RT FHSS:
Line-of-sight: Up to 5000′ (1500 m) (in USA/FCC mode)
Indoors: Up to 492′ (150 m)

BLE 5:
Theoretical maximum range of 800ft, actual range will vary.
Environmental
Operating Temperature -4 to 122°F (-20 to 50°C)
Storage Temperature Range -40 to 185°F (-40 to 85°C)
MOTR.S MAX
Physical
Gear Pitch 0.8 Mod standard (others available)
Max Torque 2 Nm peak, 2 Nm continuous
Max Speed 168 rotations/minute
Construction All aluminium
Mountability Compatible with 19, 15 mm Rods
Dimensions 4.6 x 2.4 x 1.2″ (117.5 x 59 x 31 mm)
Weight 7.8 oz (222 g)
Power
Operating Voltage 7-32V
Power Input 0.1A idle. 2.5A peak
Interfaces
Connectors 2x 0B.4 (chainable)
Network
Wireless –
Environmental
Operating Temperature –20°C to 50°C
CTRL.5
MDR.X
MOTR.S MAX
Physical
Dimensions 6.6 x 6.6 x 3.3 (168.28 x 168.29 x 82.90 mm)
Weight 1lb 83 oz (830g)
Physical
Construction Aluminum alloy base
Dimensions 2.3”W x 0.7”D x 3.7”H
[58mm x 18mm x 94mm]
Weight 4.8 oz (136g)
Physical
Gear Pitch 0.8 Mod standard (others available)
Max Torque 2 Nm peak, 2 Nm continuous
Max Speed 168 rotations/minute
Construction All aluminium
Mountability Compatible with 19, 15 mm Rods
Dimensions 4.6 x 2.4 x 1.2″ (117.5 x 59 x 31 mm)
Weight 7.8 oz (222 g)
Power
Power Input NP-F
Power
Power Input Power via 2-pin LEMO 7-17V input
Power
Operating Voltage 7-32V
Power Input 0.1A idle. 2.5A peak
Interfaces
Connectors 5-pin USB port and 4-pin AUX port
Runstop Control RED (Epic, Scarlet, Weapon, Raven, etc.), ARRI (Alexa, Amira, etc.), Phantom, Sony F55, LANC (Blackmagic, Canon C100/300/500 Sony FS7)
Axes 4 total:
knob
slider
rocker
wheel
Bluetooth Bolt Pairing and Control (coming soon)
Interfaces
Connectors 1 x Power input
3 x Motor ports
2 x Slave controller inputs
1 x CAM (Camera control port): 6-pin LEMO 0B
1 x USB: Mini-USB (firmware updates)
Runstop Control Including but not limited to:
ARRI ALEXA, ALEXA Mini, AMIRA, etc.
Blackmagic
Canon C100, C300 (MkII+), C500
Panasonic Varicam
Phantom
RED DSMC2, DSMC, ONE
Sony F5, F55, FS7 (MkII+)
Camera Control Support RED DSMC2, RED DSMC control:
EF/AF Focus/Iris
Shutter
ISO
Button features: 2x Magnification, Edge, Focus Assist
Interfaces
Connectors 2x 0B.4 (chainable)
Network
Wireless FW Updates
Camera Control (coming soon)
Wireless Range 5000 ft
Network
Wireless 1 x 2.4 GHz BLE module
1 x 2.4 GHz RT FHSS wireless module
Wireless Range RT FHSS:
Line-of-sight: Up to 5000′ (1500 m) (in USA/FCC mode)
Indoors: Up to 492′ (150 m)

BLE 5:
Theoretical maximum range of 800ft, actual range will vary.
Network
Wireless –
Environmental
Operating Temperature -4 to 122°F (-20 to 50°C)
Storage Temperature Range -40 to 185°F (-40 to 85°C)
Environmental
Operating Temperature –20°C to 50°C

Additional information

Brand

  • 1 x CTRL.5
  • 1 x MDR.X
  • 1 x MOTR.S MAX with Standard Bracket
  • 1 x Compact Bracket for MOTR.S/MAX
  • 1 x Blank Rings
  • 1 x Pre-Marked Iris Ring
  • 1 x Set of Pre-Marked Focus Rings – Imperial
  • 1 x Set of Pre-Marked Focus Rings – Metric
  • 1 x Thumb Screw for mounting MDR.X
  • 1x 5pin to 5pin USB Cable, Straight to Right Angle (12in / 0.3m)
  • 1 x 2pin to P-Tap cable, 18in / 0.46m
  • 1 x 2pin to 2pin cable, 18in / 0.46m
  • 1 x USB-A to USB-Mini for MDR.X FW Updates
  • 1 x Motor Cable 7.8 in / 0.2m
  • 1 x Motor Cable 15.75 in / 0.4m
  • 1 x Motor Cable 23.6 in / 0.6m
  • 1 x 6pin CAM to 3pin R/S Cable for MDR.S/X
  • 1 x Hinged Monitor Mount for CTRL.5
  • 1 x Hand Strap for CTRL.5
  • 1 x Neck Strap for CTRL.5
  • 1 x Screen Protector for CTRL.5 (Matte)
  • 1 x Palm Grip for CTRL.5 (Wood)
  • 1 x Thumb Grip for CTRL.5 (Wood)
  • 1 x Knob Guard for CTRL.5 (Wood)
  • 1 x SKB Case with Custom Foam for CTRL.5
  • 2 x 2.4 GHz Antenna (28.4mm length 0.56db rp-sma)
  • 1 x Silicone Knob Grip – Black
