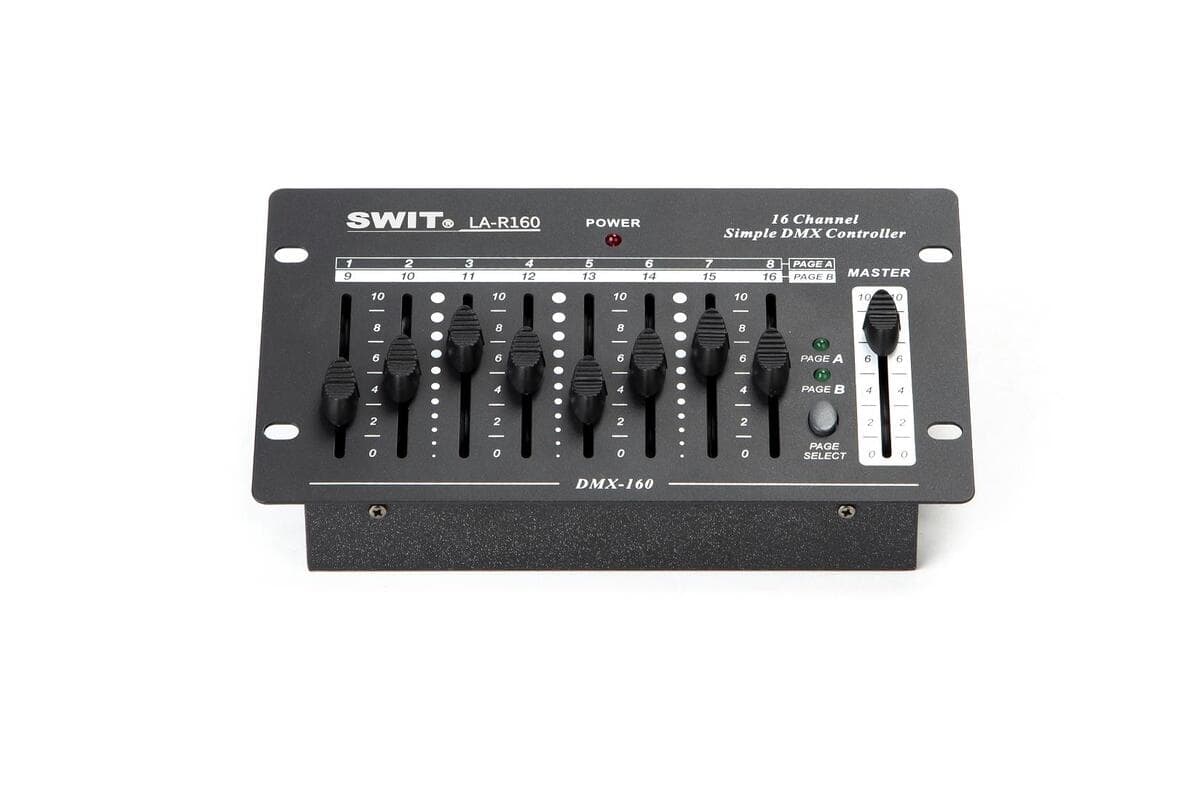

LA-R160 is a compact and user-friendly 16-ch DMX lighting console designed for simplicity without sacrificing capability. Fully compliant with the DMX512 protocol, built for anyone to start controlling lights instantly—no experience required.
Key features
- Portable DMX-512 standard console
- 8× faders with A/B page switch to 16 channels
- 1× Master fader control all 16 channels
- 3-pin female DMX port with 5-pin converter
- AC-DC 9V 1A input, 2W power consumption
- Support 9V PP3 battery power
- 9.5-inch half rack size 3U install

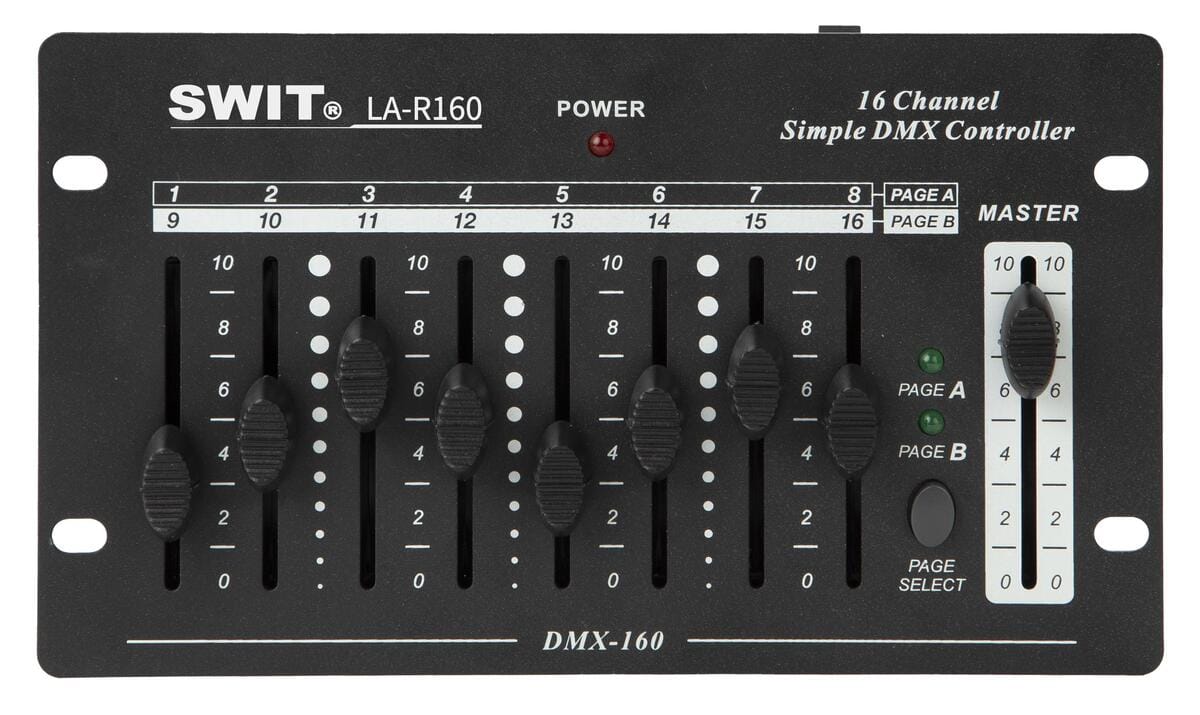

A/B Page Switching
LA-R160 provides 8 smooth faders, and by A/B page switching, you can seamlessly access and control 16× DMX channels. The dedicated MASTER fader gives you instant overall control of the intensity for all 16 channels.

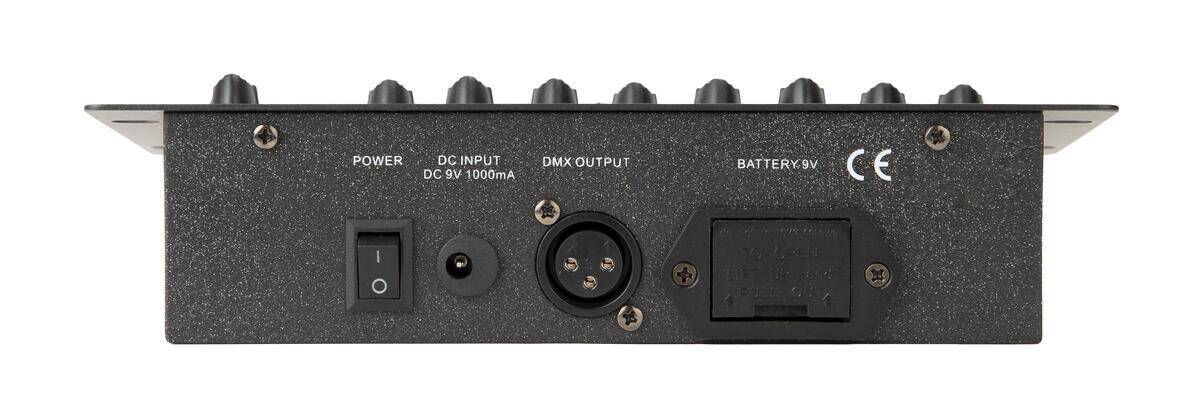

Interface
The DMX output adopts 3-pin XLR female port, and a 3-pin to 5-pin converter is provided in the package, to ensure compatibility with a wide range of equipment. The power input port is a 9V 1A DC barrel and supplied with a 100-240V AC adapter of UK/EU/US/AU plug standard option.

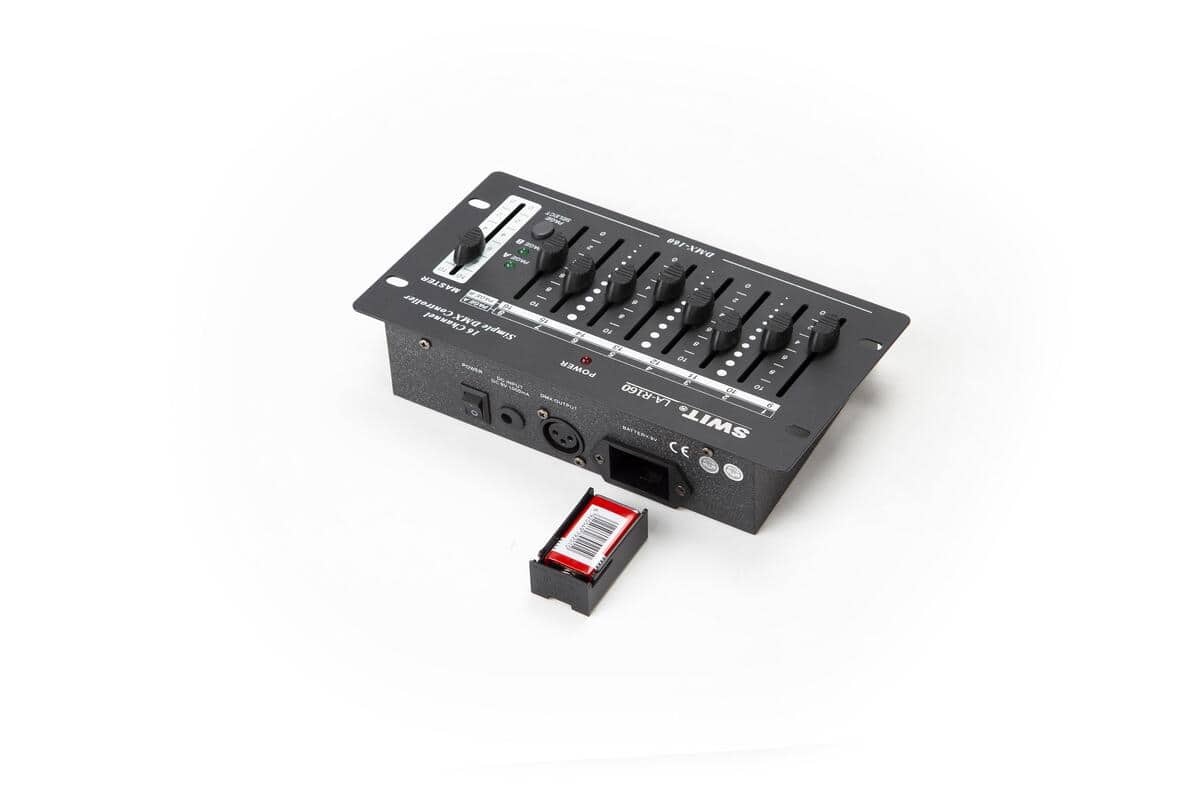

9V PP3 Battery Power
Unplug and create anywhere. The LA-R160 features an internal compartment for a standard 9V PP3 battery, providing true cable-free operation for at least 1 hour of continuous use. Perfect for mobile setups, quick adjustments on location, or as a reliable backup.
