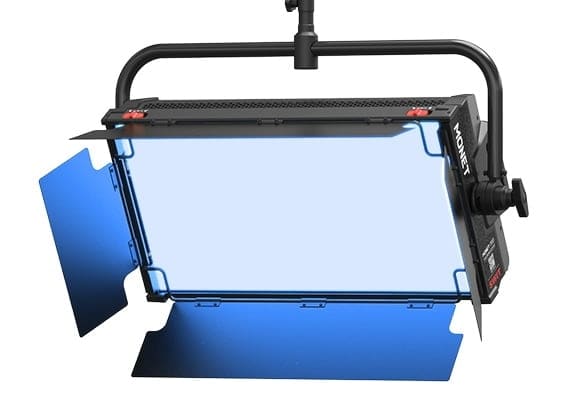

MONET-700, an 2×1 size ultimate 700W high power RGBWW Studio Panel Light designed for broadcast studios, virtual studios, live events and film sets, soft and high bright output, provides with advanced control options and versatile accessory mounting and power supply for professional setup.
Key features
- 700W RGB + 700W Warm + 700W Cold LEDs
- Time-Division drive, 100% power color lights
- 2×1′ size, 20000Lux @ 1meter
- Silent mode by fans switching off
- Only 40dB sleeping silent
- IEC 62471 Photobiological Safety certificate
- 2800K-10000K, G/M±1.00 adjustment
- CRI Ra 95, TLCI 95, SSI(D55) 75
- CCT/HSI/RGB/CIE/GEL/EFF color modes
- 20x Rosco and 20x LEE Gels
- 3.5-inch color LCD visualized color pick
- DMX512 channels settings for various modes
- Built-in Lumenradio CRMX Receiver
- EtherCON Art-Net IP control
- IOS/Android APP bluetooth control
- PowerCON TRUE1 AC in and loop
- 3-Pin XLR DC 48V power input
- Open face accessory quick install
- With diffuser board and 4-leaf barn door
- Optional honeycomb, soft box, Pole-operated Yoke
High Bright Soft Diffusing Output
MONET-700 boasts an impressive high illuminance of 20,000 Lux @ 1 meter, makes it an ideal choice for various large-scale studio lighting applications, ensuring that every corner of your set can be sufficiently illuminated.
Full Power R/G/B Color Output
SWIT Patent Tech – CTDM Drive
The ordinary RGB lights can only output 30%-60% power when they are in color modes.With SWIT patented – CTDM (Color Light Time Division Multiplexing) technology, MONET-700 can output 100% full power at any pure R/G/B colors, 3 times brighter than other RGB panels with the same power.
IEC 62471 Photobiological Safe Certificated
The light has been tested and certificated as “Exempt – No Photobiological Hazard” by the IEC 62471:2008 standard, without the risk of ultraviolet radiation, high energy blue light, flicking. In specific locations such as churches, museums, and ancient buildings, using this lighting fixture can effectively prevent the fading and peeling of mural artifacts, thereby protecting cultural heritage.

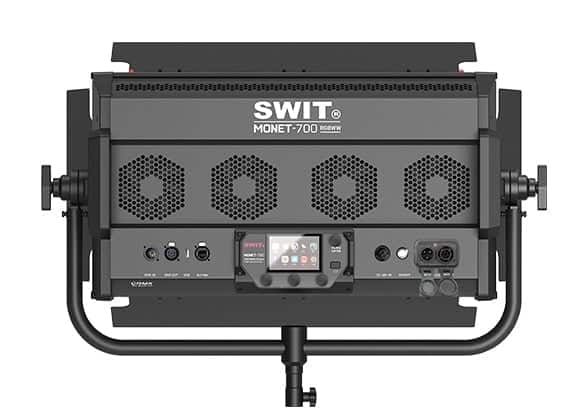

Control Panel
The rear control panel of MONET-700 provides multiple power and control interfaces, supports 5-pin DMX in & out, RJ45 Art-Net connection, USB-A 5V power out and firmware update, 3-pin XLR DC48V power in, PowerCON True1 AC in and out, and a large color LCD with menu and hot keys for convenient color picking.
On-board 3.5-inch Color LCD
Visualized color selection
DMX, Art-Net, CRMX Receiving
MONET-700 supports DMX-512 in and out, Art-Net IP control over ethernet, and has CRMX Rx Built-in, giving you the flexibility to manage your lighting from various platforms.
Bluetooth APP Control
Download “SWIT Console” APP on IOS App Store or Google PLAY, to connect and control MONET lights via Bluetooth.
SWIT Console APP
The APP control supports CCT, HSI, RGB, CIE color modes, and select preset color GELs and light effects.
True 1 AC and 48V DC Power
MONET-700 provides PowerCON True1 100-240V AC in and loop out, for chain connection in the studio setup, and a 3-pin XLR DC 48V power input for convenient mobile lighting setup.

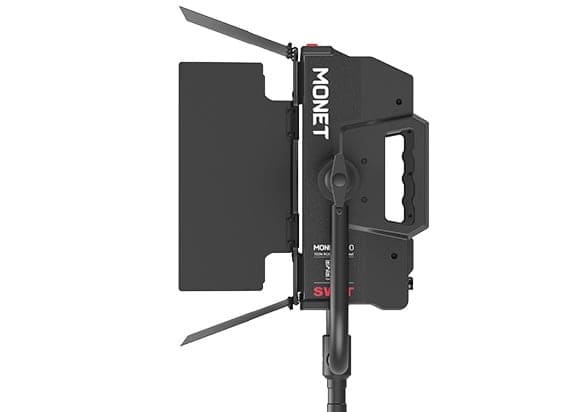

Studio Yoke
MONET-700 comes with a studio yoke of both 5/8” (16mm) baby pin female and 1-1/8” (29mm) junior pin male head, fit for all kinds of light stands, studio hooks or pantographs.

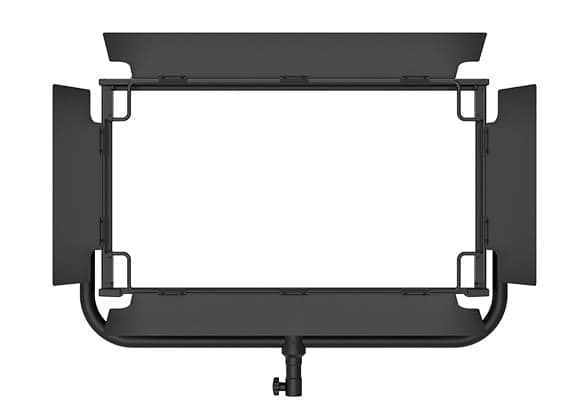

Open Face Accessory Mounting
MONET-700 has an open face structure for multiple accessories, includes diffuser, honeycomb, and 4-leaf barndoor, of convenient quick-release sliding mounting.
Optional Soft Box
Foldable quick mounting soft box, optional purchase, illuminance 14,500Lux@1m.SKU: LA-BX700
