LUPO

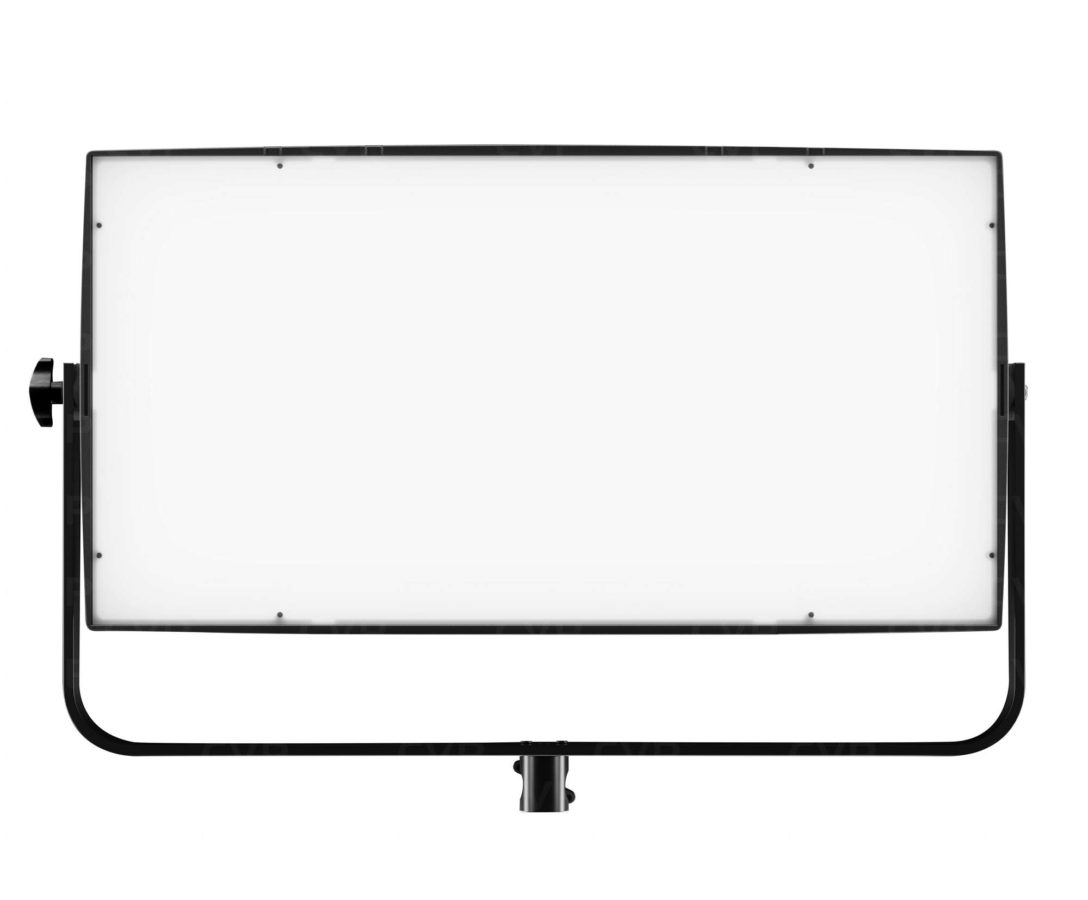

ULTRAPANEL DUAL COLOR 60 SOFT

Lupo LUP-814 (LUP814) Ultrapanel Dual Colour 60 Soft 2×1 LED Light. The Brightest 2×1 Soft LED !

1.798,00 (ex. VAT)

SKU: 814 Categories: , ,

The Brightest 2×1 Soft LED!

The new Ultrapanel Dual Colour 60 Soft is the ultimate 2 x 1 LED panel with its 17.000 lux at 1 m and more than 2000 Lux at 3 m. It is a deluxe version of the Superpanel Dual Colour 60 Soft with all the technical and optical features of the latter but with double the light output. Top CRI and TLCI, AC/DC operation with practical and economical 14 V and 160 Wh batteries, DMX, RDM and Bluetooth Long Range control. The Ultrapanel is a surprisingly practical light with ultra-professional performance, suitable for film sets and TV studios that need high performance lighting. The incredible light output has been achieved by using the latest generation of LEDs and the light beam angle is the same as the Superpanel Soft models (120°).

Practical AC/DC Operation

The new Ultrapanel models work with inexpensive and widely available 14.8 V batteries. Lupo offers a range of battery powered accessories for all Ultrapanel models and all other LED panels and Fresnel LEDs. You will not have to worry about anything and just have to choose the battery kit that includes: two 160 Wh batteries, two v-lock plates, a dedicated charger and two d-tap cables. Of course, all of our models are compatible with the best lithium batteries on the market, but with Lupo accessories we guarantee a practical, economical and professional solution.

Bluetooth Long Range, DMX/RDM

The Ultrapanel Dual Colour 60 Soft is the LED panel that will make your professional shooting much easier. The technopolymer body, reinforced with carbon fibre, makes it robust and suitable for an intensive use. All Lupo lighting products are available with a pole operated yoke for use in television studios of all sizes. The operation of the Ultrapanel Soft pole operated yoke is simple, effective and reliable over time. All models with pole operated yoke are supplied with a 28 mm spigot.

Outstanding Colour Rendering

Thanks to the exclusive True Colour Technology, the Ultrapanel have a perfect colour output and do not produce casts. This fundamental and exclusive feature enables to avoid post-production interventions and allows a correct mixing with other light sources (like sun light). The Ultrapanel Dual Colour 60 Soft like all latest generation Lupo LED lights features DMX, RDM and Bluetooth Long Range control for remote use.

Tuneable White

All models in the Ultrapanel range are designed to make life easier for professionals in the photographic and video industry, and silent operation is one of the key features of all of our lighting products. The high-frequency electronics guarantee a truly flicker-free operation even for high-speed video shooting. Put the Ultrapanel Dual Colour 60 Soft to the test. You will be amazed by its performances

Dimensions (cm) 673 x 340 x 113 mm
Dimensions (in) 26.4 x 13.5 x 4.4 in
Weight (kg) 9 kg
Weight (lb) 19.8 lb
CRI (Colour Rendering Index) 95
TLCI (Television Lighting Consistency Index) 96
Estimated LED lifetime (L80) 50,000 hours
Dimmer 0 – 100 included
Dimming curves mode Linear, Exponential, Logarithmic
DMX module included
DMX (bit) 8 bit / 16 bit
Connection for 14.8 V battery with standard XLR 4 pin connector (pin 1: negative / pin 4: positive) included
Standard XLR 5 pin connectors to DMX console included
Watt consumption 400 W
Watt output (equivalent to tungsten) 8000 W
Firmware upgrades through USB port
Colour temperature 2800 K – 6500 K
Voltage AC 90 V – 240 V
Voltage DC 14.8 V
Light beam 120°
Frequency (input) 50 / 60 Hz
Compliance CE
Remote control Bluetooth Long Range / DMX / RDM
Ambient temperature Max: + 45°C / Min: – 10°C
Power factor 0.9
Photometric data
Lux at 1 m – 3.2 ft 6500 K: 17300
5600 K: 16600
3200 K: 15100
Lux at 2 m – 6.5 ft 6500 K: 4400
5600 K: 4280
3200 K: 4050
Lux at 3 m – 9.8 ft 6500 K: 2150
5600 K: 2080
3200 K: 1950
Lux at 4 m – 13.1 ft 6500 K: 1320
5600 K: 1290
3200 K: 1180
Lux at 5 m – 16.4 ft 6500 K: 850
5600 K: 840
3200 K: 800
