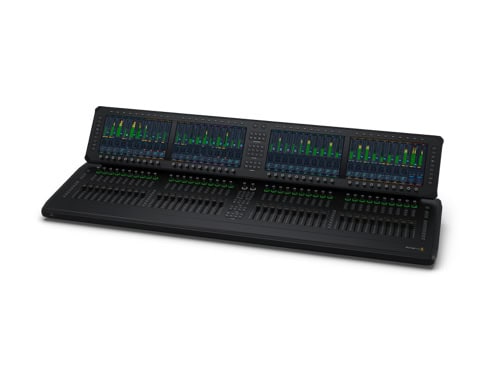

Fairlight Live Audio Panel 40

Connections

• 2110 IP Video and Audio Networks: 2 x 10G RJ45 Ethernet connections.
• Senders and Receivers per 10G Pair: Supports 2110 IP video and audio plus analog audio in and out of panel.
• 1G Control Network: 1 x 1G RJ45 for computer connection, configuration and software updates.
• HDMI Monitor Outputs: 1
• Analog Audio Inputs: 1 x 3-pin XLR for mic level analog audio. 1 x 5-pin XLR for talkback headset.
• Analog Audio Outputs: 2 x 3-pin XLR for line level analog audio. 1 x 5-pin XLR for talkback headset. 2 x 6.35mm headphone jack.
• Computer Interface: 1 x USB Type‑C for computer connection, software configuration and software updates.
• HDMI Video Output: 1 x HDMI Type A.
• Power: 2 x IEC C14 power inputs.

Display

• Built in Display: 4 x 11.6 inch 1920 x 1080 LCD touch screens.
• HDMI Out: HD or Ultra HD
• Video Standards: 720p50, 720p59.94, 720p60
  1080i50, 1080i59.94, 1080i60
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

Controls

• Channel Faders: 40 flying faders.
• Channel Rotary Knobs: 40 multi function rotary knobs with ring LED indicators.
• Channel Control Buttons: Select, Solo and Mute for each channel.
• Channel Focus: Processing and input controls for selected channel.
• Contextual Rotary Knobs: 40 rotary knobs to adjust associated parameters appearing on lower row of focus and view screens.
• Contextual Buttons: 40 buttons to activate functions or adjust parameters appearing on upper row of focus and view screens.
• On Line Button: Online mode follows timecode from external source.
• On Air Button: On Air mode locks panel.
• Player/Recorder Keypad: Controls for the Player/Recorder support recording performances/rehearsals, playback for Virtual Sound Checks
• Cue Player Keypad: Cue Player controls – Jingle/Cart player for SFX stingers plus supports MIDI cues for triggering external devices.
• Snapshots Keypad: Store and recall mixer settings and configurations.
• Control Room and Monitoring Keypad: Controls for source selection and monitor circuit selection.
• Masters Keypad: Controls for master views and enabling masters on faders. View Only selection sends metering views to screen, when off selection targets faders.
• Globals Keypad: Global controls include forward, back, undo and escape plus access the setup screen and 3 x USER defined buttons.
• Talkback Keypad: Controls for talkback to 4 groups, direct to channel and ALL. Dedicated cue mode button plus access the talkback setup screen.

Talkback

• Microphone: 1 x built in talkback microphone.
• Talkback Connections: 1 x 5-pin XLR headset 1 x 3-pin XLR Mic input 2 x 6.35mm headphone sockets 2 x 3-pin XLR audio monitor outputs.
• Talkback Selection: Talkback groups, direct to channel, or all.
• Talkback Groups: 4

Software

• Software Included: Fairlight Live Blackmagic OS Internal software upgrade via updater application.

Operating Systems

• Mac 15.0 Sequoia,
  Mac 26.0 Tahoe or later.
• Windows 11

Settings Control

• Fairlight Live software when connected by Ethernet or USB.

Power Requirements

• Power Supply: 2 x 100 ‑ 240V AC 50/60Hz internal power supplies.
• Power Inputs: 2 x IEC C14 sockets.
• Power Usage: TBC

Environmental Specifications

• Operating Temperature: 0° to 40°C (32° to 104°F)
• Storage Temperature: -20° to 60°C (-4° to 140°F)
• Relative Humidity: 0% to 90% non-condensing

Warranty

• 1 Year Limited Manufacturer’s Warranty.
